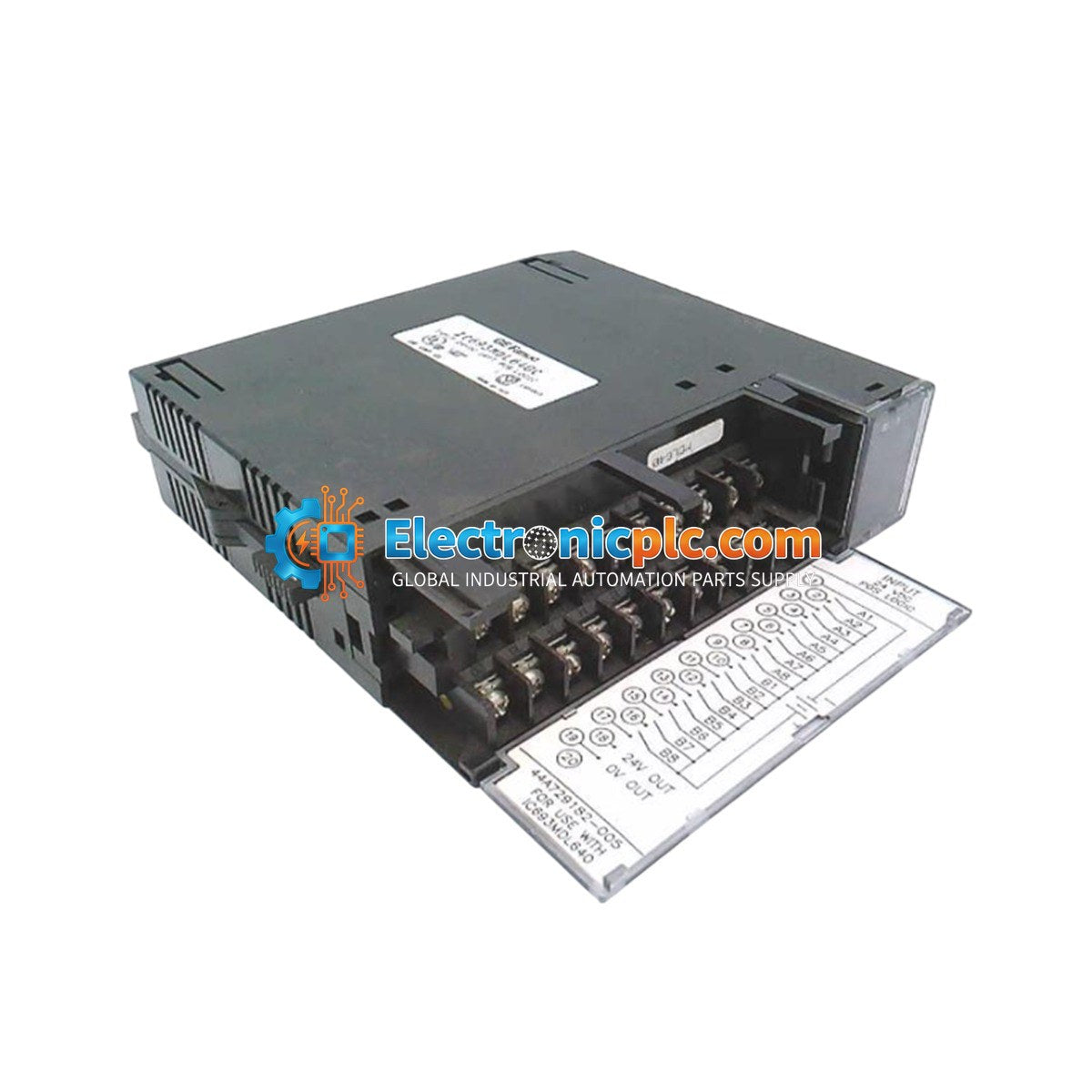

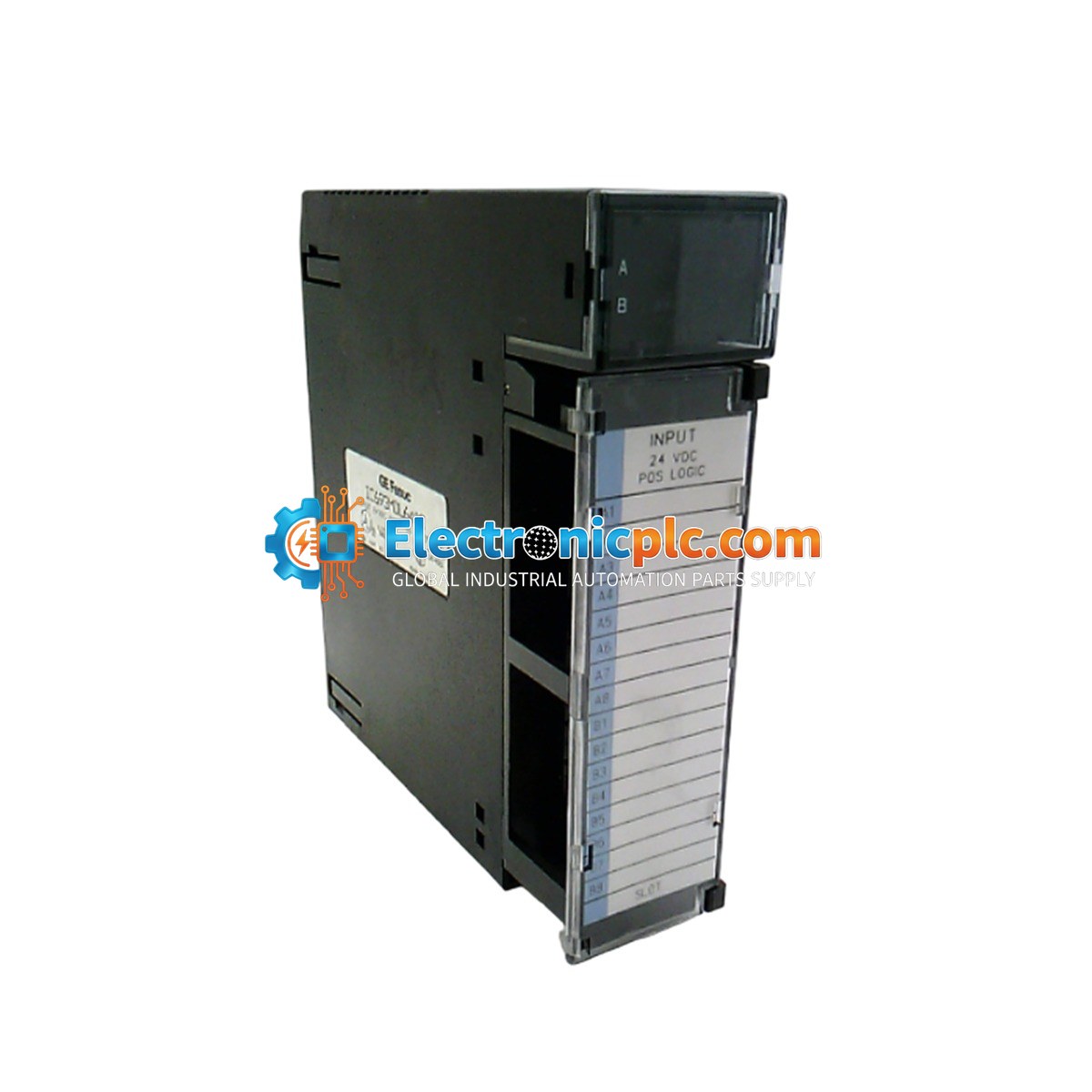

General Electric IC693MDL640 90-30 Series 16-Point 24VDC Positive Logic Input Module

General Electric IC693MDL640 90-30 Series 16-Point 24VDC Positive Logic Input Module

Description

The IC693MDL640 is a 24VDC positive logic input module designed for the General Electric Series 90-30 PLC system. This module provides 16 discrete input points grouped together with a common...

24 people are viewing this right now

Availability: Low stock: 3 left

SKU: IC693MDL640
Vendor: General Electric
Category: Digital Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The IC693MDL640 is a 24VDC positive logic input module designed for the General Electric Series 90-30 PLC system. This module provides 16 discrete input points grouped together with a common power input terminal. It is engineered to sink current from input devices to the user common or negative power bus, making it compatible with a variety of field devices including pushbuttons, limit switches, and proximity sensors. Each input point features an integrated LED status indicator to provide visual confirmation of the ON/OFF state.

Features

  • 16 discrete input points in a single group
  • 24VDC positive logic configuration
  • 1500V RMS isolation between field and logic sides
  • Integrated LED status indicators for each input point
  • Compatible with standard Series 90-30 baseplates

Applications

  • Assembly line tracking and sensor signal monitoring
  • Injection molding machine cycle control via limit and pressure switches
  • Fluid level and valve position monitoring in water treatment systems
  • Chemical delivery system dosing control
  • Substation circuit breaker and status monitoring

Technical Specifications

Model IC693MDL640
Input Points 16
Rated Voltage 24VDC
Input Voltage Range -30 to +30VDC
On-State Voltage 15 to 30VDC
Off-State Voltage -30 to 5VDC
On-State Current 4mA (minimum)
Off-State Current 1.5mA (maximum)
Response Time 7ms (typical)
Isolation 1500V RMS (field to logic)
Operating Temperature 0 to 60 degC
Humidity 5 to 95% non-condensing

Installation Guidelines

  • Ensure all power to the PLC rack is disconnected before inserting or removing the module.
  • The module can be installed in any I/O slot of a 5-slot or 10-slot baseplate, excluding Slot 1 (reserved for the CPU).
  • Align the module carefully with the guide rails on the baseplate.
  • Press the module firmly into the backplane connector until it is fully seated.
  • Secure the module using the integrated latch at the bottom to ensure a reliable connection.
  • Maintain proper ventilation within the enclosure to ensure the module operates within its specified temperature range.

FAQs

What is the GE IC693MDL640?

The GE Fanuc IC693MDL640 is a 24-volt DC, 16-point Positive Logic Input module designed for the Series 90-30 PLC system. It features 16 input points in one group with a common power input terminal.

What is the rated voltage of the IC693MDL640?

It operates on a rated voltage of 24 VDC.

Where can the IC693MDL640 be installed?

It can be installed in any I/O slot on the 5-slot or 10-slot backplane of a 90-30 series PLC system, excluding the CPU slot.

How do I know if an input is active?

There are 16 status LEDs at the top of the module that indicate the ON/OFF status of each individual input point.
