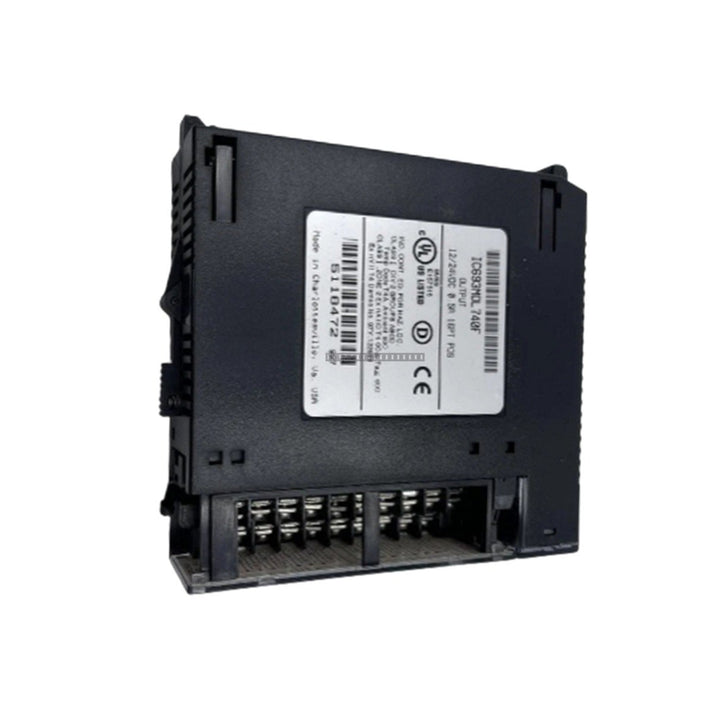

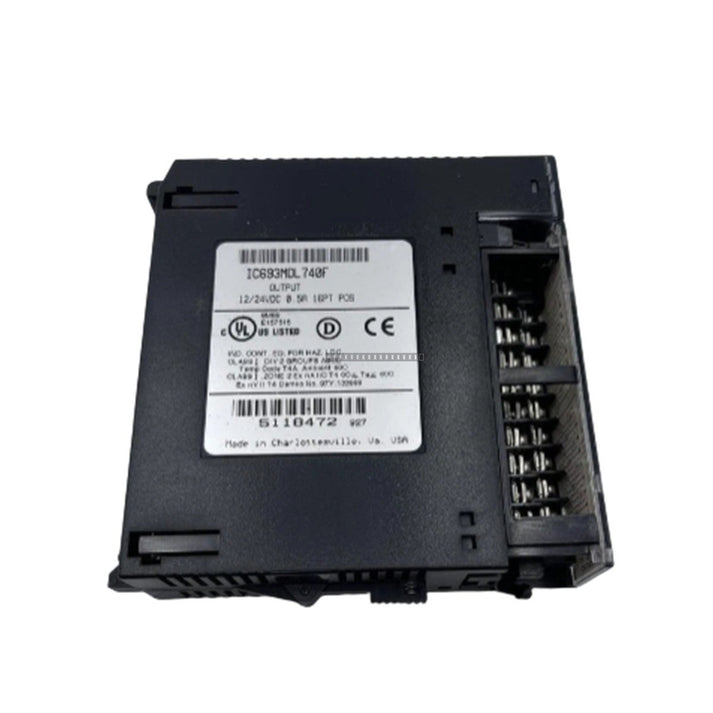

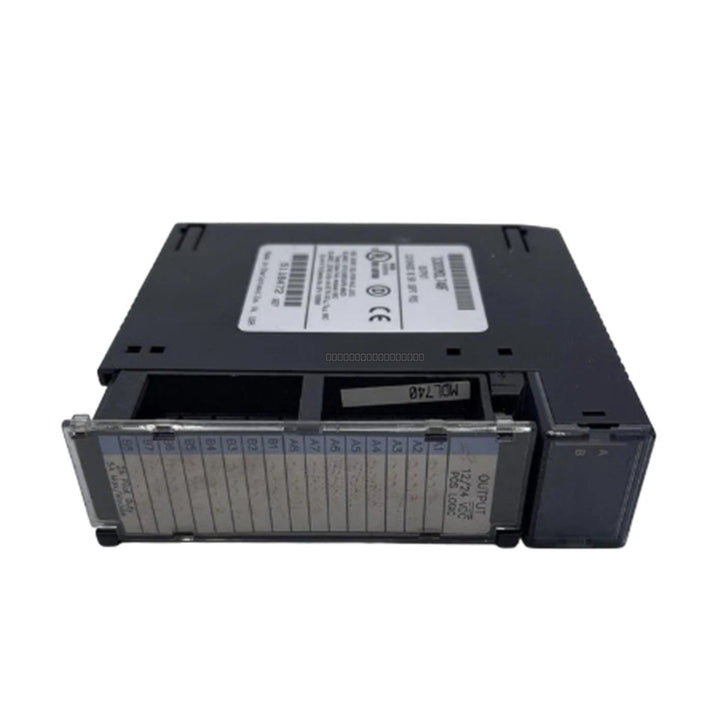

GE Fanuc IC693MDL740F Series 90-30 16-Point DC Output Module

GE Fanuc IC693MDL740F Series 90-30 16-Point DC Output Module

Description

The IC693MDL740F is a 16-point DC output module designed for use with the GE Fanuc Series 90-30 Programmable Logic Controller (PLC) system. This module provides a reliable interface for controlling...

18 people are viewing this right now

Availability: Low stock: 5 left

SKU: IC693MDL740F
Vendor: GE FANUC
Category: DC Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The IC693MDL740F is a 16-point DC output module designed for use with the GE Fanuc Series 90-30 Programmable Logic Controller (PLC) system. This module provides a reliable interface for controlling discrete field devices such as solenoid valves, motor starters, and industrial indicators. Operating on a 12/24 VDC logic level, it utilizes a positive logic configuration to source current from the power bus to connected loads, ensuring stable performance in demanding automation environments.

Features

  • 16 independent output points for versatile control of field devices.
  • Positive logic (source-type) output configuration.
  • Galvanic isolation between output points and the PLC backplane to minimize electrical noise.
  • Integrated protection circuitry against over-current and short-circuit conditions.
  • Designed for high reliability and rapid response times in industrial process control.
  • Standard terminal block interface for secure field wiring and simplified maintenance.

Applications

This module is suitable for a wide range of industrial automation applications, including manufacturing assembly lines, process control systems, and machinery management where discrete DC output control is required for field actuators and indicators.

Technical Specifications

Model IC693MDL740F
Brand GE Fanuc
Series Series 90-30
Number of Outputs 16 points
Rated Voltage 12/24 VDC
Output Voltage Range 10.2 to 30 VDC
Output Current 0.5 A per point (8 A per common)
Power Consumption 150 mA from 5 VDC bus
Operating Temperature 0 to 60 degC

Installation Guidelines

  • Ensure the PLC system power is disconnected before installing or removing the module from the rack.
  • Verify that the module is fully seated in the backplane slot and secured with the provided mounting hardware.
  • Use appropriate wire gauges for field connections to the terminal block to ensure secure contact.
  • Maintain proper grounding practices for the PLC chassis to reduce EMI/RFI interference.
  • Ensure adequate ventilation in the control cabinet to maintain operating temperatures within the 0 to 60 degC range.
  • Handle with care to prevent electrostatic discharge (ESD) damage to the internal circuitry.

FAQ

What is the output type of the IC693MDL740F?
The IC693MDL740F is a positive logic (source-type) DC output module, meaning it sources current from the power supply to the load.

Can this module drive inductive loads?
Yes, the module is designed to drive both resistive and inductive loads within its rated current capacity of 0.5 A per point.

Is the module galvanically isolated?
Yes, the output points are galvanically isolated from the backplane to protect the PLC from electrical noise and potential surges.
