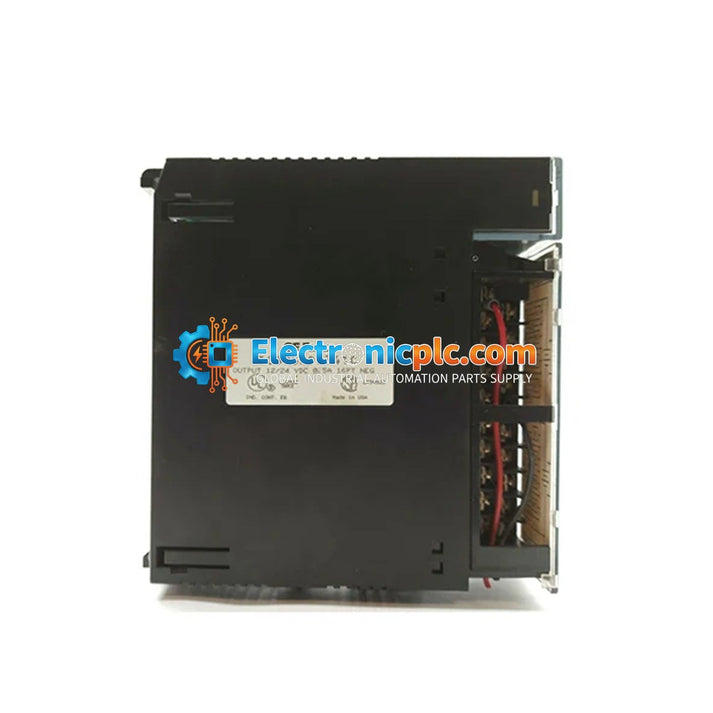

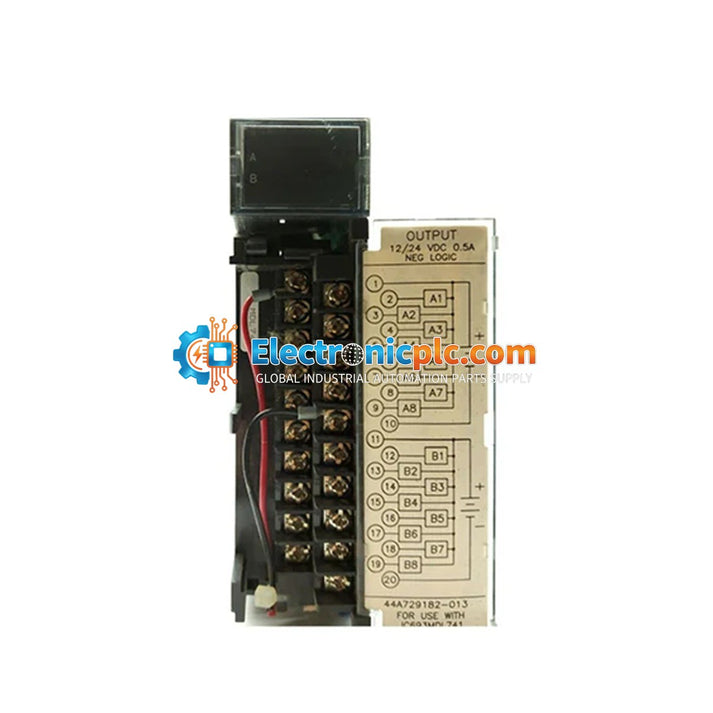

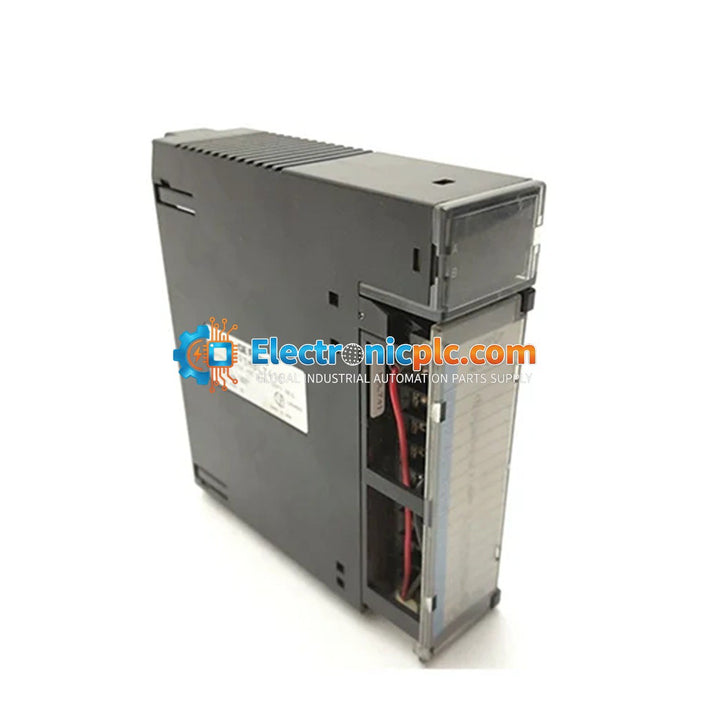

General Electric IC693MDL741 90-30 Series 16-Point Discrete Output Module

General Electric IC693MDL741 90-30 Series 16-Point Discrete Output Module

Description

The IC693MDL741 is a 16-point discrete output module designed for the General Electric Series 90-30 Programmable Logic Controller (PLC) platform. This module provides 12/24 VDC negative logic output capability, making...

23 people are viewing this right now

Availability: Low stock: 6 left

SKU: IC693MDL741
Vendor: General Electric
Category: Discrete Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The IC693MDL741 is a 16-point discrete output module designed for the General Electric Series 90-30 Programmable Logic Controller (PLC) platform. This module provides 12/24 VDC negative logic output capability, making it suitable for a wide range of industrial control applications. It features 16 output channels organized into two isolated groups of eight points each, allowing for flexible wiring configurations in control panels.

Features

  • 16 discrete output points arranged in two groups of eight.
  • Negative logic (sinking) configuration: sinks current from loads to the user common or negative power bus.
  • Compatible with 12/24 VDC field devices including solenoids, motor starters, and indicators.
  • Integrated LED status indicators for each of the 16 output points.
  • Color-coded blue insert for easy identification as a low-voltage module.
  • Designed for installation in any I/O slot of a Series 90-30 baseplate.

Technical Specifications

Model Number IC693MDL741
Output Points 16 (2 groups of 8)
Output Voltage Range 12 to 24 VDC (+20%, -15%)
Output Current 0.5 A per point / 2 A per common
Output Voltage Drop 0.5 V maximum
Off-state Leakage 1 mA maximum
Response Time (On/Off) 2 ms maximum
Backplane Current Draw 110 mA (all outputs ON) from 5V bus
Isolation 1500 V (field to logic), 500 V (between groups)

Applications

  • Packaging and material handling systems.
  • Water and waste management pump and valve control.
  • Manufacturing process automation for injection molding and food processing.
  • Building infrastructure, including HVAC and elevator control systems.

Installation Guidelines

  • Ensure the PLC system power is disconnected before installing or removing the module from the baseplate.
  • The module is designed for standard Series 90-30 baseplate slots; ensure it is seated firmly and the locking tabs are engaged.
  • Field devices must be powered by an external user-supplied DC power source.
  • Use appropriate wire gauges for the 0.5 A per point load capacity.
  • Ensure proper grounding practices are followed to minimize EMI interference in the control cabinet.
  • The module does not contain internal fuses; ensure external circuit protection is provided for the field devices.

FAQ

What is the logic type of the IC693MDL741?

This module uses negative logic (sinking), meaning it sinks current from the load to the common or negative power bus.

Does this module provide power to the field devices?

No, the module does not supply power to the field devices. The user must provide an external 12/24 VDC power supply for the connected loads.

How are the status LEDs organized?

The module features 16 green LEDs located on the front, arranged in two rows of eight, corresponding to points 1 through 16.
