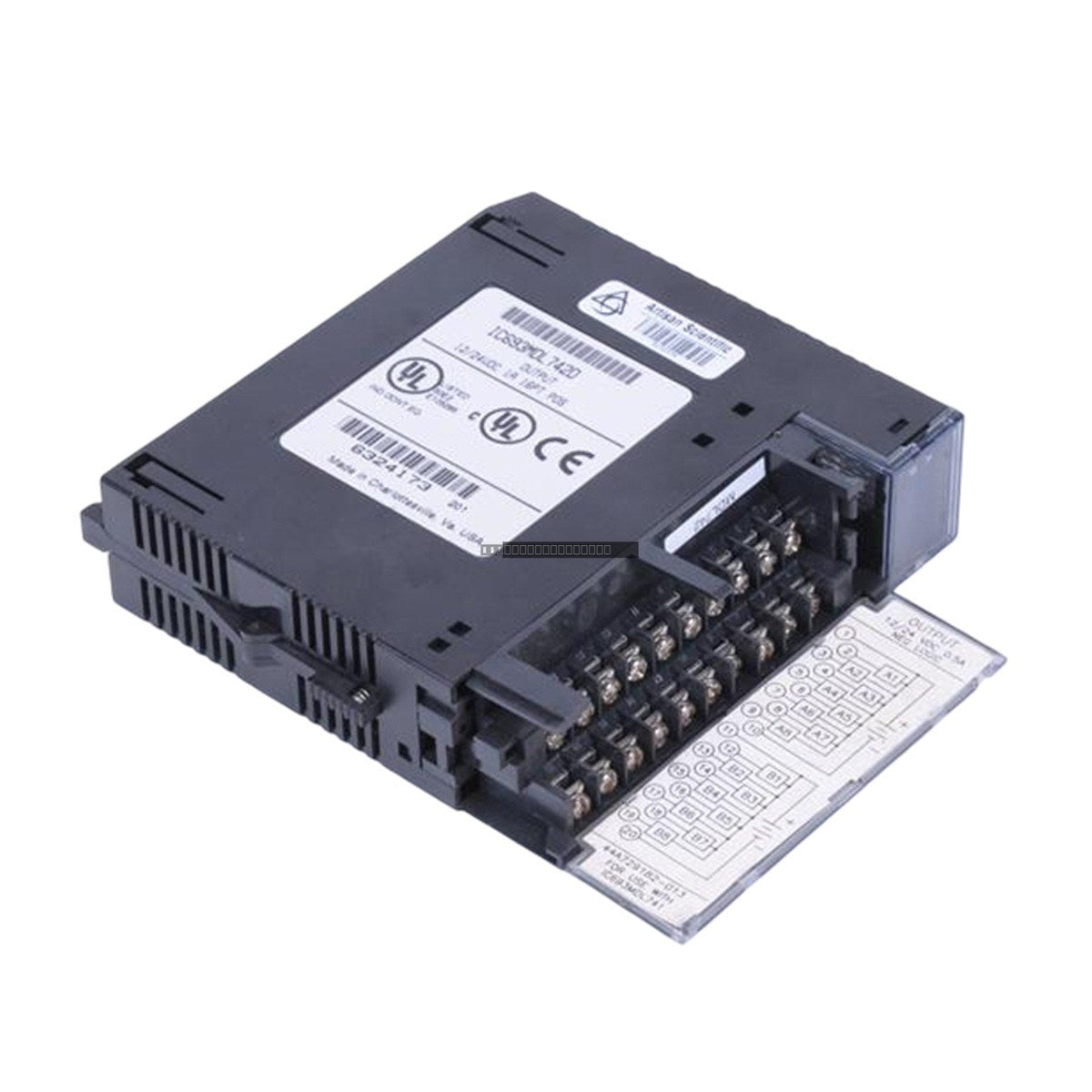

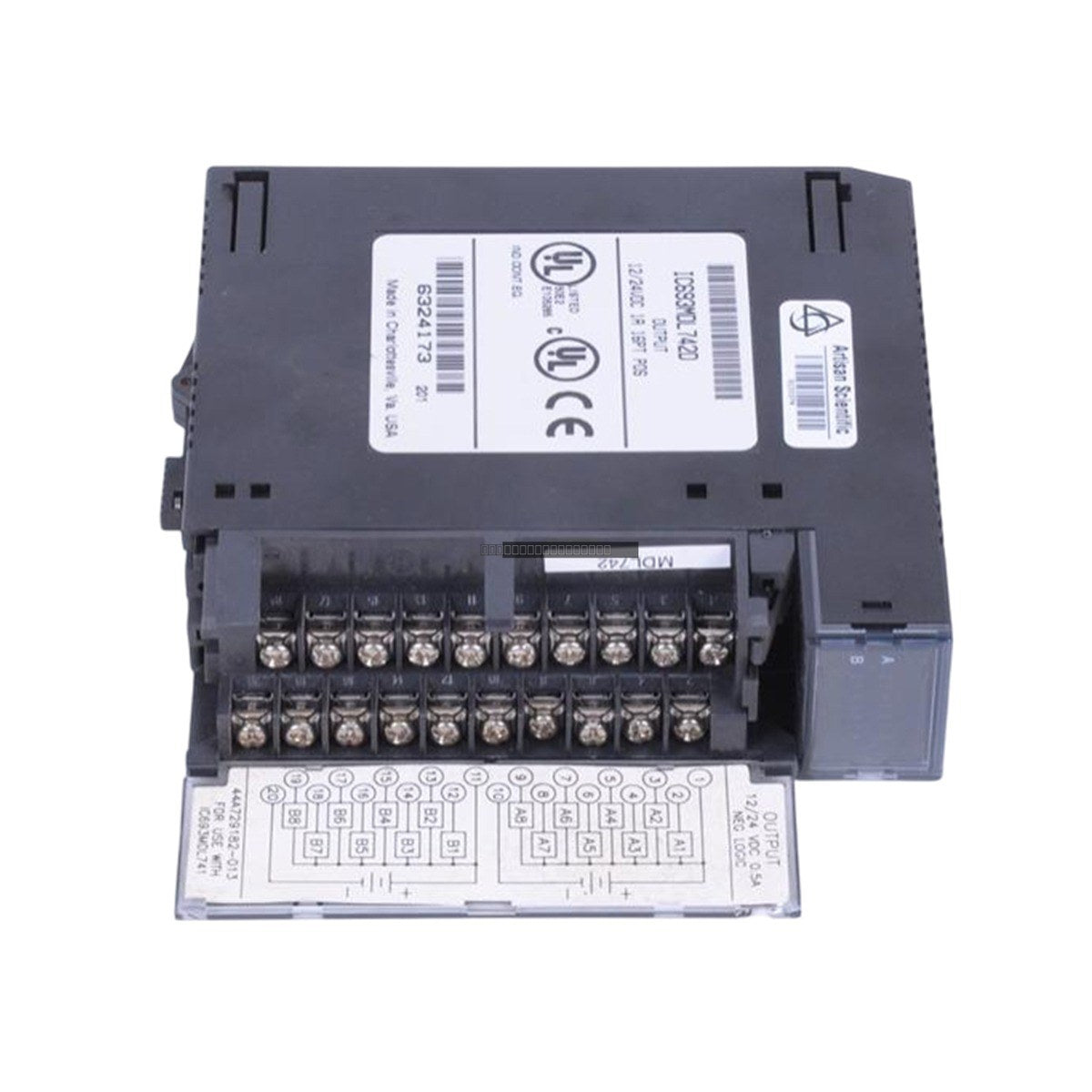

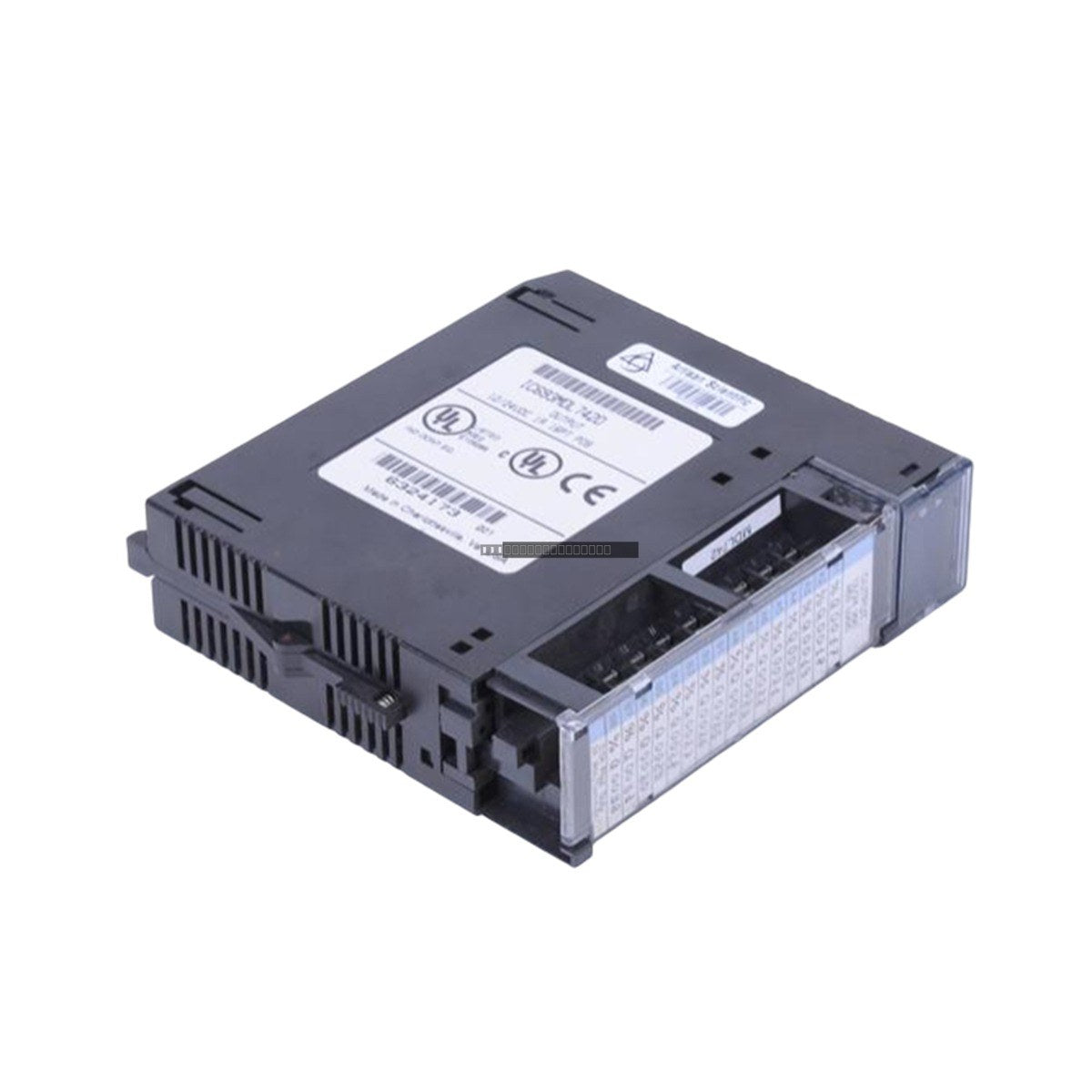

General Electric IC693MDL742 90-30 Series 16-Point 12/24 VDC Output Module

General Electric IC693MDL742 90-30 Series 16-Point 12/24 VDC Output Module

The General Electric IC693MDL742 is a discrete output module designed for the GE Fanuc 90-30 Series PLC platform. This module provides 16 output points, supporting positive logic configurations for interfacing...

25 people are viewing this right now

Availability: Low stock: 9 left

SKU: IC693MDL742
Vendor: General Electric
Category: PLC Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The General Electric IC693MDL742 is a discrete output module designed for the GE Fanuc 90-30 Series PLC platform. This module provides 16 output points, supporting positive logic configurations for interfacing the PLC with external devices such as relays, solenoid-actuated devices, contactors, and indicator lamps. It features integrated Electronic Short Circuit Protection (ESCP) to safeguard the module circuitry from damage in the event of a short circuit condition.

Features

  • 16 discrete output channels with individual status indicators.
  • Integrated Electronic Short Circuit Protection (ESCP) with fault LED indication.
  • Supports 12/24 VDC output voltage range (+20%, -15%).
  • Backplane power consumption of 130 mA when all outputs are energized.
  • Compact single-slot design for 90-30 Series baseplates.

Applications

  • Automotive manufacturing and assembly lines.
  • High-speed packaging and material handling systems.
  • Food and beverage processing equipment.
  • Heavy industrial applications including mining and steel production.
  • Water and wastewater treatment utility systems.

Technical Specifications

Model IC693MDL742
Output Points 16
Voltage Range 12 to 24 VDC (+20%, -15%)
Current Rating (Per Point) 1.0 A maximum
Current Rating (Per Group) 4 A at 50 degC; 3 A at 60 degC
Inrush Current 5.2 A for 10 ms
Off-state Leakage 1 mA maximum
Response Time 2 ms maximum
Voltage Drop 1.2 V maximum

Installation Guidelines

  • Ensure the PLC system power is disconnected before installing or removing the module from the baseplate.
  • The module occupies a single slot and can be installed in any available slot on a 90-30 Series baseplate, excluding dedicated CPU, power supply, or specialty module slots.
  • Maintain proper grounding practices to minimize EMI/RFI interference.
  • Use shielded cabling for output connections where required by the application environment.
  • Verify that the load requirements do not exceed the per-point or per-group current ratings to prevent triggering the ESCP.

FAQ

What is the purpose of the built-in Electronic Short Circuit Protection (ESCP)?

The ESCP monitors the common signal of each output group. If a short circuit is detected, the module protects the circuit board from damage and illuminates the "F" LED to signal the fault condition.

What is the maximum current capacity per group?

The module supports a maximum of 4 Amperes per group at 50 degC, reducing to 3 Amperes per group at 60 degC.

How is the module status monitored?

The module features individual channel indicators that display the energization state of each output, as well as a dedicated fault indicator for short-circuit conditions.
