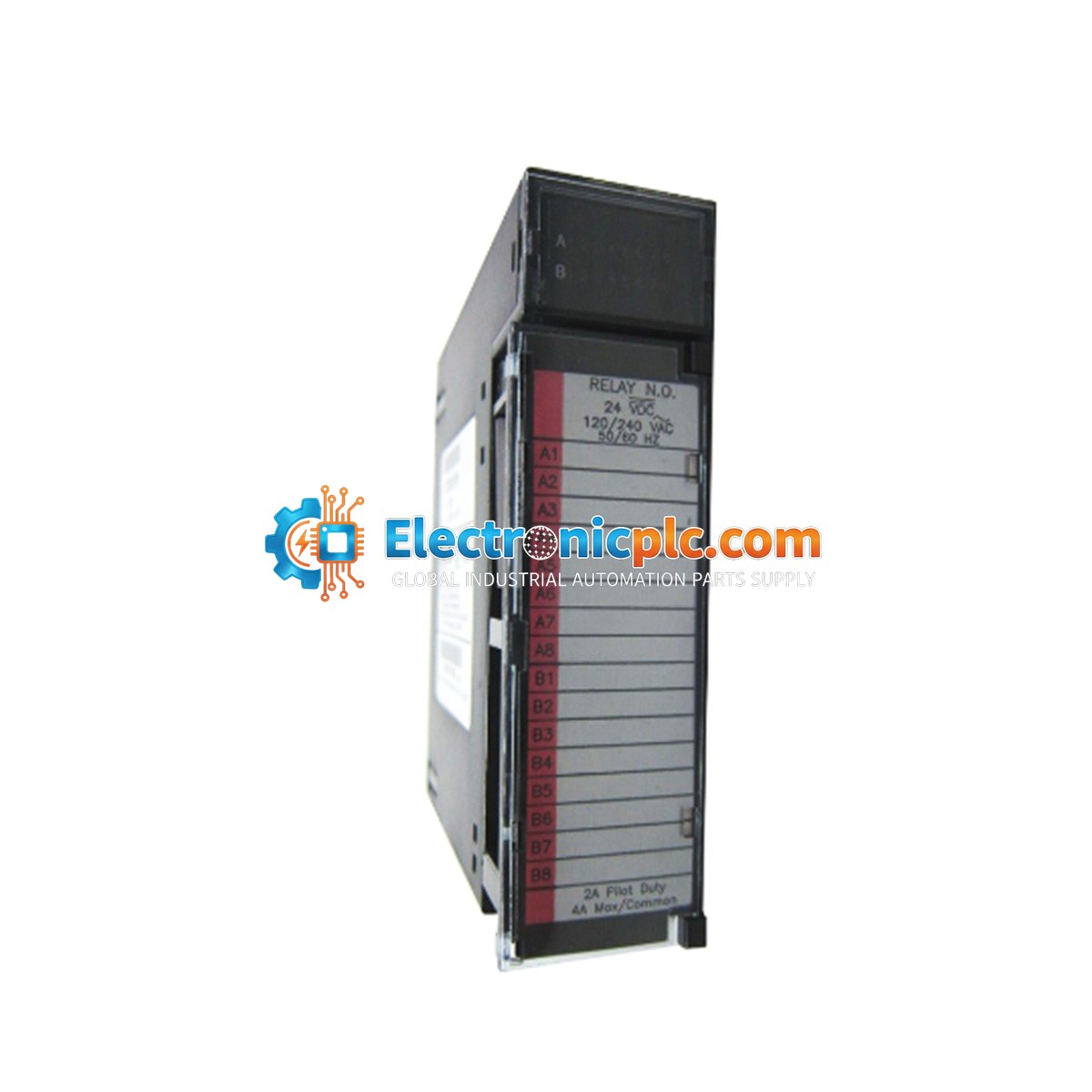

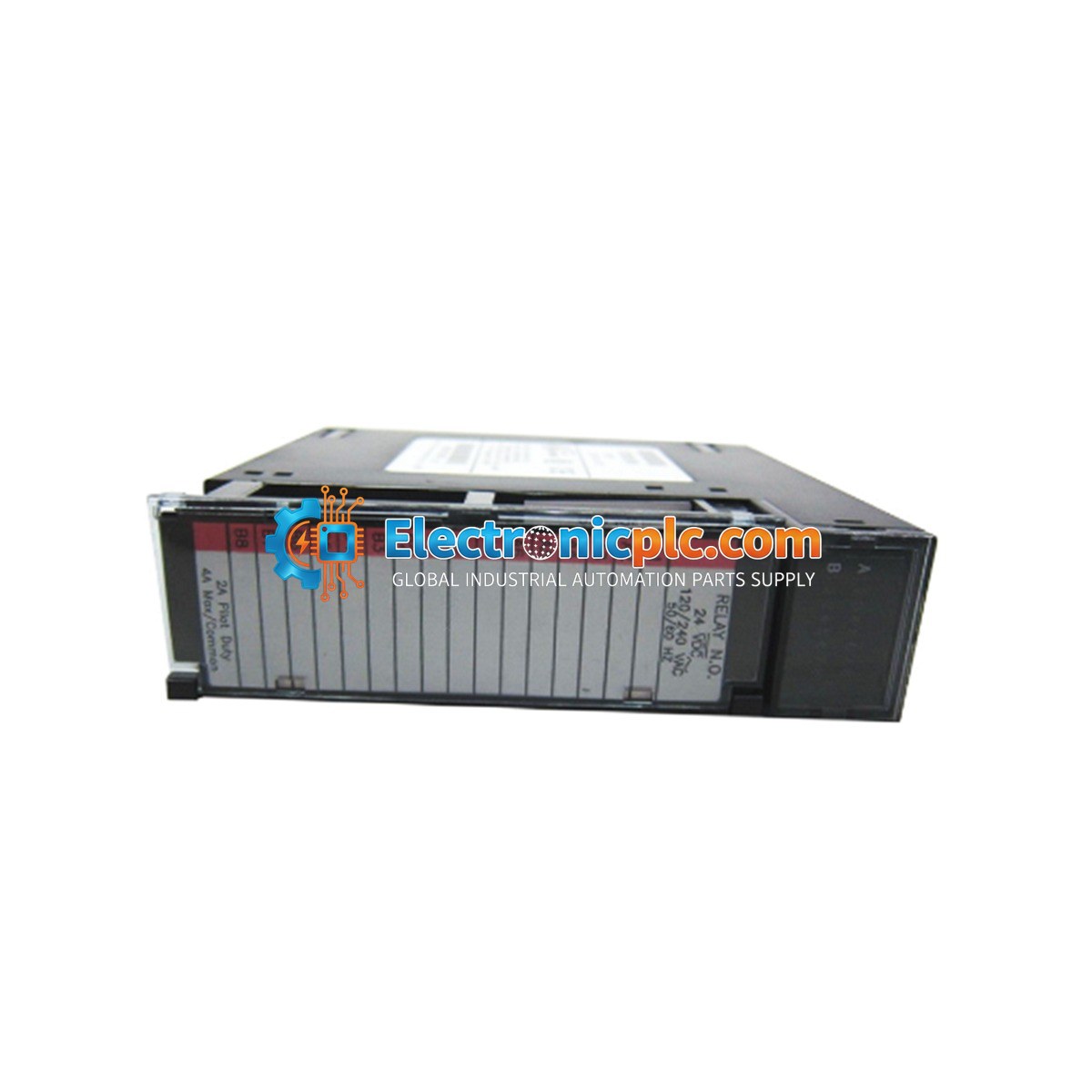

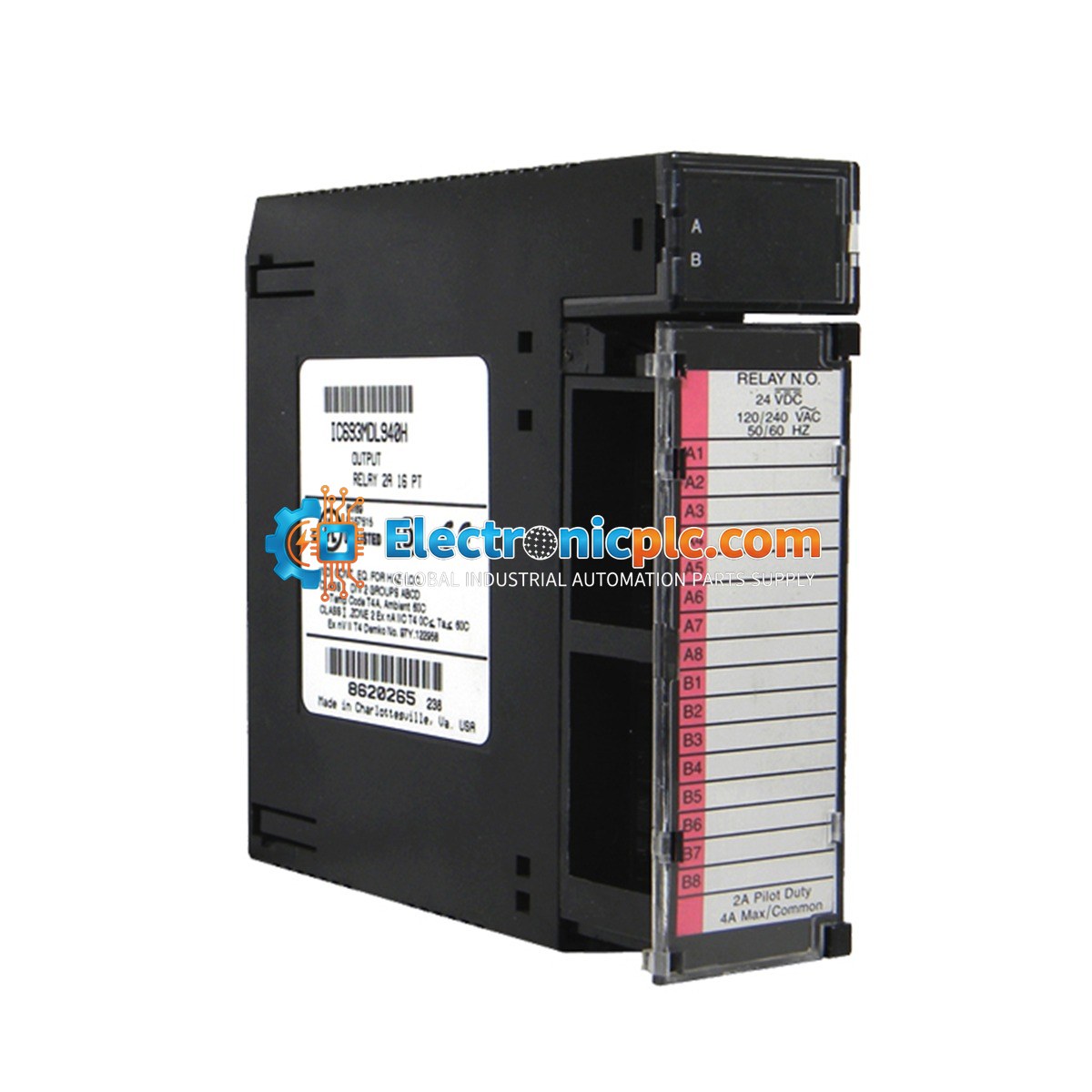

General Electric IC693MDL940 90-30 Series 16-Point Relay Output Module

General Electric IC693MDL940 90-30 Series 16-Point Relay Output Module

Description

The General Electric IC693MDL940 is a 16-point relay output module designed for the Series 90-30 Programmable Logic Controller (PLC) system. This module provides 16 normally-open (N.O.) relay circuits, allowing for...

18 people are viewing this right now

Availability: Low stock: 4 left

SKU: IC693MDL940
Vendor: General Electric
Category: PLC I/O Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The General Electric IC693MDL940 is a 16-point relay output module designed for the Series 90-30 Programmable Logic Controller (PLC) system. This module provides 16 normally-open (N.O.) relay circuits, allowing for the control of a wide range of user-supplied AC or DC load devices. It is an essential component for interfacing the PLC with field devices such as motor starters, solenoids, and indicators.

Features

  • 16 normally-open relay outputs arranged in four groups of four points each.
  • Output switching capacity of 2 Amps per point.
  • Supports a wide range of operating voltages: 5 to 30 VDC and 5 to 250 VAC (50/60 Hz).
  • LED status indicators for each of the 16 points, located on the front panel for easy diagnostics.
  • Color-coded red left edge on the door insert to signify a high-voltage module.
  • Compatible with any I/O slot in a 5 or 10-slot baseplate within the Series 90-30 system.

Applications

  • Injection Molding Machines: Robot I/O and auxiliary control for systems like Cincinnati Milacron Roboshot.
  • Material Handling: Activation of starters and solenoids for conveyors, sorters, and palletizers.
  • Packaging Machinery: Triggering actuators for bottling and wrapping processes.
  • Water & Wastewater: Operation of gate valves and pumps.
  • HVAC Systems: Management of fans, dampers, and heaters.

Technical Specifications

Model IC693MDL940
Outputs 16 (4 groups of 4)
Max Current (per output) 2 Amps
Max Current (per common) 4 Amps
Operating Voltage 5-30 VDC / 5-250 VAC
Isolation 1500V (field to logic), 500V (group to group)
Response Time 15 ms max
Min Load 10 mA
Inrush Current 5 Amps

Installation Guidelines

  • Power Down: Always disconnect power from the PLC baseplate before inserting or removing the module.
  • Slot Compatibility: This module can be installed in any I/O slot of a 5 or 10-slot baseplate.
  • Wiring: Field devices must be powered by an external user-supplied source. Ensure proper grouping to maintain isolation between different voltage types.
  • Handling: Use standard ESD precautions when handling the module to prevent damage to internal logic components.
  • Identification: Use the hinged door insert to record circuit identification information for easier maintenance.

FAQs

What is the GE IC693MDL940?

The GE Fanuc IC693MDL940 is a 16-point, 2-amp normally-open relay output module for the Series 90-30 PLC family.

How are the output points organized?

The 16 relay outputs are divided into 4 independent groups, with 4 channels per group. Each group shares a common power terminal.

Can I mix different voltages on the same module?

Yes, you may use different voltage types on the same module, provided that they are kept in separate isolated groups.

Does this module include internal fuses?

No, there are no internal fuses on the IC693MDL940 module. External fusing is recommended based on the specific load requirements.
