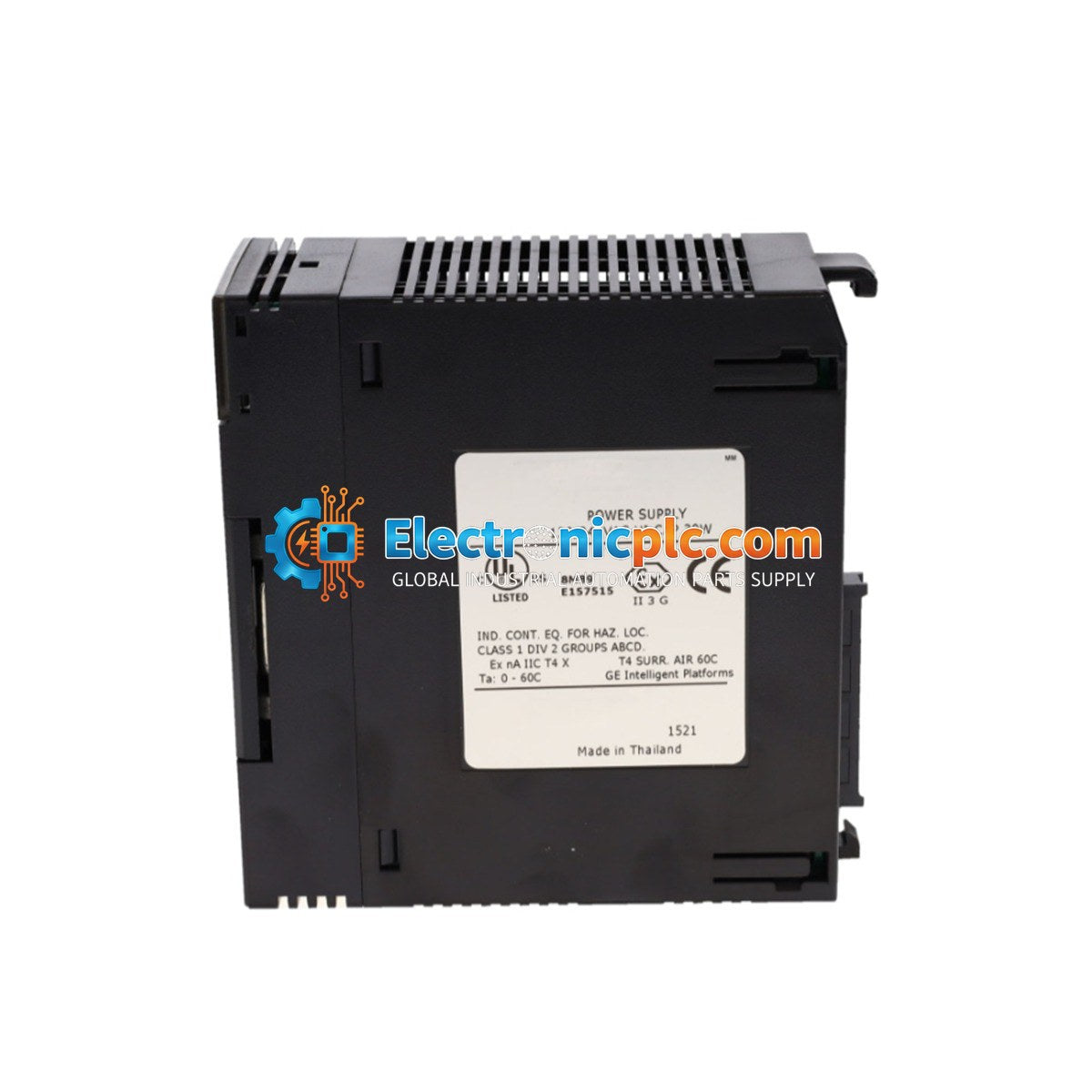

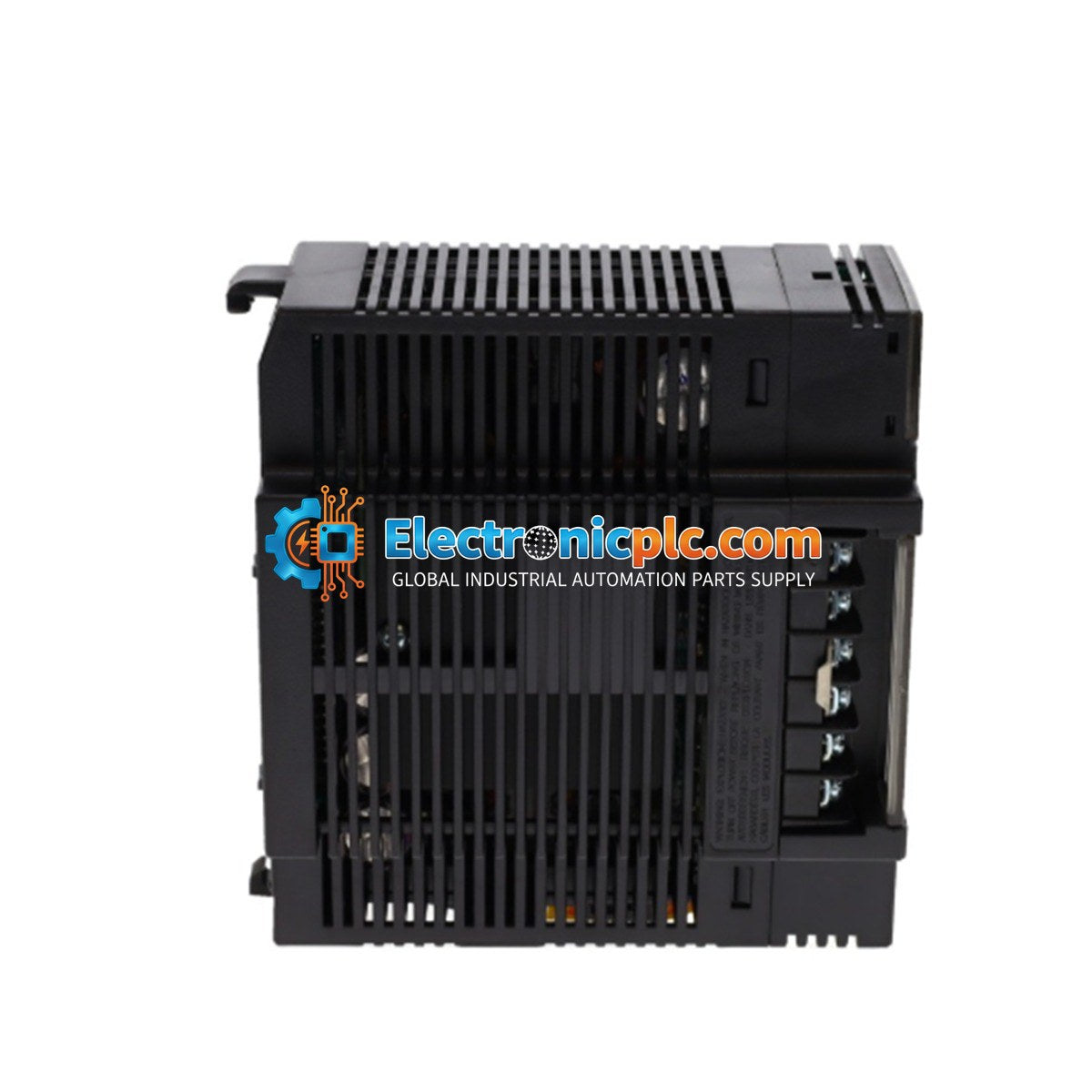

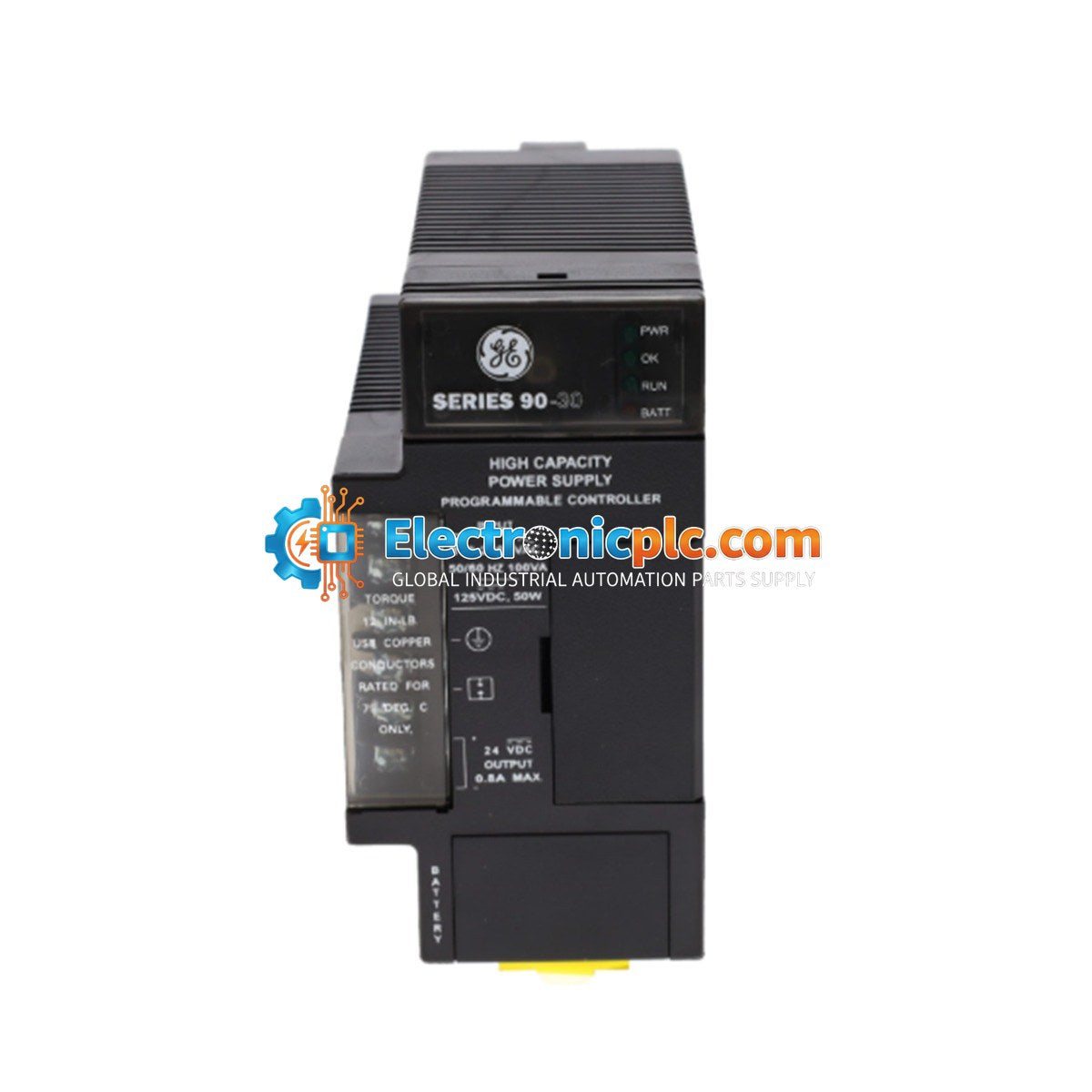

General Electric IC693PWR330 Series 90-30 High Capacity Power Supply

General Electric IC693PWR330 Series 90-30 High Capacity Power Supply

Description

The General Electric IC693PWR330 is a high-capacity power supply module designed for the Series 90-30 Programmable Logic Controller (PLC) family. This module is engineered to provide reliable backplane power for...

20 people are viewing this right now

Availability: Low stock: 4 left

SKU: IC693PWR330
Vendor: General Electric
Category: PLC Power Supply Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The General Electric IC693PWR330 is a high-capacity power supply module designed for the Series 90-30 Programmable Logic Controller (PLC) family. This module is engineered to provide reliable backplane power for PLC racks, offering a 30-watt load capacity. Unlike standard power supply models, the IC693PWR330 allows the full 30-watt capacity to be allocated to the +5VDC output, making it suitable for larger rack configurations that require higher current capacity for connected I/O modules.

Features

  • High-capacity 30-watt output with full allocation capability for +5VDC.
  • Auto-ranging input voltage eliminates the need for manual jumper settings.
  • Integrated current limiting protection to prevent hardware damage during short circuits.
  • Built-in smart switch fusing for enhanced safety.
  • Includes an RS-485 serial port for connection to programming devices or workstations.
  • Advanced diagnostics integrated with CPU performance monitoring.

Technical Specifications

Product Model IC693PWR330
Manufacturer General Electric
Load Capacity 30 Watts
Input Voltage Range 85 to 264 VAC or 100 to 300 VDC
Input Power 100VA (VAC) or 50W (VDC)
Output Voltage +5VDC, +24VDC Relay, +24VDC Isolated
Overvoltage Protection 6.4 to 7 Volts (for 5VDC output)
Mounting Location Leftmost slot of the baseplate

Installation Guidelines

  • The module must be installed in the leftmost slot of the Series 90-30 baseplate.
  • Ensure the system power is disconnected before inserting or removing the module to prevent electrical arcing or damage to the backplane.
  • The module utilizes a snap-in design similar to standard I/O modules; ensure it is fully seated and secured.
  • Maintain adequate ventilation around the PLC rack to prevent overheating during operation.
  • Ensure proper grounding of the PLC rack system to mitigate EMI and ensure stable operation of the RS-485 serial port.

FAQ

What is the primary difference between the IC693PWR330 and the IC693PWR321?

The IC693PWR330 is a high-capacity power supply, whereas the IC693PWR321 is a standard model. While both provide 30 watts of total power, the IC693PWR330 allows the entire 30 watts to be utilized by the +5VDC output, providing greater flexibility for larger systems.

What is the purpose of the RS-485 port on this power supply?

The RS-485 port allows for direct communication with programming devices, such as a laptop, desktop workstation, or a GE Fanuc Hand-Held programmer.

How does the overvoltage protection work?

The module features internal protection circuitry that triggers if the 5VDC output exceeds 6.4 to 7 volts, shielding the internal components and connected modules from voltage spikes.
