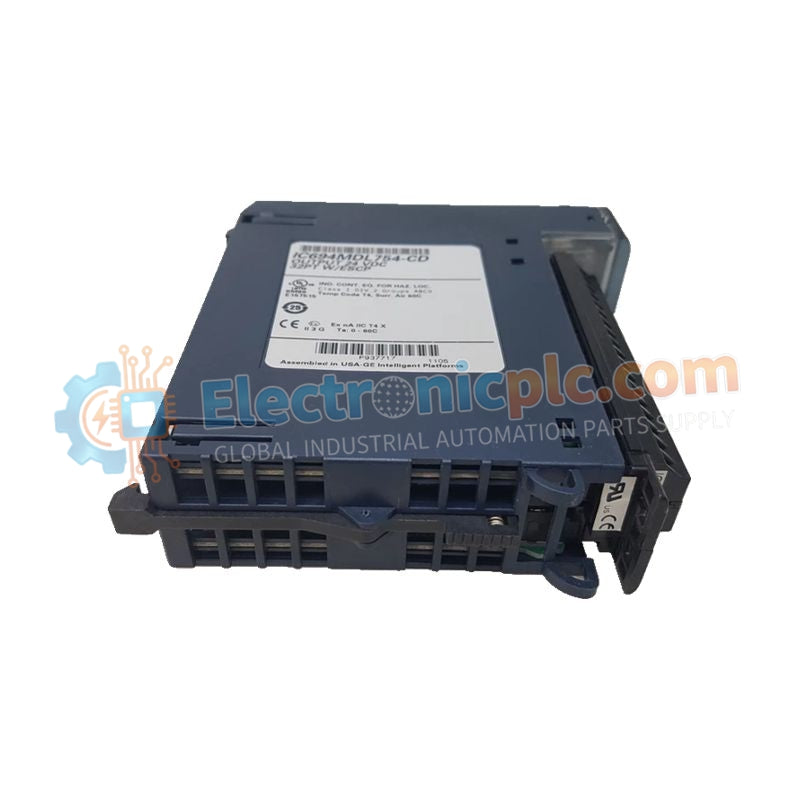

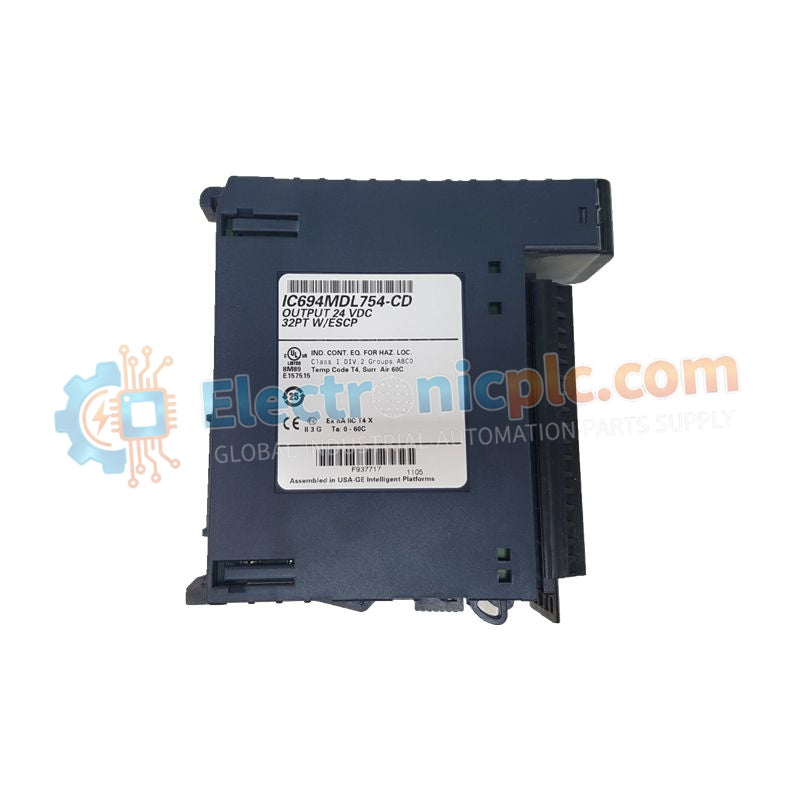

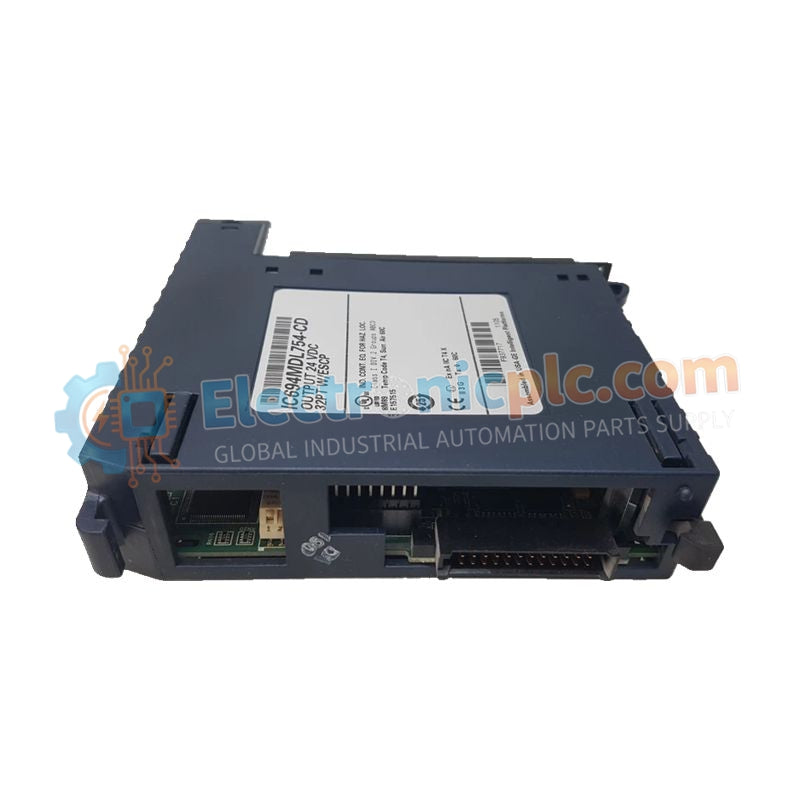

IC694MDL754 Discrete Output Module GE Fanuc

IC694MDL754 Discrete Output Module GE Fanuc

Product Description

The IC694MDL754 is a high-density 32-point discrete output module designed for GE Fanuc Series 90-30 and PACSystems RX3i platforms. It features Electronic Short Circuit Protection (ESCP) for enhanced reliability, making it ideal for precise switching of 12/24 VDC...

17 people are viewing this right now

Availability: Low stock: 99 left

SKU: IC694MDL754
Vendor: GE Fanuc
Category: Discrete Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Description

The IC694MDL754 is a high-density 32-point discrete output module designed for GE Fanuc Series 90-30 and PACSystems RX3i platforms. It features Electronic Short Circuit Protection (ESCP) for enhanced reliability, making it ideal for precise switching of 12/24 VDC loads in demanding industrial automation applications. Outputs are divided into two isolated groups of 16, allowing flexible power segregation and minimizing cross-channel interference.

Detailed Technical Specifications

Parameter Specification
Model Number IC694MDL754
Manufacturer GE Fanuc / Emerson
Series Compatibility Series 90-30, PACSystems RX3i
Output Points 32 (two isolated groups of 16)
Rated Voltage 12/24 VDC nominal
Output Voltage Range 10.2 – 30 VDC
Output Current 0.75 A per point
Isolation Rating 250 VAC continuous; 1500 VAC (1 minute)
Backplane Current 300 mA max from 5 VDC bus
Module ID 0x059h
Protection Electronic Short Circuit Protection (ESCP)
Thermal Characteristics No derating at 24 VDC; derating at 30 VDC above 42°C

Applications

  • High-density discrete output control in industrial automation

  • Segregated control loops for different machine sections

  • Reliable switching for 12/24 VDC actuators, solenoids, and relays

  • Space-constrained PLC or PACSystems racks requiring robust short-circuit protection

Frequently Asked Questions

What does ESCP mean?
ESCP stands for Electronic Short Circuit Protection, which detects and limits current during a short-circuit event to prevent permanent damage to the module.

Can the module be used at 30 VDC in high temperatures?
Yes, but thermal derating applies above 42°C. Consult official derating curves to ensure safe operation at 30 VDC.

Are the output groups independent?
Yes, the module has two isolated groups of 16 outputs, allowing separate power sources for each group to minimize interference and improve diagnostic clarity.
