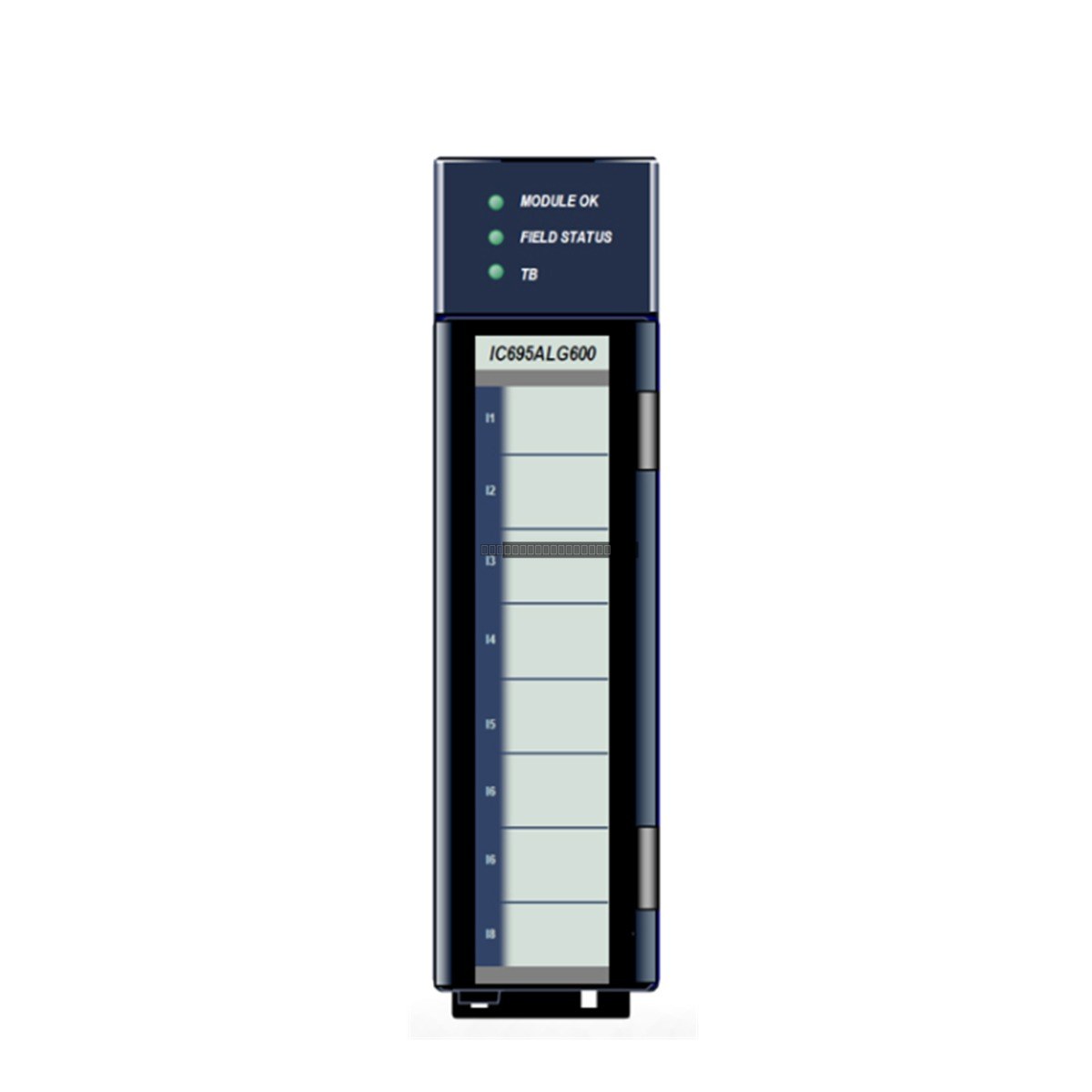

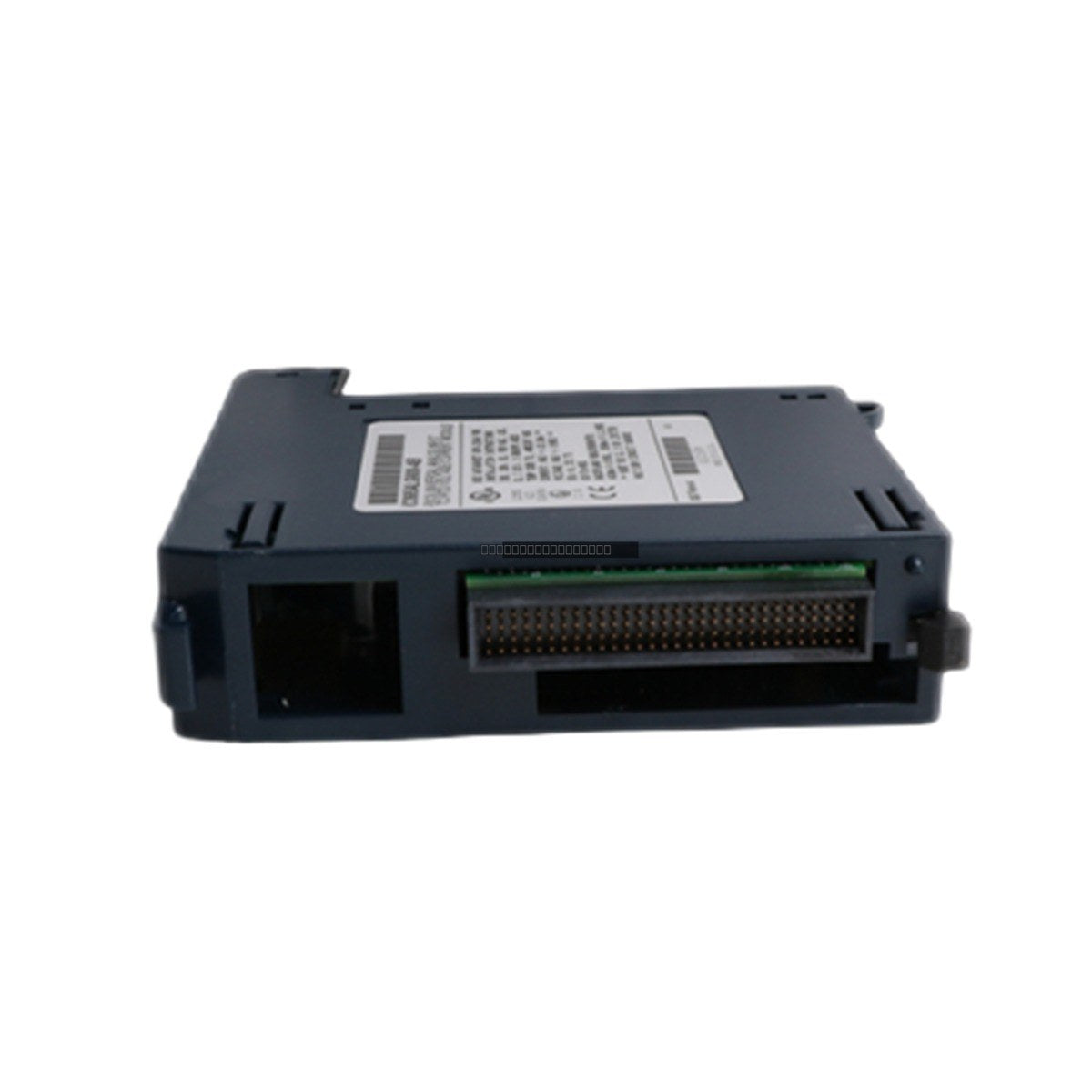

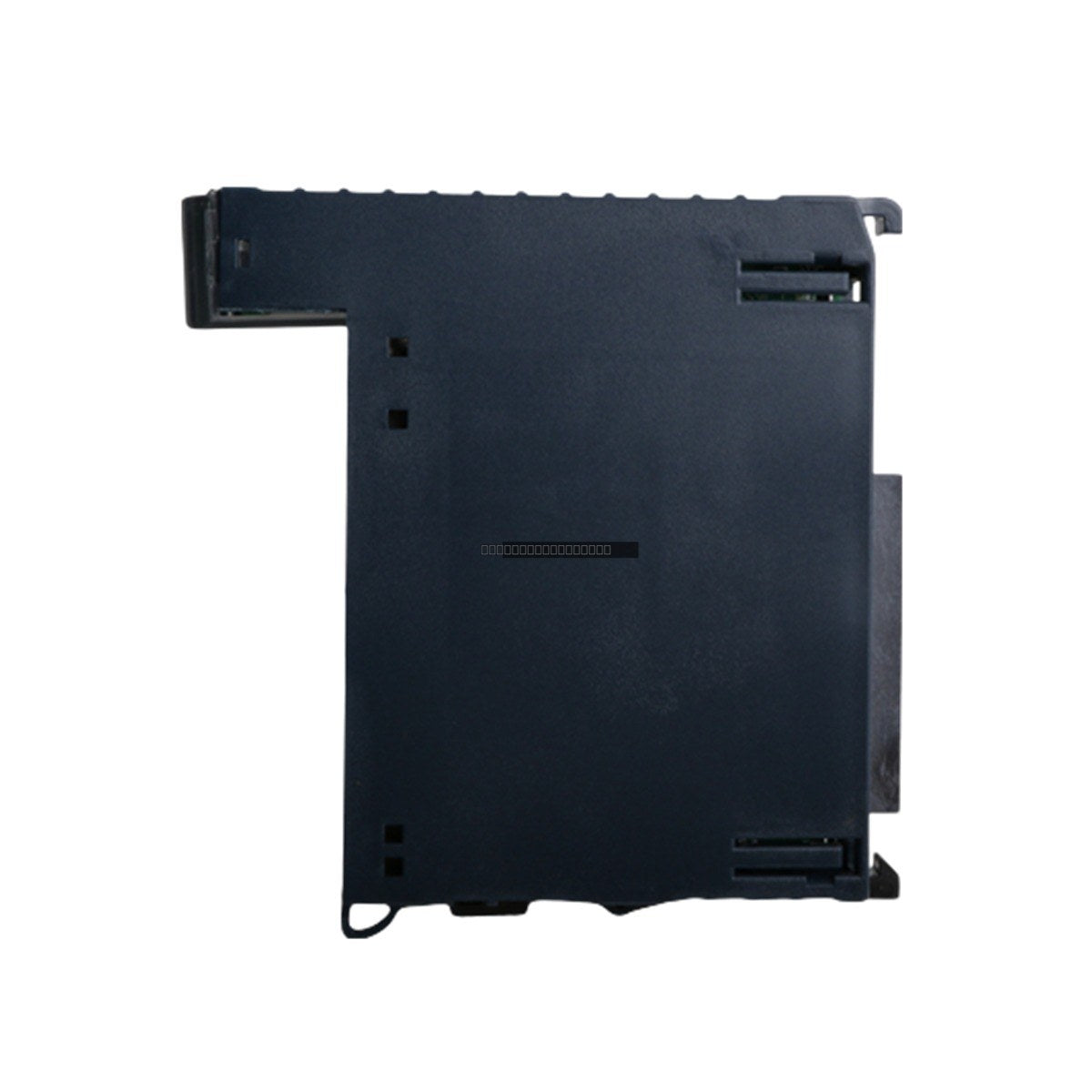

General Electric IC695ALG600 PACSystems RX3i Universal Analog Input Module

General Electric IC695ALG600 PACSystems RX3i Universal Analog Input Module

Description

The General Electric IC695ALG600 is a high-performance universal analog input module designed for the PACSystems RX3i control platform. This versatile module provides eight configurable input channels, allowing for the measurement...

28 people are viewing this right now

Availability: Low stock: 10 left

SKU: IC695ALG600
Vendor: General Electric
Category: Analog Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The General Electric IC695ALG600 is a high-performance universal analog input module designed for the PACSystems RX3i control platform. This versatile module provides eight configurable input channels, allowing for the measurement of various signal types including voltage, current, resistance, RTD, and thermocouple inputs. The module is organized into two isolated groups, with four channels per group, and includes two dedicated Cold Junction Compensation (CJC) channels for precise temperature monitoring applications.

Features

  • 8-channel universal analog input configuration.
  • Two isolated groups (4 channels per group) for enhanced signal integrity.
  • Integrated Cold Junction Compensation (CJC) support.
  • Highly configurable input filtering with options ranging from 8 Hz to 1000 Hz.
  • Wide range of supported thermocouple types (B, C, E, J, K, N, R, S, T).
  • Support for multiple RTD types including PT 385/3916, N 618/672, NiFe 518, and CU 426.
  • Flexible current and voltage signal ranges, including 4-20 mA and +/- 10 VDC.

Technical Specifications

Parameter Specification
Product Model IC695ALG600
Manufacturer General Electric
Input Channels 8 (2 groups of 4)
Voltage Ranges +/- 50 mV, +/- 150 mV, +/- 10 VDC, 0-10 VDC, +/- 5 VDC, 0-5 VDC, 1-5 VDC
Current Ranges 0-20 mA, 4-20 mA, +/- 20 mA
Resistance Inputs 0 to 4000 ohms (various ranges)
Configurable Filters 8, 12, 16, 40, 200, 1000 Hz
Operating Temperature 0 to 60 degC (32 to 140 degF)
Storage Temperature -40 to 85 degC (-40 to 185 degF)

Installation Guidelines

  • Ensure the PACSystems RX3i rack power is disconnected before installing or removing the module.
  • Verify that the module is fully seated in the backplane connector to ensure proper communication and power delivery.
  • Use shielded twisted-pair cabling for analog signals to minimize electromagnetic interference (EMI).
  • Maintain proper grounding practices for the RX3i system to protect against noise and surges.
  • Ensure adequate ventilation in the control cabinet to keep ambient temperatures within the specified 0 to 60 degC range.
  • Handle the module using ESD-safe practices to prevent damage to sensitive internal components.

FAQ

Q: Can I use this module for both current and voltage inputs simultaneously?
A: Yes, the IC695ALG600 is a universal module, allowing individual channels to be configured for different signal types, including current and voltage, provided they are within the supported ranges.

Q: Does this module require external CJC hardware?
A: No, the module includes two dedicated CJC channels for cold junction compensation, simplifying the setup for thermocouple applications.
