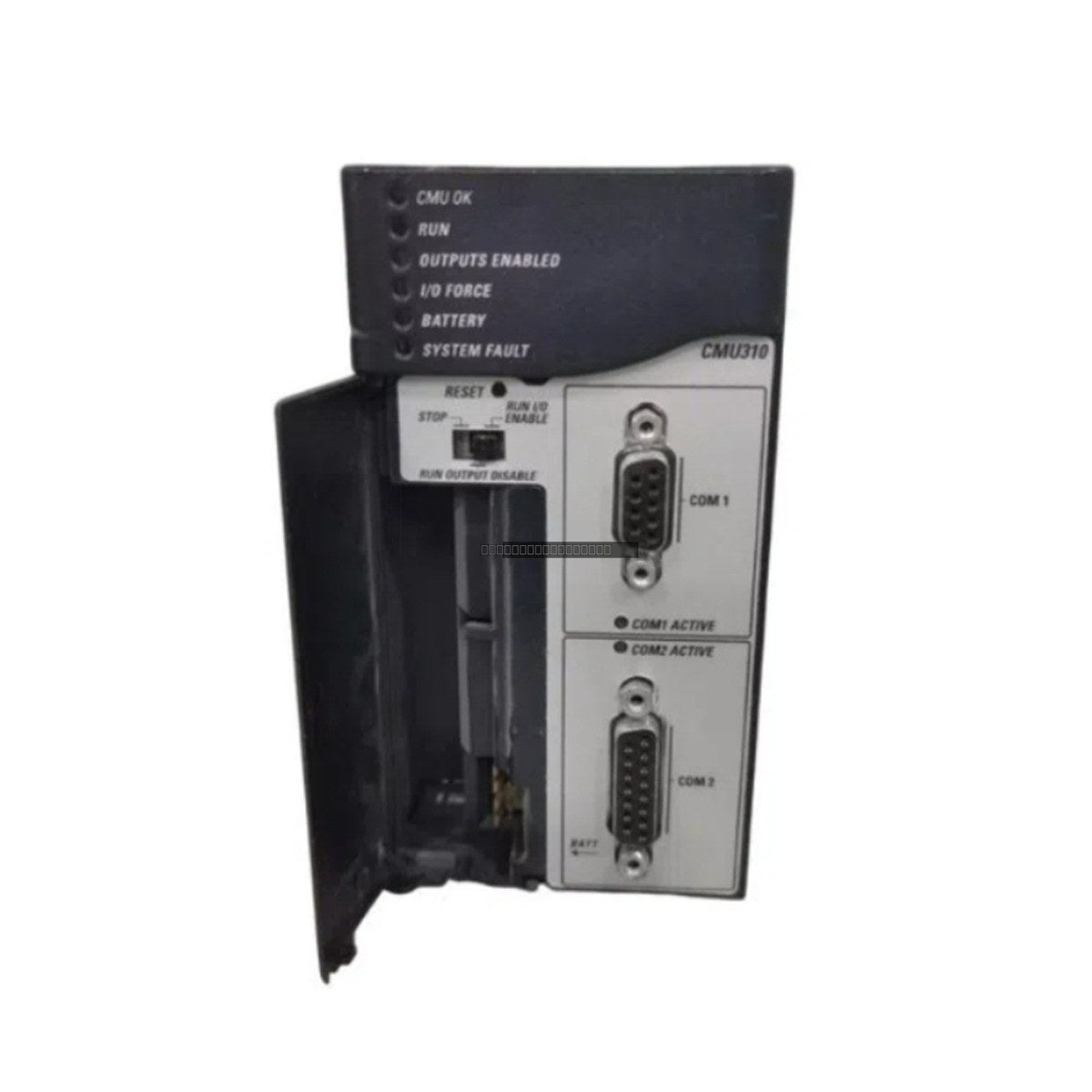

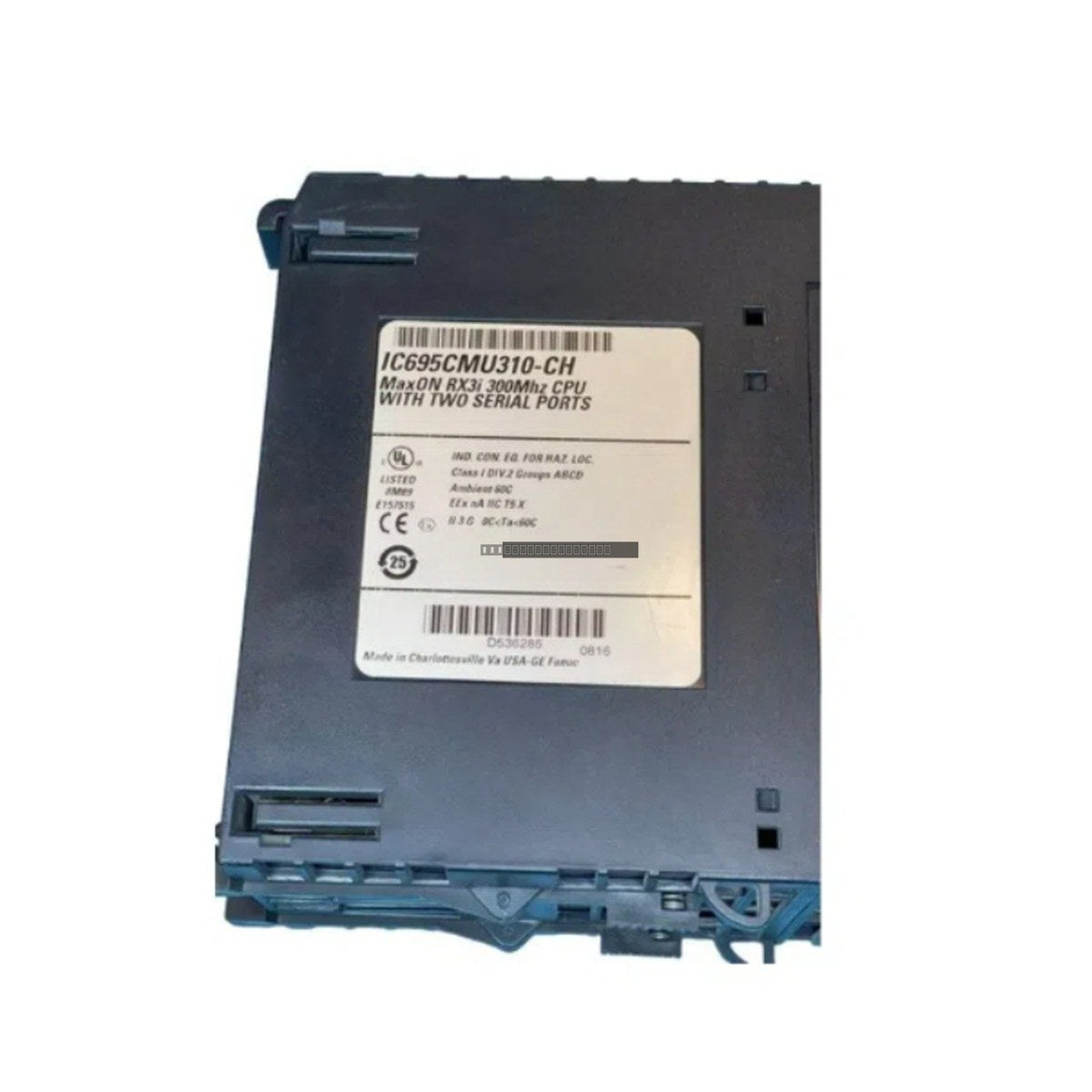

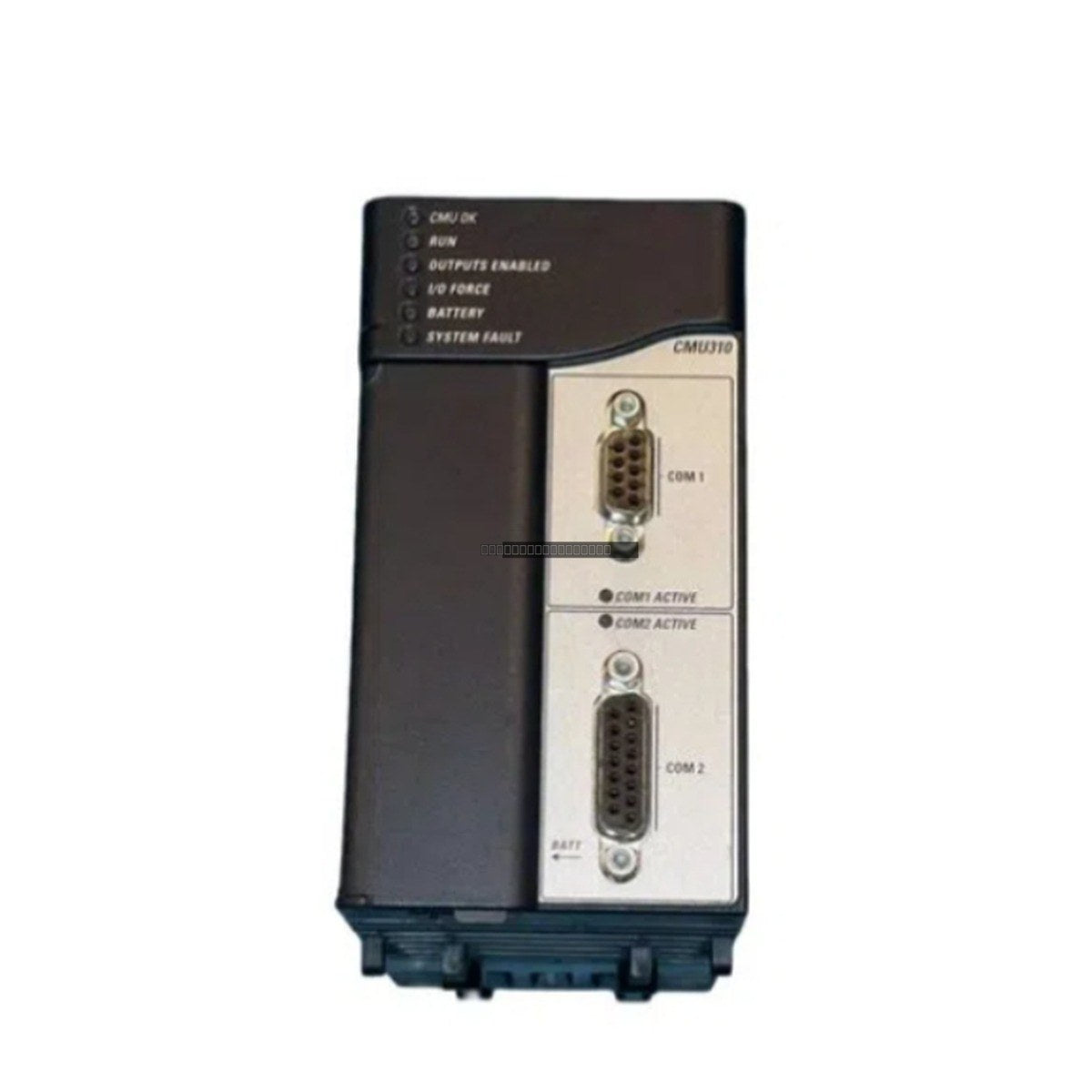

General Electric PACSystems RX3i IC695CMU310 CPU Module

General Electric PACSystems RX3i IC695CMU310 CPU Module

The General Electric IC695CMU310 is a specialized Max-ON Hot-Standby Redundancy CPU designed for the PACSystems RX3i control platform. This module provides high-availability processing capabilities for critical industrial applications, ensuring seamless...

17 people are viewing this right now

Availability: Low stock: 6 left

SKU: IC695CMU310
Vendor: General Electric
Category: CPU Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The General Electric IC695CMU310 is a specialized Max-ON Hot-Standby Redundancy CPU designed for the PACSystems RX3i control platform. This module provides high-availability processing capabilities for critical industrial applications, ensuring seamless control transitions between master and backup units.

Features

  • Max-ON Hot-Standby Redundancy support for high-availability systems.
  • 10 Mbytes of battery-backed user memory and 10 Mbytes of non-volatile flash memory.
  • Two independent, isolated serial communication ports (RS-232 and RS-485).
  • Supports Modbus RTU Slave, SNP, and Serial I/O protocols.
  • Typical Boolean execution speed of 0.195ms per 1000 instructions.
  • Supports up to 512 program blocks (maximum 128KB per block).
  • Integrated hardware handshaking (RTS/CTS) for RS-232 communication.

Applications

The IC695CMU310 is engineered for demanding environments where system uptime is critical. Typical applications include:

  • Boiler Systems: Providing logical control and safety monitoring for large-scale industrial boilers.
  • Fuel Loading: Managing complex fuel transfer processes at chemical terminals and oil depots.
  • Process Control: Monitoring analog outputs and tracking equipment status in metallurgical and chemical manufacturing.
  • Infrastructure: Supporting redundancy requirements in power supply and signal control systems for metro and transport networks.

Technical Specifications

Model IC695CMU310
Manufacturer General Electric
Series PACSystems RX3i
Power Requirements +3.3 VDC (1.25A nominal); +5 VDC (1.0A nominal)
Operating Temperature 0 to 60 degC (32 to 140 degF)
Program Storage 10 MB battery-backed RAM / 10 MB Flash
Communication Ports 1x RS-232, 1x RS-485
Weight 0.44 kg

Installation Guidelines

  • Ensure the RX3i universal backplane is properly grounded before installing the module.
  • Always power down the backplane before inserting or removing the CPU module to prevent electrical damage.
  • The module occupies a single slot in the RX3i rack.
  • Ensure adequate ventilation around the rack to maintain operating temperatures within the 0 to 60 degC range.
  • Use shielded cables for serial communication ports to minimize EMI interference, especially in high-noise industrial environments.
  • Handle the module using ESD-safe practices to protect internal circuitry.

FAQs

What is the primary function of the IC695CMU310?

The IC695CMU310 is a high-availability CPU designed for Hot-Standby redundancy, allowing a backup controller to take over operations from a master controller within a few logic scans without interrupting I/O states.

Does this module support non-volatile memory?

Yes, it features 10 Mbytes of battery-backed RAM and an optional 10 Mbytes of non-volatile flash memory for program storage.

Is this module suitable for safety-critical systems?

No, the Max-ON redundancy configuration provided by this module is not intended for SIL 2 or SIL 3 safety-rated applications.
