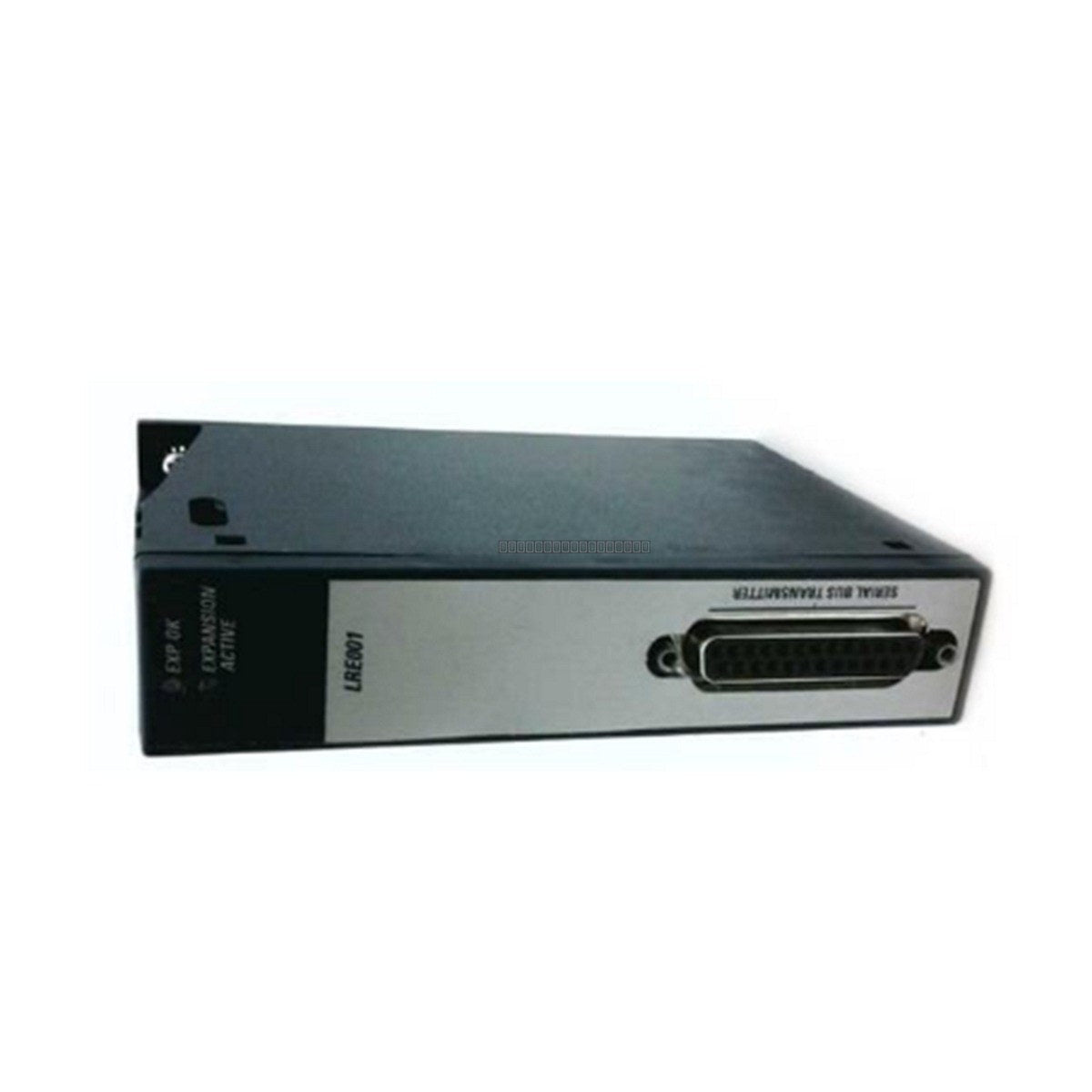

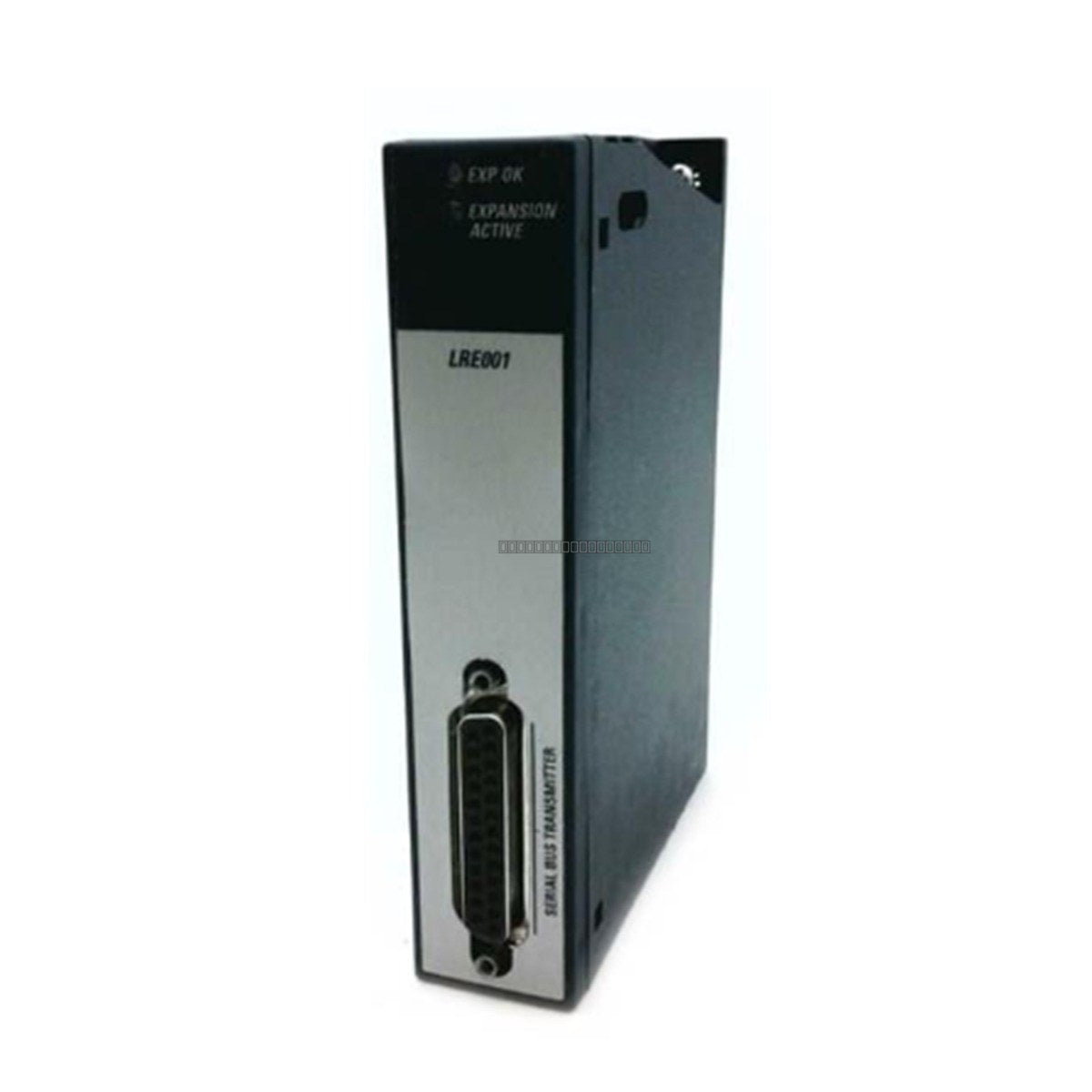

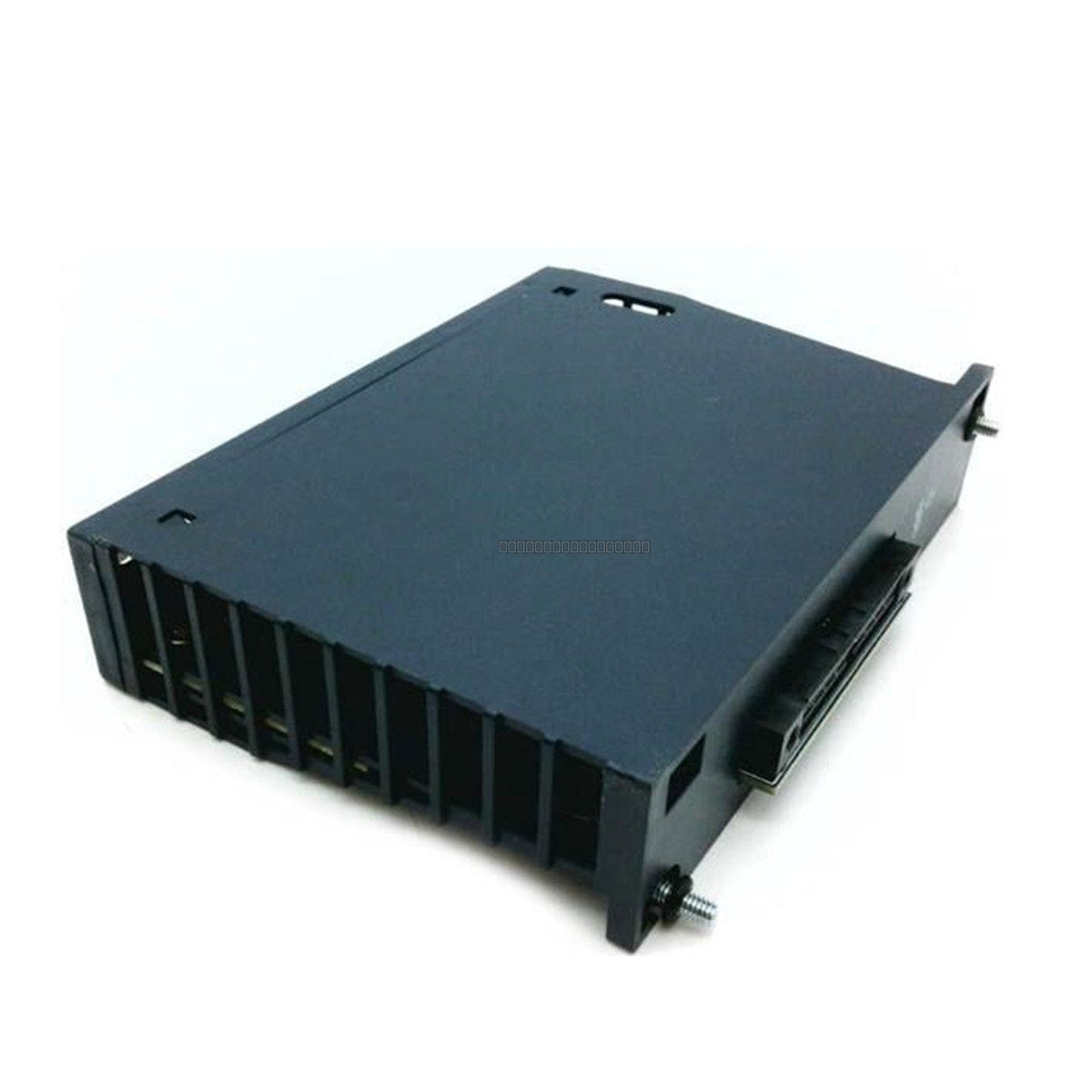

General Electric IC695LRE001 PACSystems RX3i Serial Bus Transmitter Module

General Electric IC695LRE001 PACSystems RX3i Serial Bus Transmitter Module

The General Electric IC695LRE001 is a Serial Bus Transmitter module designed for the PACSystems RX3i control platform. This module facilitates high-speed communication and expansion capabilities within the RX3i system architecture,...

19 people are viewing this right now

Availability: Low stock: 6 left

SKU: IC695LRE001
Vendor: General Electric
Category: Serial Bus Transmitter Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The General Electric IC695LRE001 is a Serial Bus Transmitter module designed for the PACSystems RX3i control platform. This module facilitates high-speed communication and expansion capabilities within the RX3i system architecture, supporting up to 7 racks and managing up to 320 discrete I/O points.

Features

  • Designed specifically for the PACSystems RX3i product line.
  • Provides serial bus transmission for system expansion.
  • Occupies a single slot on the RX3i backplane.
  • Supports robust communication with an effective data rate of 500 kbps.
  • Compact design for efficient rack space utilization.

Technical Specifications

Product Model IC695LRE001
Module Type Serial Bus Transmitter
Product Line PACSystems RX3i
Current Consumption 132 mA at 5 V DC
Effective Data Rate 500 kbps
Maximum Cable Length 50 ft (15.24 m)
Slot Requirement 1 Single Slot

Installation Guidelines

  • Ensure the RX3i rack power is disconnected before installing or removing the module.
  • Verify that the module is properly seated in the backplane slot to ensure reliable electrical contact.
  • Use appropriate shielded cabling to maintain signal integrity, especially when operating at the maximum cable distance of 50 ft.
  • Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal circuitry.
  • Ensure the environment is free from excessive vibration and within the specified operating temperature range for the RX3i system.

FAQ

What is the primary function of the IC695LRE001?
This module acts as a serial bus transmitter for the PACSystems RX3i platform, allowing for the expansion of the system to additional racks and managing discrete I/O.

How many slots does this module occupy?
The IC695LRE001 is a single-slot module designed for backplane mounting within an RX3i rack.

What is the maximum distance supported by this module?
The module supports a maximum cable length of 50 feet for serial bus communication.
