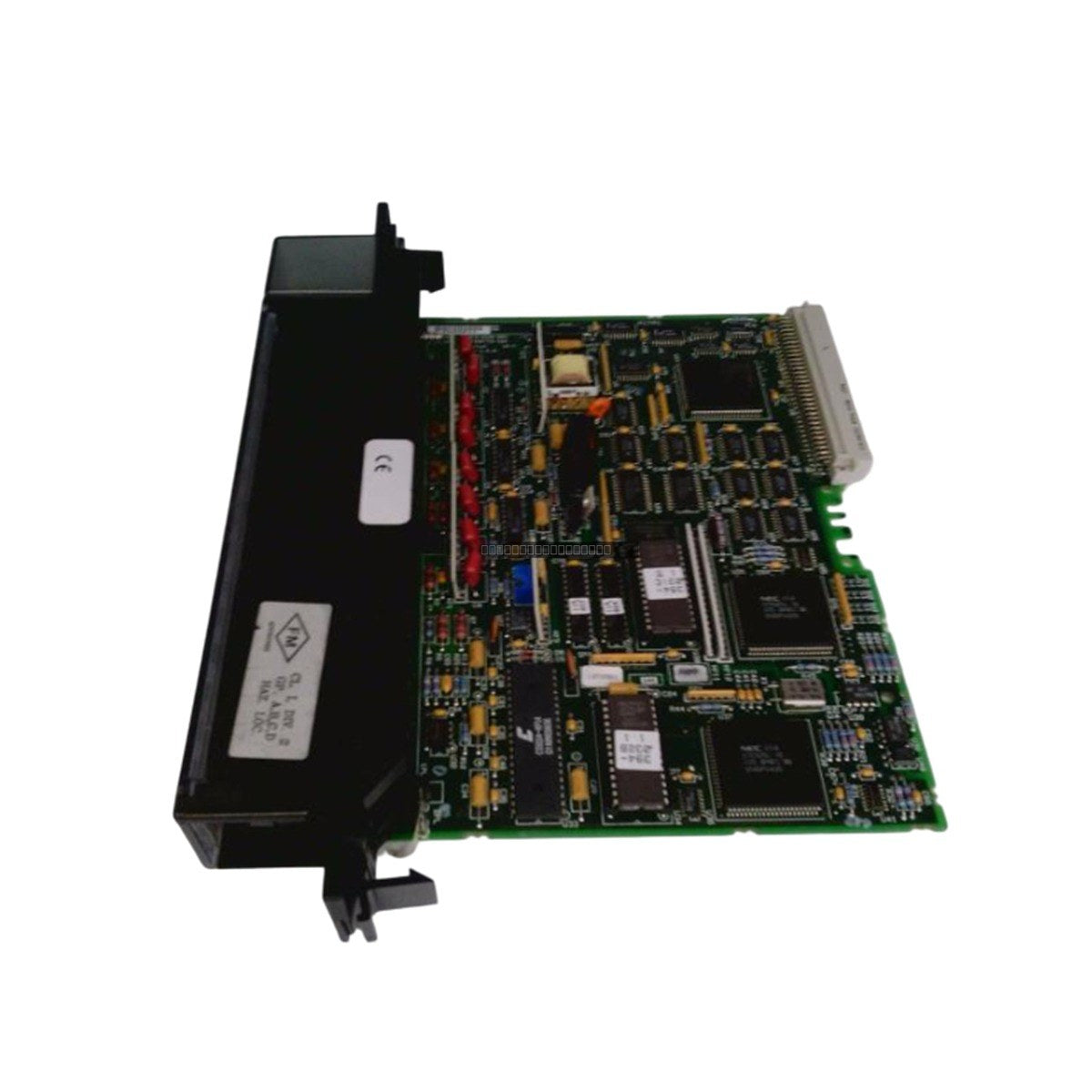

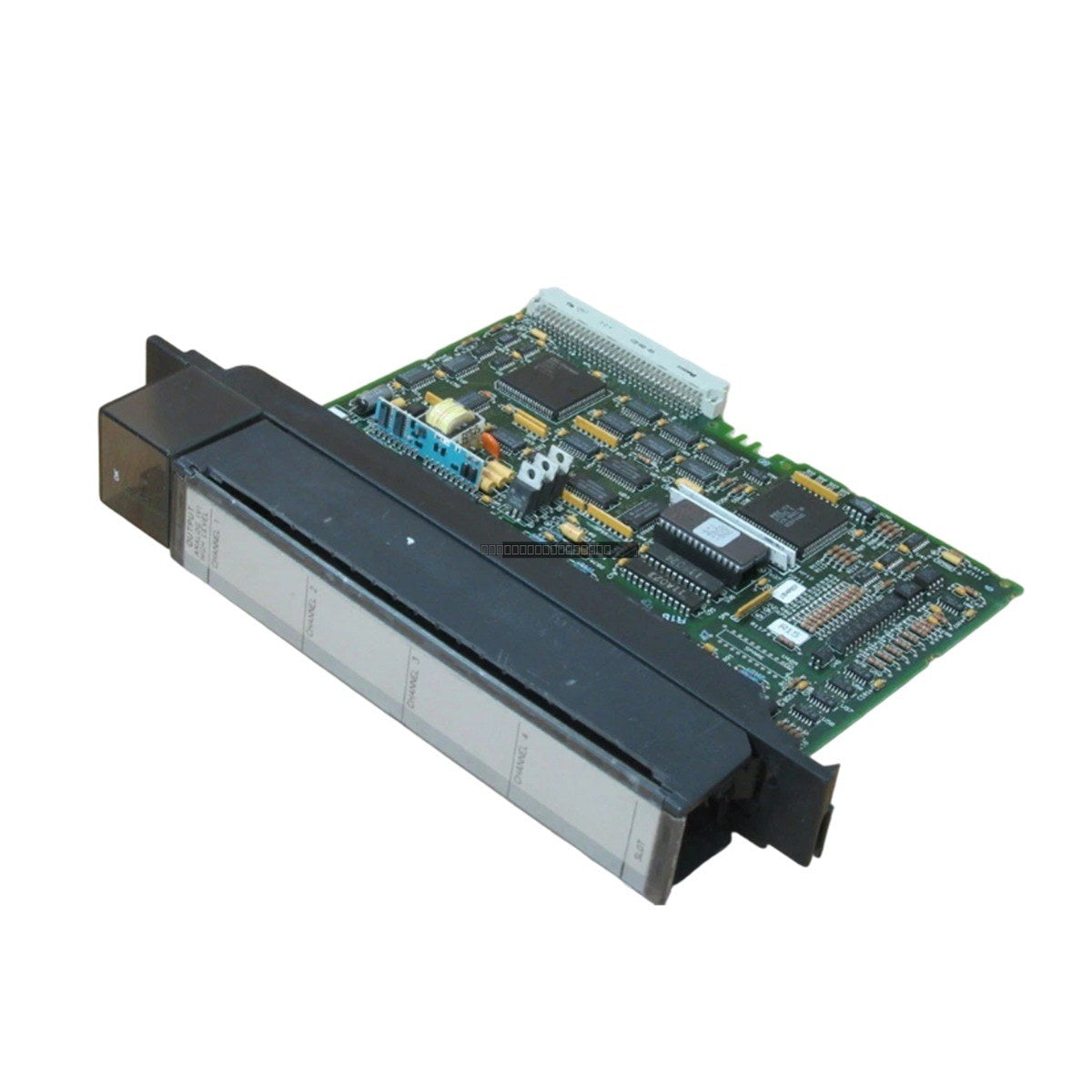

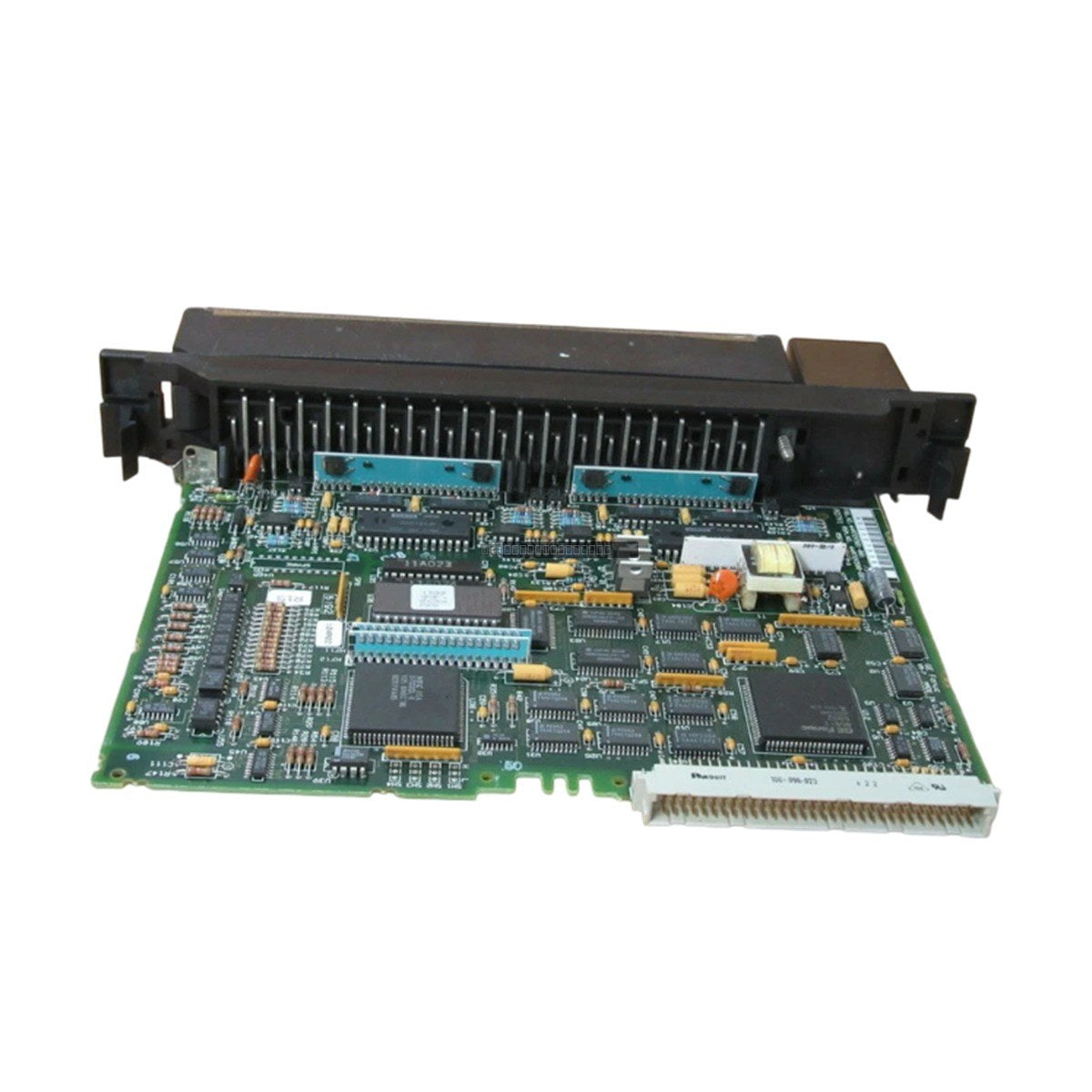

General Electric IC697ALG321 Series 90-70 Analog Input Module

General Electric IC697ALG321 Series 90-70 Analog Input Module

Description

The General Electric IC697ALG321 is a high-performance analog input module designed for the Series 90-70 PLC platform. This module provides four isolated input channels, engineered to deliver precise signal processing...

19 people are viewing this right now

Availability: In stock

SKU: IC697ALG321
Vendor: General Electric
Category: Analog Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The General Electric IC697ALG321 is a high-performance analog input module designed for the Series 90-70 PLC platform. This module provides four isolated input channels, engineered to deliver precise signal processing in demanding industrial control environments. It features 16-bit resolution with 14-bit monotonicity, ensuring accurate data conversion for complex automation tasks.

Features

  • Four high-precision analog input channels.
  • 16-bit resolution with 14-bit monotonicity for reliable signal integrity.
  • Fast conversion rate of 2 ms per channel.
  • Factory-calibrated at 10 Volts +/- 2 mV to ensure immediate operational accuracy.
  • Designed specifically for integration with the GE Series 90-70 PLC architecture.

Technical Specifications

Model Number IC697ALG321
Input Channels 4
Voltage Input Range -10 to +10 Volts
Input Impedance 250 Ohms
Conversion Rate 2 ms
Power Consumption 112 mA at +5 VDC
Resolution 16-bit (14-bit monotonicity)

Installation Guidelines

  • Ensure the PLC rack is powered down before inserting or removing the module to prevent electrical damage.
  • Verify that the module is fully seated in the backplane connector and secured with the integrated locking mechanism.
  • Use shielded twisted-pair cabling for analog signals to minimize electromagnetic interference (EMI).
  • Route signal wiring away from high-voltage power lines and inductive loads.
  • Maintain adequate ventilation within the cabinet to ensure the module operates within its specified temperature range.

FAQ

Q: Is the IC697ALG321 a discrete or analog module?
A: Despite some legacy documentation references, the IC697ALG321 is an analog input module designed for voltage signal processing.

Q: What is the power requirement for this module?
A: The module requires 112 mA of current from the +5 VDC supply provided by the PLC rack backplane.
