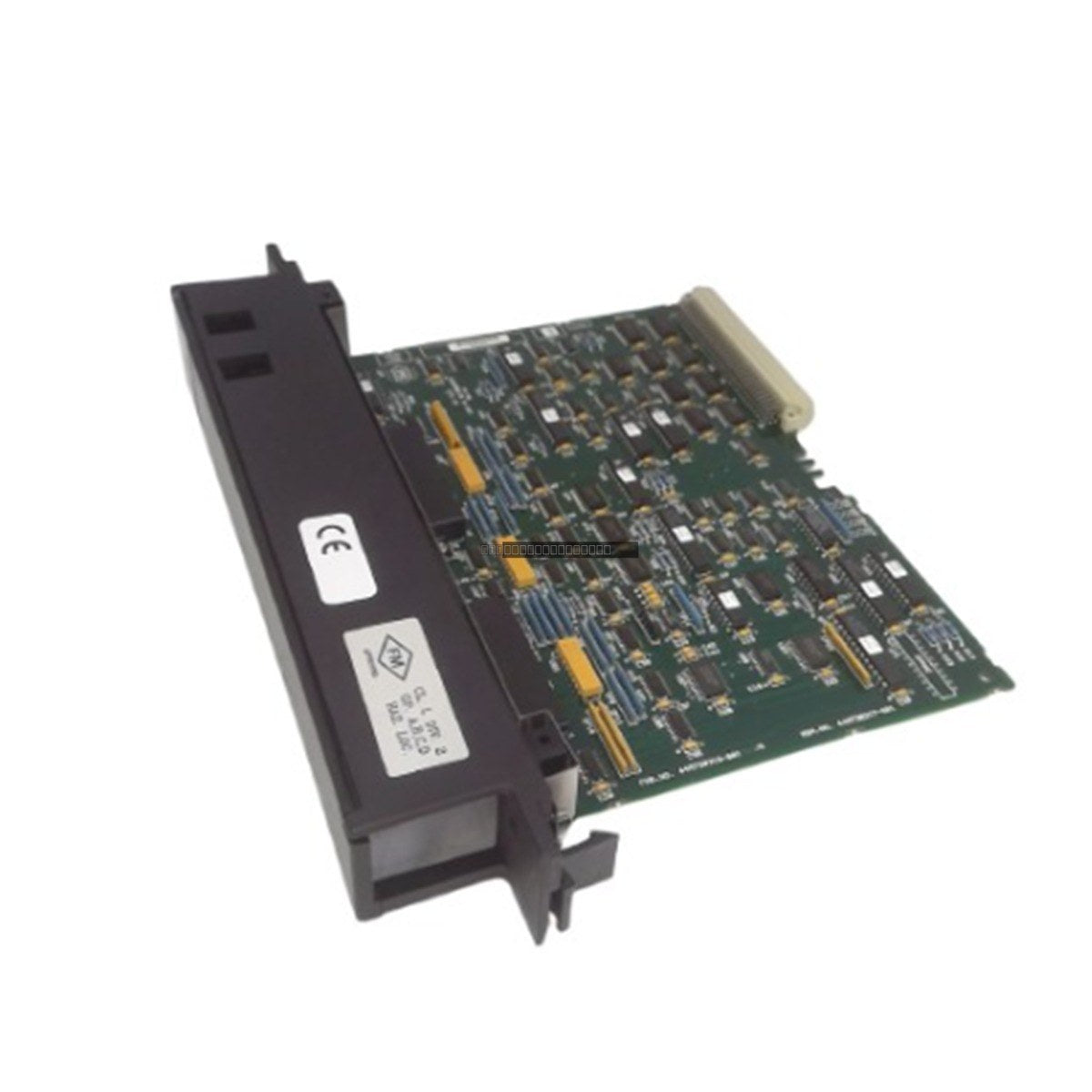

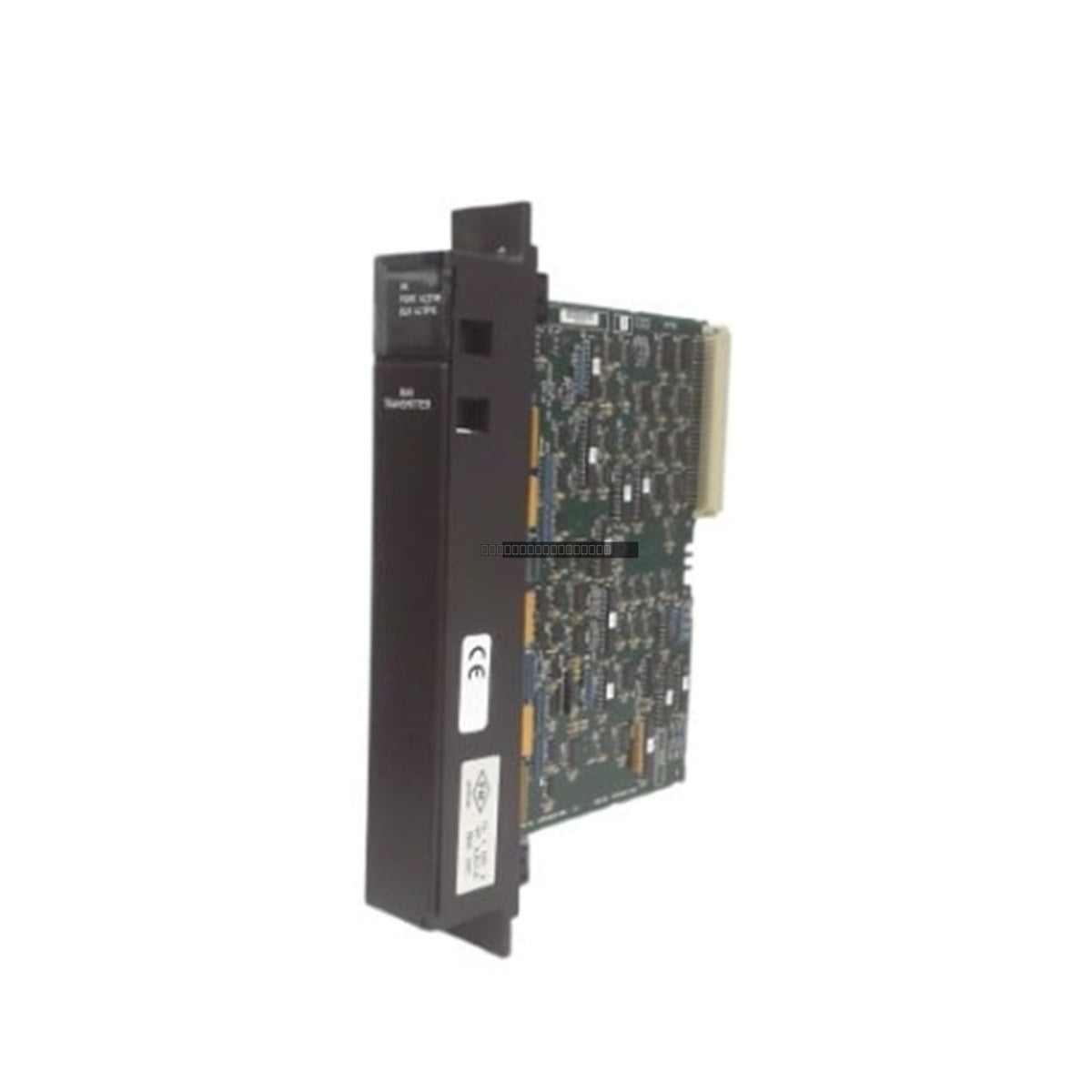

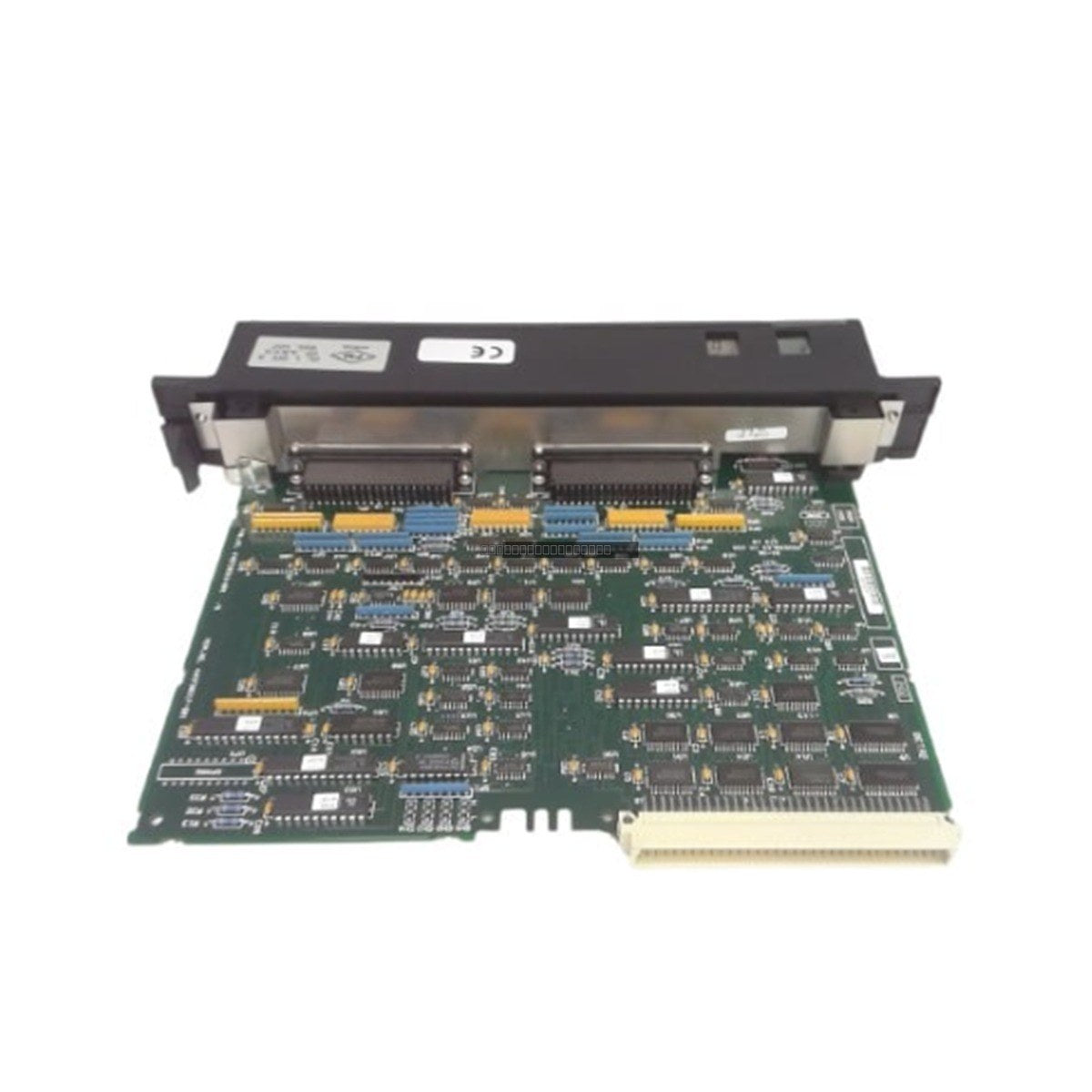

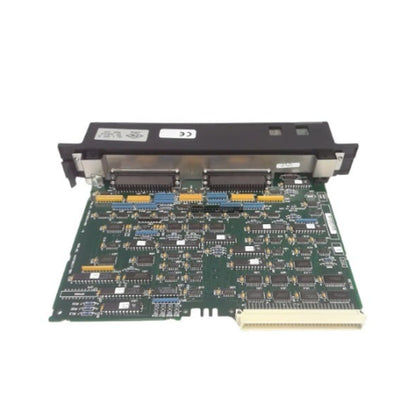

General Electric IC697BEM713 Series 90-70 Bus Transmitter Module

General Electric IC697BEM713 Series 90-70 Bus Transmitter Module

Description

The General Electric IC697BEM713 is a specialized Bus Transmitter module designed for the GE Series 90-70 PLC platform. This module facilitates high-speed communication and data transmission across the PLC backplane...

29 people are viewing this right now

Availability: Low stock: 1 left

SKU: IC697BEM713
Vendor: General Electric
Category: Bus Transmitter Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The General Electric IC697BEM713 is a specialized Bus Transmitter module designed for the GE Series 90-70 PLC platform. This module facilitates high-speed communication and data transmission across the PLC backplane and expansion racks, serving as a critical component in distributed I/O architectures. It is engineered to maintain system integrity and reliable data exchange within the Series 90-70 ecosystem.

Features

  • High-speed communication at an effective data rate of 500 Kbytes/sec.
  • Equipped with dedicated status LEDs for OK, PGMR, and Last Rack monitoring.
  • Designed for integration into any available slot within the Series 90-70 rack, with the exception of Slot 1.
  • Includes one parallel port and one expansion port for versatile system connectivity.
  • Supports efficient program storage capacity of 16 Kbytes.

Technical Specifications

Model IC697BEM713
Manufacturer General Electric
Series Series 90-70
Input Voltage 5 Volts DC
Current Draw 1.4 Amps
Data Rate 500 Kbytes/sec
Isolation Non-isolated differential
Slot Requirement 1 Slot
Weight 0.46 kg

Installation Guidelines

  • Ensure the PLC rack power is disconnected before inserting or removing the module to prevent electrical damage.
  • The module is compatible with any slot in the Series 90-70 rack, provided it is not placed in Slot 1.
  • Use ESD-safe handling procedures when touching the module to prevent static discharge damage to internal circuitry.
  • Ensure that the module is fully seated in the backplane connector and that the retaining screws are tightened to secure the unit.
  • Verify that all interface cables are properly routed away from high-voltage lines to minimize electromagnetic interference (EMI).

FAQ

What is the primary function of the IC697BEM713?
This module serves as a bus transmitter, enabling the expansion of the Series 90-70 PLC system by allowing the processor to communicate with remote or additional I/O racks.

Can I install this module in any slot?
The module can be installed in any available slot within the Series 90-70 rack, except for Slot 1, which is reserved for the CPU.

What is the power requirement for this unit?
The module operates on a 5V DC supply and draws 1.4 Amps of current from the backplane.
