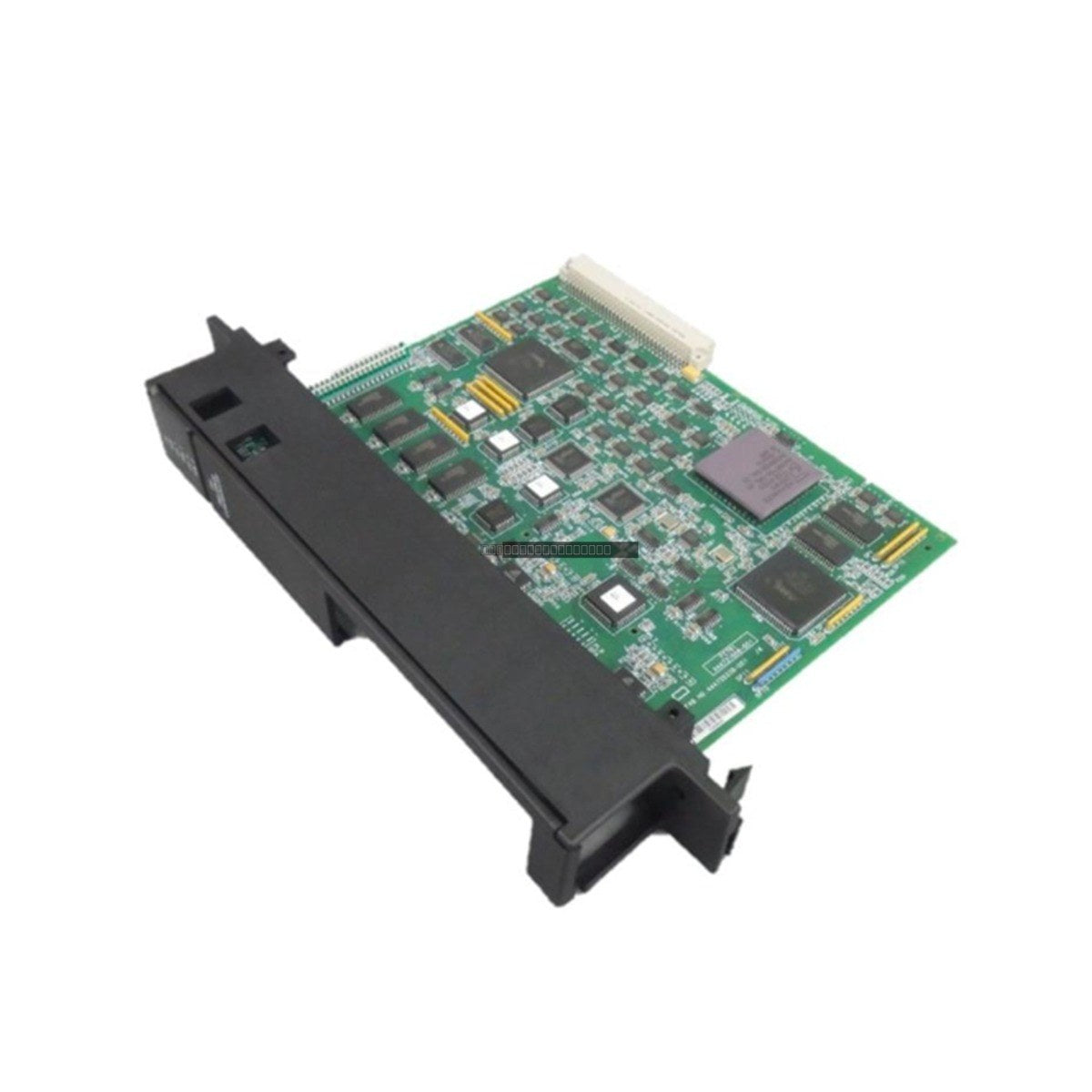

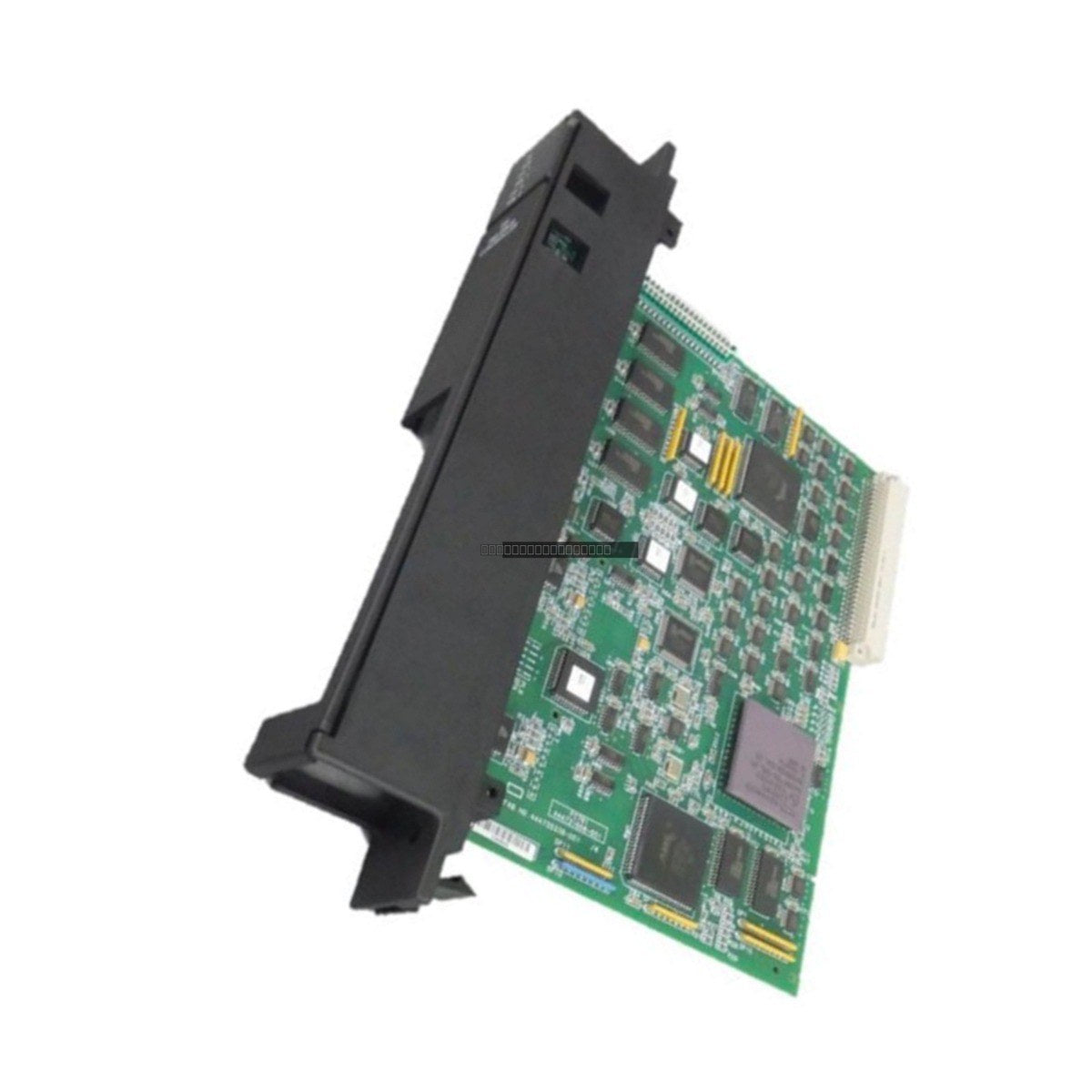

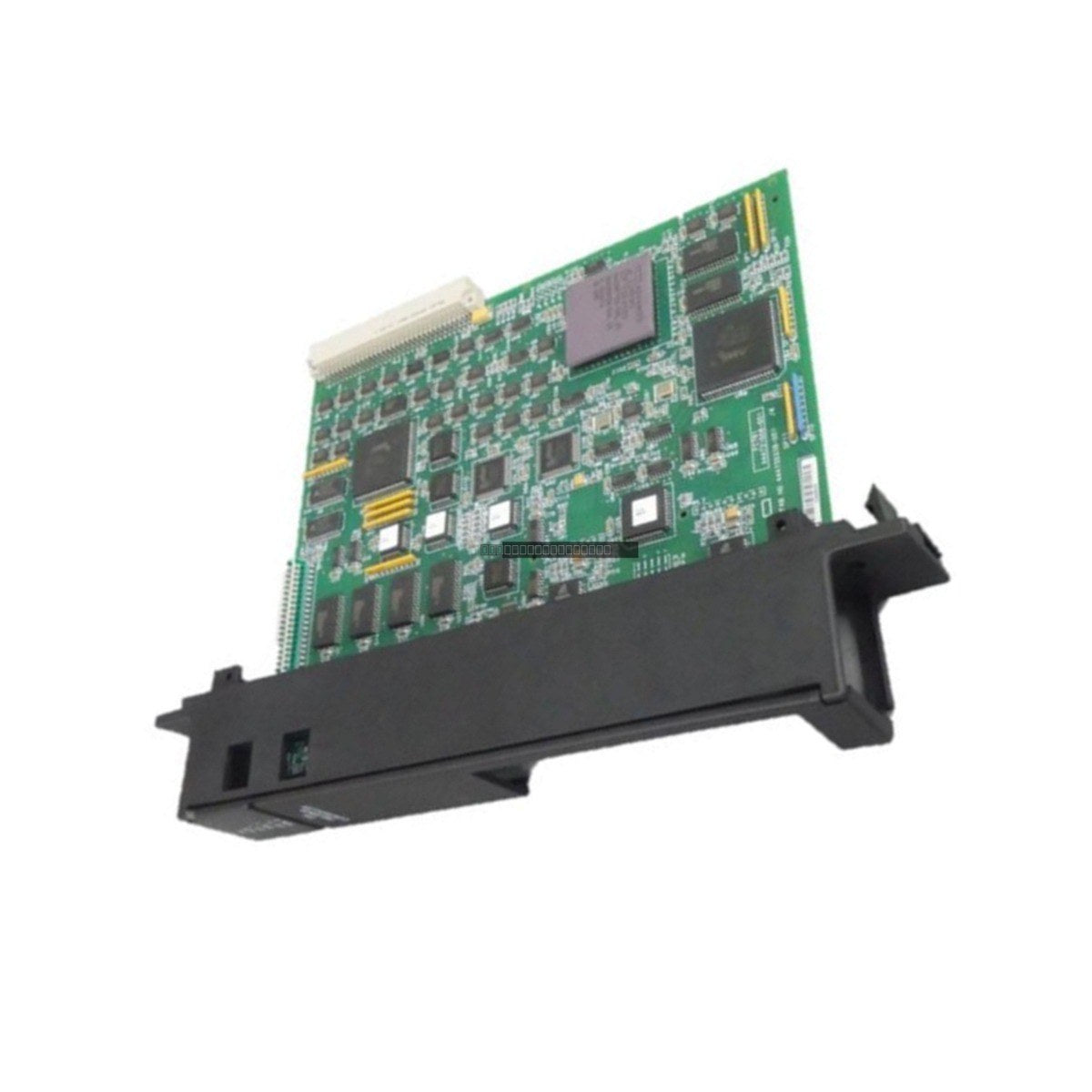

General Electric IC697BEM742 FIP Bus Controller

General Electric IC697BEM742 FIP Bus Controller

The General Electric IC697BEM742 is a specialized FIP (Factory Instrumentation Protocol) Bus Controller designed for integration within the Series 90-70 PLC platform. This module serves as a high-performance interface, enabling...

21 people are viewing this right now

Availability: Low stock: 6 left

SKU: IC697BEM742
Vendor: General Electric
Category: Bus Controller Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The General Electric IC697BEM742 is a specialized FIP (Factory Instrumentation Protocol) Bus Controller designed for integration within the Series 90-70 PLC platform. This module serves as a high-performance interface, enabling communication between the PLC rack and FIP or WorldFIP I/O serial bus networks, facilitating efficient data exchange in complex industrial automation environments.

Features

  • Designed for seamless integration with the Series 90-70 VME backplane architecture.
  • Provides dedicated control and management for FIP/WorldFIP serial bus communications.
  • Equipped with 6 integrated LED indicators for real-time status monitoring and diagnostic feedback.
  • Robust construction suitable for demanding industrial control rack environments.

Applications

This module is primarily utilized in industrial control systems requiring reliable, deterministic communication over a FIP bus. It is commonly deployed in manufacturing, process control, and distributed I/O architectures where the Series 90-70 PLC acts as the central controller for remote field devices.

Technical Specifications

Model IC697BEM742
Manufacturer General Electric (GE Fanuc)
Series Series 90-70
Operating Voltage 5.0 VDC
Backplane Current 1.3 Amps
Communication Ports Dual 9-Pin FIP Bus Connectors, 15-Pin Serial Connector
Mounting IC697 PLC VME Integrator Rack

Connections and Interfaces

The module features a multi-port interface configuration to support network connectivity and local diagnostics. It includes dual 9-pin connectors specifically for the FIP bus and a 15-pin serial connector for auxiliary communication or configuration tasks.

Installation Guidelines

  • Ensure the PLC rack power is completely disconnected before inserting or removing the module to prevent electrical damage.
  • Verify that the module is correctly aligned with the VME backplane slots before applying pressure to seat the connector.
  • Use shielded cabling for FIP bus connections to minimize electromagnetic interference (EMI) in high-noise industrial environments.
  • Maintain adequate clearance around the module to allow for proper airflow and cooling within the rack.
  • Handle the module using standard ESD (Electrostatic Discharge) safety precautions to protect internal circuitry.

FAQ

What is the primary function of the IC697BEM742?
The IC697BEM742 acts as a bus controller that allows a GE Series 90-70 PLC to communicate with devices on a FIP or WorldFIP serial bus network.

Does this module require external power?
No, the module draws its operating power (5.0 VDC) directly from the VME backplane of the GE Series 90-70 rack.
