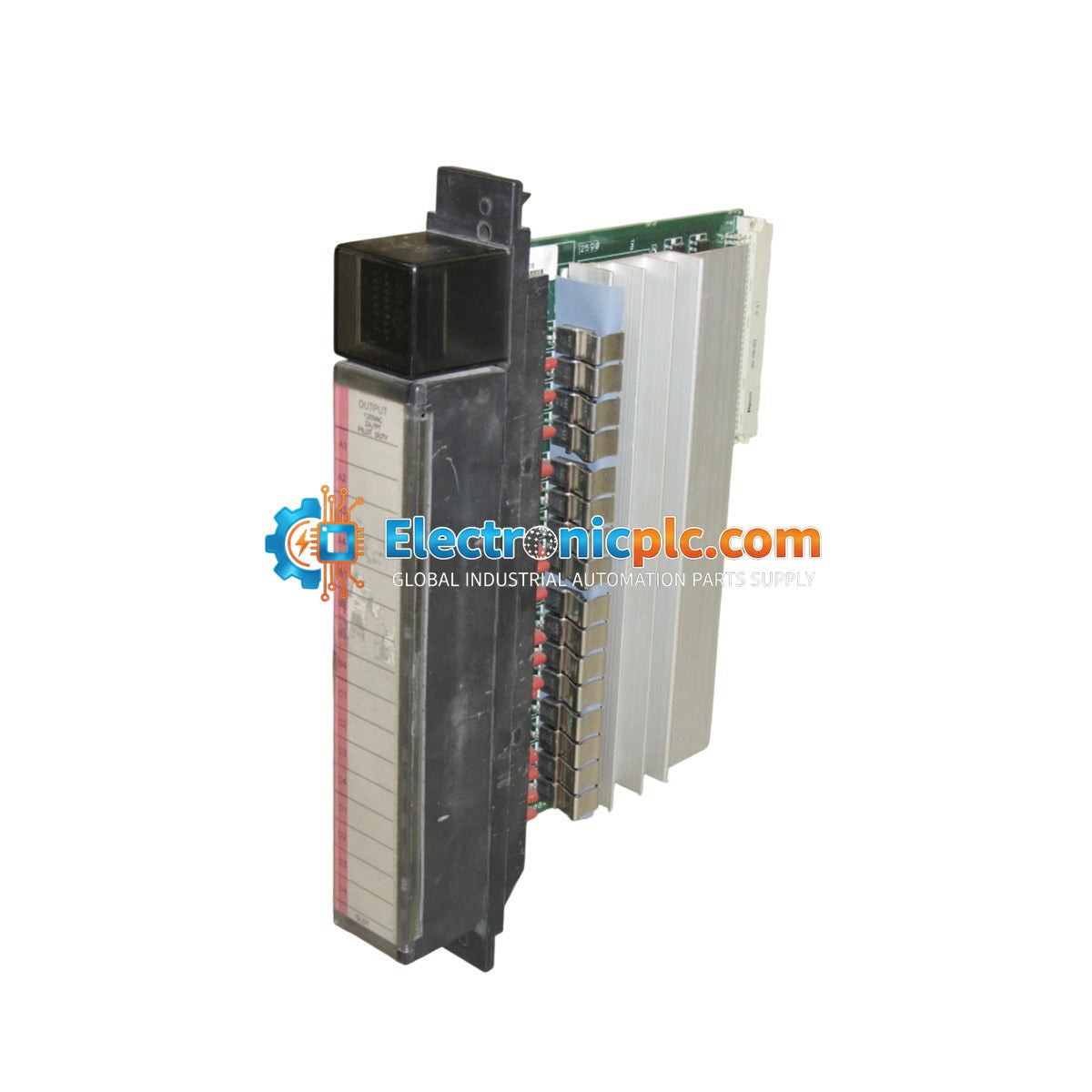

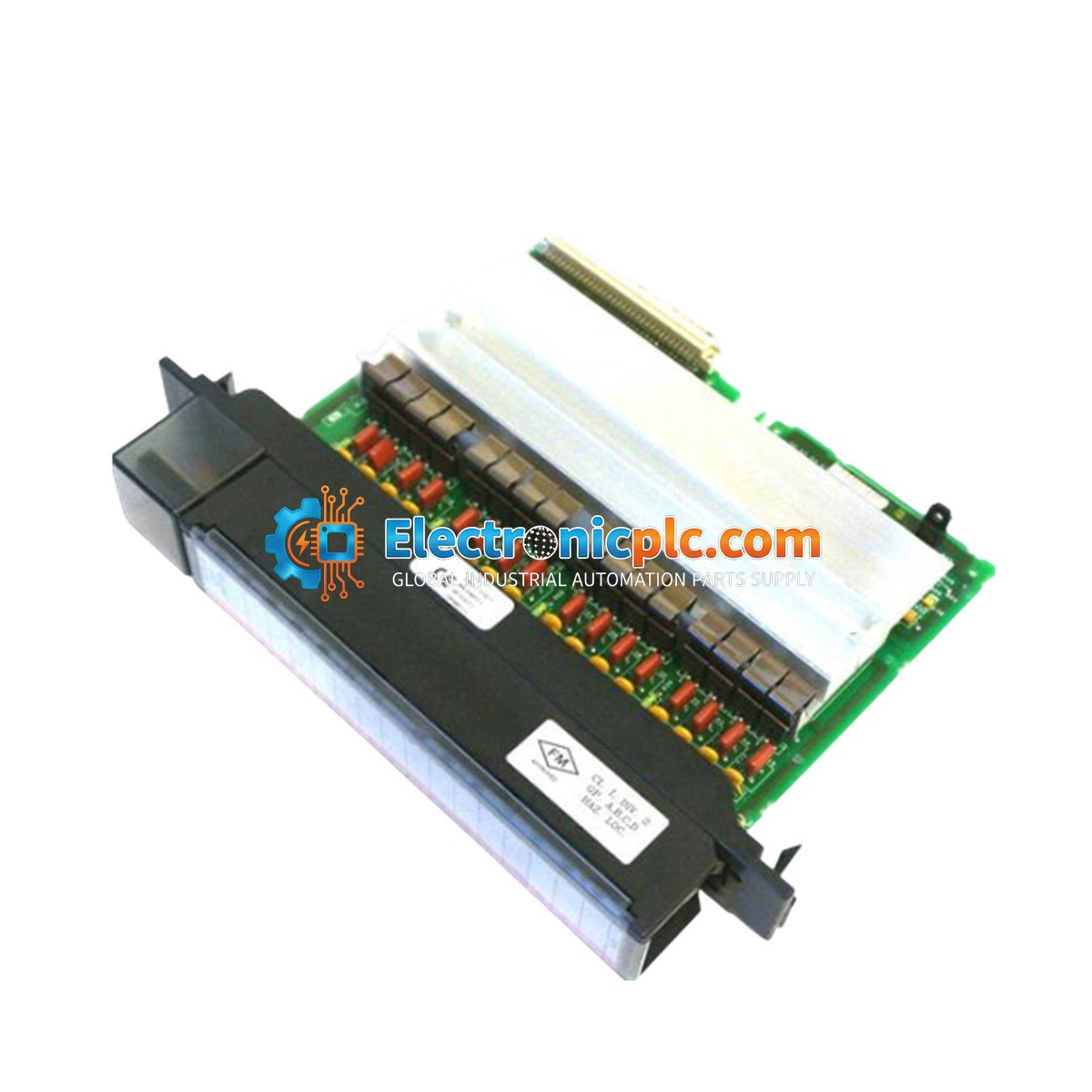

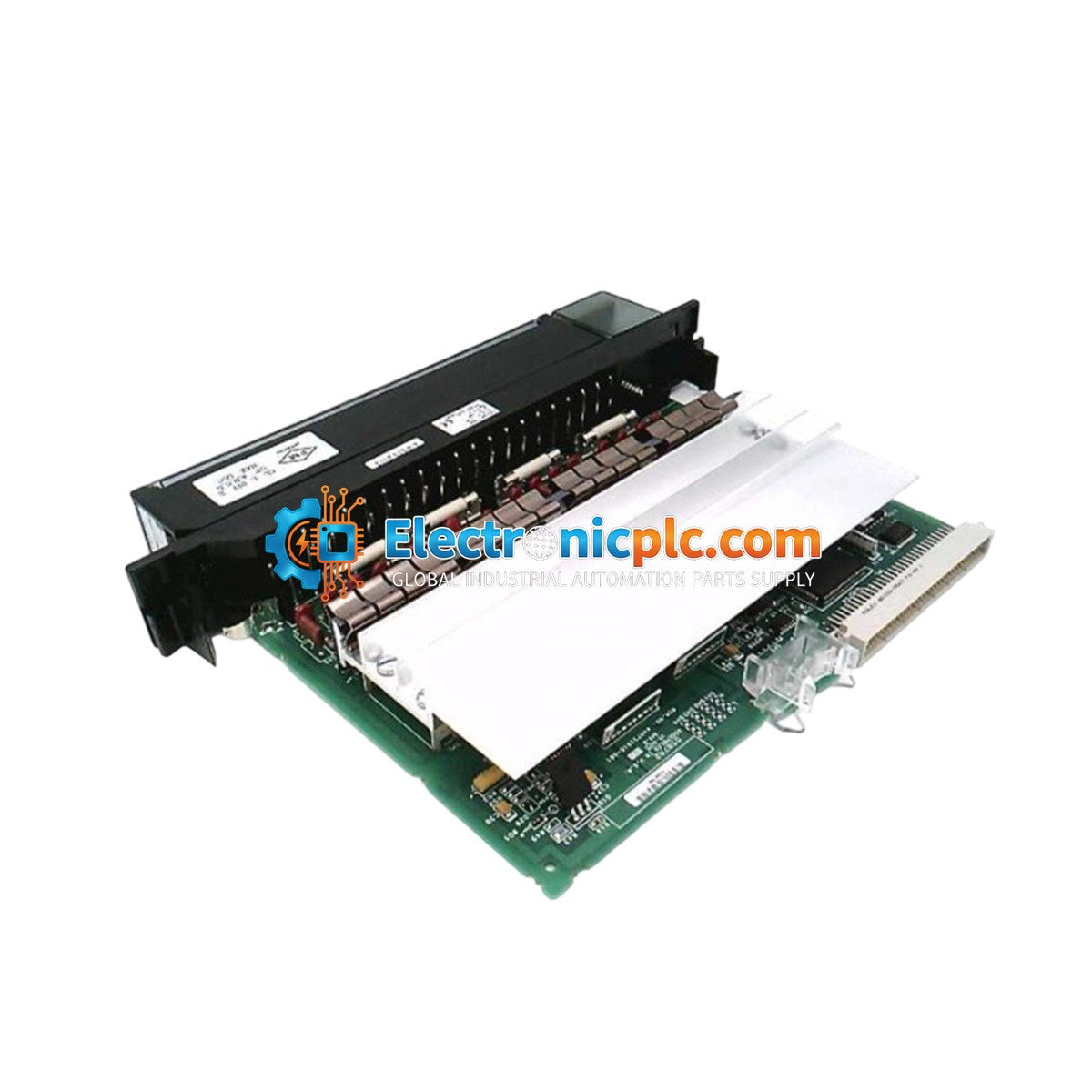

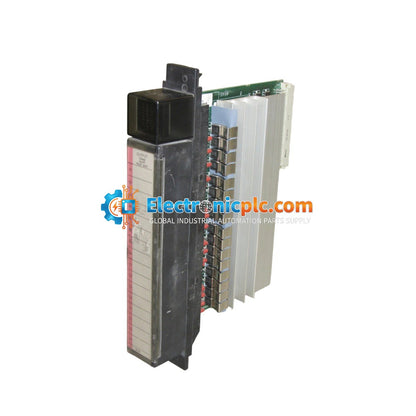

General Electric IC697MDL340 Series 90-70 16-Point 120V AC Output Module

General Electric IC697MDL340 Series 90-70 16-Point 120V AC Output Module

Description

The IC697MDL340 is a 16-point 120V AC Output Module designed for use within the GE Fanuc Series 90-70 Programmable Logic Controller (PLC) system. This module provides high-density output switching capabilities,...

15 people are viewing this right now

Availability: Low stock: 1 left

SKU: IC697MDL340
Vendor: General Electric
Category: Digital Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The IC697MDL340 is a 16-point 120V AC Output Module designed for use within the GE Fanuc Series 90-70 Programmable Logic Controller (PLC) system. This module provides high-density output switching capabilities, allowing the controller to interface with various AC-powered field devices such as solenoids, motor starters, and pilot lights. It is engineered for industrial environments requiring reliable, high-current AC output control.

Features

  • 16 isolated output points configured for 120V AC operation.
  • Integrated LED status indicators for each output point to facilitate rapid diagnostics and troubleshooting.
  • Supports a frequency range of 47-63 Hz, ensuring compatibility with standard industrial power grids.
  • Robust design for integration into Series 90-70 rack-based systems.
  • High output current capacity suitable for demanding industrial loads.

Technical Specifications

Product Model IC697MDL340
Manufacturer General Electric
Series Series 90-70
Rated Voltage 120V AC
Number of Outputs 16
Output Current per Point 2 A
Output Current per Group 4 A
Current Consumption 0.25 A
Frequency Range 47-63 Hz
Weight 0.62 kg

Installation Guidelines

  • Ensure the PLC rack is powered down before inserting or removing the module to prevent electrical damage.
  • The module must be seated firmly into the designated slot in the Series 90-70 backplane.
  • Use appropriate wire gauges for the field terminal connections to ensure secure contact and prevent overheating.
  • Maintain proper spacing for ventilation to prevent thermal buildup within the enclosure.
  • Route AC output wiring away from low-voltage signal cables to minimize electromagnetic interference (EMI).
  • Verify that the field power supply matches the 120V AC rating of the module before energizing.

FAQ

What is the primary function of the IC697MDL340?

This module acts as an interface between the GE Series 90-70 PLC and external AC-powered industrial equipment, providing 16 discrete output channels to control field devices.

Can this module be used with DC loads?

No, the IC697MDL340 is specifically designed for 120V AC applications and should not be used with DC power sources.

What is the maximum current per output point?

The module supports a maximum output current of 2 A per point, with a maximum of 4 A per group.
