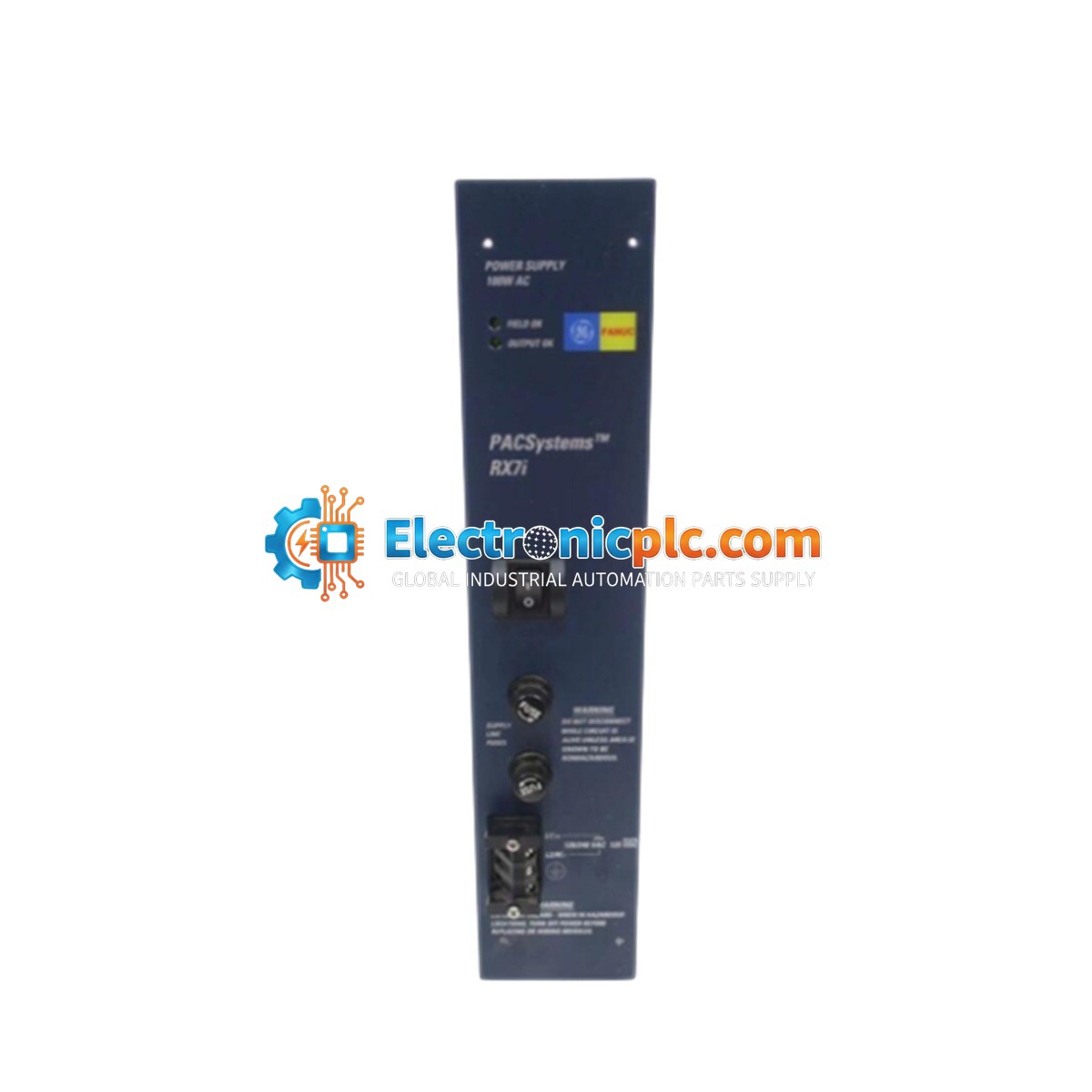

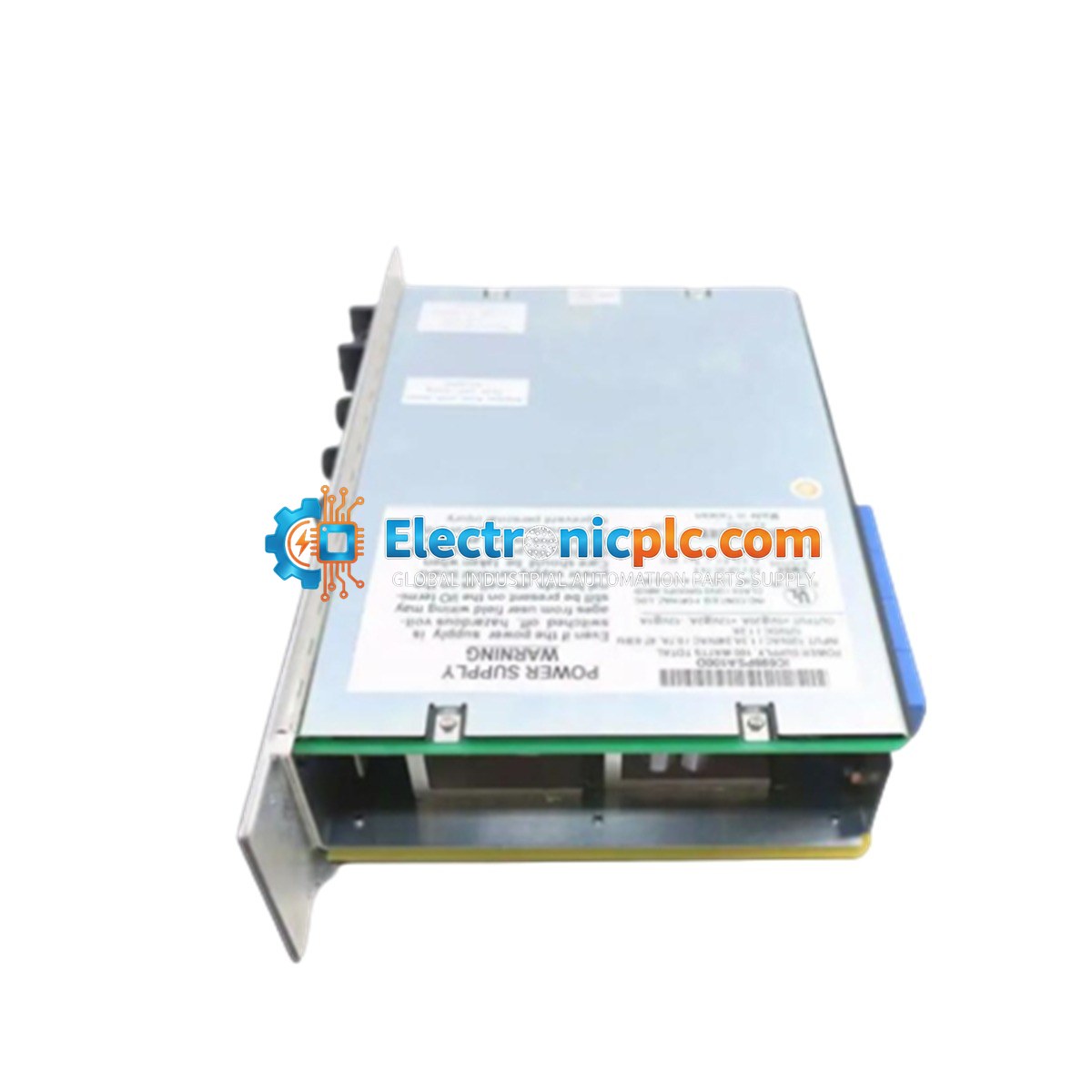

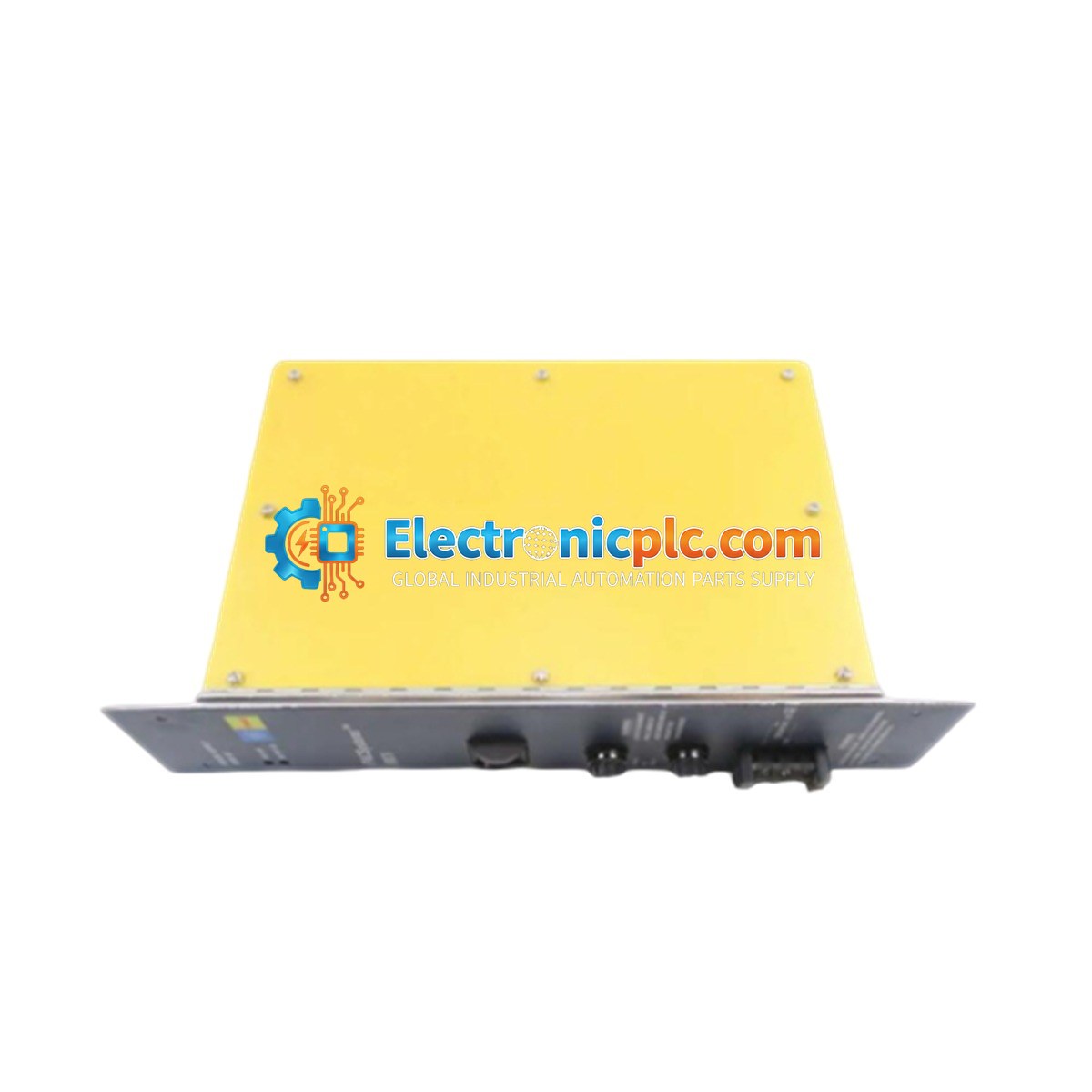

General Electric IC698PSA100 PACSystems RX7i Power Supply Module

General Electric IC698PSA100 PACSystems RX7i Power Supply Module

Description

The IC698PSA100 is a high-performance power supply module designed for the GE PACSystems RX7i control system. This module provides reliable power distribution to the backplane, supporting complex industrial automation applications....

19 people are viewing this right now

Availability: Low stock: 7 left

SKU: IC698PSA100
Vendor: General Electric
Category: Power Supply Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The IC698PSA100 is a high-performance power supply module designed for the GE PACSystems RX7i control system. This module provides reliable power distribution to the backplane, supporting complex industrial automation applications. It is engineered to accept a wide range of input voltages, including 120/240 VAC and 125 VDC, converting them into stable DC outputs required for system operation. The unit is designed for installation in the leftmost slot (Slot 0) of the RX7i rack.

Features

  • Designed specifically for the PACSystems RX7i series backplane.
  • Supports universal AC input (85-264 VAC) and DC input (100-150 VDC).
  • Provides three regulated output voltages: 5.1 VDC, +12 VDC, and -12 VDC.
  • Integrated protection against overvoltage and overcurrent conditions.
  • High power factor of 0.99 minimum for efficient energy utilization.
  • Includes 15 ms ride-through capability to maintain system stability during brief power interruptions.

Technical Specifications

Parameter Specification
Input Voltage Range 85-264 VAC / 100-150 VDC
Output Power 100 Watts total
Output Voltages 5.1 VDC, +12 VDC, -12 VDC
Output Current (5.1 VDC) 0-20 Amperes
Output Current (+12 VDC) 0-2 Amperes
Output Current (-12 VDC) 0-1 Ampere
Input Frequency 47-63 Hz
Operating Temperature 0 to 60 degC
Isolation 1500 Volts
Power Consumption 125 Watts (typical), 150 Watts (max)

Installation Guidelines

  • The module is designed for the leftmost slot (Slot 0) of the RX7i rack.
  • Ensure the system power is disconnected before installing or removing the module to prevent electrical shock or damage to the backplane.
  • Use AWG #16 (1.3 mm2) wire for input terminals and AWG #12 (3.3 mm2) for ground connections to ensure proper current capacity.
  • Maintain adequate clearance around the module to allow for proper ventilation and cooling within the enclosure.
  • Ensure the module is fully seated and the retaining screws are tightened to provide a secure ground connection and prevent vibration-related issues.

FAQ

What is the primary function of the IC698PSA100?

The IC698PSA100 serves as the primary power supply for the PACSystems RX7i rack, converting standard AC or DC input power into the specific DC voltages required by the CPU and I/O modules installed in the backplane.

Can this module be used in any slot of the RX7i rack?

No, the IC698PSA100 is specifically designed to be installed in the leftmost slot (Slot 0) of the RX7i system rack.

What protection features are included?

The module includes built-in overvoltage and overcurrent protection to safeguard the power supply and the connected system components from electrical faults.
