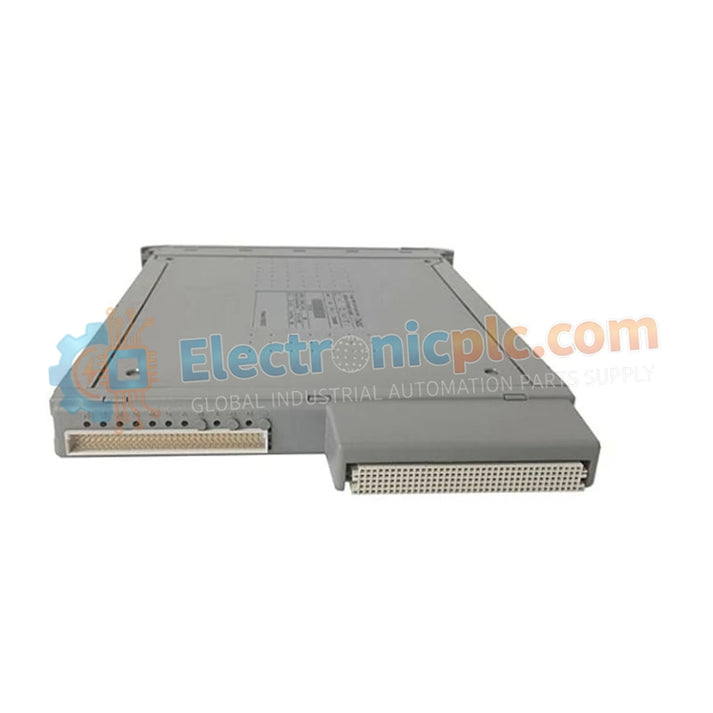

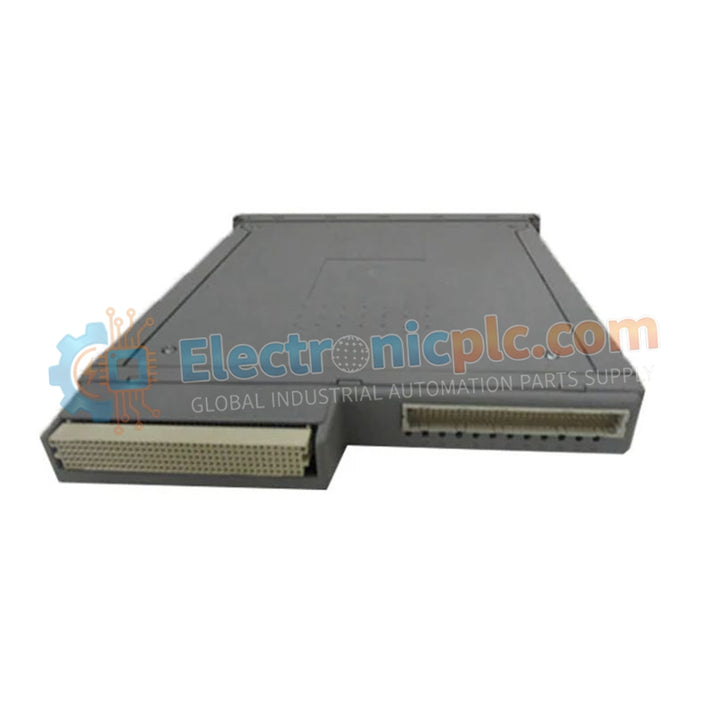

ICS Triplex T8403C Trusted Expander Module

ICS Triplex T8403C Trusted Expander Module

Product Description

The T8403C is a high-integrity expander communication module for the Schneider Electric ICS Triplex Trusted TMR System safety control architecture.

This module provides secure communication between the main controller chassis and remote expansion...

16 people are viewing this right now

Availability: Low stock: 10 left

SKU: T8403C
Vendor: ICS Triplex
Category: Trusted Expander Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Description

The T8403C is a high-integrity expander communication module for the Schneider Electric ICS Triplex Trusted TMR System safety control architecture.

This module provides secure communication between the main controller chassis and remote expansion chassis, enabling distributed I/O deployment while maintaining Triple Modular Redundant (TMR) safety integrity. It is designed for SIL 3-capable safety instrumented systems (SIS) requiring deterministic, high-reliability data exchange with hardware fault tolerance.

The T8403C processes communication through three independent voting paths (HFT=1) to ensure continuous operation even in the presence of hardware faults. It is widely used in mission-critical safety applications where system availability and data integrity are mandatory.

Detailed Technical Specifications

Parameter Specification
Model T8403C
System Platform Trusted TMR Safety System
Function Expander / Chassis Communication Interface
Safety Level SIL 3 Capable
Architecture Triple Modular Redundant (TMR)
Fault Tolerance 2-out-of-3 hardware voting
Interface High-speed expander bus
Power Consumption 10 W
Heat Dissipation 34 BTU/hr
Dimensions 3 cm × 30.2 cm × 26.5 cm
Weight 1.2 kg
Operating Temperature -5°C to +60°C

Applications

  • Emergency Shutdown (ESD) systems

  • Fire and Gas detection systems

  • Nuclear power plant safety control

  • Offshore oil and gas platform safety systems

  • Chemical plant safety instrumentation

Ideal for large-scale distributed safety architectures requiring extended I/O cabinet coverage.

Frequently Asked Questions

Q1: Does it support hot-swapping?
Yes. The T8403C is designed for high-availability SIS environments and supports hot-swapping in redundant configurations without interrupting system operation.

Q2: How many expansion chassis can be connected?
The number depends on system I/O load and architecture design, but Trusted TMR systems typically support multiple expander modules for distributed safety networks.
