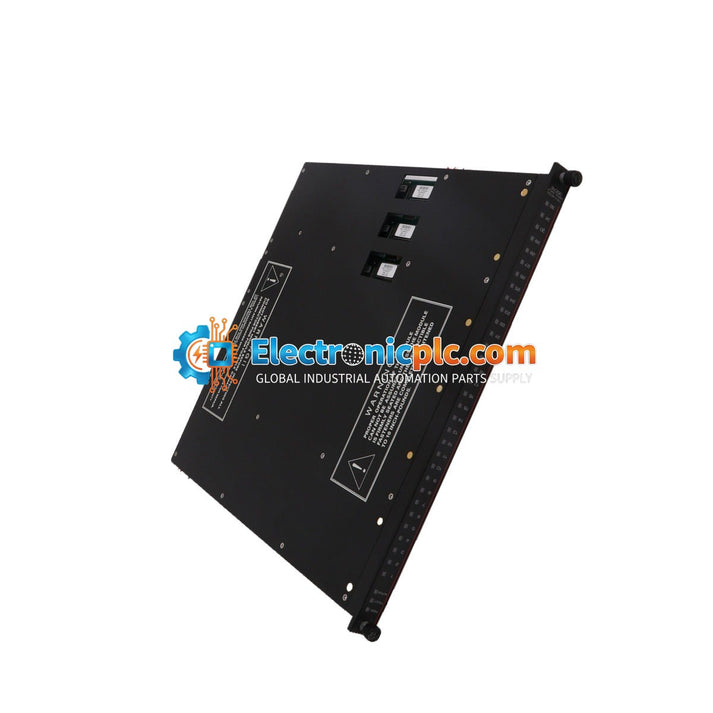

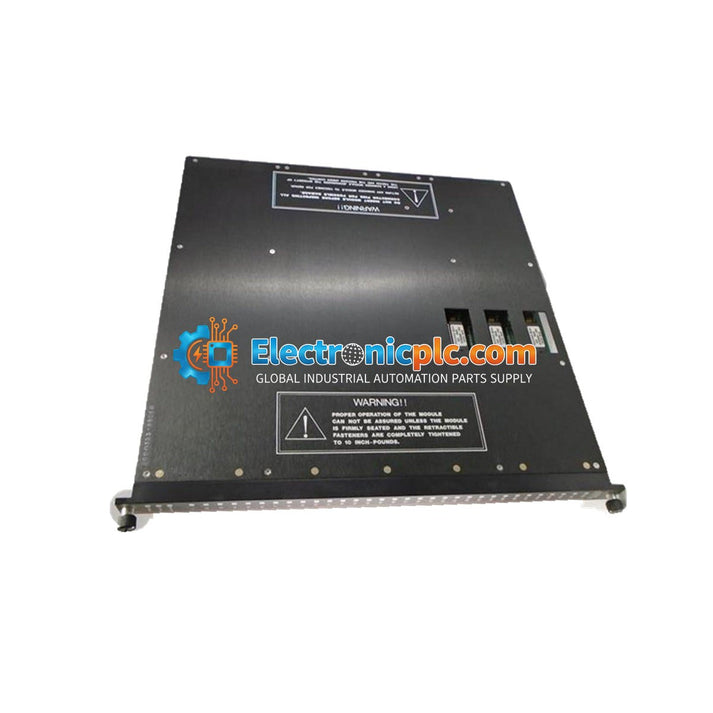

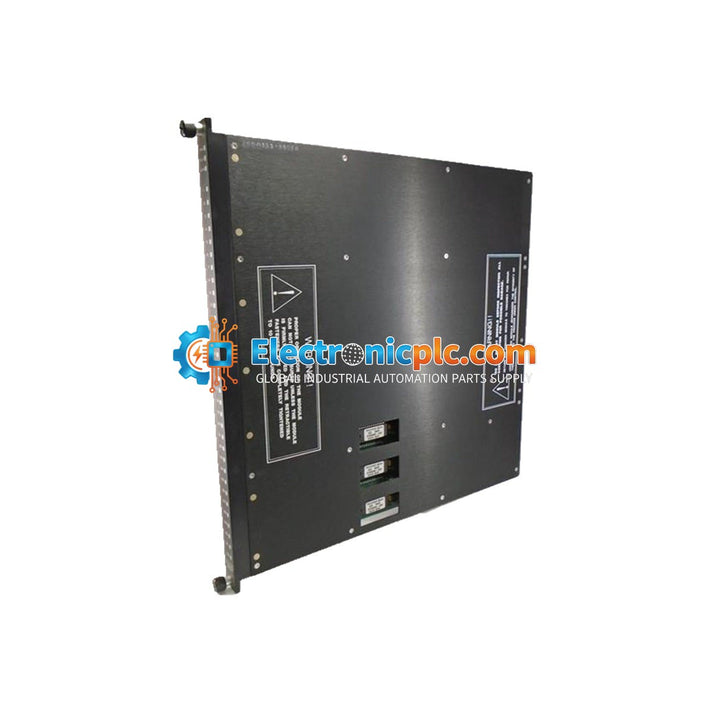

Invensys Triconex 3501E Digital Input Module

Invensys Triconex 3501E Digital Input Module

Description

The Triconex 3501E is a high-density Digital Input Module engineered for the Triconex Triple Modular Redundant (TMR) safety system. Featuring 32 isolated input points, this module is designed to interface...

23 people are viewing this right now

Availability: Low stock: 9 left

SKU: 3451
Vendor: Triconex
Category: Digital Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Triconex 3501E is a high-density Digital Input Module engineered for the Triconex Triple Modular Redundant (TMR) safety system. Featuring 32 isolated input points, this module is designed to interface with 115 VAC/VDC field signals, making it an essential component for monitoring critical discrete devices such as limit switches and pushbuttons. In demanding industrial sectors like oil refining, power generation, and chemical processing, the 3501E ensures maximum process uptime through its fault-tolerant architecture. By utilizing advanced point-to-point isolation and rigorous signal processing, this module effectively eliminates common-mode interference and prevents field-side electrical faults from impacting the core logic controller.

Features

  • 32-channel high-density digital input configuration.
  • Triple Modular Redundant (TMR) architecture for high-availability safety applications.
  • Supports 115 VAC/VDC nominal input signals.
  • Robust optical isolation (1500 VDC to 2500 VDC) per channel.
  • Integrated self-diagnostic routines for real-time health monitoring.
  • SIL 3 compliant design for critical safety loops.

Applications

The 3501E is widely utilized in safety-critical environments, including:

  • Emergency Shutdown Systems (ESD).
  • Fire and Gas (F&G) monitoring systems.
  • Turbine control and burner management systems.
  • High-integrity process monitoring in chemical and petrochemical plants.

Technical Specifications

Model 3501E
Module Type Digital Input (DI)
Input Points 32 Channels, Isolated
Nominal Voltage 115 VAC/VDC
Input Voltage Range 90-155 VAC/VDC
Frequency Range 47-63 Hz
Input Current 6-9 mA
Power Consumption 2.9 W
Point Isolation 1500 VDC to 2500 VDC
Operating Temperature 0 to 60 deg C

Installation Guidelines

  • Ensure the Triconex chassis is powered down before inserting or removing the 3501E module.
  • Handle the module using ESD-safe practices to prevent damage to sensitive internal components.
  • Ensure proper seating in the backplane slot to maintain electrical connectivity for the TMR bus.
  • Use shielded cabling for field inputs to minimize EMI/RFI interference in high-noise industrial environments.
  • Verify that field wiring polarity matches the terminal block configuration before applying power.
  • Maintain adequate ventilation around the chassis to ensure operation within the specified 0 to 60 deg C temperature range.

FAQ

What is the primary function of the 3501E module?
The 3501E is a digital input module designed to monitor 32 discrete field signals (115 VAC/VDC) and feed them into a Triconex TMR safety controller for processing.

Is this module suitable for SIL 3 applications?
Yes, the 3501E is designed for use in TMR systems that meet SIL 3 requirements, provided it is installed and configured according to the manufacturer's safety manual.

Does the module require external power for the inputs?
The 3501E monitors field-powered signals; ensure your field devices are powered within the 90-155 VAC/VDC range as specified.
