Description

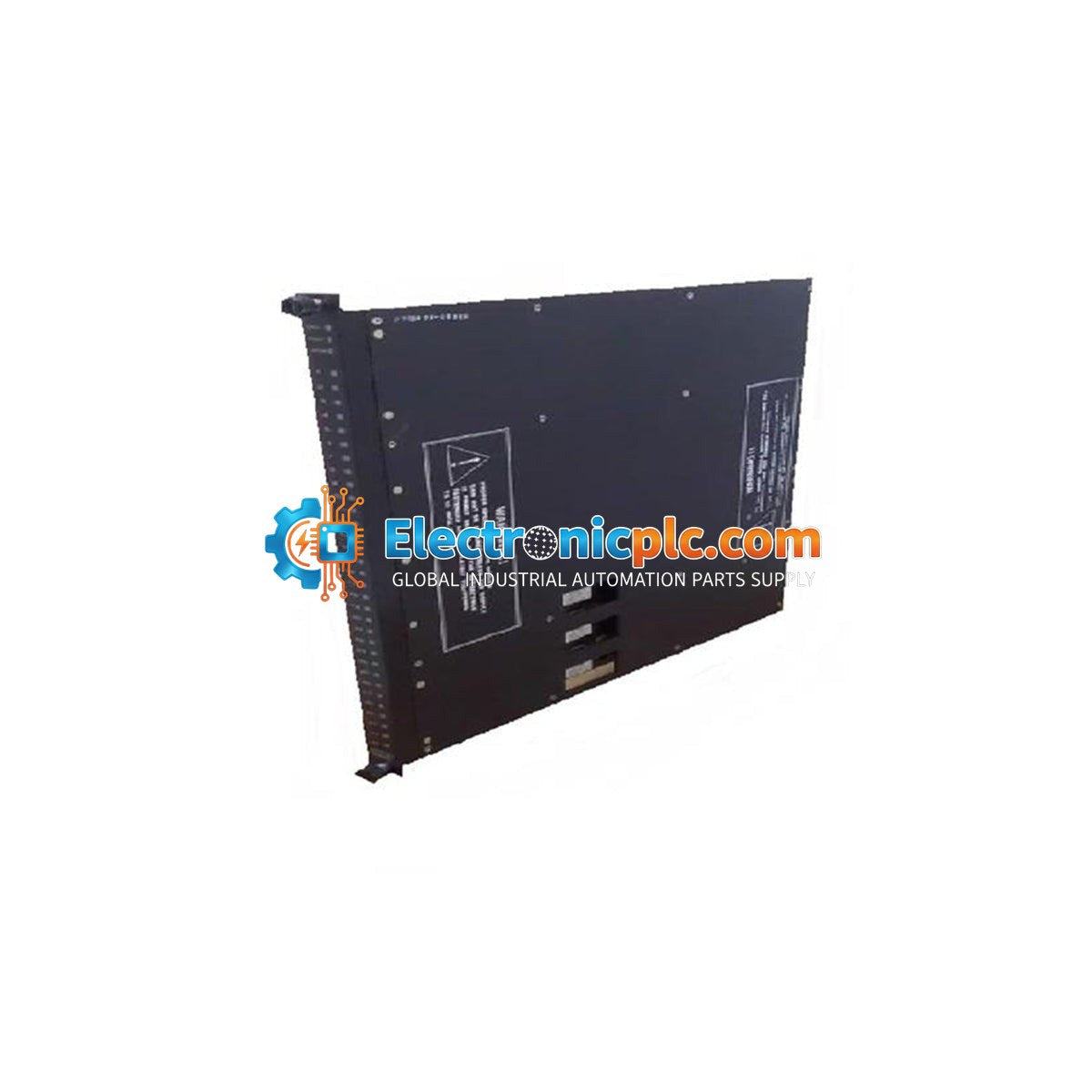

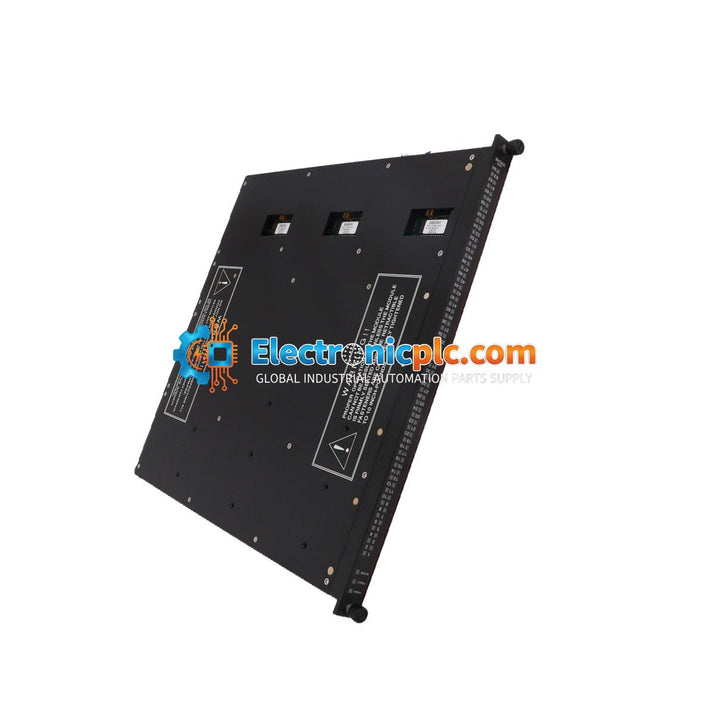

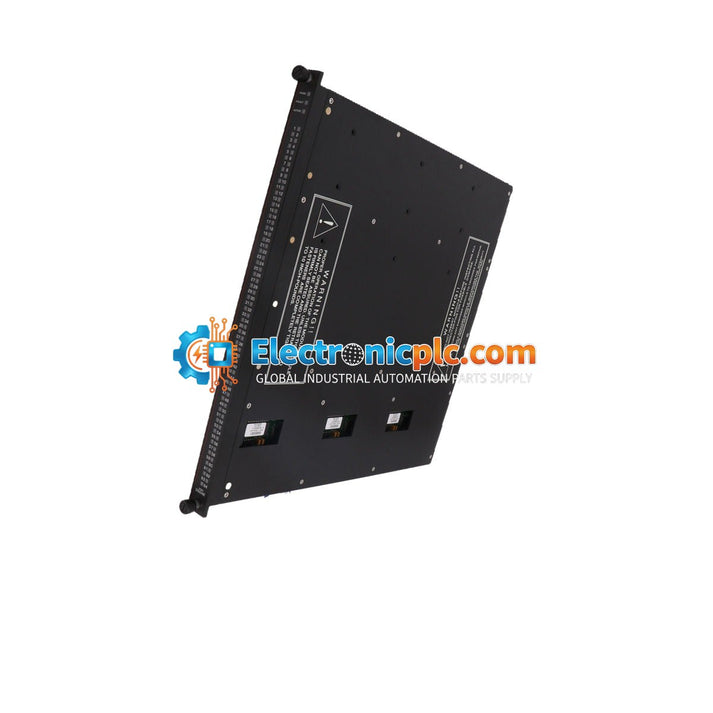

The Invensys Triconex 3504E is a High-Density Digital Input (HDDI) module designed for high-integrity signal monitoring within the Triconex Triple Modular Redundancy (TMR) safety system. This module is engineered to interface with field discrete devices such as limit switches, alarm contacts, and push buttons, providing reliable data acquisition for Safety Instrumented Systems (SIS) in demanding industrial environments including chemical processing, refineries, and offshore platforms.

Features

• TMR Architecture: Utilizes Triple Modular Redundancy for fault tolerance, allowing the system to maintain safety functions even in the event of a single component failure.
• High-Density Design: Optimized for space-constrained cabinets while maintaining high-speed signal processing capabilities.
• Diagnostic Indicators: Front-panel LED indicators (PASS, FAULT, ACTIVE) provide real-time status and diagnostic feedback for maintenance personnel.
• Galvanic Isolation: Integrated circuitry protects the main processor from field-side electrical surges and transients.
• Voltage Flexibility: Supports a nominal 24/48 VDC range with a maximum input voltage rating of 72 VDC.

Applications

The 3504E is primarily utilized in critical safety applications requiring high availability and fault tolerance. It is commonly deployed in emergency shutdown systems (ESD), fire and gas monitoring, and critical process control loops where false trips must be minimized to ensure continuous plant operations and personnel safety.

Technical Specifications

Installation Guidelines

• ESD Protection: Always use a grounded wrist strap when handling the module to prevent electrostatic discharge damage to internal components.
• Power Status: Ensure the system power is disconnected or the specific slot is de-energized before inserting or removing the module from the chassis.
• Seating: Ensure the module is fully seated in the designated backplane slot and that the retaining screws are tightened to provide proper grounding and mechanical stability.
• Wiring: Use shielded cabling for field inputs to minimize EMI/RFI interference. Route signal cables away from high-voltage power lines.

FAQ

What is the primary function of the 3504E module?

The 3504E is a digital input module designed to monitor discrete field signals and provide high-integrity data to the Triconex TMR safety system for process control and safety shutdown applications.

Can this module operate in high-temperature environments?

The module is rated for an operating temperature range of 0 to 60 deg C. Ensure the control cabinet is properly ventilated to maintain ambient temperatures within this range.
