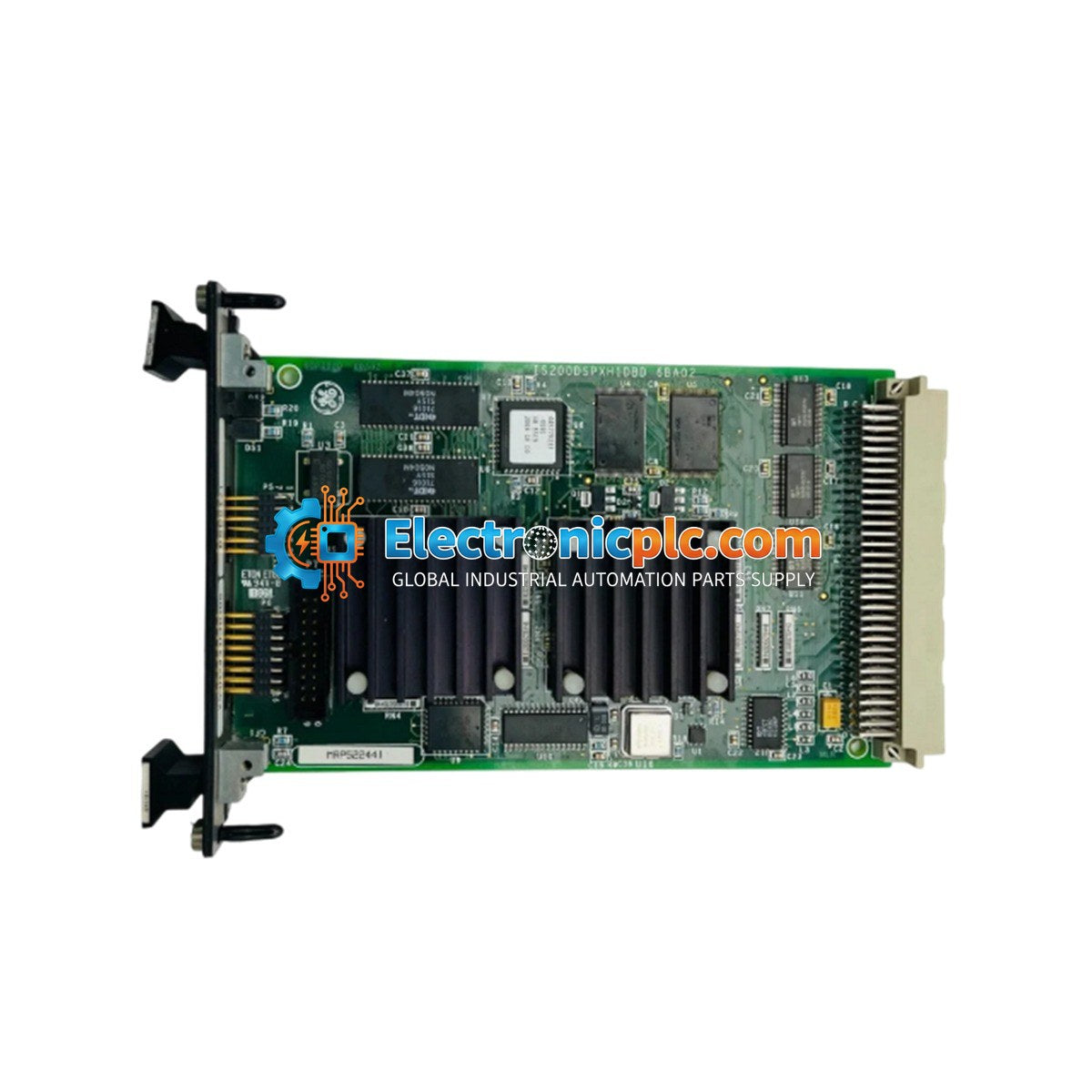

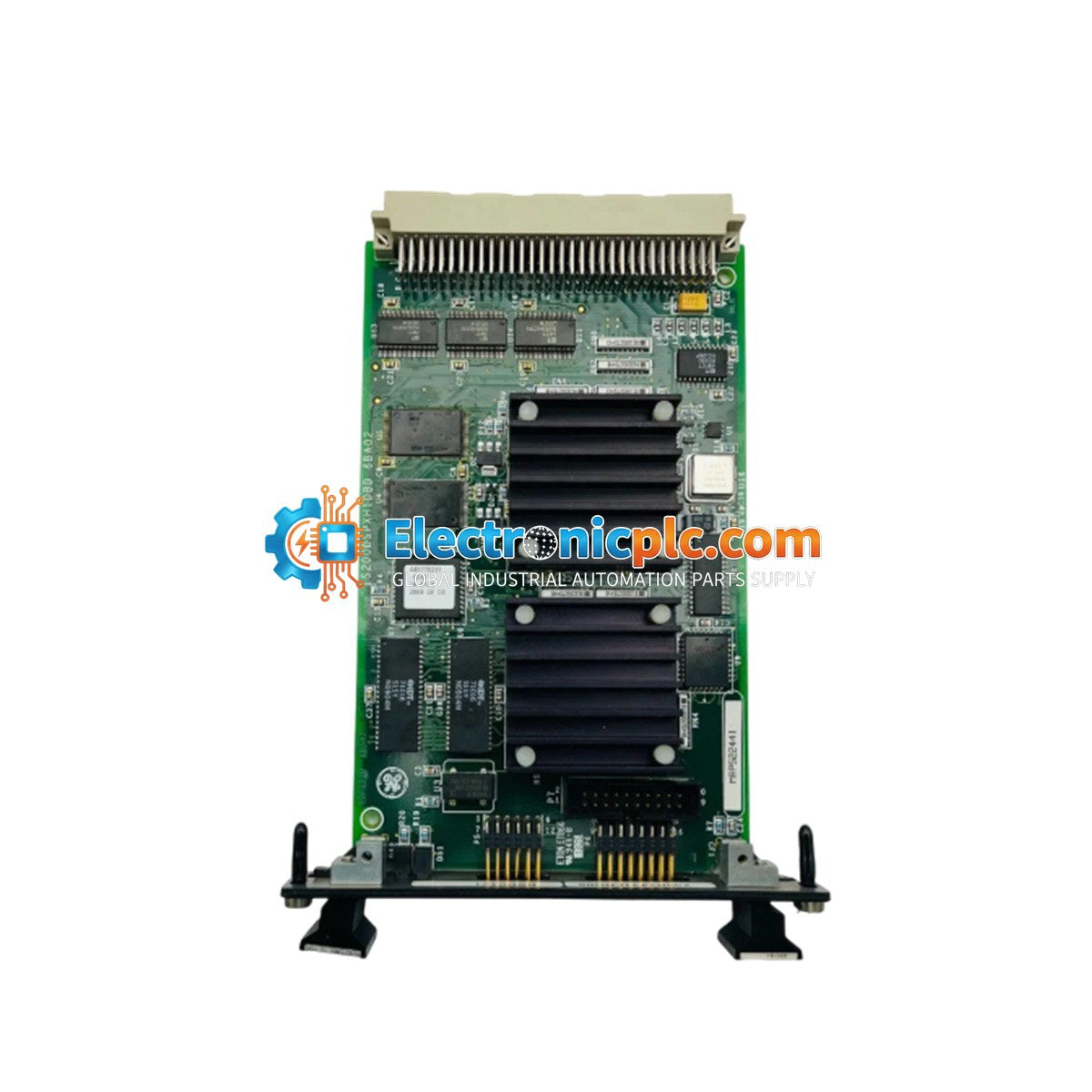

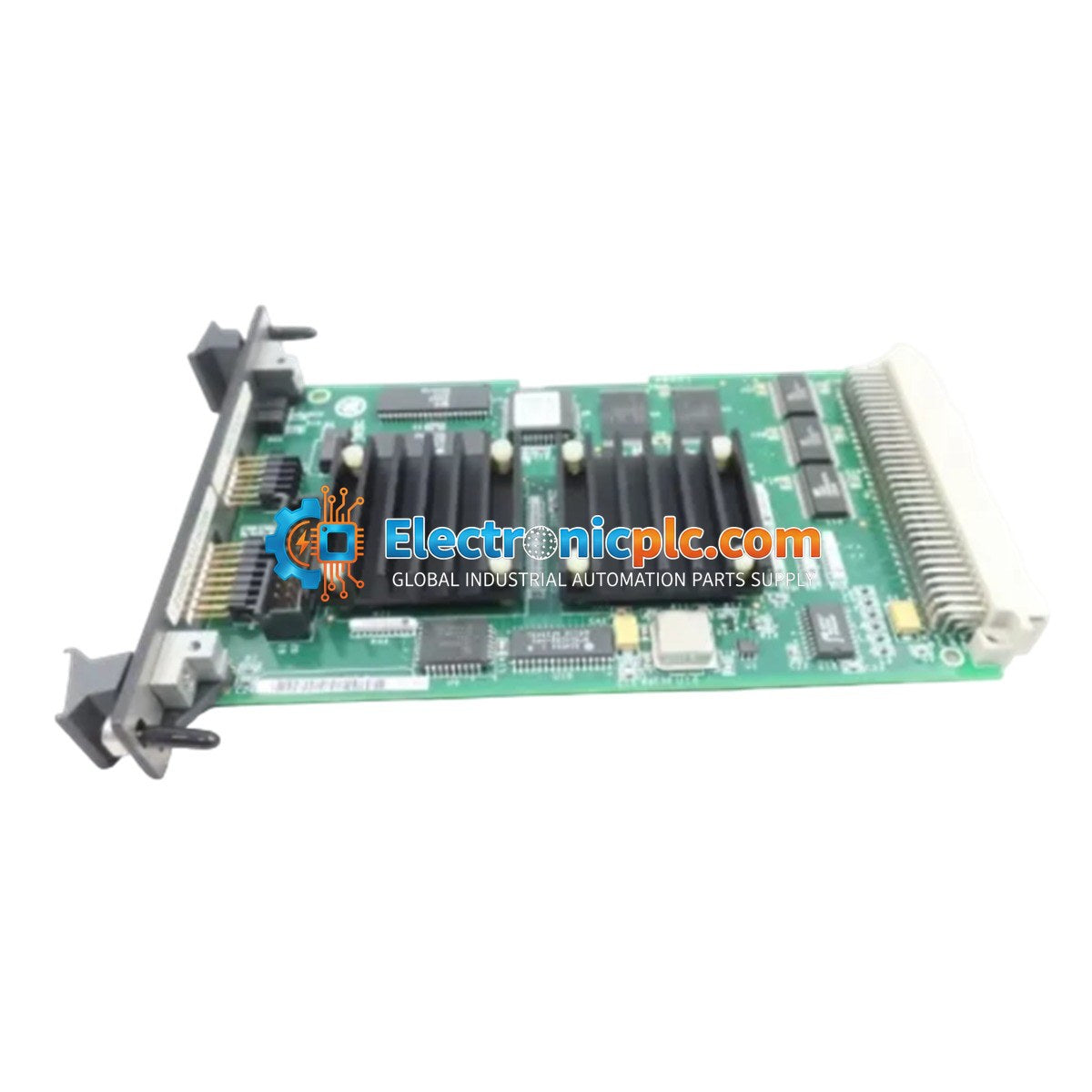

General Electric IS200DSPXH1D Mark VIe Digital Signal Processor Board

General Electric IS200DSPXH1D Mark VIe Digital Signal Processor Board

Description

The General Electric IS200DSPXH1D is a Digital Signal Processor (DSP) control board designed for the Mark VIe control system. This module serves as a critical processing component, providing high-speed digital...

27 people are viewing this right now

Availability: Low stock: 5 left

SKU: IS200DSPXH1D
Vendor: General Electric
Category: Digital Signal Processor Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The General Electric IS200DSPXH1D is a Digital Signal Processor (DSP) control board designed for the Mark VIe control system. This module serves as a critical processing component, providing high-speed digital signal handling capabilities within the GE turbine and generator control architecture. It is engineered to perform complex computational tasks required for real-time monitoring and regulation of industrial processes.

Features

  • High-performance 60 MHz processor for rapid signal execution.
  • Integrated 512 kB Flash memory for firmware and configuration storage.
  • Designed for integration within the robust Mark VIe control platform.
  • Compact form factor suitable for standard control cabinet mounting.

Technical Specifications

Product Model IS200DSPXH1D
Spare Model IS200DSPXH1DBC
Processor Speed 60 MHz
Memory 512 kB Flash
Power Supply +5 V DC
Power Consumption 15 W typical
Isolation 500 V DC
Operating Temperature 0 degC to +60 degC
Humidity 5 to 95% RH (non-condensing)

Installation Guidelines

  • Ensure the control system is powered down before installing or removing the DSP board to prevent electrical damage.
  • Handle the module using proper ESD (Electrostatic Discharge) protection practices to avoid damaging sensitive internal components.
  • Verify that the board is securely seated in the designated Mark VIe rack slot to ensure reliable backplane communication.
  • Ensure adequate ventilation within the cabinet to maintain operating temperatures within the specified 0 to 60 degC range.
  • Route signal cables away from high-voltage power lines to minimize electromagnetic interference (EMI) and signal noise.

FAQ

Is the IS200DSPXH1D compatible with older Mark VI systems?

The IS200DSPXH1D is specifically designed for the Mark VIe control system. Please verify your system hardware revision before installation, as compatibility with legacy Mark VI systems may vary depending on firmware and rack configuration.

What is the typical power requirement for this board?

The module operates on a +5 V DC power supply and typically consumes approximately 15 W during normal operation.
