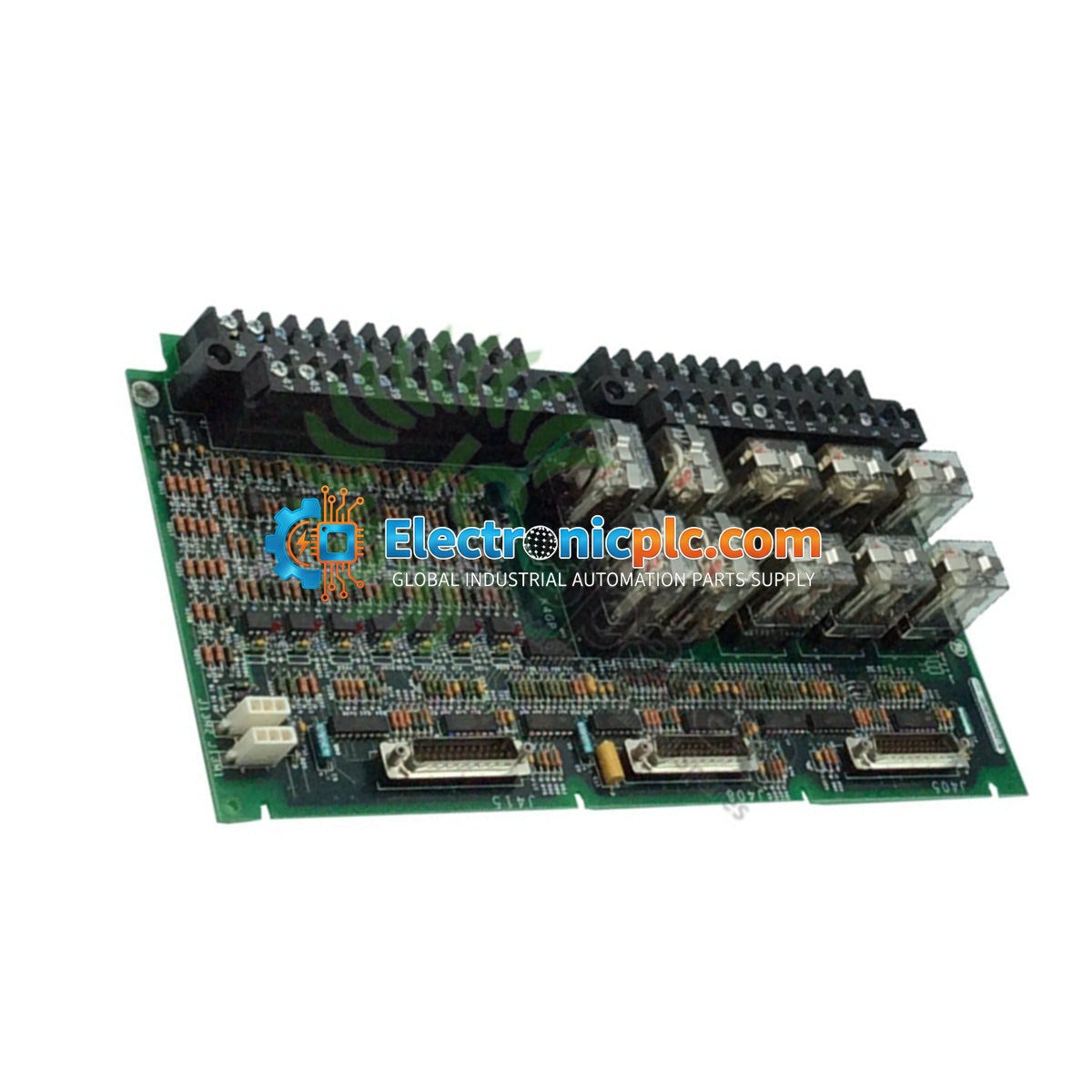

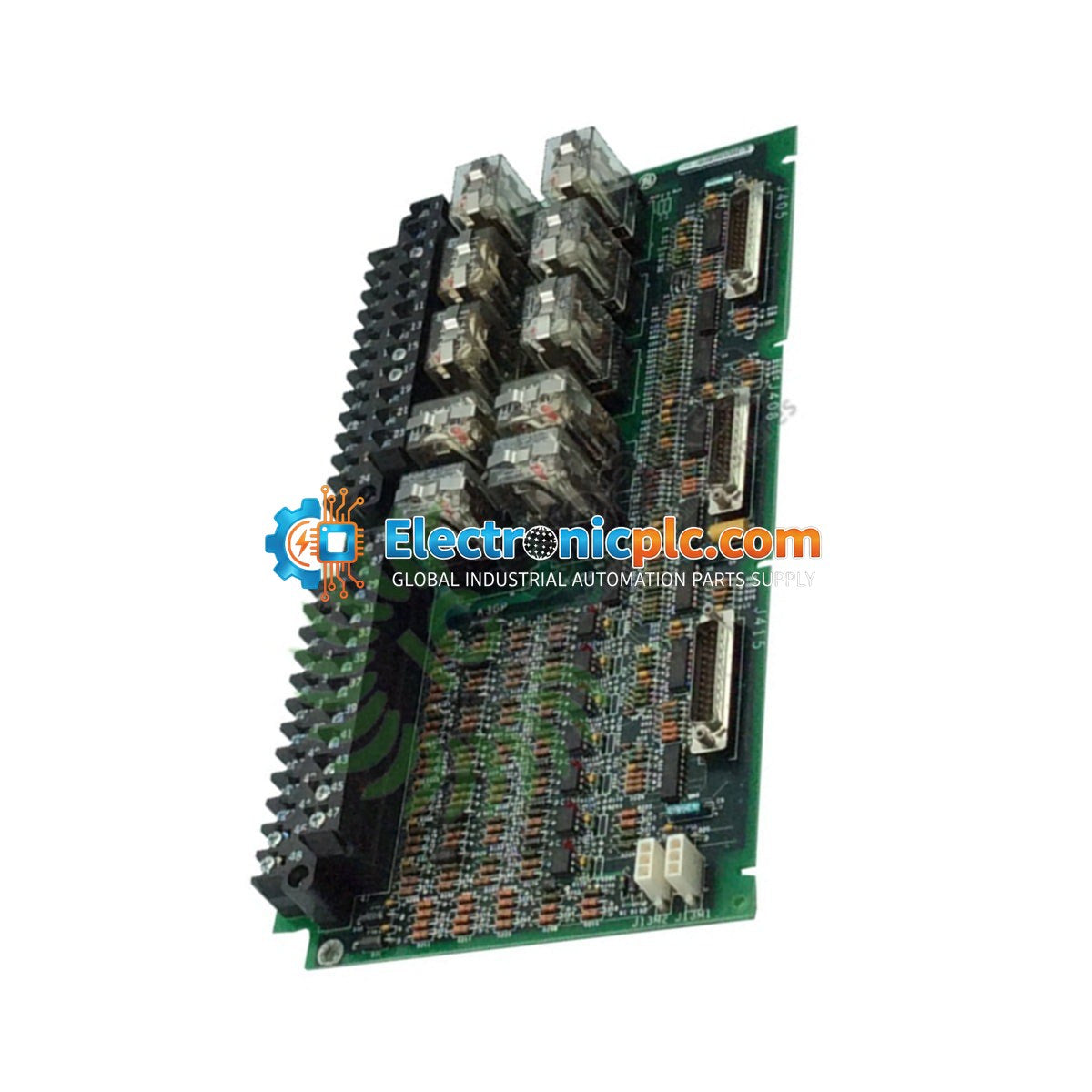

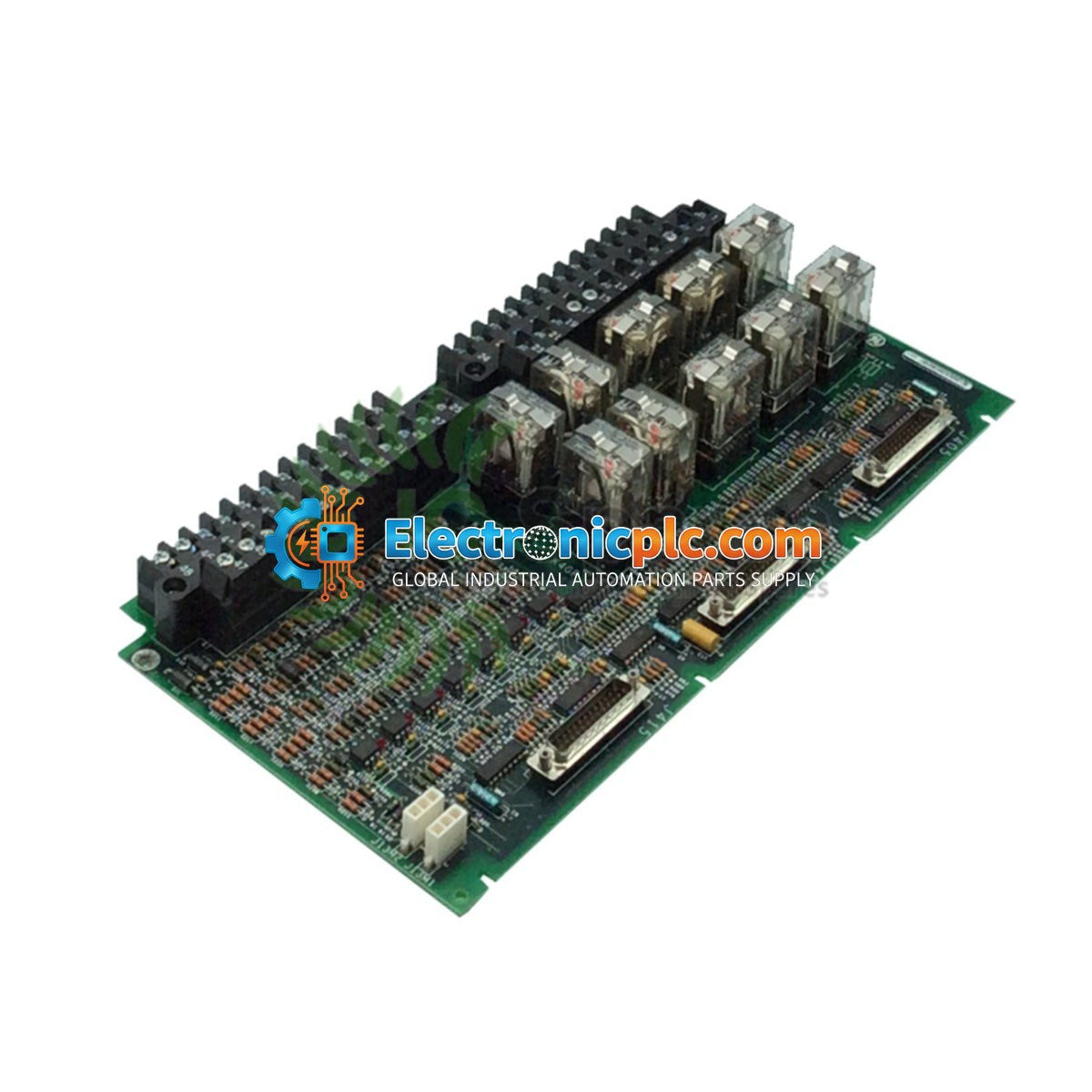

General Electric IS200ECTBG2A Exciter Contact Terminal Board

General Electric IS200ECTBG2A Exciter Contact Terminal Board

Description

The General Electric IS200ECTBG2A is an Exciter Contact Terminal Board designed for use within the EX2100 Excitation Control System. This terminal board serves as a critical interface component, facilitating the...

18 people are viewing this right now

Availability: Low stock: 6 left

SKU: IS200ECTBG2A
Vendor: General Electric
Category: Terminal Board
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The General Electric IS200ECTBG2A is an Exciter Contact Terminal Board designed for use within the EX2100 Excitation Control System. This terminal board serves as a critical interface component, facilitating the connection and management of contact-based signals within the excitation control architecture. It is engineered to ensure reliable signal processing and robust connectivity for demanding industrial power generation environments.

Features

  • Designed specifically for the GE EX2100 series excitation control systems.
  • Provides reliable contact interface management for exciter control operations.
  • Supports a contact wetting voltage of +70 V DC.
  • Features high-level electrical isolation between inputs and the backplane.
  • Wide operating temperature range suitable for harsh industrial settings.

Applications

This terminal board is primarily utilized in power plant excitation control systems, specifically within the EX2100 series. It is essential for monitoring and managing contact inputs that regulate exciter performance and protection sequences.

Technical Specifications

Product Model IS200ECTBG2A
Manufacturer General Electric
System Series EX2100
Power Supply 24 V DC
Power Consumption <= 4 W
Contact Wetting Voltage +70 V DC
Isolation 500 V DC input-to-backplane
Operating Temperature -40 degC to +85 degC
Storage Temperature -55 degC to +90 degC
Humidity 5 - 95 % RH non-condensing

Installation Guidelines

  • Ensure the control system is powered down before installing or removing the IS200ECTBG2A board to prevent electrical damage.
  • Handle the module using proper ESD (Electrostatic Discharge) precautions to protect sensitive internal circuitry.
  • Verify that all terminal connections are secure and properly torqued according to standard industrial wiring practices.
  • Ensure adequate ventilation in the cabinet to maintain operating temperatures within the specified -40 degC to +85 degC range.
  • Route signal cables away from high-voltage power lines to minimize electromagnetic interference (EMI) and ensure signal integrity.

FAQ

What is the primary function of the IS200ECTBG2A?

The IS200ECTBG2A is an Exciter Contact Terminal Board used in the EX2100 series to manage and interface contact signals within the excitation control system.

Is this board compatible with other GE systems?

This module is specifically designed for the GE EX2100 Excitation Control System. It is recommended to verify system compatibility by checking your specific controller hardware revision.

What are the environmental requirements for this board?

The board is designed for industrial environments, supporting an operating temperature range of -40 degC to +85 degC and non-condensing humidity levels up to 95%.
