GE Fanuc IS200EMCSG1A Multibridge Connector Sensor Card

GE Fanuc IS200EMCSG1A Multibridge Connector Sensor Card

The IS200EMCSG1A is a specialized Multibridge Connector Sensor Card manufactured by GE Fanuc for the Mark VI Speedtronic turbine control system. This circuit board is engineered to provide precise monitoring...

28 people are viewing this right now

Availability: Low stock: 3 left

SKU: IS200EMCSG1A
Vendor: GE FANUC
Category: Sensor Card
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

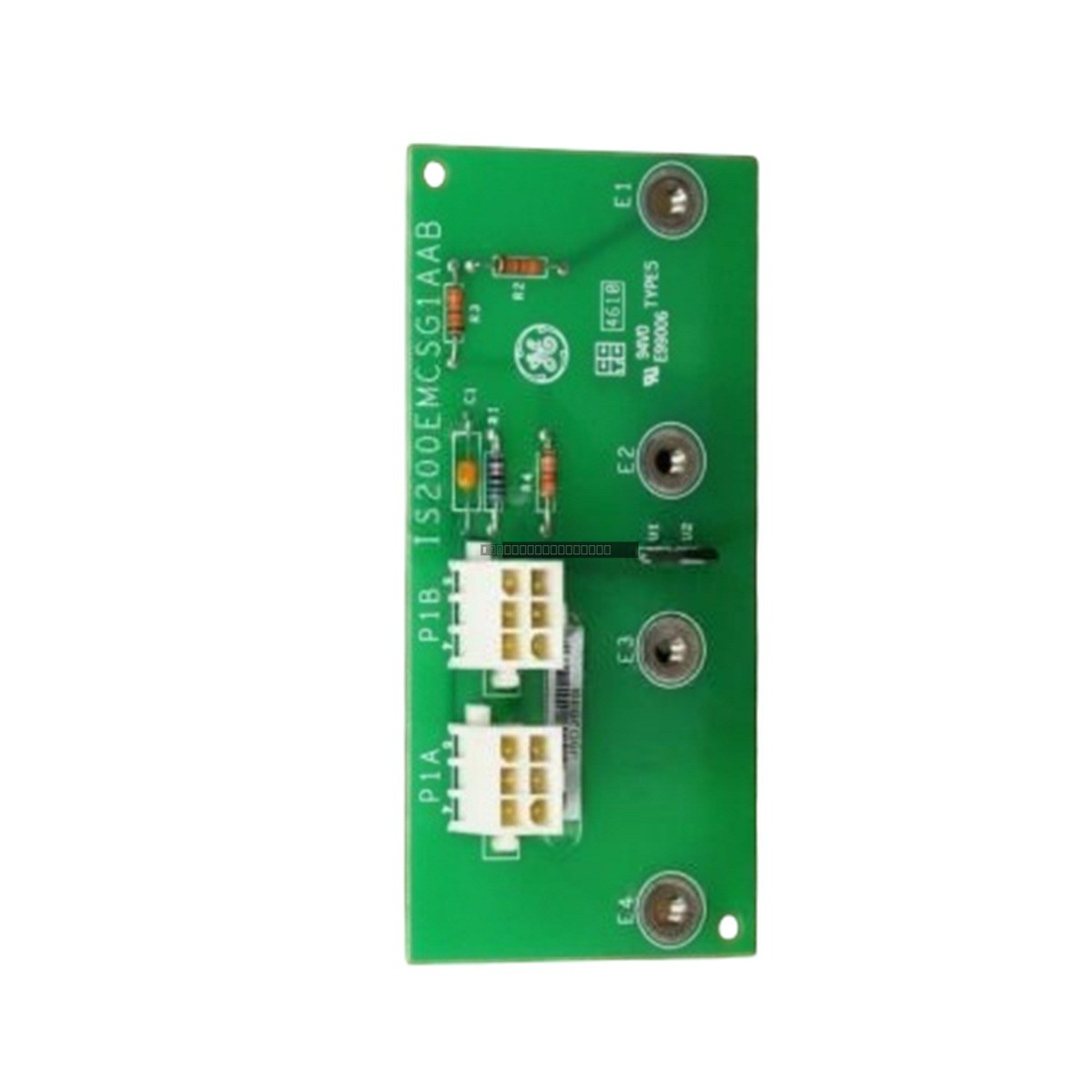

The IS200EMCSG1A is a specialized Multibridge Connector Sensor Card manufactured by GE Fanuc for the Mark VI Speedtronic turbine control system. This circuit board is engineered to provide precise monitoring of dynamic current distribution across bridge rectifier configurations, ensuring stability in critical power generation and industrial processing environments.

Features

  • Four onboard conduction sensors (E1-E4) for multi-phase vector tracking.
  • Dual independent signal conditioning channels (U1 and U2) for high-accuracy telemetry.
  • Six integrated plug interfaces for robust system connectivity.
  • Designed for integration within the Mark VI control architecture to prevent power balance anomalies.
  • Dual-row, 6-position terminal plugs for secure power delivery and signal routing.

Applications

This sensor card is primarily utilized in power generation plants, oil and gas refineries, and thermal processing facilities where the Mark VI control system manages high-power rectification and bridge circuitry. It is essential for maintaining operational uptime by reporting real-time conduction data to the central controller.

Technical Specifications

Model IS200EMCSG1A
Manufacturer GE Fanuc
Series Mark VI
Sensor Count 4 (E1-E4)
Conditioning ICs 2 (U1, U2)
Logic Power 5 VDC / 24 VDC
Operating Temperature 0 to 60 deg C
Storage Temperature -40 to 85 deg C
Humidity 5% to 95% non-condensing

Installation Guidelines

  • Ensure the control system is powered down before attempting to install or remove the IS200EMCSG1A card.
  • Handle the PCB by the edges to prevent ESD damage to the integrated circuits.
  • Verify that all six plug interfaces and the dual-row terminal blocks are properly seated and secured.
  • Maintain a clean, dry environment within the cabinet to stay within the specified non-condensing humidity range.
  • Route signal cables away from high-voltage AC lines to prevent EMI interference with the differential signaling architecture.

FAQ

What is the primary function of the IS200EMCSG1A?
This card serves as a diagnostic sensor interface that monitors bridge rectifier conduction, helping the Mark VI controller detect and prevent power distribution imbalances.

Is this card compatible with other Mark series systems?
The IS200EMCSG1A is specifically designed for the Mark VI Speedtronic turbine control matrix. Please verify your system's hardware requirements before installation.
