Description

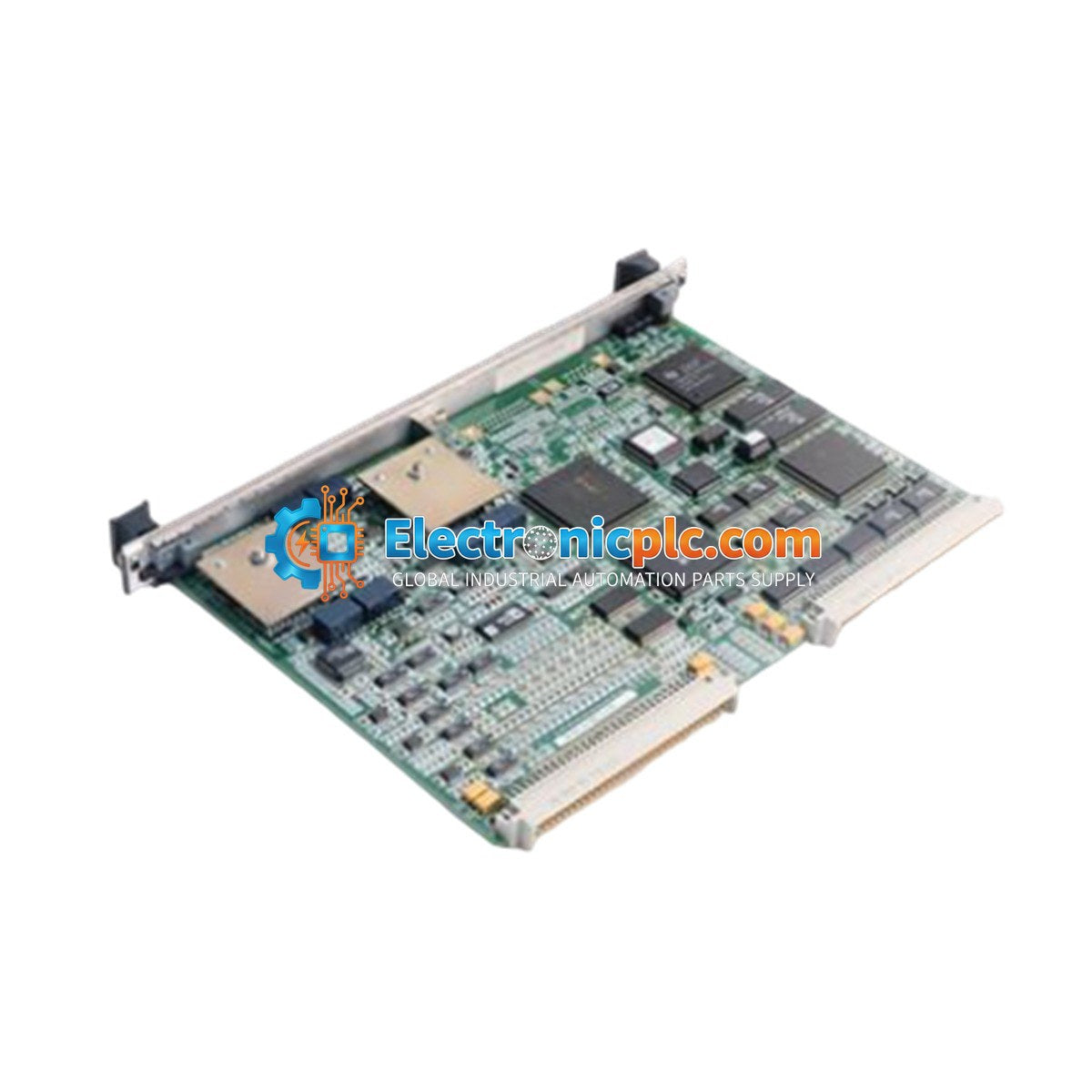

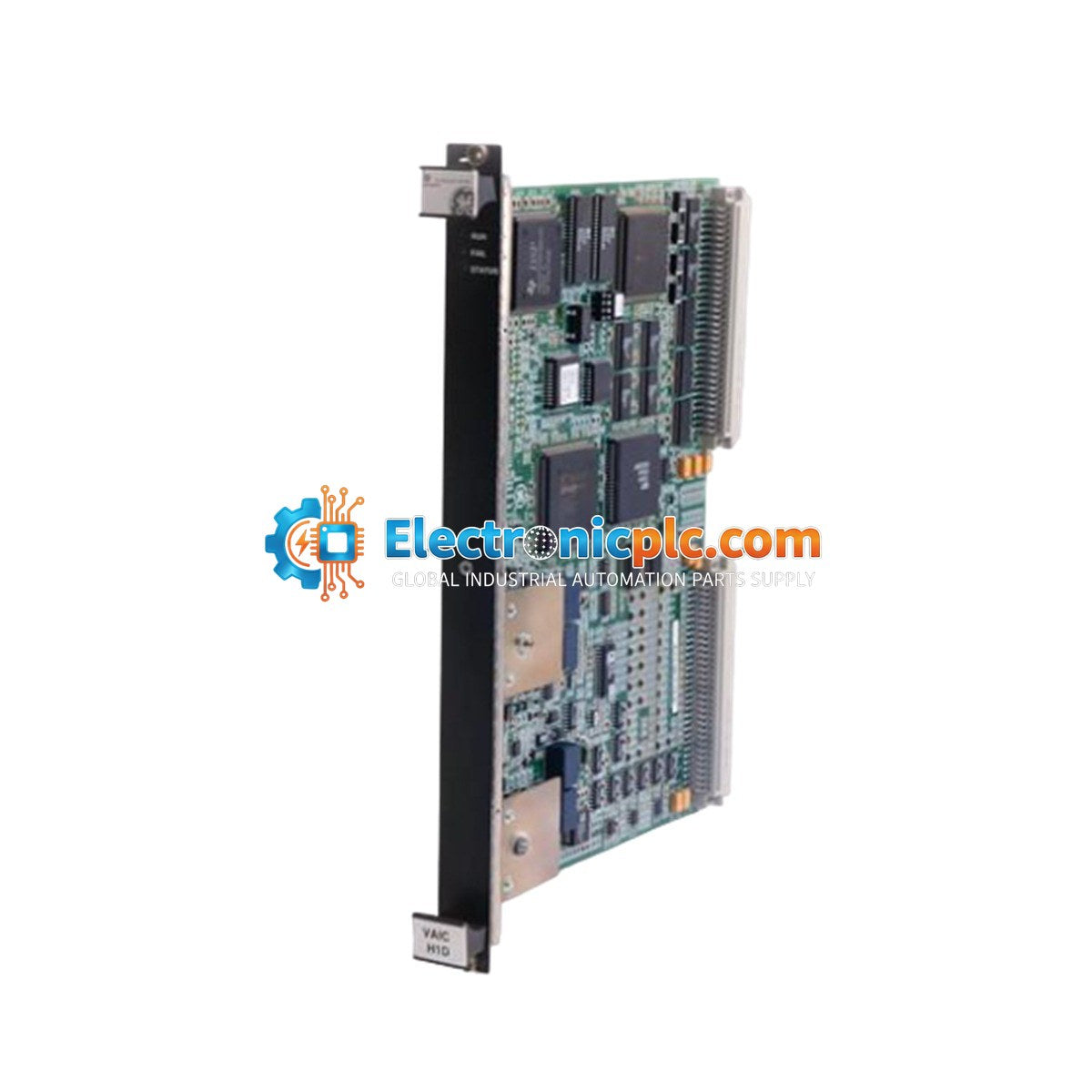

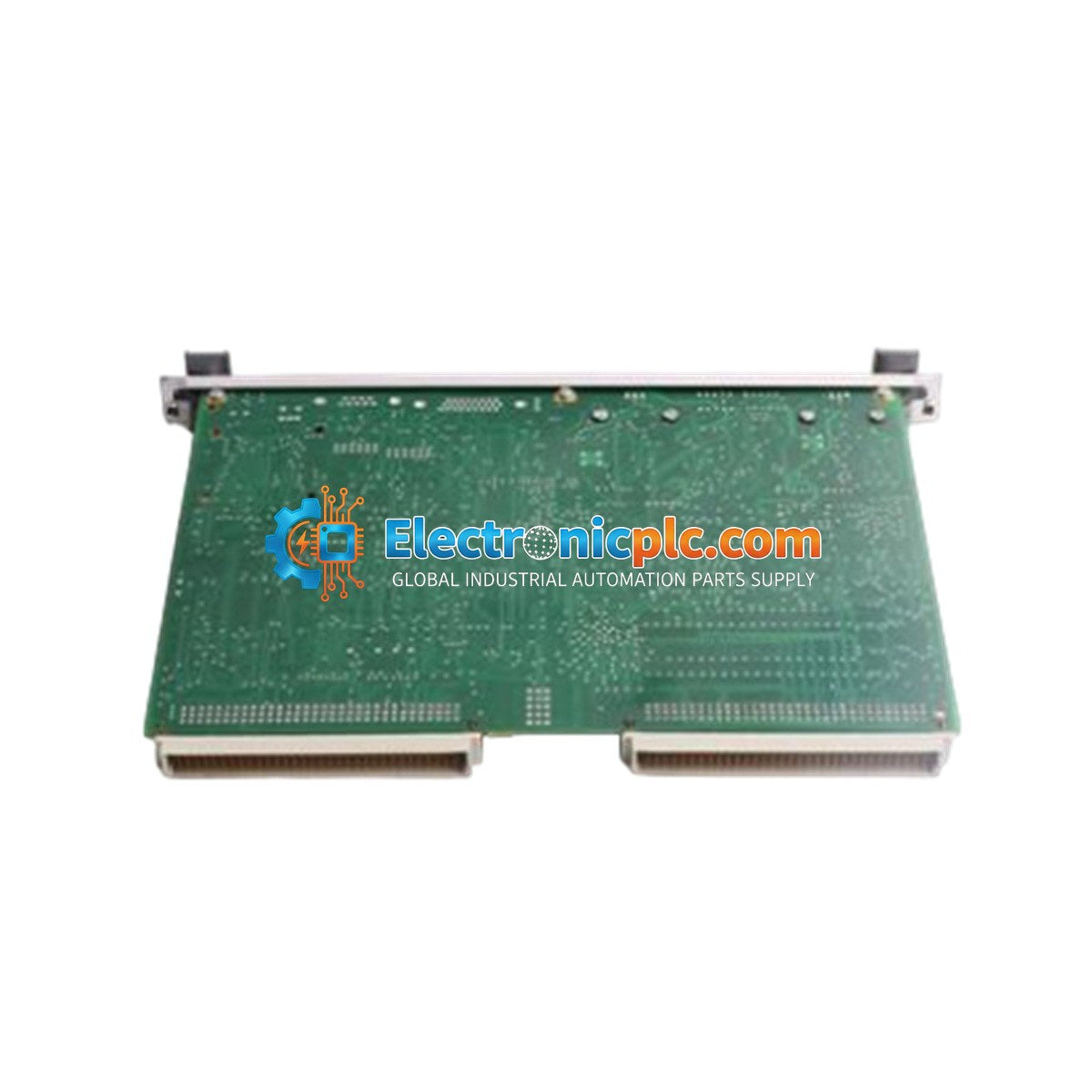

The General Electric IS200VAICH1D is a VME-based Analog Input Board designed for the Mark VIe control system. This module serves as a high-density input interface, facilitating the acquisition and processing of analog signals within industrial control environments. It is engineered to provide reliable signal conversion and isolation, ensuring data integrity for critical monitoring and control applications.

Features

• 24-channel analog input capacity per board.
• Integrated 16-bit A/D converter with 14-bit effective resolution for precise signal measurement.
• Designed for integration with Mark VIe architecture.
• Isolation terminal board configuration for enhanced signal protection.

Applications

This module is primarily utilized in power generation and heavy industrial automation systems, specifically within the Mark VIe platform. It is typically employed for monitoring process variables such as pressure, temperature, flow, and vibration where high-precision analog data acquisition is required.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before inserting or removing the IS200VAICH1D module to prevent electrical damage.
• Handle the board by the edges to avoid electrostatic discharge (ESD) damage to sensitive components.
• Verify that the module is fully seated in the VME rack slot and that all retaining screws are tightened to ensure proper grounding.
• Route signal cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to maintain signal accuracy.
• Ensure the cabinet environment remains within the specified temperature and humidity ranges for Mark VIe hardware.

FAQ

Is the IS200VAICH1D compatible with older Mark VI systems?

The IS200VAICH1D is specifically designed for the Mark VIe control system. While it shares design philosophies with the Mark VI, users should verify system-specific compatibility documentation before installation.

Does this board require external power?

The board receives power through the VME backplane; however, external field power may be required for the connected sensors depending on the specific loop configuration.
