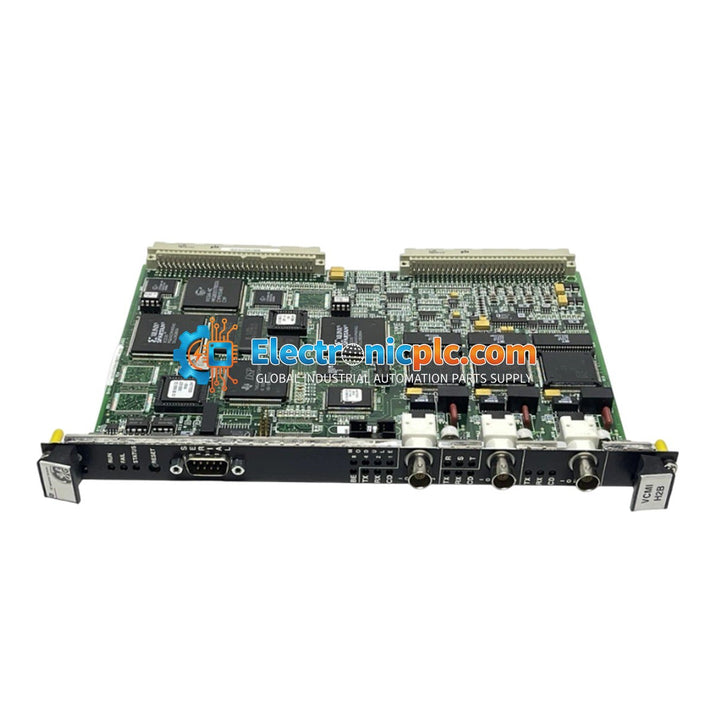

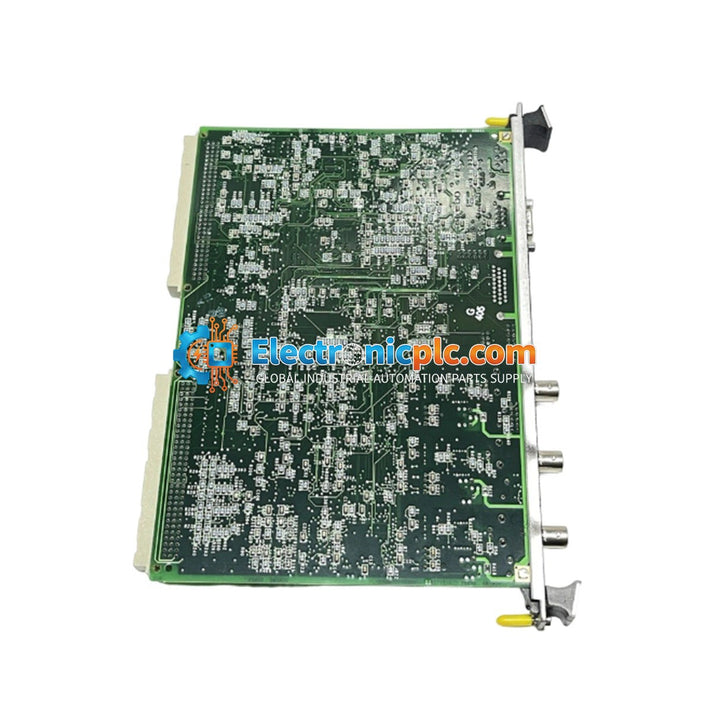

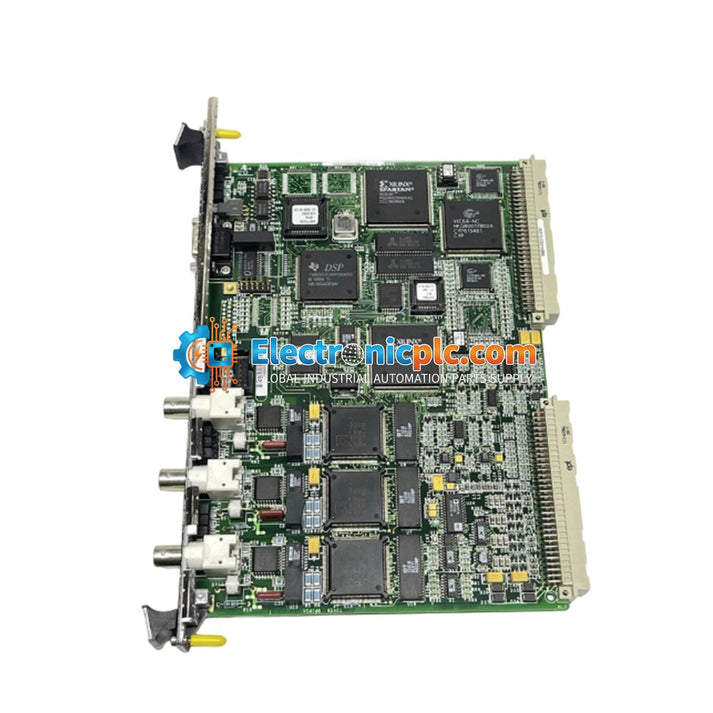

General Electric IS215VCMIH2B VME Communication Interface Card

General Electric IS215VCMIH2B VME Communication Interface Card

Description

The General Electric IS215VCMIH2B is a VME Communication Interface (VCMI) card designed for the Mark VI Speedtronic control system. This module serves as a critical VME Bus Master Controller, facilitating...

23 people are viewing this right now

Availability: Low stock: 5 left

SKU: IS215VCMIH2B
Vendor: General Electric
Category: Communication Interface Card
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The General Electric IS215VCMIH2B is a VME Communication Interface (VCMI) card designed for the Mark VI Speedtronic control system. This module serves as a critical VME Bus Master Controller, facilitating high-speed communication and data exchange within the control architecture. It is engineered to handle complex I/O processing and system-wide communication tasks, ensuring reliable operation of the Speedtronic platform.

Features

  • VME Bus Master Controller functionality for Mark VI systems.
  • Integrated IONet connector for network communication.
  • Dedicated TX, RX, and CD status indicators for diagnostic monitoring.
  • Supports VME bus block transfers for efficient data handling.
  • Includes one RS-232C serial port with a D-style connector, fixed at 9600 baud.
  • Comprehensive internal diagnostic monitoring of +5 V, 12 V, 15 V, and 28 V power supply buses.

Technical Specifications

Product Model IS215VCMIH2B
Board Type 6U high VME board
Manufacturer General Electric
Serial Port 1 x RS-232C (D-style, 9600 baud)
Frame Rate (FR) TMR 20 ms, 80 ms (application dependent 10 ms / 100 Hz)
Diagnostics Monitors +5 V, 12 V, 15 V, and 28 V power buses
Tariff Code 8537101190

Installation Guidelines

  • Ensure the control system is powered down before inserting or removing the VCMI card from the VME rack.
  • Handle the board by the edges to prevent ESD damage to sensitive electronic components.
  • Verify that the card is fully seated in the VME backplane to ensure proper electrical contact.
  • Ensure that the IONet and serial cables are routed away from high-voltage power lines to minimize EMI interference.
  • Confirm that the rack cooling system is operational to maintain the board within its specified operating temperature range.

FAQ

What is the primary function of the IS215VCMIH2B?
The IS215VCMIH2B acts as a VME Communication Interface card for the GE Mark VI Speedtronic system, managing VME bus communications and IONet connectivity.

Does this card monitor its own power supply?
Yes, the card includes internal diagnostic monitoring for the +5 V, 12 V, 15 V, and 28 V power supply buses, providing alarms if these voltages deviate from expected levels.
