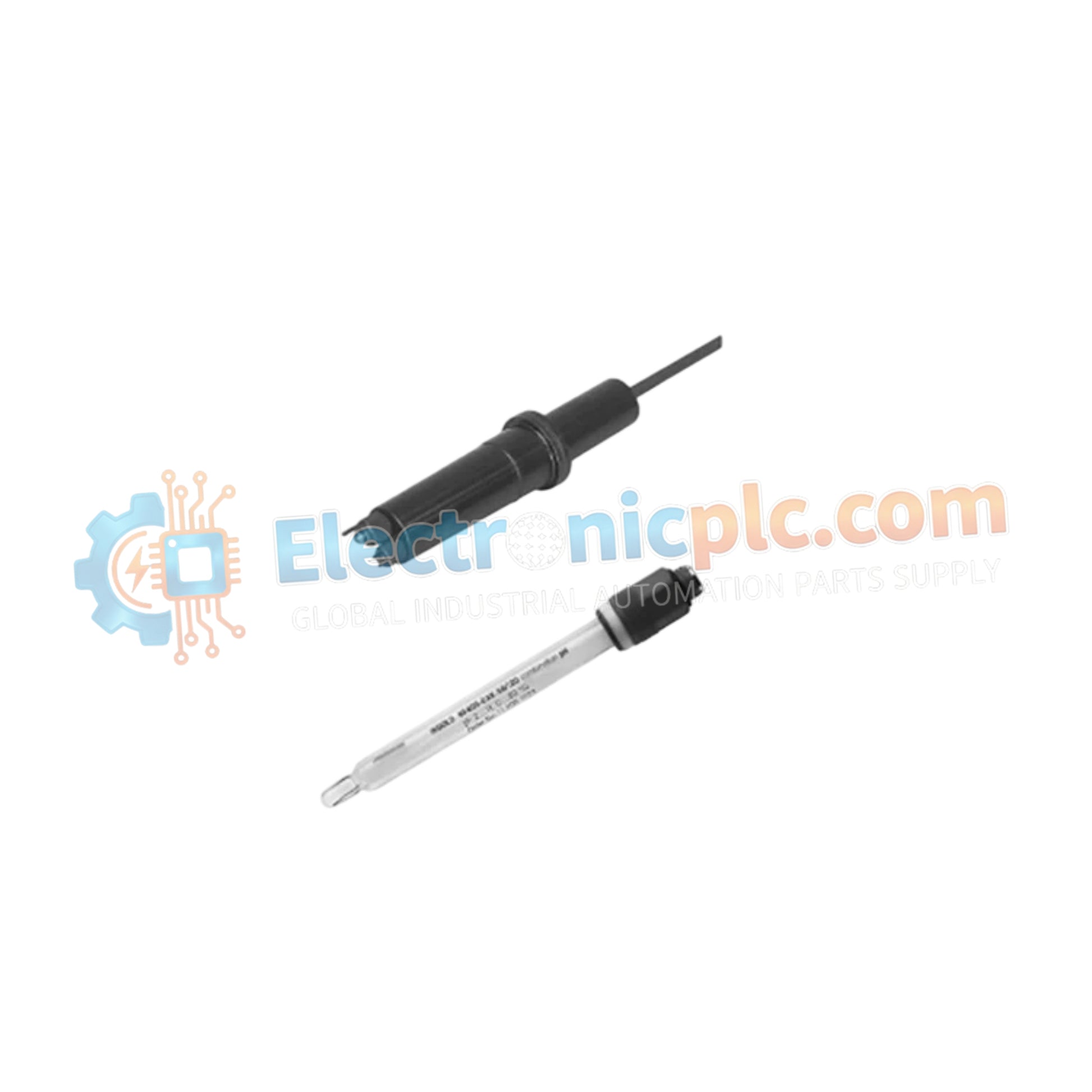

The YOKOGAWA K9142TH, also cataloged as the K9142TH Junction Assembly, operates as a dedicated hardware component for electrochemical potential continuity between the reference electrode and the process medium within industrial pH measurement systems.

Hardware Specifications

Process Control Electrochemical Connectivity

The K9142TH serves as the primary ionic bridge, facilitating stable ion flow between the internal reference electrolyte and the external liquid sample. This component is designed to maintain consistent liquid junction potential, which is critical for minimizing signal drift in process control environments. The assembly utilizes high-durability materials to resist polarization and clogging when exposed to process fluids, ensuring that the 4-20 mA HART loop protocol signal generated by the transmitter reflects true process pH values rather than electrochemical interference.

Frequently Asked Questions

Q: Can this junction assembly be cleaned or serviced if clogging occurs?

A: The K9142TH is a consumable component. While periodic surface cleaning may extend its operational life, significant clogging of the internal junction matrix necessitates complete replacement to maintain measurement accuracy.

Q: How does the junction assembly affect the overall response time of the pH measurement system?

A: The porosity and design of the junction assembly directly impact ion exchange rates. A restricted or fouled junction will increase the time constant of the pH loop, leading to sluggish response times and potentially inaccurate readings during rapid process variations.

Field Installation Guidelines

• Verify that the junction assembly is fully wetted with the reference electrolyte prior to installation to ensure immediate electrical continuity upon contact with the sample.
• Ensure the junction is oriented according to the sensor manufacturer's guidelines to prevent air bubble entrapment, which can result in erratic signal output.
• Confirm that the assembly is compatible with the chemical composition of the process medium to prevent premature material degradation or chemical fouling of the junction pores.
• Tighten the mounting assembly precisely as specified to ensure a hermetic seal against the process environment, preventing reference solution contamination.
• Perform a standard buffer calibration (pH 4.0, 7.0, and 10.0) after replacing the junction to calibrate the system against the new junction potential.
