Description

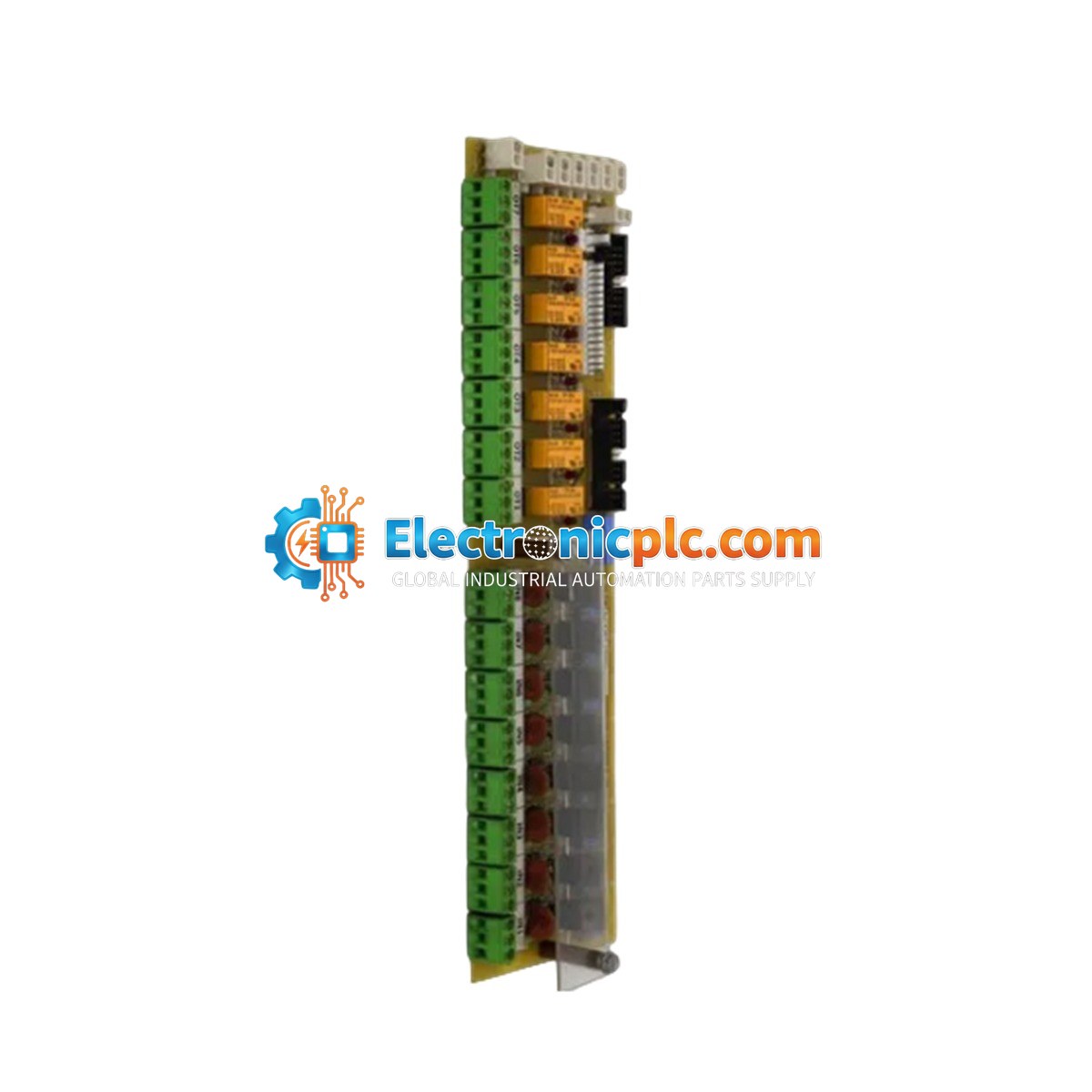

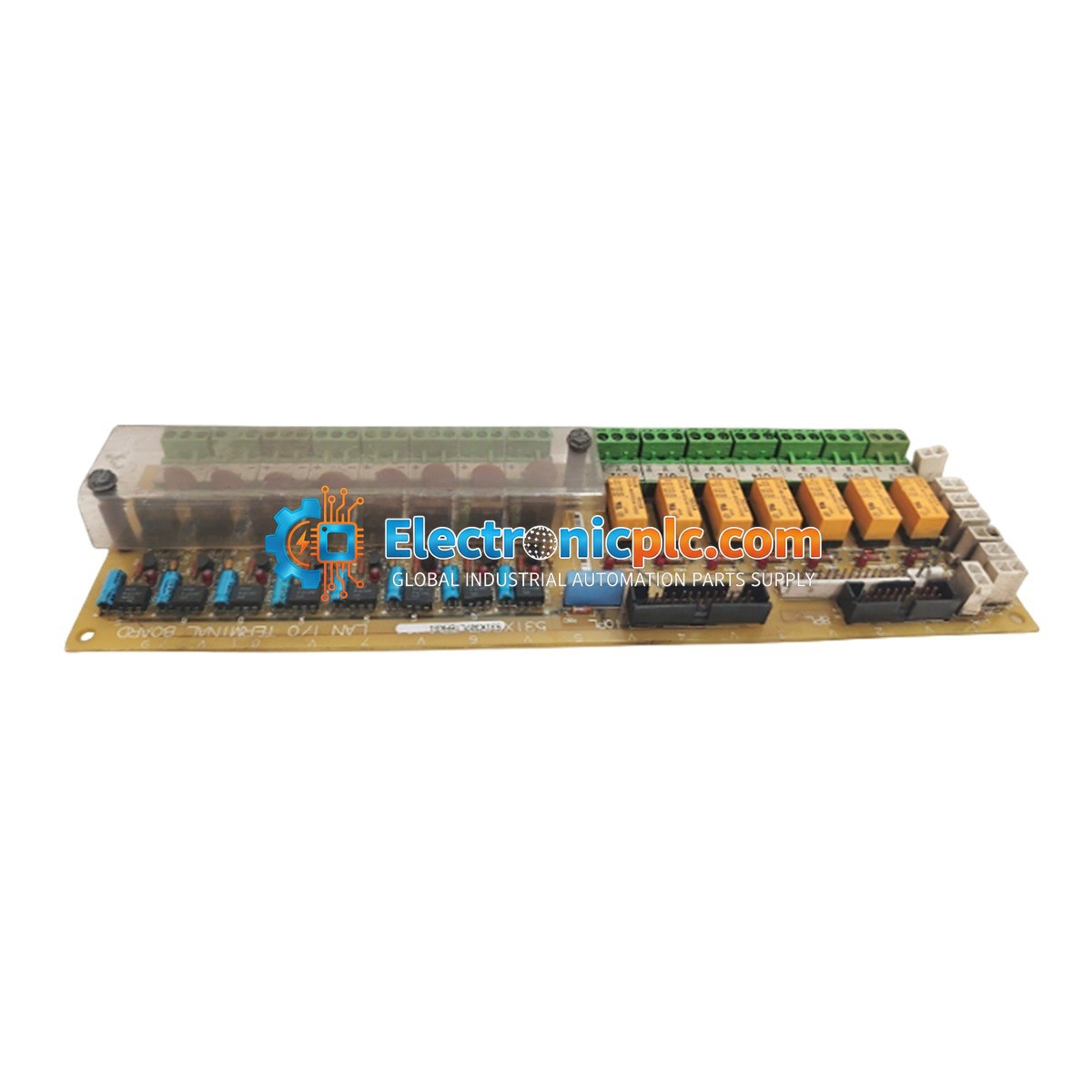

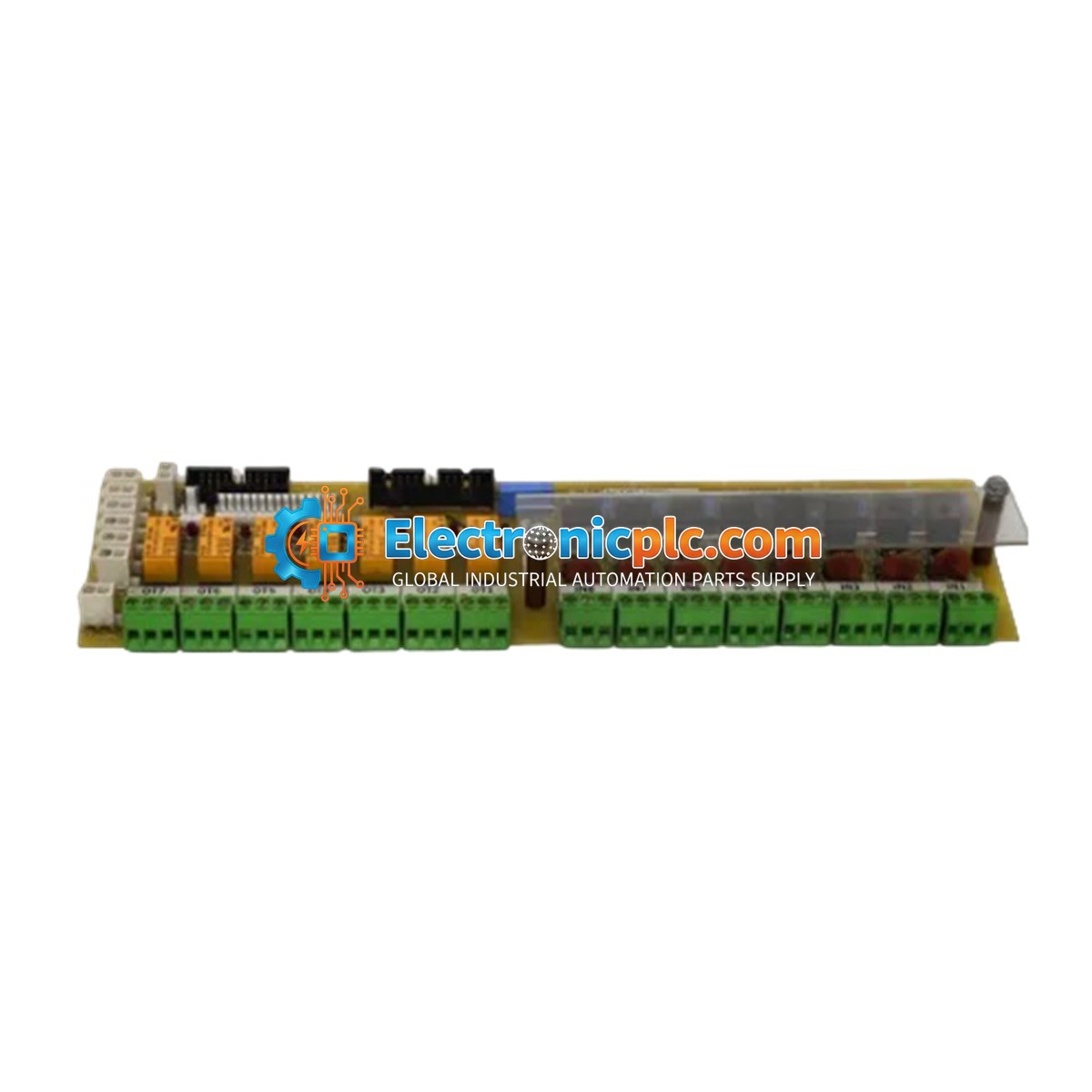

The 531X307LTBAKG1 is a specialized Local Area Network (LAN) terminal board engineered for the GE 531X series of drives and exciters. It serves as a high-reliability interface between the primary drive control system and external field devices, including contactors, interlocks, and indicator lamps. Designed for deployment in heavy industrial environments such as mining, power generation, and metal processing, this board facilitates the translation of diverse field voltages into standardized logic signals. By centralizing signal distribution across the LAN terminal and the drive control board, the 531X307LTBAKG1 ensures seamless communication, which is vital for preventing system faults and minimizing critical equipment downtime.

Technical Interface Architecture

The board features a robust I/O configuration designed to handle varying industrial voltage standards. It integrates eight configurable control input plugs capable of accepting AC or DC voltages ranging from 2 V to 240 V. These wide-range inputs are internally converted into 24 VDC logic signals for processing by the drive's control board and the NTB terminal. For output operations, the card provides seven low-voltage, low-current Form C relay contact connectors. This Form C architecture allows for flexible normally-open or normally-closed wiring configurations, providing a reliable mechanical interface for external automation and signaling circuits.

Features

• 8 configurable control input channels supporting 2 V to 240 V AC/DC.
• Internal signal conversion to 24 VDC logic for drive compatibility.
• 7 Form C relay contact outputs for flexible control and signaling.
• Designed for integration with GE 531X series drive control boards and NTB terminals.
• Robust construction suitable for demanding industrial environments.

Applications

This terminal board is typically utilized in GE drive and exciter systems within heavy industry, including power generation plants, metal processing facilities, and large-scale mining operations. It is essential for interfacing field-level control signals with the centralized drive control architecture.

Technical Specifications

Installation Guidelines

• Ensure all power to the drive and control system is disconnected before installation or removal of the board.
• Handle the board using proper ESD (Electrostatic Discharge) precautions to prevent damage to sensitive electronic components.
• Verify that all field wiring is properly secured to the terminal plugs and matches the required voltage ratings.
• Ensure adequate ventilation within the cabinet to maintain operating temperatures within the 0 to 60 deg C range.
• Check that the board is securely seated in the designated drive rack slot to ensure proper backplane communication.

FAQ

What is the primary function of the 531X307LTBAKG1?
It acts as an interface board that converts various field voltages (2-240V AC/DC) into 24 VDC logic signals for the GE 531X drive control system.

Can this board be used with other drive series?
No, this board is specifically engineered for the GE 531X series drives and exciters.
