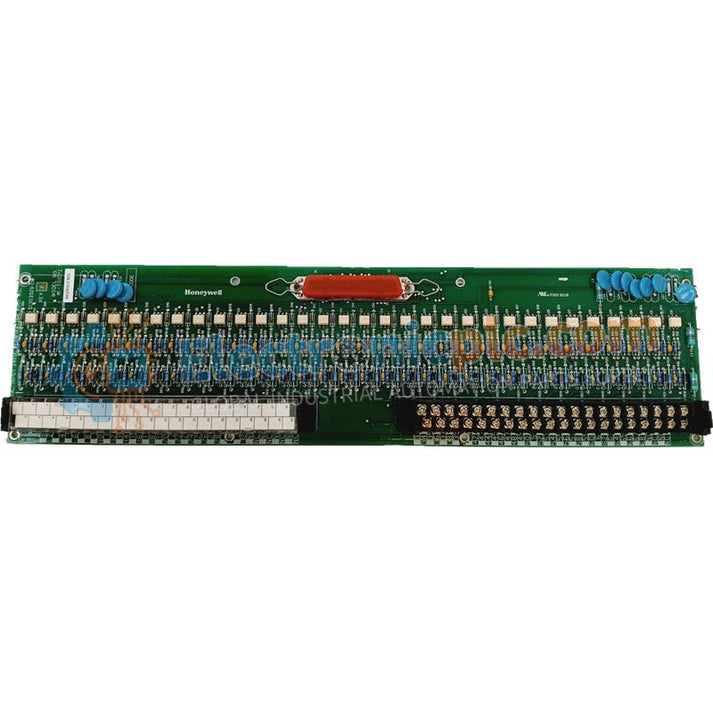

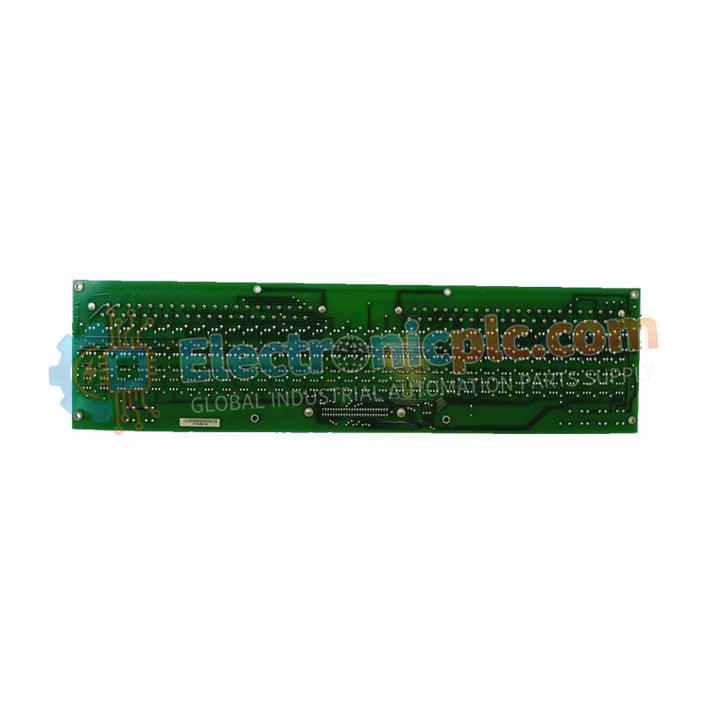

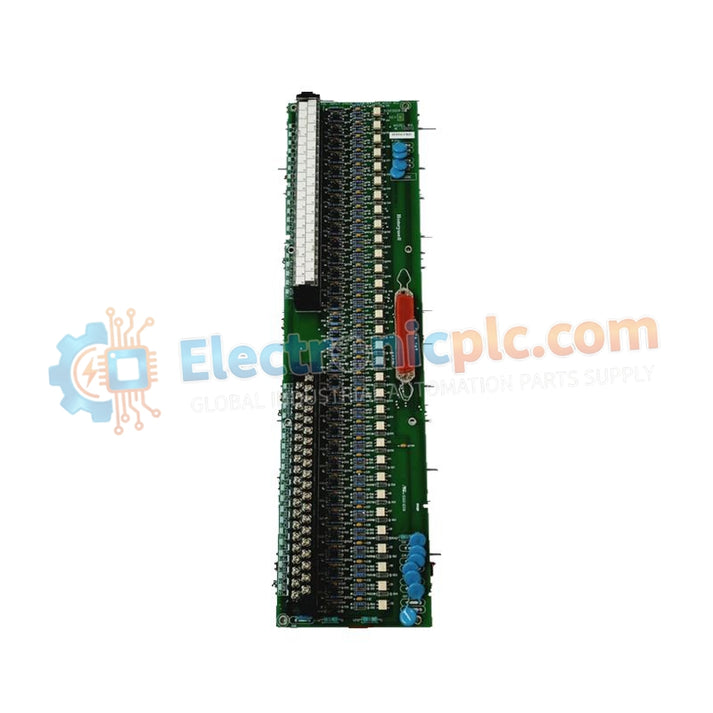

MC-TDID72 51303928-150 Digital Input Module Honeywell

MC-TDID72 51303928-150 Digital Input Module Honeywell

Product Overview

The Honeywell MC-TDID72 (Part Number: 51303928-150) serves as a high-density interface between field devices and the control system. It monitors discrete states from equipment such as switches, sensors,...

19 people are viewing this right now

Availability: Low stock: 50 left

SKU: MC-TDID72 51303928-150
Vendor: Honeywell
Category: Digital Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Overview

The Honeywell MC-TDID72 (Part Number: 51303928-150) serves as a high-density interface between field devices and the control system. It monitors discrete states from equipment such as switches, sensors, and relays.

We offer this component as 100% brand new and original, ensuring factory-spec performance for mission-critical control architectures.

Technical Specifications

Parameter Specification
Model Number MC-TDID72
Part Number 51303928-150
Channel Density 32 Isolated Digital Input Channels
Input Voltage 24 VDC
Response Time < 1 Millisecond
Operating Temperature -40°C to +70°C (-40°F to +158°F)
Dimensions 120 mm × 75 mm × 30 mm
Weight 0.5 kg
Output Range 0–30 VDC

Engineering Advantages

High-Speed Signal Capture
With a response time of less than 1 ms, the module enables near-instantaneous detection of field state changes, supporting high-speed trip logic and safety interlocks.

Enhanced Channel Isolation
Each input channel is electrically isolated, protecting control electronics from voltage spikes, transients, and ground loop disturbances.

Extreme Climate Resilience
Designed for harsh environments, the module operates reliably from -40°C to +70°C, making it suitable for outdoor panels and remote installations without additional climate control.

High-Density Integration
The compact 120 mm footprint integrates 32 channels in a single module, reducing cabinet space and minimizing I/O rack requirements in large systems.

FAQs

Is this module a direct replacement for older TDC 3000 input cards?
Yes, the MC-TDID72 is fully compatible with existing Honeywell TDC 3000 and Experion system architectures.

Does the product ship with a warranty?
Yes, it is supplied as a 100% brand new original unit with standard factory warranty coverage.

Can I use this module with NPN or PNP field devices?
The module is designed for 24VDC digital inputs. Proper wiring and polarity should be confirmed based on the specific field device type.

How does the isolation benefit the system during a short circuit?
Channel-level isolation confines electrical faults to the affected input, preventing propagation to other channels or the backplane, thereby enhancing system reliability.
