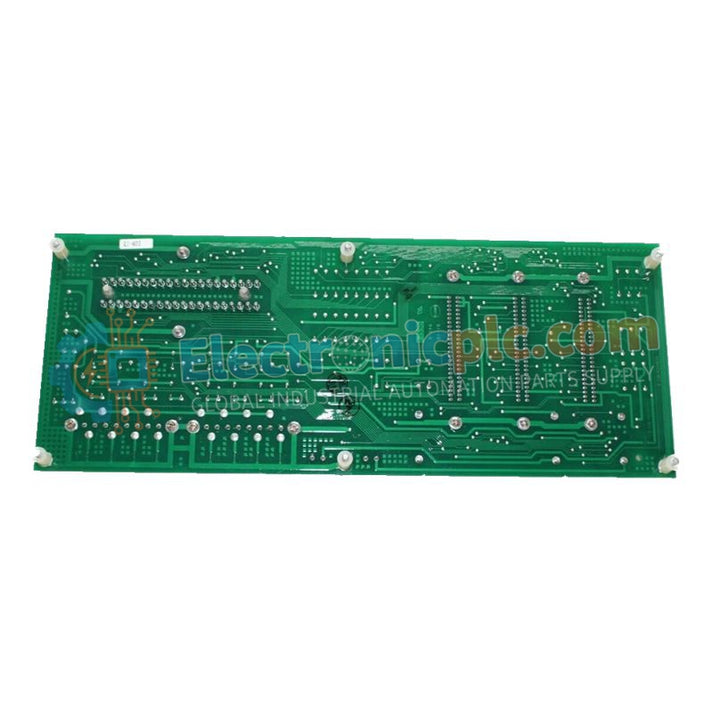

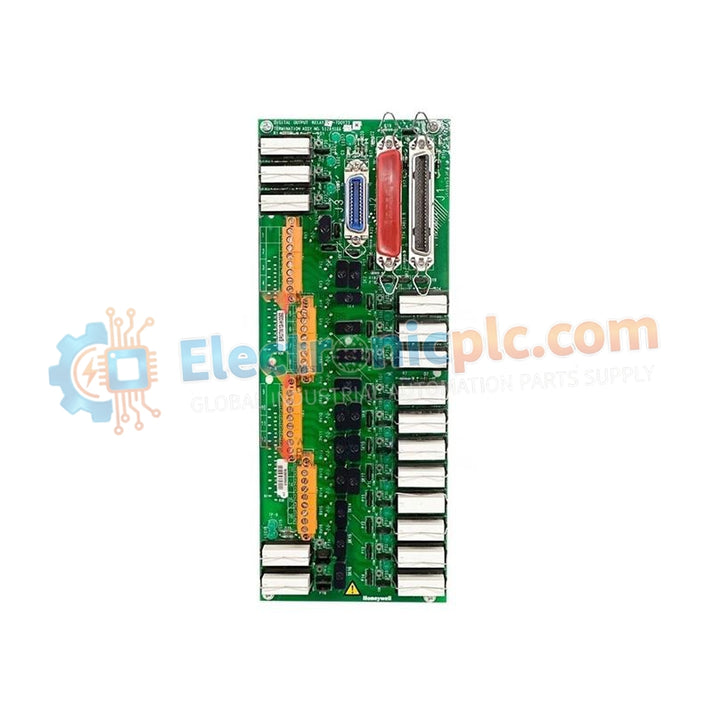

The Honeywell MC-TDOY23 (Part Number: 80366189-175) is a high-density Digital Output Module used within TDC 3000 and Experion PKS automation platforms. It provides 32 discrete output channels for controlling field devices such as solenoids, relays, motor starters, and indicator devices.
We supply this unit as 100% brand new and original equipment, ensuring reliable signal delivery, strong electrical isolation, and stable performance in industrial control environments.
| Parameter | Specification |
|---|---|
| Model Number | MC-TDOY23 |
| Part Number | 80366189-175 |
| Output Channels | 32 Digital Outputs |
| Voltage Range | 24 VDC |
| Output Current | 0.5 A per channel (16 A total module capacity) |
| Isolation | 1500 VDC channel-to-system |
| Operating Temperature | 0°C to 60°C |
| Dimensions | 15.2 cm × 12.7 cm × 5.1 cm |
| Weight | 0.45 kg |
| Compatibility | Honeywell TDC 3000, Experion PKS |
High-Density Output Management
The 32-channel architecture consolidates multiple discrete outputs into a single module, optimizing rack space and simplifying cabinet design.
Robust Electrical Isolation
With 1500 VDC isolation, the module protects control electronics from field-side faults, surges, and ground loop issues, enhancing system reliability.
High Load Capacity
A total module capacity of 16 A allows simultaneous operation of multiple field devices without requiring additional power distribution components.
Advanced Onboard Diagnostics
Built-in diagnostics enable real-time monitoring of each output channel, helping engineers quickly identify wiring issues or faulty actuators via the control system.
Seamless Backplane Integration
Designed for direct installation into Honeywell carrier files, ensuring straightforward integration with existing TDC 3000 and Experion configurations.
Does this module support redundant configurations?
Yes, the MC-TDOY23 can be deployed within redundant Honeywell I/O architectures to maintain continuous operation in case of processor failure.
Is the 80366189-175 a brand new unit?
Yes, it is supplied as 100% brand new, original, and shipped in factory-sealed anti-static packaging.
Can I drive 120 VAC loads directly with this module?
No. The module is designed for 24 VDC outputs only. AC loads require interposing relays between the module and the field devices.
Does the module include field termination terminals?
No. The MC-TDOY23 is a processor module that installs into a carrier and typically connects to a separate Field Termination Assembly (FTA) where field wiring is terminated.
