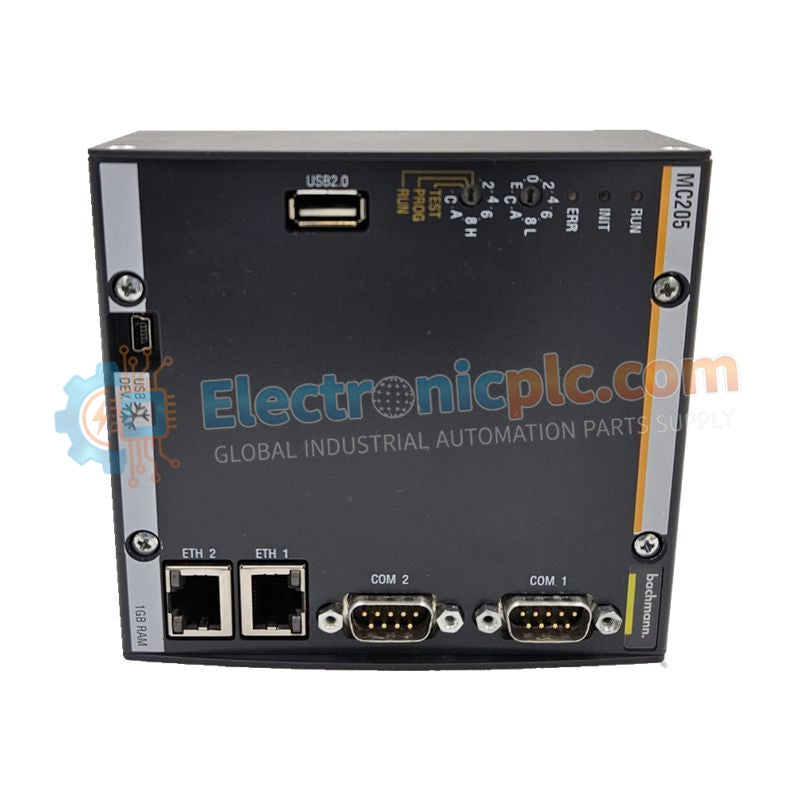

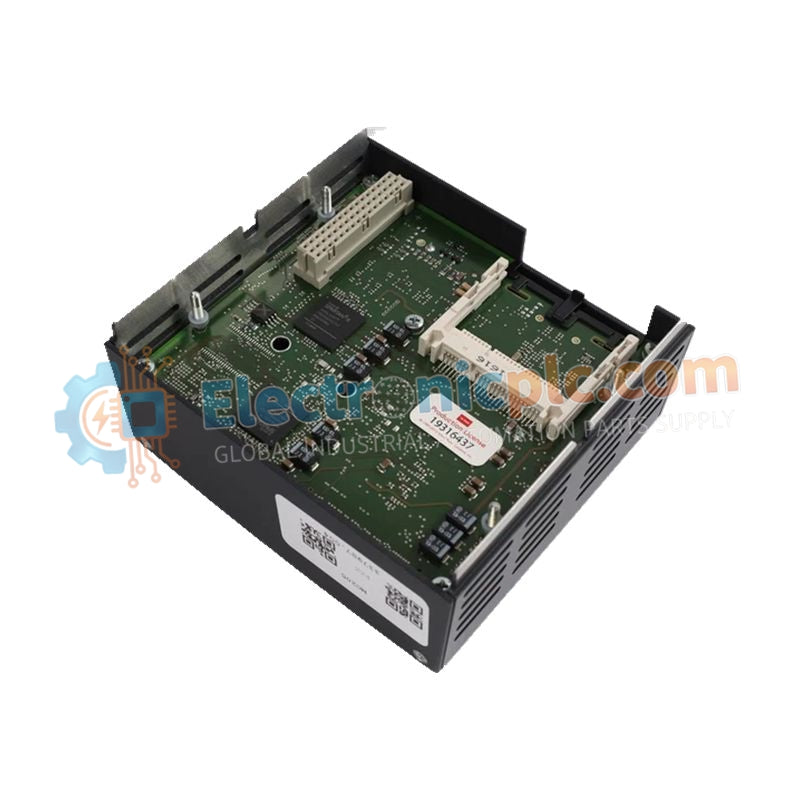

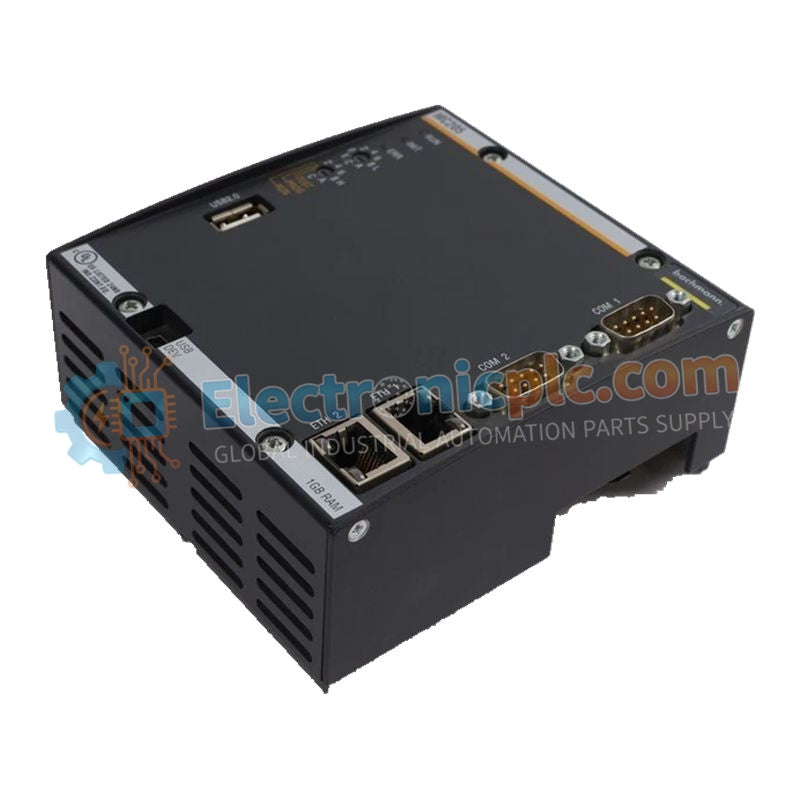

MC205 Bachmann M1 System Positioning CPU Module

MC205 Bachmann M1 System Positioning CPU Module

Product Description

The MC205 is a versatile controller module within the Bachmann M1 series, designed as a compact CPU with integrated positioning capabilities. Powered by a 533 MHz industrial processor, it offers a cost-effective solution for...

24 people are viewing this right now

Availability: Low stock: 99 left

SKU: MC205
Vendor: Bachmann
Category: Positioning CPU Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Description

The MC205 is a versatile controller module within the Bachmann M1 series, designed as a compact CPU with integrated positioning capabilities. Powered by a 533 MHz industrial processor, it offers a cost-effective solution for applications requiring reliable logic execution and precise motion control—without the overhead of high-end processors.

Engineered for high-availability environments, the MC205 features a rugged, fan-less design that performs reliably in the harsh conditions common to energy sector and heavy machinery applications.

Technical Specifications

Specification Details
Model Identification MC205
Manufacturer Bachmann Electronic GmbH
Processor 533 MHz industrial CPU
System Memory 256 MB DRAM
Non-Volatile Storage 512 kB nvRAM (battery-backed)
Internal Flash 64 MB File-Flash
Expansion Integrated CFast slot (industrial storage)
Dimensions (H × W × D) 11.0 cm × 5.3 cm × 11.8 cm
Weight 0.55 kg
Operating Limits -30°C to +60°C

Application and Operational Scope

  • Decentralized Control: Local intelligence with integrated positioning logic.

  • Renewable Energy: Wind turbine pitch control and solar tracking systems.

  • Intralogistics: Automated warehouse shuttles and conveyor positioning.

  • Networking Flexibility: Dual Ethernet ports support redundant ring topologies or separation of machine-level and factory-level networks.

The MC205 handles PLC logic and motion-specific tasks such as encoder feedback processing and setpoint generation within a single compact module.

Frequently Asked Questions

Q: Can the MC205 handle real-time motion control over Ethernet?
A: Yes. The MC205 supports real-time communication protocols and synchronizes with fieldbus modules via the M1 backplane for high-precision positioning tasks.

Q: Is the system memory expandable?
A: The onboard DRAM is fixed at 256 MB. Application storage and logging capacity can be expanded using the integrated CFast slot.
