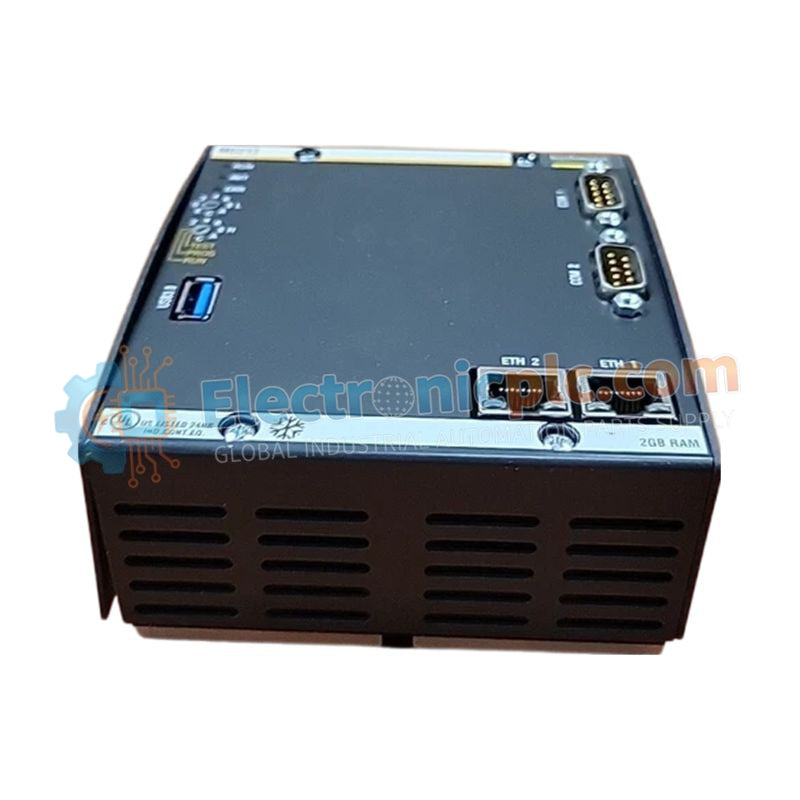

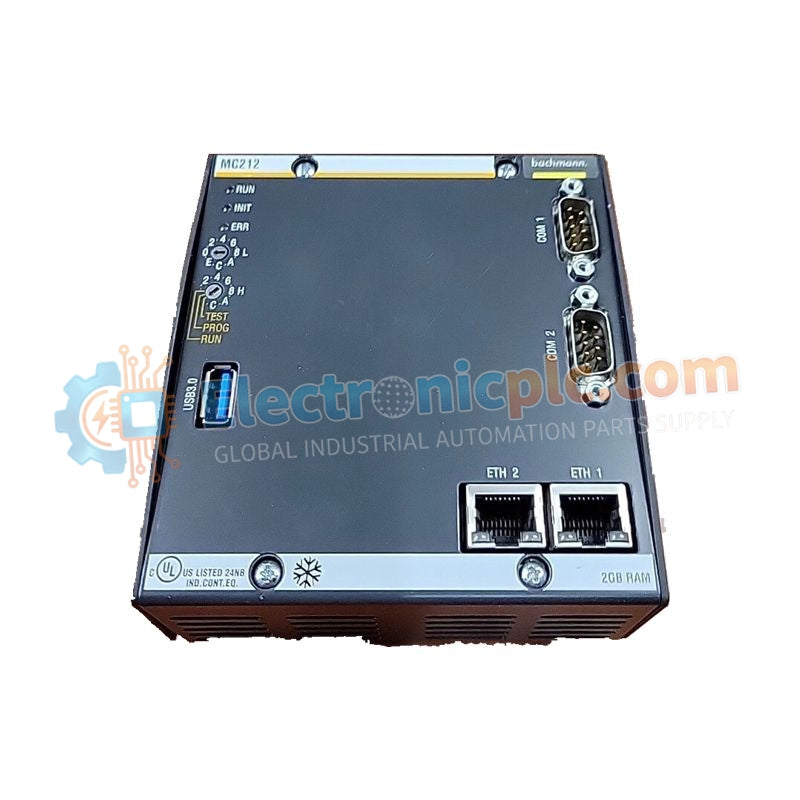

MC212 Processor Module Bachmann

MC212 Processor Module Bachmann

Product Description

The MC212 is a high-tier computational module within the Bachmann M1 automation family. Leveraging Intel ATOM technology, it delivers deterministic performance for complex control logic and data-intensive applications. With substantial memory headroom, high-speed gigabit connectivity, and integrated...

29 people are viewing this right now

Availability: Low stock: 99 left

SKU: MC212
Vendor: Bachmann
Category: CPU Processor Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Description

The MC212 is a high-tier computational module within the Bachmann M1 automation family. Leveraging Intel ATOM technology, it delivers deterministic performance for complex control logic and data-intensive applications. With substantial memory headroom, high-speed gigabit connectivity, and integrated synchronization pulses for fieldbus systems, the MC212 ensures maximum system availability and precise coordination of distributed I/O and motion control tasks.

Technical Specifications

Specification Details
Core Processor Intel ATOM E680, 1.6 GHz
System Memory 1 GB DDR2 DRAM
Retentive Data Storage 512 kB nvRAM (battery-backed)
Onboard Flash 64 MB Internal FLASH (40 MB for user applications)
Expandable Storage External CFast slot (>8 GB, side-accessible)
Network Connectivity 2× Ethernet 10/100/1000 Base-T with IEEE1588 time sync
Serial Interfaces 1× RS232, 1× software-configurable RS232/422/485
USB Ports 1× USB 2.0 Host, 1× USB 2.0 Device
System Monitoring Hardware Watchdog, 3-color LED status diagnostics
Hardware Addressing Dual rotary hexadecimal switches for CPU ID selection
Clock Support Real-time clock (RTC) with battery backup
Thermal Management Passive fanless cooling (-30°C to +60°C)

Advanced Synchronization & Control

  • Generates hardware-based synchronization pulses across the M1 backplane, critical for jitter-free communication with SERCOS, CAN, and Ethernet motion profiles.

  • Supports IEEE1588 Precision Time Protocol (PTP) to unify timebases across distributed nodes.

  • Ideal for high-speed packaging lines and synchronized energy grid management.

Module Comparison

  • MC212 vs MX/MX200/CPC200 Series:

    • Provides higher processing power (1.6 GHz) and RAM (1 GB DDR2).

    • Supports local database handling, complex mathematical modeling, and web-based visualization hosting directly on the controller.

    • Designed for applications exceeding the computational limits of standard MX200 or CPC200 modules.

Frequently Asked Questions

Q: Is the CFast card included with the module?
A: No. CFast cards are ordered separately to match application-specific storage needs. The MC212 supports any industrial-grade card exceeding 8 GB.

Q: Can the serial ports be used for third-party protocol integration?
A: Yes. The RS232/422/485 interfaces are fully configurable via Bachmann C/C++ or PLC runtime environments for custom protocol implementations.
