Product Overview

The Schneider Electric Schneider Electric ASMBKT185 is a precision 120-ohm termination kit designed for Modbus Plus communication networks. It is used to properly terminate RS-485 trunk lines, preventing...

16 people are viewing this right now

Availability: Low stock: 94 left

SKU: ASMBKT185
Vendor: Schneider
Category: Modbus Plus Cable Terminator
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Overview

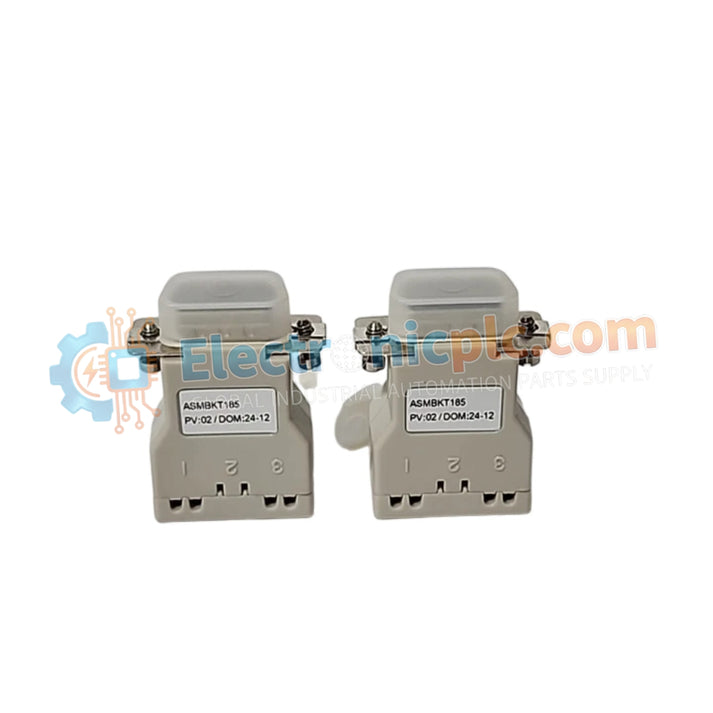

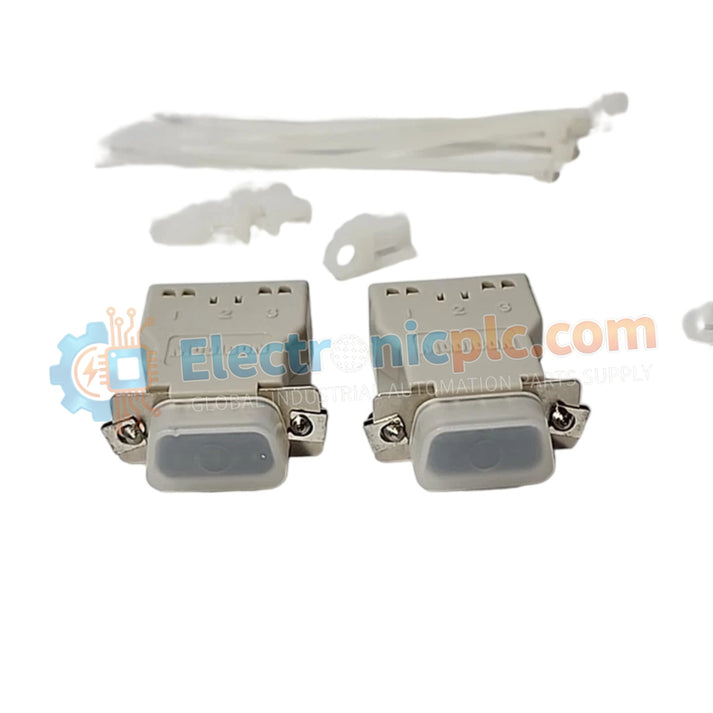

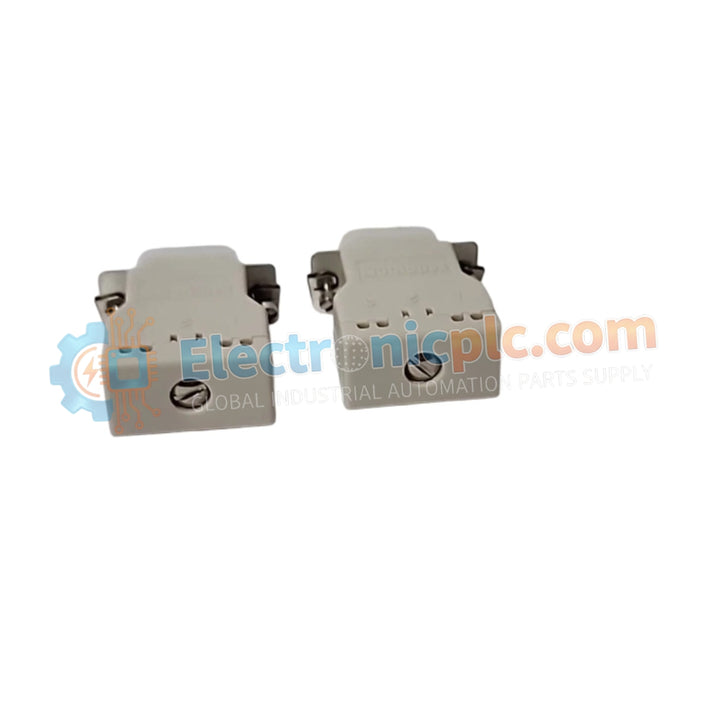

The Schneider Electric Schneider Electric ASMBKT185 is a precision 120-ohm termination kit designed for Modbus Plus communication networks. It is used to properly terminate RS-485 trunk lines, preventing signal reflections and ensuring stable data transmission across industrial PLC systems. We supply this component as 100% Brand New original stock to maintain communication reliability in your control network.

Technical Specifications

Parameter Specification
Network Protocol Modbus Plus
Component Type Line Terminator (Resistor Kit)
Impedance 120 Ohms
Connector Compatibility Modbus Plus cable connectors
Weight 0.058 kg
Application End-of-line termination for trunk segments

Engineering Advantages

Prevent Signal Reflection

Matches cable impedance to eliminate signal bouncing that can corrupt network communication.

Improve Data Stability

Reduces CRC errors and retransmissions, improving overall network performance and consistency.

Ensure System Compliance

Meets Schneider Electric termination requirements for Modbus Plus networks (120-ohm termination at both ends).

Compact Industrial Design

Lightweight and durable construction allows easy installation in PLC racks or junction boxes without stress on connectors.

FAQs

Where should it be installed?

Install one terminator at each physical end of the Modbus Plus trunk cable. Intermediate nodes must remain unterminated.

Can I replace it with a standard resistor?

Not recommended. Industrial-grade construction is required for vibration resistance and stable long-term performance.

How do I know if termination is faulty?

Frequent network errors (e.g., token rotation issues) or unstable communication often indicate improper or missing termination.
