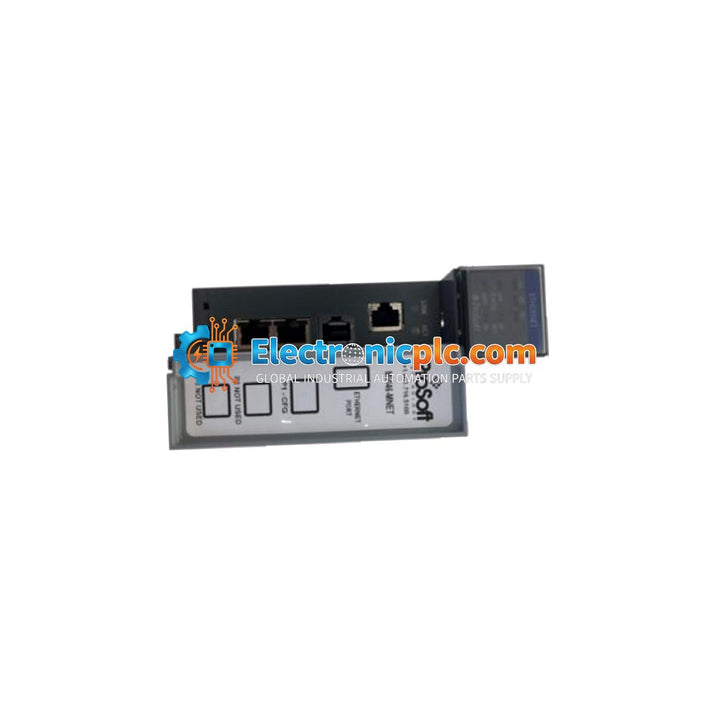

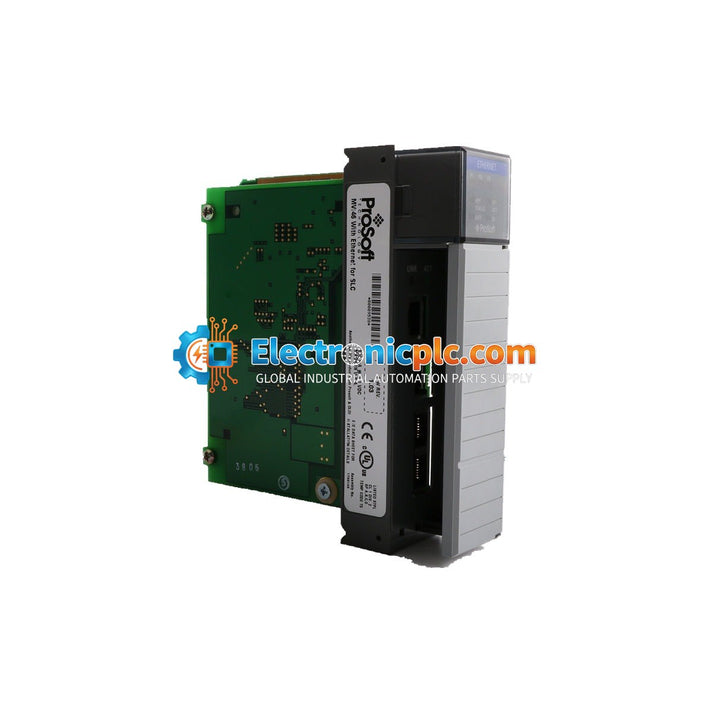

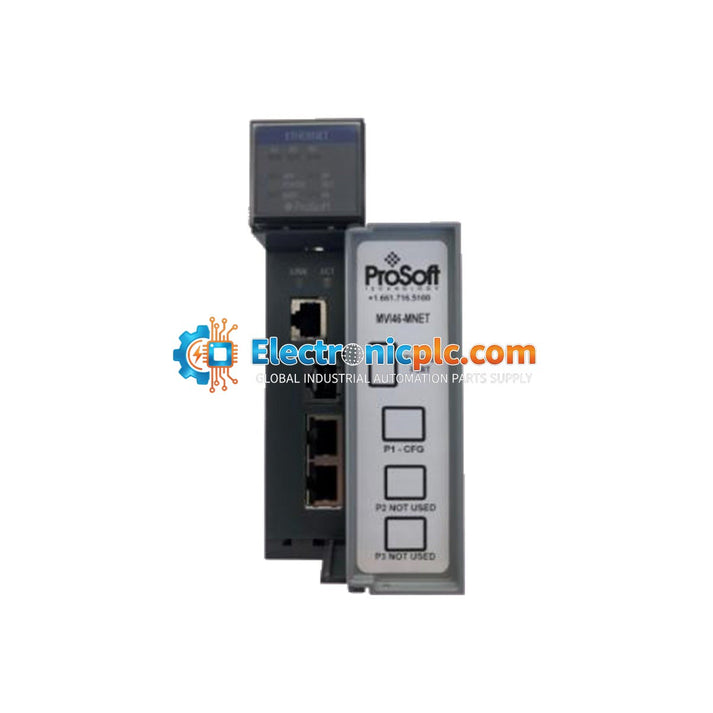

ProSoft MVI46-MNET Modbus TCP/IP Ethernet Communication Module

ProSoft MVI46-MNET Modbus TCP/IP Ethernet Communication Module

Description

The ProSoft MVI46-MNET is a high-performance communication module designed specifically for the Rockwell Automation SLC 500 platform. This module enables seamless integration of Modbus TCP/IP Ethernet connectivity into an existing...

17 people are viewing this right now

Availability: Low stock: 8 left

SKU: MVI46-MNET
Vendor: ProSoft
Category: Communication Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The ProSoft MVI46-MNET is a high-performance communication module designed specifically for the Rockwell Automation SLC 500 platform. This module enables seamless integration of Modbus TCP/IP Ethernet connectivity into an existing SLC 500 rack, allowing the processor to act as either a client or a server in a Modbus network. It is an ideal solution for bridging legacy PLC hardware with modern Ethernet-based industrial networks.

Features

  • Direct backplane compatibility with Allen-Bradley 1746 chassis.
  • Supports Modbus TCP/IP protocol for versatile industrial communication.
  • Configurable as a Modbus TCP/IP Client or Server.
  • Large data capacity with 5000 words of data transfer.
  • Single-slot module design for efficient rack space utilization.

Applications

This module is widely used in industrial automation environments where SLC 500 controllers need to exchange data with HMI systems, SCADA software, or third-party field devices supporting the Modbus TCP/IP protocol. Common applications include water treatment, material handling, and manufacturing process control.

Technical Specifications

Model MVI46-MNET
Manufacturer ProSoft Technology
Backplane Current Load 800 mA @ 5 V DC
Module Width Single slot
Compatible Rack 1746 Chassis
Compatible Processor SLC 5/02 M0/M1 or newer
Data Size 5000 words
Tariff Code 8537101190

Installation Guidelines

  • Ensure the SLC 500 rack power is disconnected before installing or removing the module.
  • Insert the module into any available slot in the 1746 chassis, ensuring the backplane connector is fully seated.
  • Use shielded Ethernet cabling for all network connections to minimize EMI interference.
  • Verify that the processor firmware supports M0/M1 file transfers as required for this module.
  • Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal components.

FAQ

Is the MVI46-MNET compatible with all SLC 500 processors?

The module is compatible with SLC 5/02 M0/M1 capable processors or newer models. Please verify your processor firmware and capabilities before installation.

Does this module require external power?

No, the MVI46-MNET draws its power directly from the 1746 backplane, requiring 800 mA at 5 V DC.
