Description

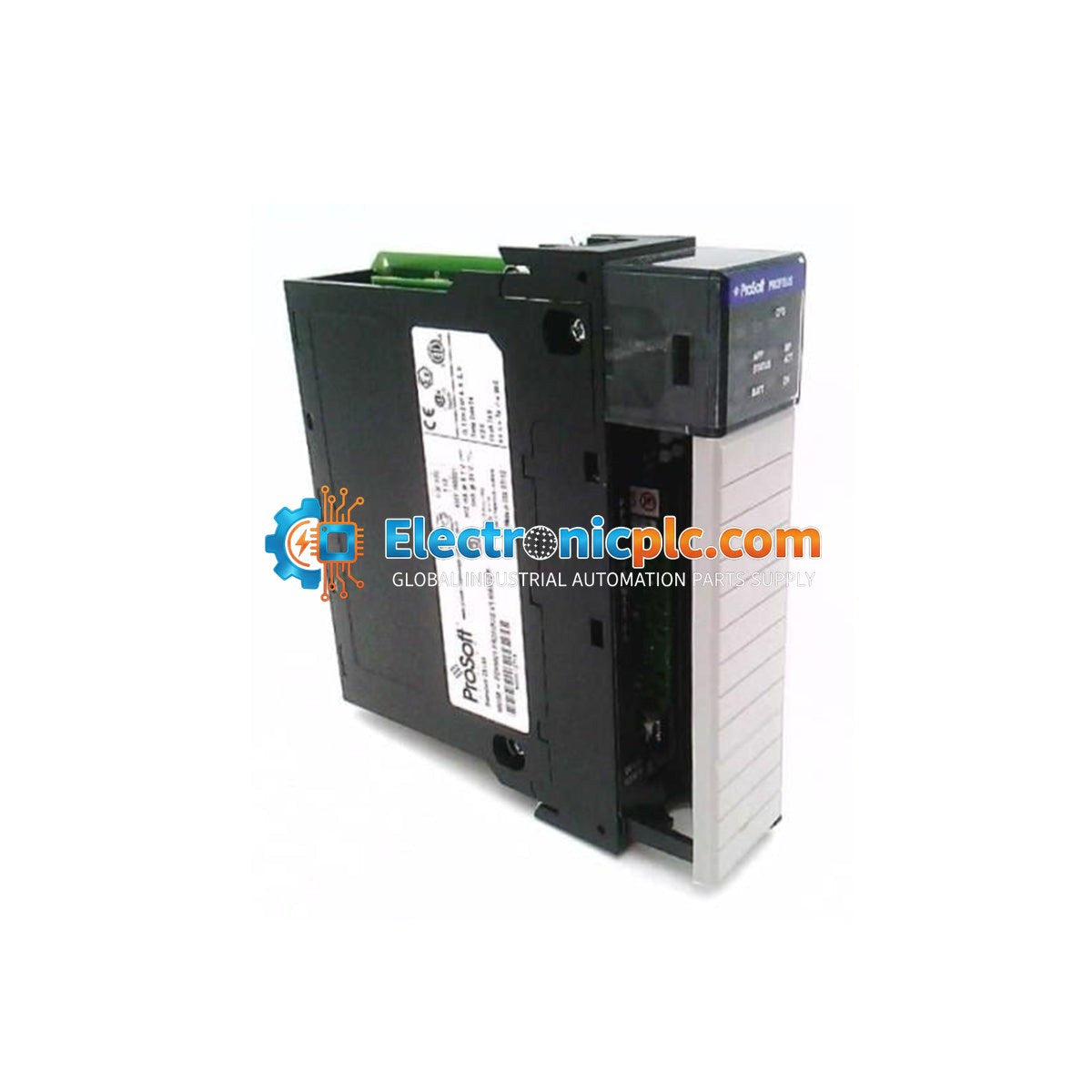

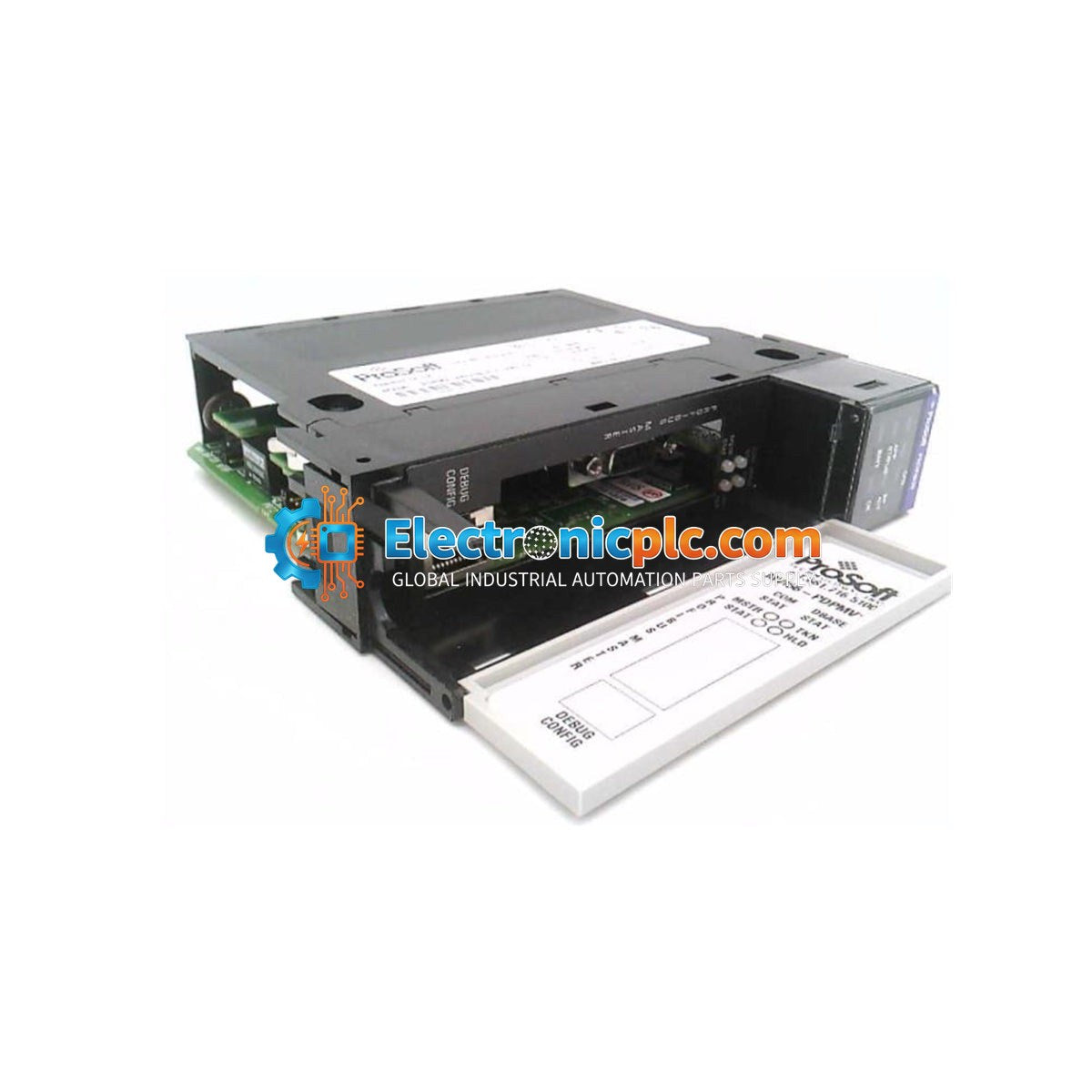

The ProSoft MVI56-PDPMV1 is a high-performance PROFIBUS Master DPV1 communication module designed specifically for integration within Rockwell Automation ControlLogix systems. This module enables the ControlLogix processor to interface directly with PROFIBUS DP slave devices, facilitating seamless data exchange and control in complex industrial automation environments. It acts as a bridge, allowing the PLC to manage up to 125 slave devices over a PROFIBUS network, supporting both cyclic and acyclic data transfers.

Features

  • PROFIBUS DPV1 Master functionality for advanced device configuration and diagnostics.
  • Supports up to 125 PROFIBUS slave devices on a single network.
  • Maximum baud rate of 12 Mbps for high-speed communication.
  • Single-slot module design for efficient rack space utilization in ControlLogix chassis.
  • Data transfer managed via standard ladder logic, simplifying integration into existing PLC programs.
  • Compatible with both local and remote ControlLogix racks.

Technical Specifications

Product Model MVI56-PDPMV1
Communication Protocol PROFIBUS DP Master (DPV1)
Max Slave Devices 125
Baud Rate Up to 12 Mbps
Module Width Single Slot
Operating Vibration 5 g @ 10 to 500 Hz
Operating Shock 30 g
Data Transfer Method Ladder Logic

Installation Guidelines

  • Ensure the ControlLogix chassis power is switched off before inserting or removing the module.
  • Slide the module into any available slot in the ControlLogix rack and secure it using the top and bottom retaining screws.
  • Use shielded PROFIBUS-compliant cabling to minimize electromagnetic interference (EMI).
  • Ensure proper grounding of the PROFIBUS network shield to prevent noise-related communication errors.
  • Verify that the module firmware and GSD files are correctly configured in the Studio 5000 or RSLogix 5000 environment before initiating network communication.
  • Maintain adequate airflow around the chassis to prevent overheating during operation.

FAQ

What is the primary function of the MVI56-PDPMV1?

The MVI56-PDPMV1 serves as a PROFIBUS Master, allowing a ControlLogix PLC to communicate with and control various PROFIBUS DP slave devices, such as drives, sensors, and remote I/O blocks.

Does this module support DPV1 features?

Yes, the module supports PROFIBUS DPV1, which allows for acyclic communication, enabling the reading and writing of configuration and diagnostic data from slave devices while maintaining cyclic data exchange.

Can this module be installed in a remote rack?

Yes, the MVI56-PDPMV1 is compatible with both local and remote ControlLogix racks, provided the rack is connected to the primary controller via a supported communication bridge (e.g., EtherNet/IP or ControlNet).
