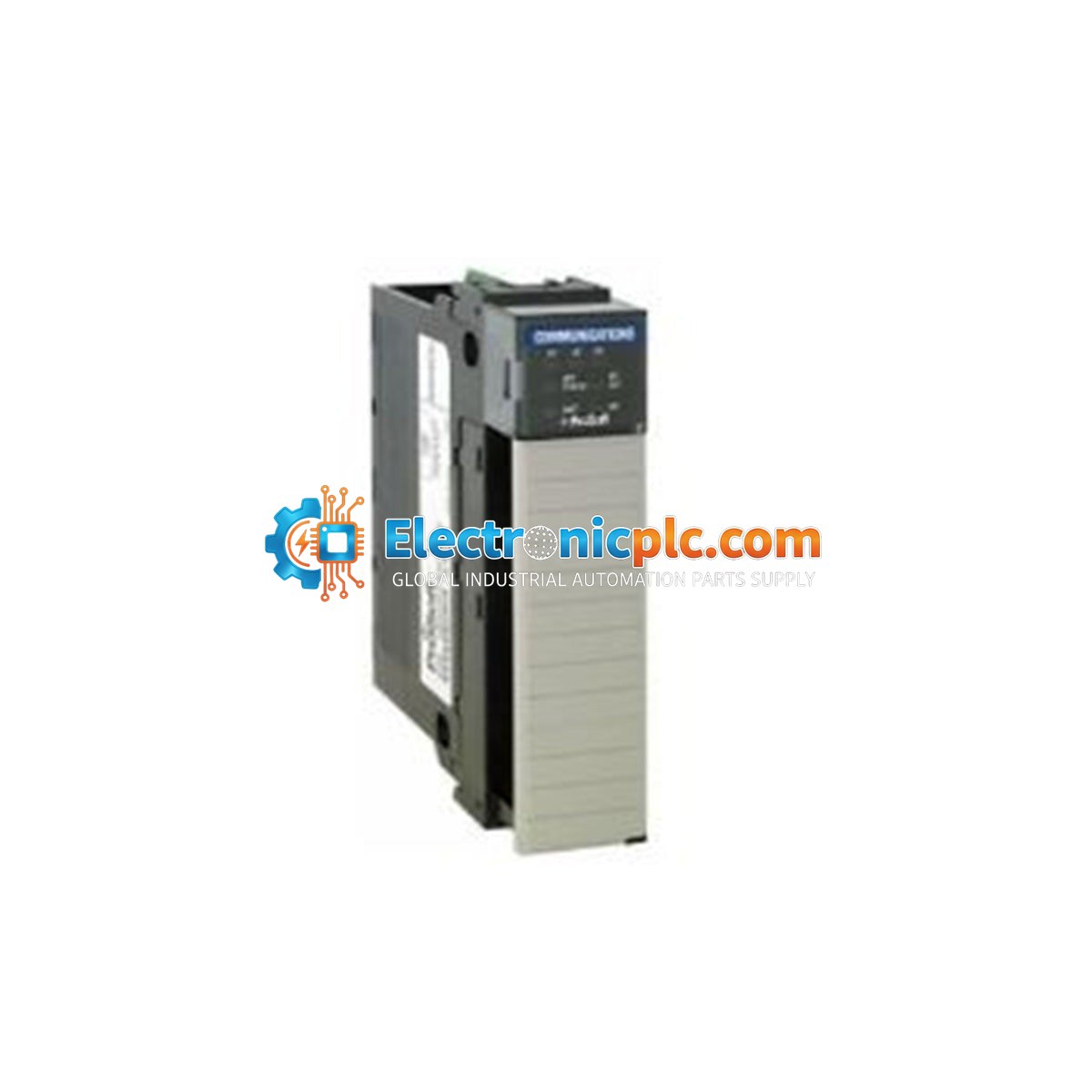

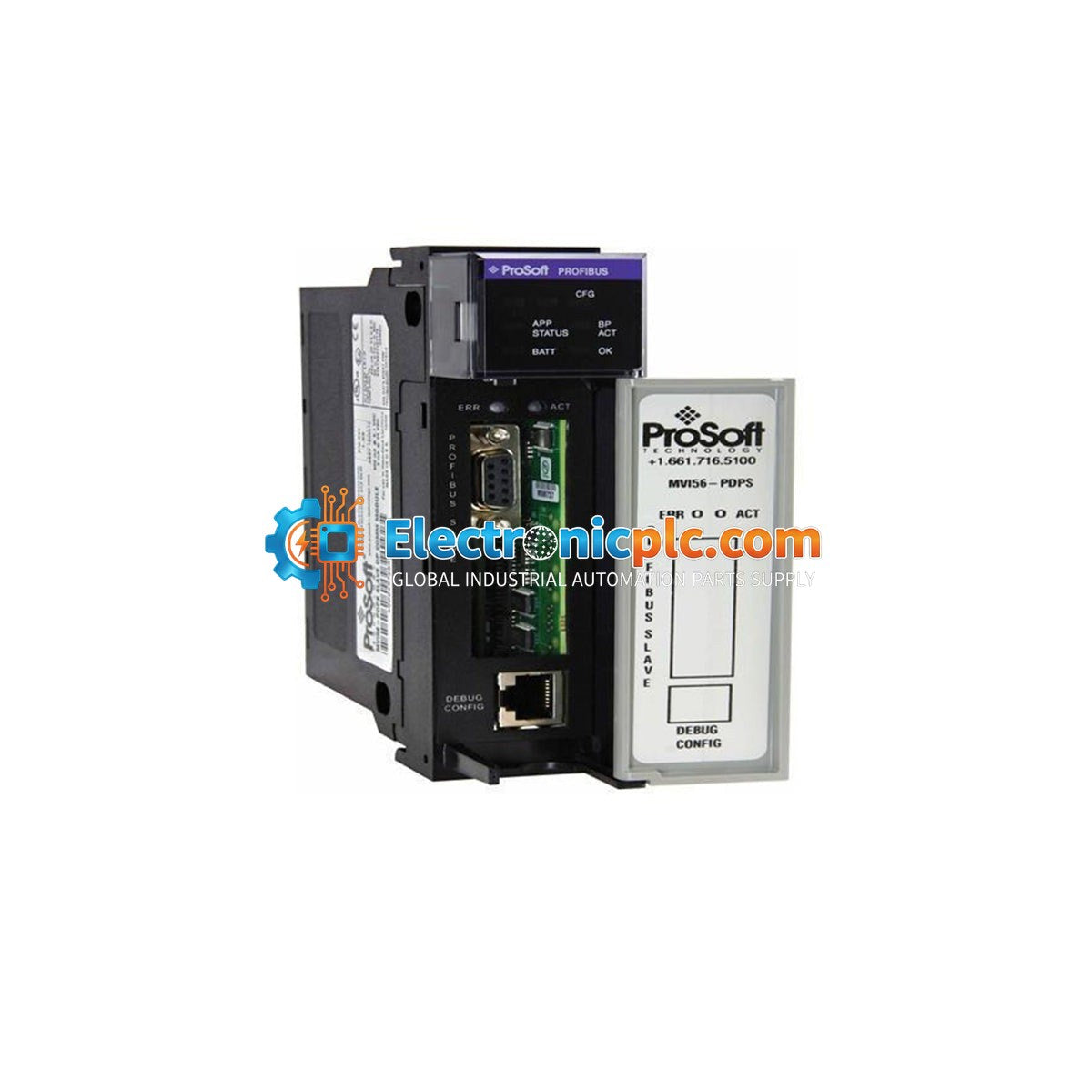

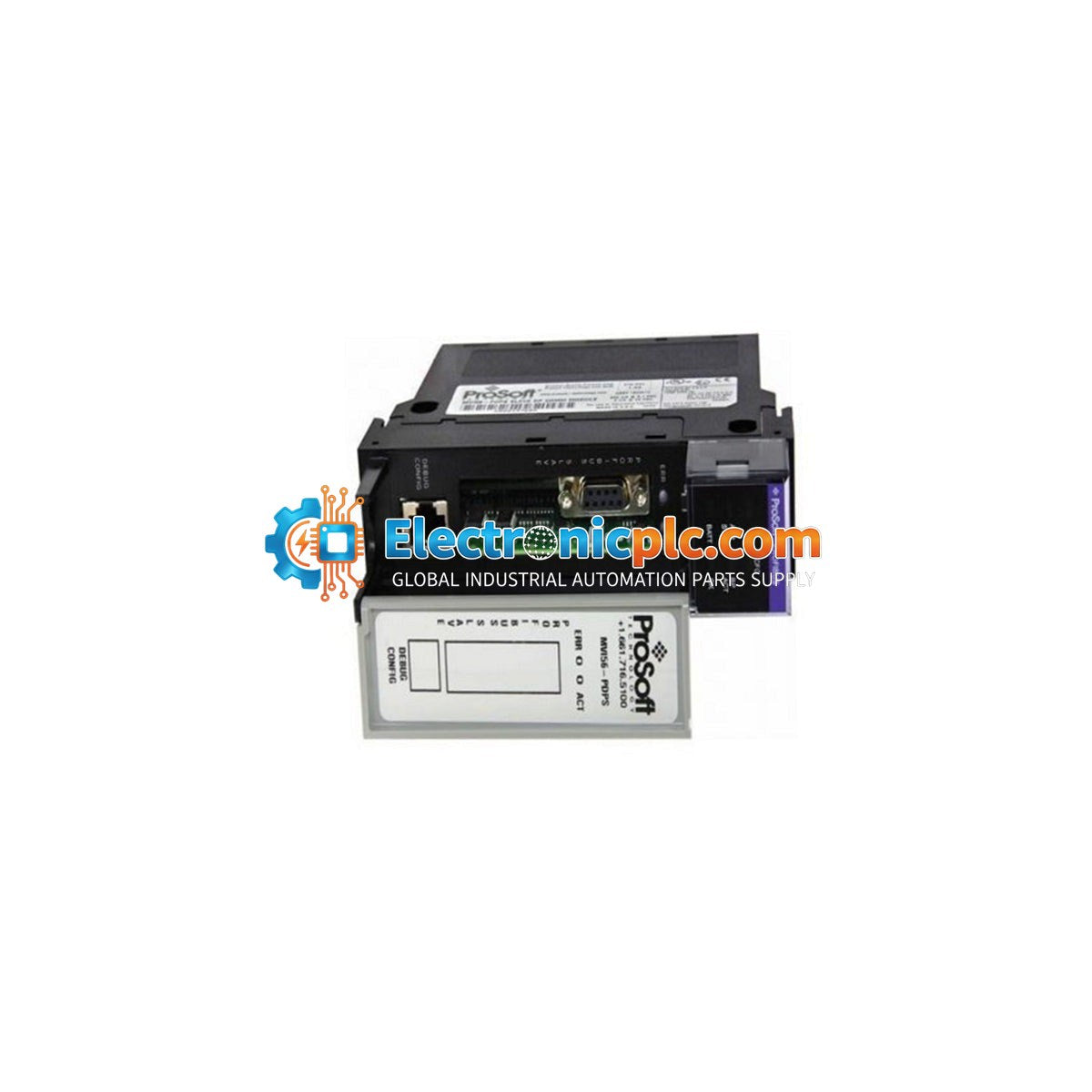

ProSoft MVI56-PDPS ControlLogix PROFIBUS DP Slave Communication Module

ProSoft MVI56-PDPS ControlLogix PROFIBUS DP Slave Communication Module

Description

The ProSoft MVI56-PDPS is a high-performance PROFIBUS DP Slave communication module designed for seamless integration within Rockwell Automation ControlLogix 1756 chassis. This single-slot module acts as a native I/O device,...

18 people are viewing this right now

Availability: Low stock: 4 left

SKU: MVI56-PDPS
Vendor: Prosoft
Category: Communication Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The ProSoft MVI56-PDPS is a high-performance PROFIBUS DP Slave communication module designed for seamless integration within Rockwell Automation ControlLogix 1756 chassis. This single-slot module acts as a native I/O device, allowing ControlLogix processors to communicate directly with a PROFIBUS DP Master network. By offloading protocol-specific processing tasks from the main PLC CPU, the MVI56-PDPS ensures efficient data exchange and optimized control performance in demanding industrial environments.

Features

  • Native Integration: Functions as a standard ControlLogix I/O module, allowing for direct memory access and ladder logic-based data management.
  • PROFIBUS DP V0 Slave: Supports robust communication with PROFIBUS DP Master devices.
  • Automatic Baud Rate Detection: Automatically detects network speeds ranging from 9.6 kbps to 12 Mbps.
  • Simplified Configuration: Uses a dedicated text file for register mapping, compatible with RSLogix 5000 and Studio 5000 environments.
  • High-Speed Processing: Onboard processor handles complex protocol tasks to reduce system latency.

Applications

This module is engineered for mission-critical industrial applications, including oil and gas refineries, power generation facilities, and large-scale mining operations. It is ideal for bridging ControlLogix-based automation systems with third-party PROFIBUS-enabled field devices, drives, or remote I/O.

Technical Specifications

Brand ProSoft Technology
Model MVI56-PDPS
Backplane Compatibility Rockwell Automation ControlLogix (1756)
Slot Usage 1 (Single Slot)
Current Load 800 mA @ 5 VDC; 3 mA @ 24 VDC
Operating Temperature 0 to 60 deg C
Storage Temperature -40 to 85 deg C
Relative Humidity 5 to 95 percent (Non-condensing)
PROFIBUS Interface DB9 Female Connector
Baud Rate Support 9.6 kbps to 12 Mbps
Isolation 500 V optical isolation

Installation Guidelines

  • Power Down: Always remove power from the ControlLogix chassis before inserting or removing the module to prevent electrical damage.
  • Chassis Placement: The module can be installed in any available slot in a 1756 local or remote rack. Ensure the module is fully seated and the locking tabs are engaged.
  • Grounding: Ensure the ControlLogix chassis is properly grounded according to local electrical codes to minimize EMI/RFI interference.
  • Wiring: Use shielded PROFIBUS-rated cable for the DB9 connection. Keep communication cables routed away from high-voltage power lines to maintain signal integrity.
  • ESD Precautions: Handle the module by the edges and avoid touching the backplane pins to prevent electrostatic discharge damage.

FAQ

What programming software is required to configure the MVI56-PDPS?

The module is configured using a text file downloaded to the module. It is designed to be compatible with standard Rockwell Automation programming environments, including RSLogix 5000 and Studio 5000, using ladder logic for data exchange.

Does this module require a separate power supply?

No, the MVI56-PDPS draws its required power directly from the ControlLogix backplane. It consumes 800 mA at 5 VDC and 3 mA at 24 VDC.
