Description

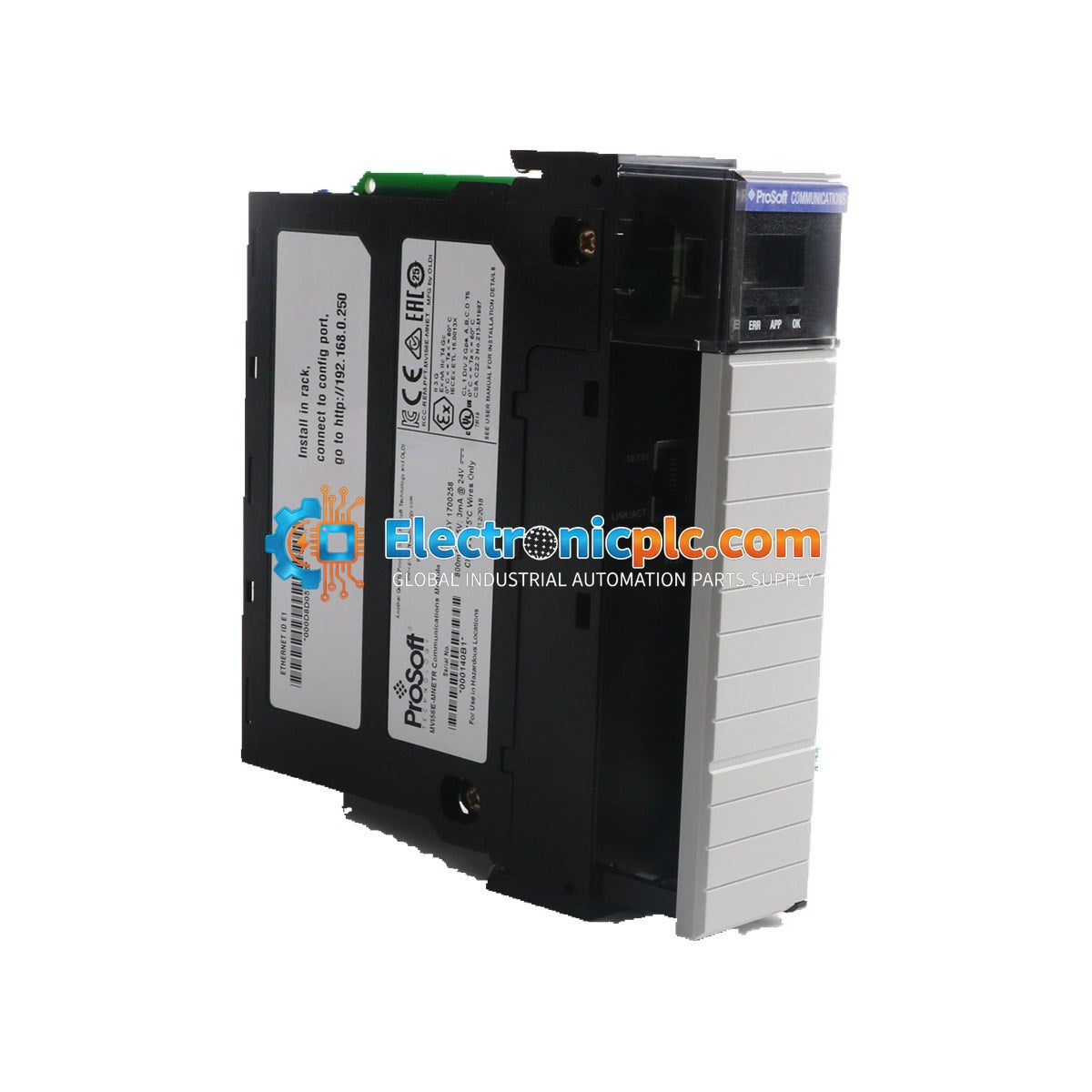

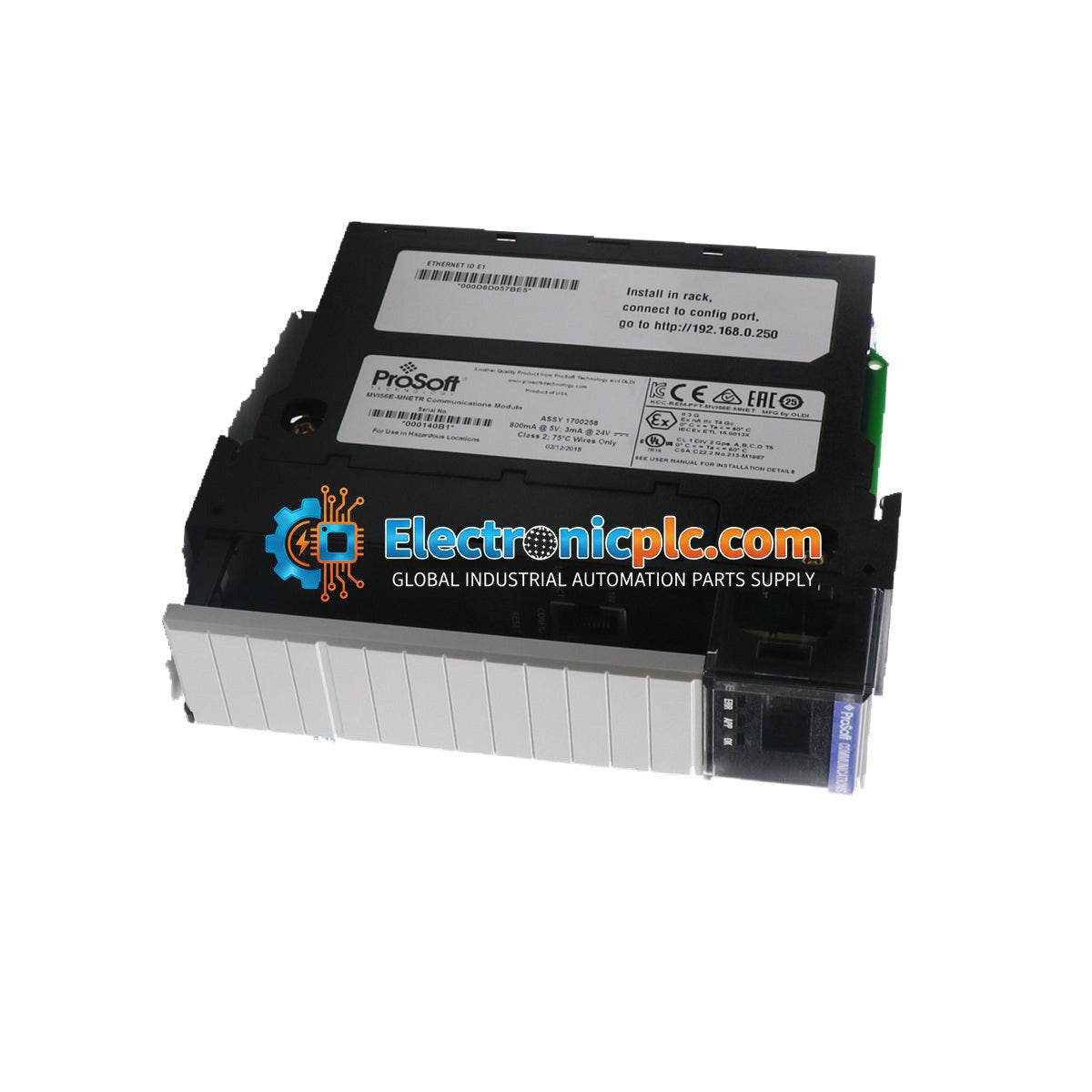

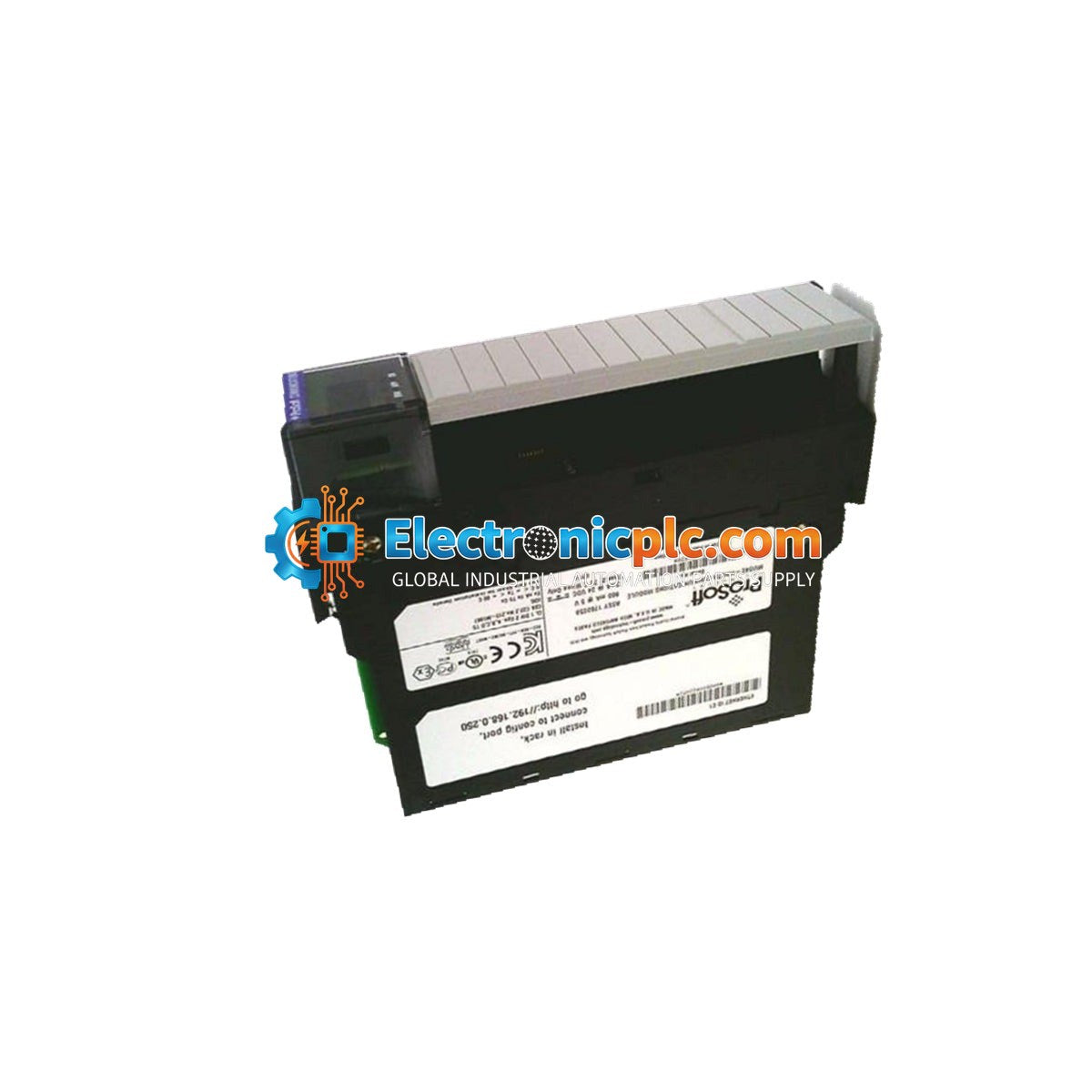

The ProSoft MVI56E-MNETR is an enhanced Modbus TCP/IP communication module designed for the Rockwell Automation ControlLogix platform. This in-chassis module acts as a gateway, enabling ControlLogix processors to interface seamlessly with Modbus TCP/IP-compatible devices, such as Modicon PACs, flowmeters, and various industrial instruments. The 'R' designation signifies its optimized, reduced I/O data image block size, specifically engineered to minimize bandwidth consumption, making it ideal for remote rack installations connected via ControlNet or EtherNet/IP, as well as redundant processor architectures.

Features

• In-chassis Modbus TCP/IP gateway for ControlLogix PACs
• Simultaneous support for Client (Master) and Server (Slave) modes
• Reduced I/O data block size for optimized remote rack communication
• Configured via ProSoft Configuration Builder (PCB) and Add-On Instructions (AOI) in Studio 5000
• CIPconnect technology for remote diagnostics and configuration across bridged networks
• 4-character alphanumeric LED display for local status and diagnostics
• CompactFlash (CF) card for storage of configuration data and rapid field replacement

Applications

• Remote I/O and Distributed Control: Efficiently manages Modbus TCP data in remote racks without overloading network adapters.
• SCADA/DCS Integration: Functions as a data concentrator, bridging Allen-Bradley controllers to SCADA systems via Modbus TCP.
• Substation and Power Monitoring: Collects telemetry from relays, meters, and IEDs.
• Oil, Gas, and Water Infrastructure: Integrates flow computers, RTUs, and dosing systems into central control architectures.

Technical Specifications

Installation Guidelines

• Backplane Seating: Ensure the module is fully seated in the ControlLogix chassis slot and the locking tab is engaged.
• Power: Always power down the chassis before inserting or removing the module to prevent electrical damage.
• Grounding: Ensure the ControlLogix chassis is properly grounded according to local electrical codes to minimize EMI/RFI interference.
• Ethernet Cabling: Use CAT5 or better shielded Ethernet patch cables. The port supports Auto MDI-X, allowing for both standard and crossover cable configurations.
• Configuration: Use the front-facing configuration port for initial setup. If using ProSoft Discovery Service, ensure the module and PC are on the same subnet, as layer 3 switches or routers may block UDP broadcast messages required for discovery.

FAQ

What is the benefit of the 'R' in MVI56E-MNETR?

The 'R' indicates a reduced data block size. This is critical for remote rack applications where backplane bandwidth is limited, as it allows the module to communicate efficiently over ControlNet or EtherNet/IP without exceeding network constraints.

Can this module be installed in a remote I/O chassis?

Yes. It is specifically designed for remote rack installations where minimizing data transfer across the network is necessary for system stability.

Where is the module configuration file saved?

Configuration parameters are stored on the industrial-grade CompactFlash (CF) card inside the module. This allows for quick replacement; if a module fails, you can move the CF card to a spare unit to restore operations immediately without needing a PC.
