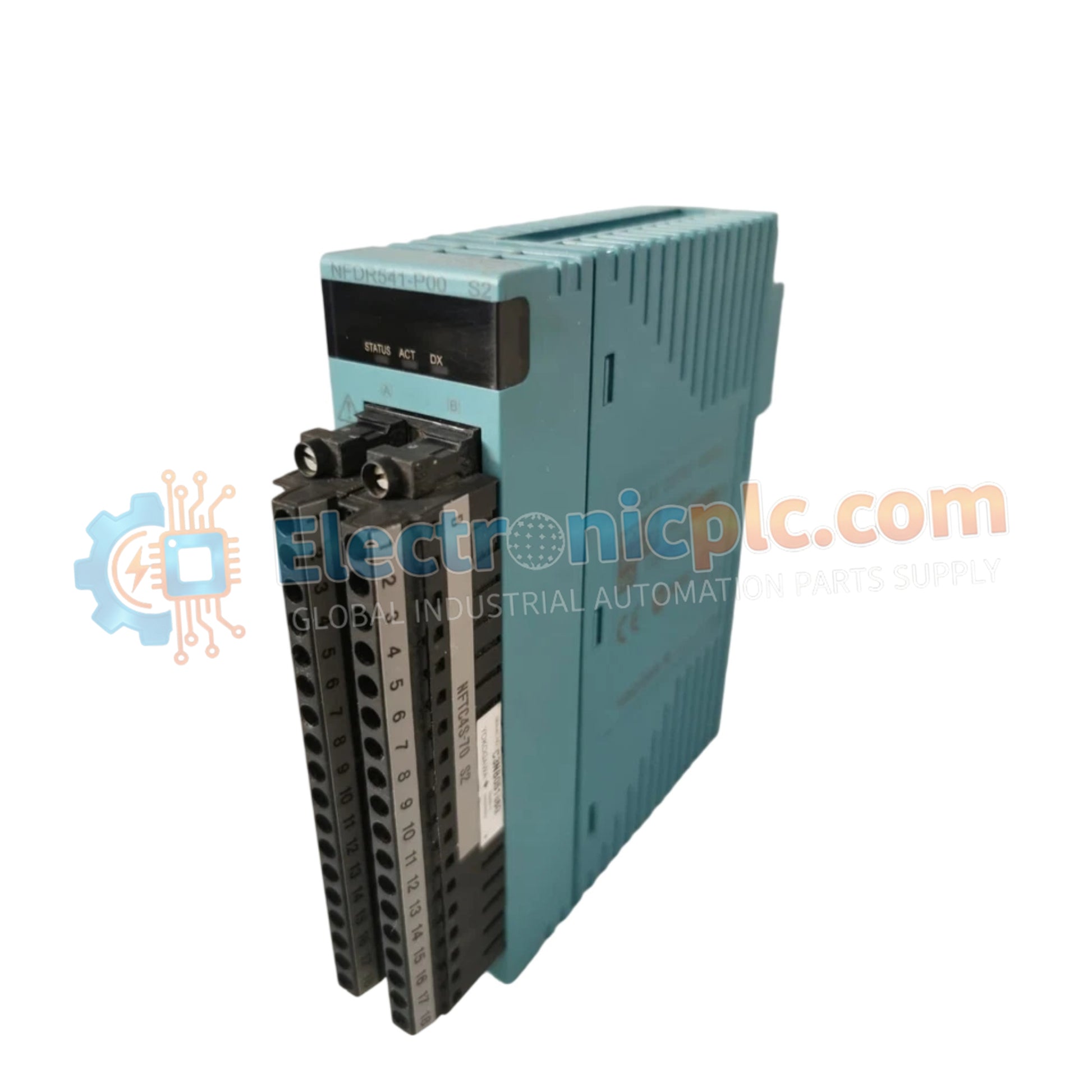

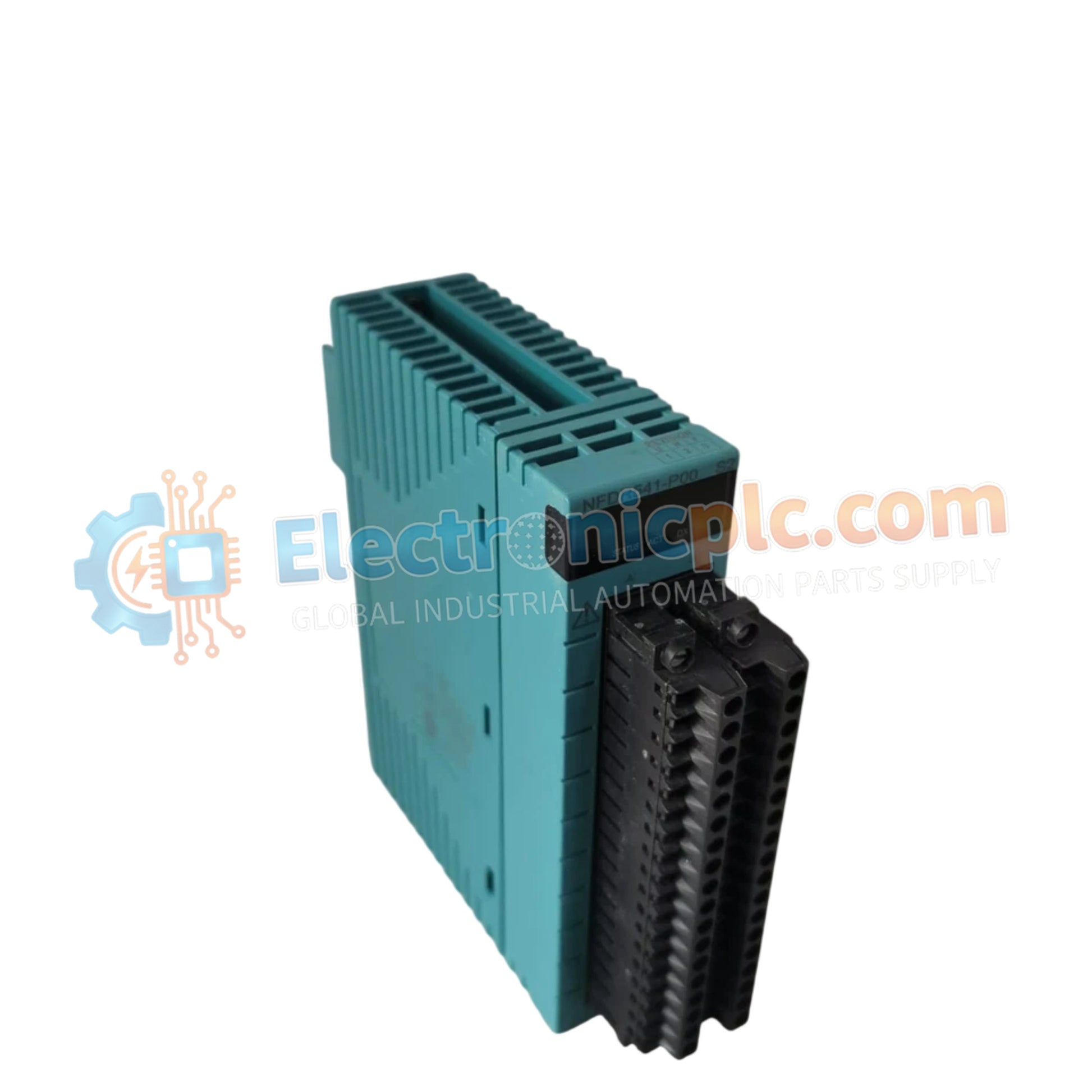

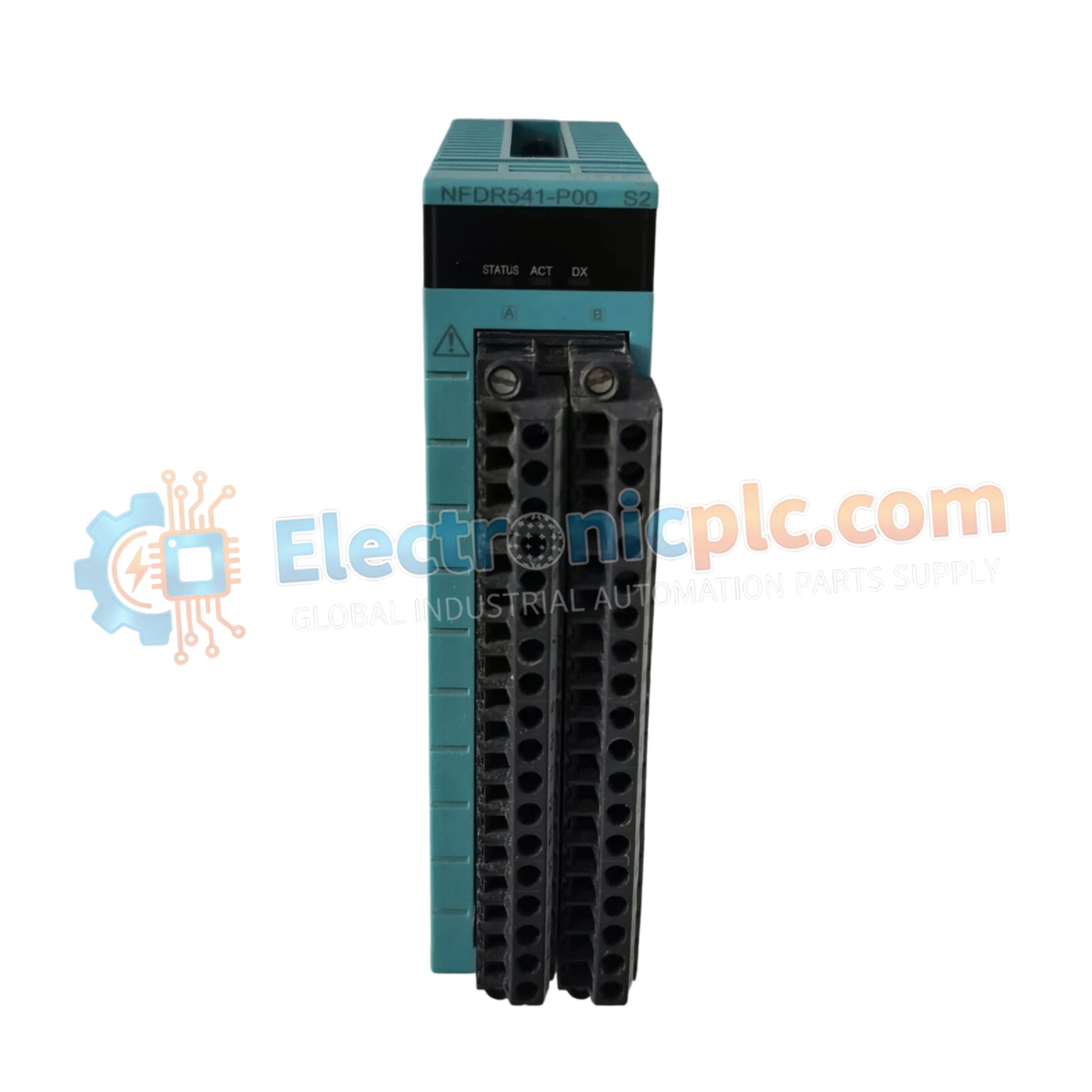

The YOKOGAWA NFDR541-T is a high-density, 16-channel relay output module engineered for reliable interface between control logic and field-level hardware, such as actuators, alarms, and auxiliary control relays, within Yokogawa industrial automation platforms.

Hardware Specifications

Industrial Control & Fallback Functionality

The NFDR541-T provides robust galvanic isolation with a 2000 V AC rating between the output stage and the system bus, ensuring safe operation in complex control architectures. The module features configurable fallback behavior to ensure process safety during system communication losses or controller faults:

• HOLD: Maintains the last known state of all outputs.
• OFF: Forces all relay contacts to the open (de-energized) state.
• NO: No specific fallback action is initiated.

This flexibility allows engineers to align the module's behavior with the site-specific safety logic and process requirements.

Frequently Asked Questions (FAQ)

Q: How is the isolation maintained between relay channels?

A: The module provides 1350 V AC isolation between channel commons, grouped every 8 channels. This partitioning prevents common-mode noise and electrical faults from propagating across the entire output bank.

Q: Can this module be used for both AC and DC load switching?

A: Yes, the relay contacts are rated to handle both DC (24–125 V) and AC (100–240 V) voltages. Always ensure that the total switched load current and voltage remain within the manufacturer's specified safety envelopes to avoid contact welding or excessive arcing.

Field Installation Guidelines

• Mounting: Install the module in an environment where temperatures remain between -10°C and +55°C. Ensure proper vertical orientation to allow for natural convection cooling of the relay internal components.
• Wiring: Use appropriate wire gauges for the expected load current. When switching inductive loads (solenoids or motor starters), install external suppression (flyback diodes for DC or RC snubbers for AC) to extend the mechanical life of the relay contacts.
• Safety Interlocks: Configure the fallback function (HOLD, OFF, or NO) based on the fail-safe requirements of your specific process. Verify these settings in the control station software during commissioning.
• Maintenance: Periodically inspect terminal connections for tightness. Because relay modules are electromechanical, consider the duty cycle and replace the module proactively according to your plant’s preventive maintenance schedule for high-cycle applications.
