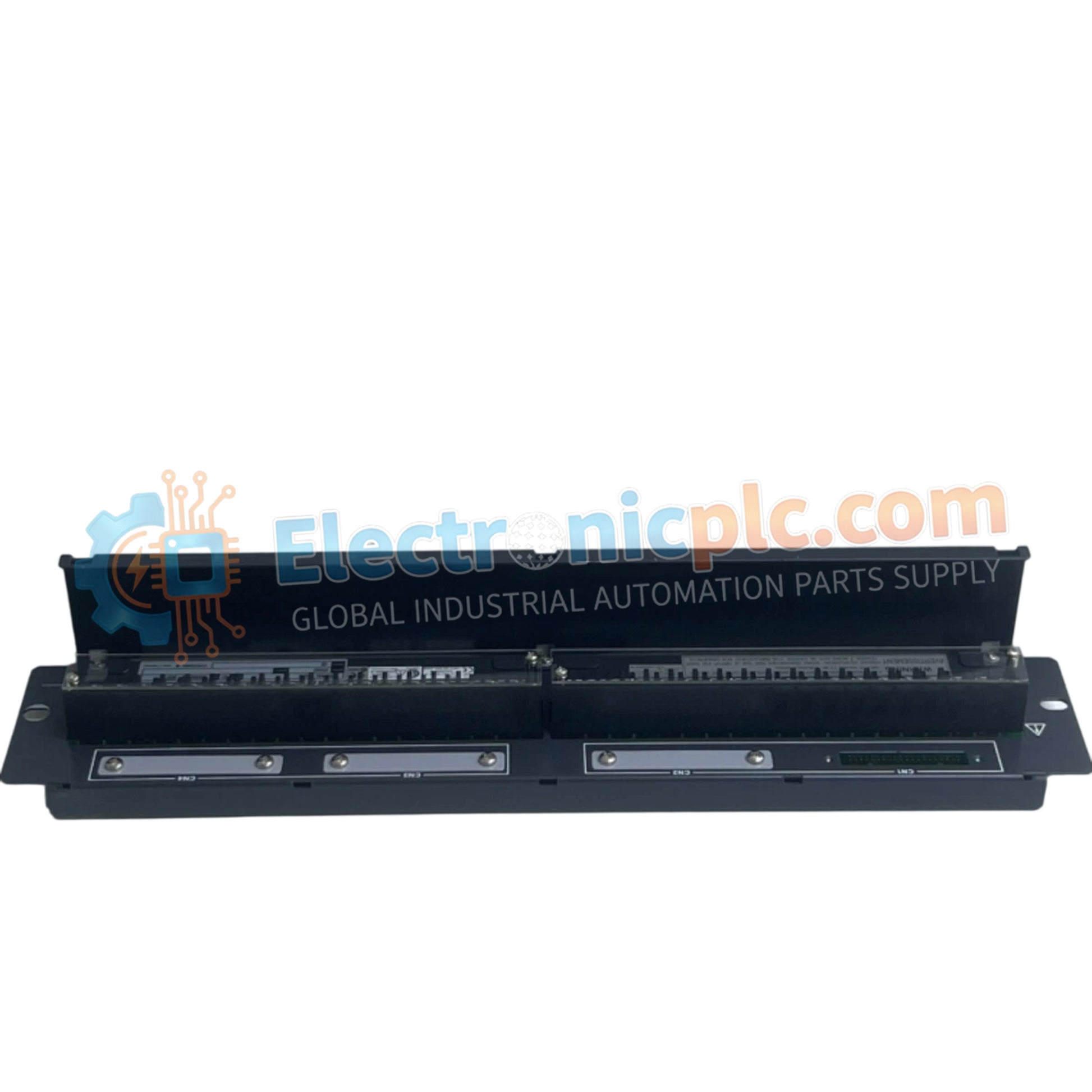

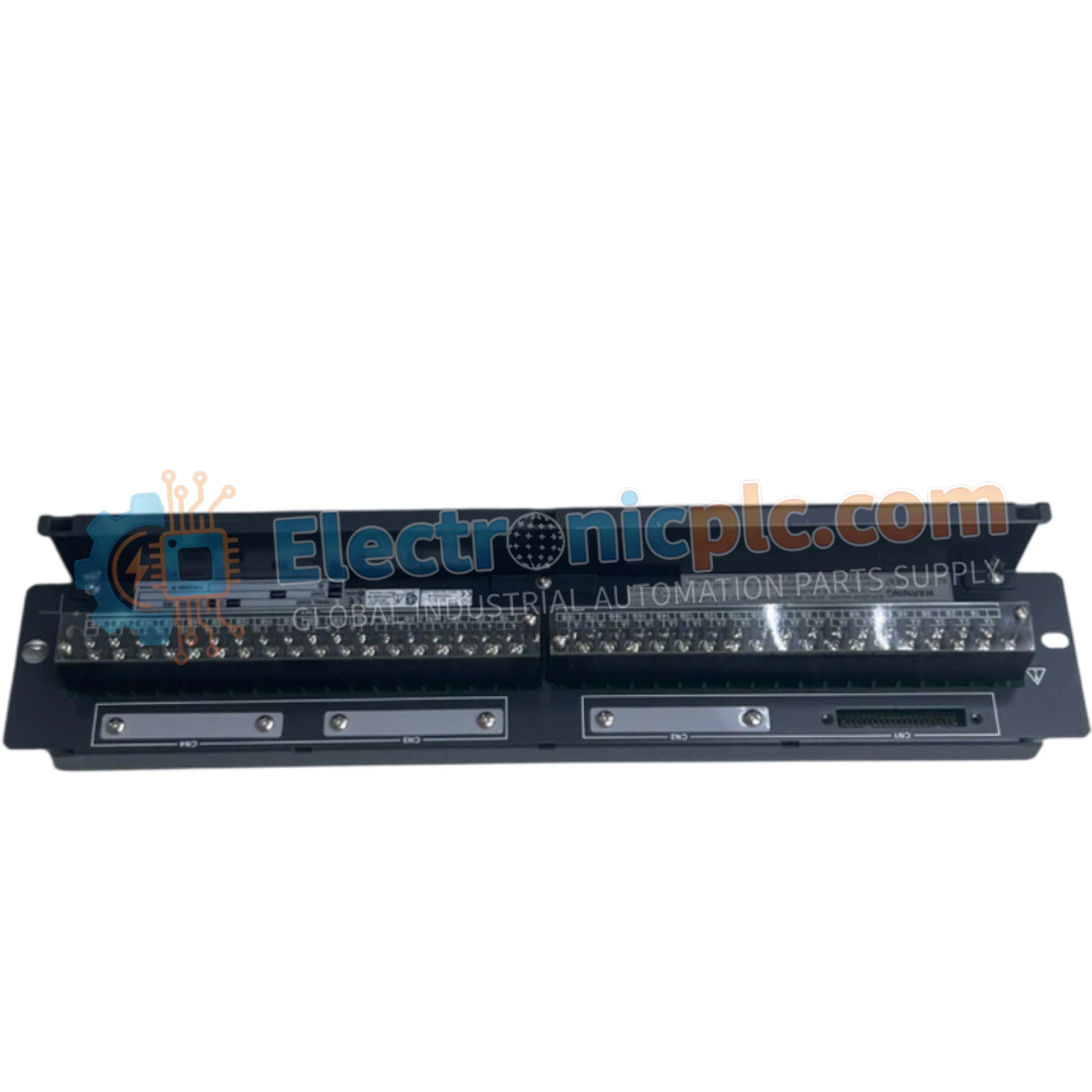

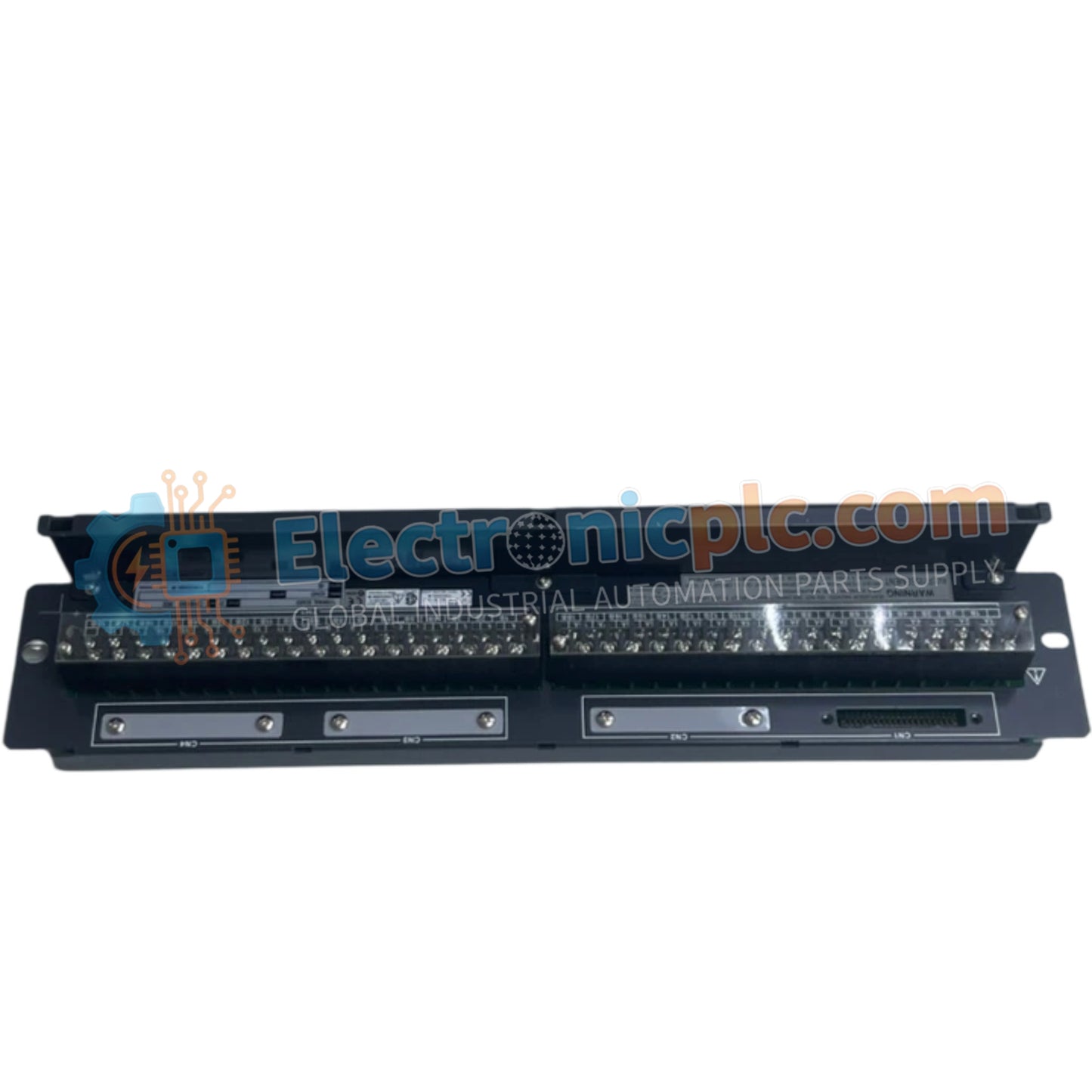

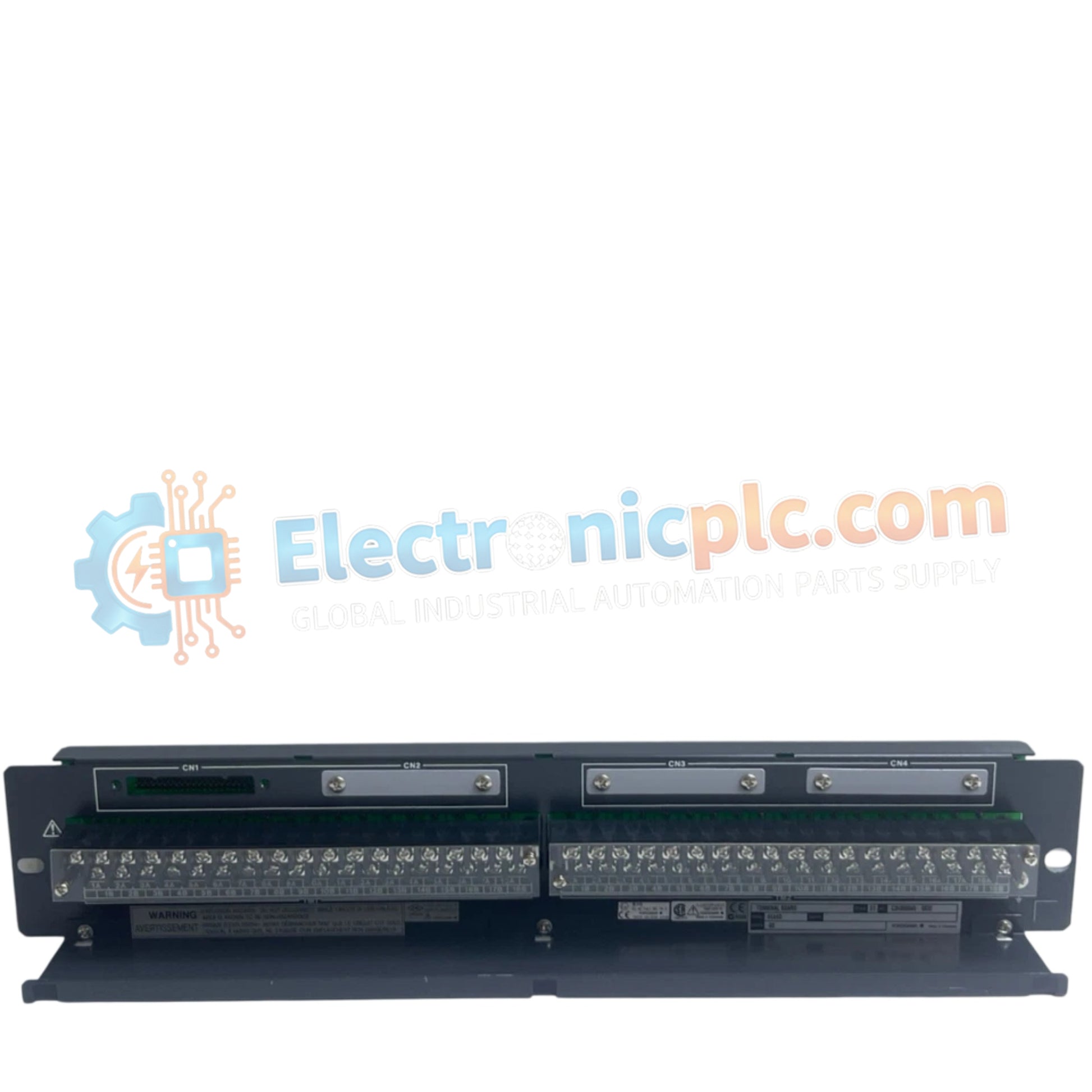

Configured for field signal distribution in industrial control networks, the Yokogawa AE4D-05 (AE4D-05 Node Interface Module) provides direct physical/electrical execution of signal termination and routing across distributed nodes.

Hardware Specifications

Process Control and Signal Integrity

The AE4D-05 module is designed to maintain signal integrity in harsh industrial environments, featuring an IP65-rated enclosure that prevents ingress of dust and moisture. The internal architecture utilizes UL 94 V-0 flame-retardant materials, ensuring safety under varying thermal conditions. With an insulation resistance of 100 MOhm, the module effectively isolates signal paths from potential leakage currents. This robustness facilitates reliable data transit between field sensors and control cabinets, supporting deterministic performance in process automation applications where signal accuracy and mechanical resilience are required.

Frequently Asked Questions

Q: Is the AE4D-05 module hot-swappable during normal operation?

A: No. The AE4D-05 does not support hot-swapping. The system must be de-energized and the signal loops isolated before any maintenance or removal is performed to prevent electrical faults.

Q: What is the specified torque requirement for the M4 terminal screws?

A: The recommended torque is 0.5 to 0.6 Nm; proper application of this torque ensures a secure connection while preventing mechanical fatigue or stripping of the terminal block threads.

Field Installation Guidelines

1. Mount the module within a standard rack or chassis, ensuring the unit is level to prevent mechanical stress on the signal interface pins.
2. Terminate all field wires to the 16 M4 screw terminals using appropriate cable lugs to ensure consistent contact resistance.
3. Confirm that the operating environment remains within the -40 deg C to 85 deg C range and that the module is installed away from sources of extreme heat.
4. Ensure signal cable shields are grounded at a single point to the cabinet earth bus to minimize noise injection and maintain the integrity of the insulation resistance.
5. Post-installation, inspect the IP65 seals to confirm they are undamaged, ensuring the unit remains protected against environmental contaminants.
