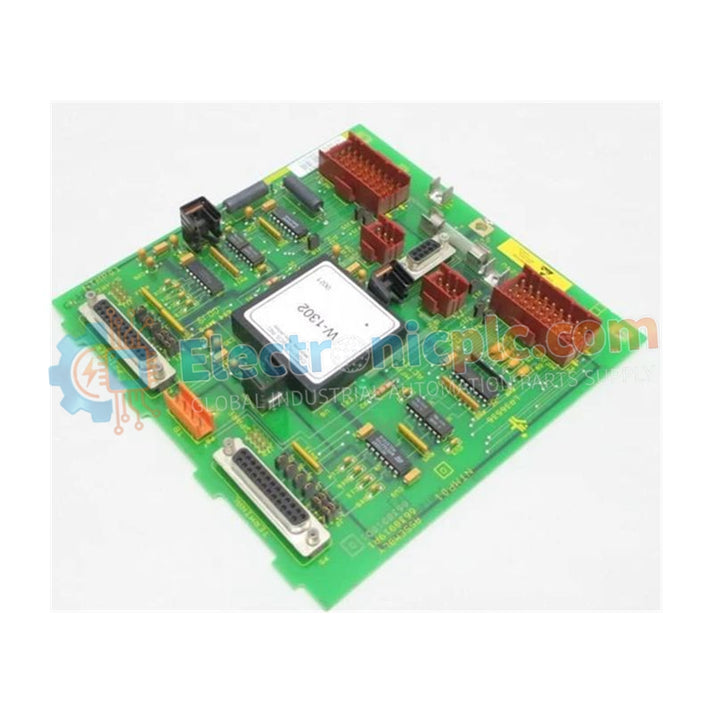

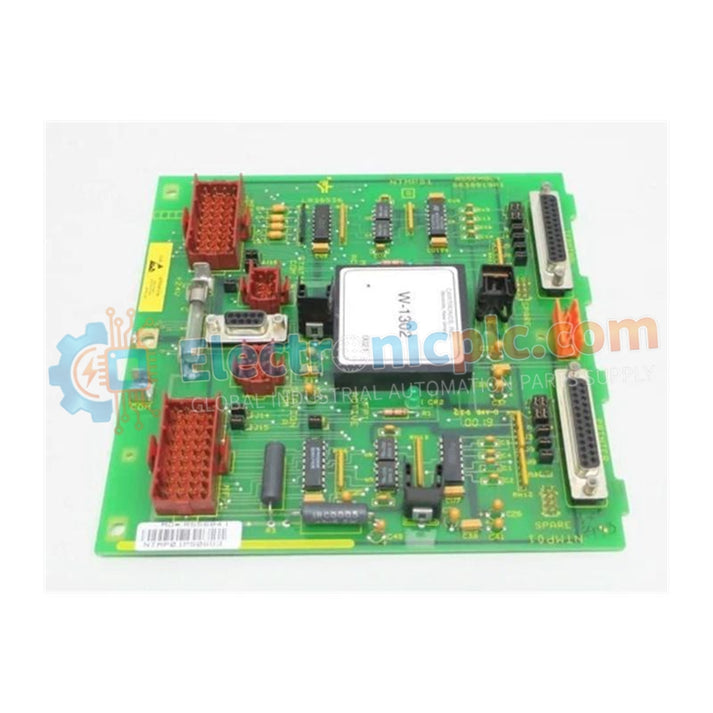

NTMP01 ABB Processor Termination Unit

NTMP01 ABB Processor Termination Unit

Product Description

The NTMP01 is a versatile termination unit that provides the physical connection interface for ABB INFI 90 and Symphony series processors. It enables critical serial communication and control station linking, acting as a bridge between high-level processor modules and field-level...

21 people are viewing this right now

Availability: Low stock: 10 left

SKU: NTMP01
Vendor: ABB
Category: Termination Unit
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Description

The NTMP01 is a versatile termination unit that provides the physical connection interface for ABB INFI 90 and Symphony series processors. It enables critical serial communication and control station linking, acting as a bridge between high-level processor modules and field-level communication cabling. Engineered for durability, the NTMP01 ensures reliable signal routing for advanced multi-function controllers in complex industrial control architectures.

Technical Specifications

Specification Details
Model Designation NTMP01
Processor Compatibility BRC (Bridge Controllers), MFP (Multi-Function Processors), IET, ICT, and NKTU modules
Serial Interface 1 Two RS-232-C compliant ports
Serial Interface 2 Alternative: one RS-232-C port + one RS-485 port
Control Link Dedicated serial link for Control Station integration
Operating Temperature 0°C to 70°C (32°F to 158°F)
Weight 0.3 kg

Application Scenarios

The NTMP01 is typically installed in termination unit racks to provide essential I/O and communication ports for:

  • BRC300, BRC400, or legacy IMMFP12 modules

  • Connecting human-machine interfaces (HMI) or third-party Modbus devices (via RS-485)

  • Applications in power generation and heavy manufacturing environments

Frequently Asked Questions

Q: Can this unit support RS-485 communication?
A: Yes. The NTMP01 can be configured with one RS-485 port alongside an RS-232-C port, supporting multi-drop serial communication with field devices.

Q: What are the interference precautions for this module?
A: To maintain signal integrity, keep cabinet doors closed during operation and maintain a minimum 2-meter distance from handheld communication devices (e.g., radio transmitters).
