Operator Interface Panel Woodward Series 5453-203

Operator Interface Panel Woodward Series 5453-203

Product Description

The 5453-203 is a ruggedized human-machine interface (HMI) developed by Woodward for use with MicroNet and MicroNet Plus control platforms. This 2-line alphanumeric display panel provides operators with direct access to...

23 people are viewing this right now

Availability: Low stock: 10 left

SKU: 5453-203
Vendor: Woodward
Category: Operator Interface Panel
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Description

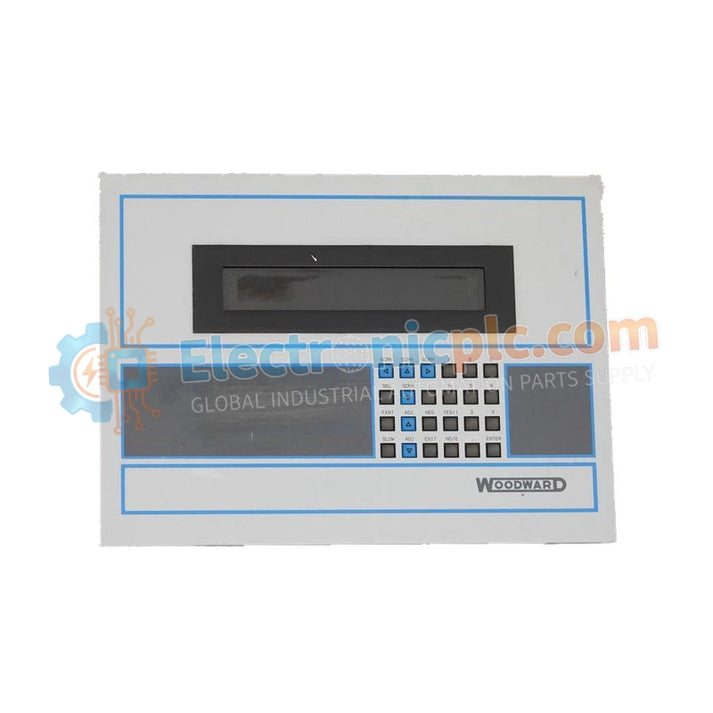

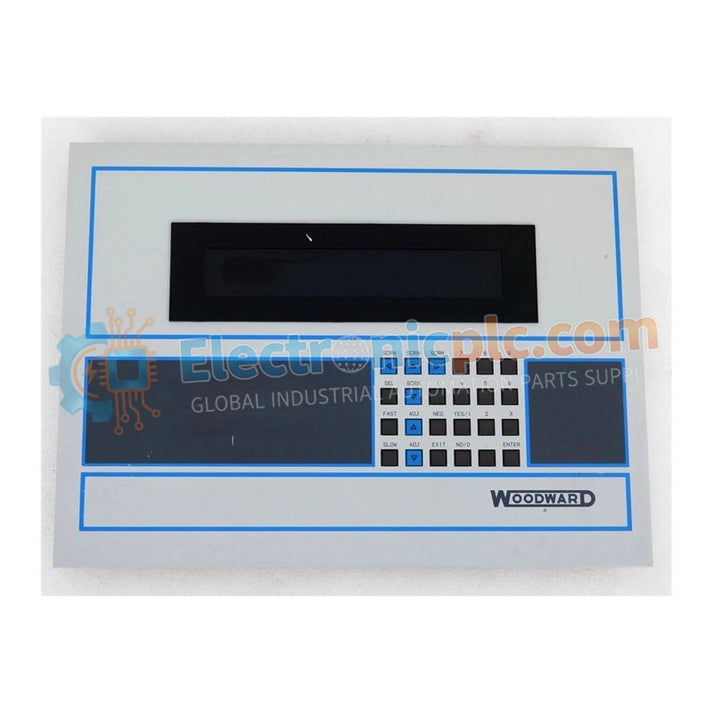

The 5453-203 is a ruggedized human-machine interface (HMI) developed by Woodward for use with MicroNet and MicroNet Plus control platforms. This 2-line alphanumeric display panel provides operators with direct access to critical turbine and engine control data, including speed, load, and diagnostic fault codes, without requiring a remote engineering workstation.

The 5453-203 is designed for harsh industrial environments such as turbine control rooms, offshore engine rooms, and power plant control cabinets. The high-contrast display ensures visibility under varying lighting conditions, while the durable tactile keypad allows operation even when wearing protective industrial gloves.

This HMI serves as a local operator interface for monitoring system health and performing basic control interactions during commissioning, troubleshooting, and routine maintenance activities. It communicates directly with the MicroNet CPU through dedicated serial or Ethernet links (configuration dependent).

Detailed Technical Specifications

Item Specification
Part Number 5453-203
Product Line MicroNet Control Systems
Display Type 2-Line Alphanumeric Display
Function Real-time monitoring and alarm acknowledgment
Communication Interface MicroNet serial or Ethernet (model dependent)
Input Method Industrial tactile membrane keypad
Dimensions 305 mm × 356 mm × 152 mm
Weight 1.82 kg
Operating Temperature -20°C to +60°C

Application Scenarios

The 5453-203 is commonly used in:

  • Gas turbine control systems

  • Steam turbine governor control panels

  • Large reciprocating engine control systems

  • Power generation plant operator panels

Typical functions include monitoring lubrication pressure, turbine speed, load sharing status, and synchronization parameters.

Technical FAQ

Can the 5453-203 be used to modify PID tuning parameters?
Yes. If permitted by security settings in Woodward GAP (Graphical Application Programmer) software, authorized operators can adjust control setpoints and tuning parameters directly from the keypad interface.

Is this display compatible with Netcon 5000 systems?
No. The 5453-203 is specifically designed for MicroNet architecture. Communication protocols and mounting designs differ from older Netcon platforms, so compatibility must be verified before retrofitting.
