Description

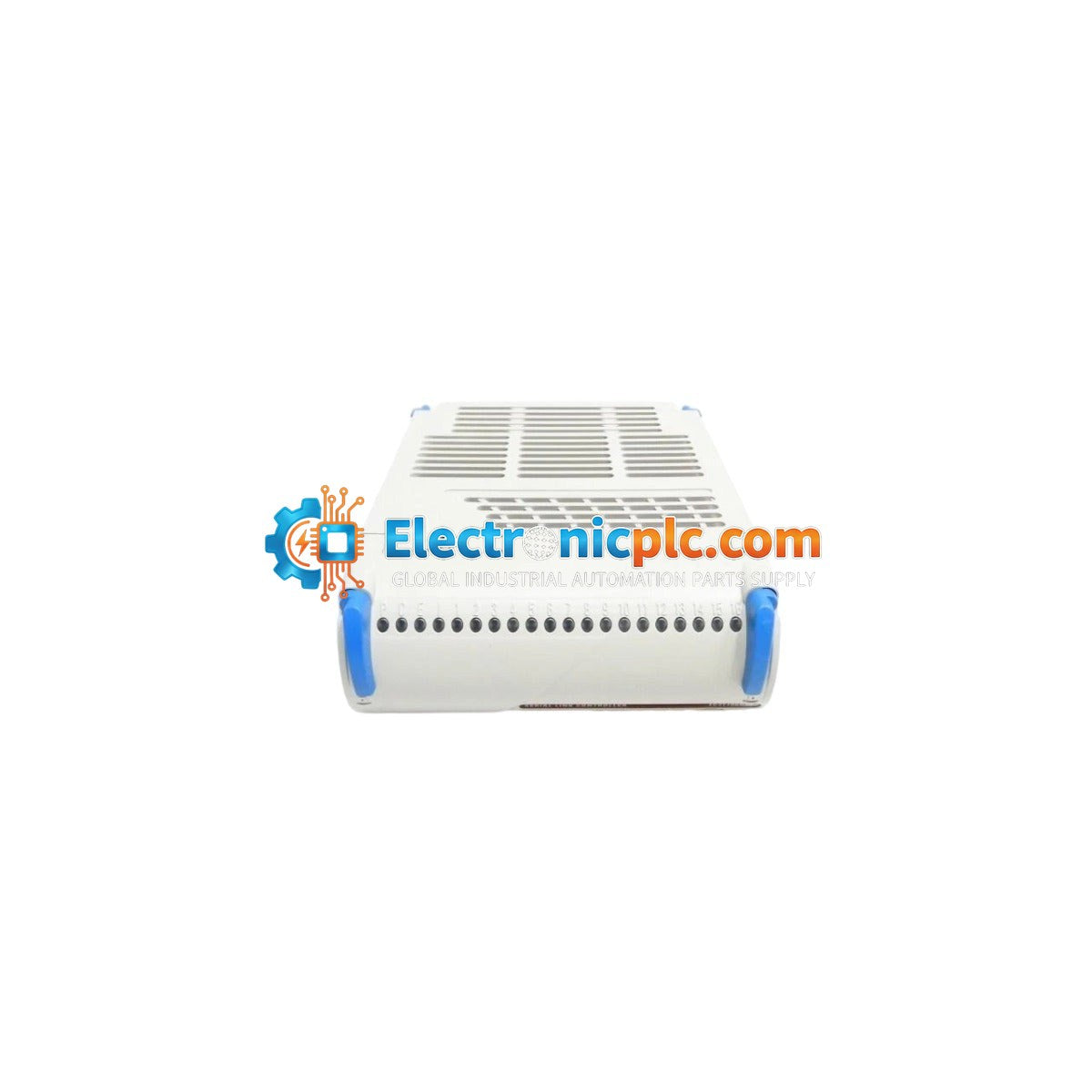

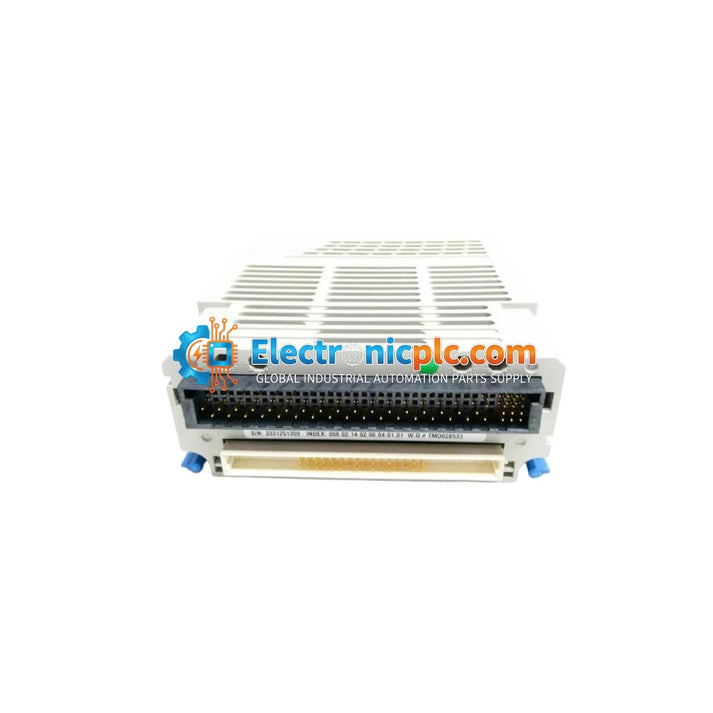

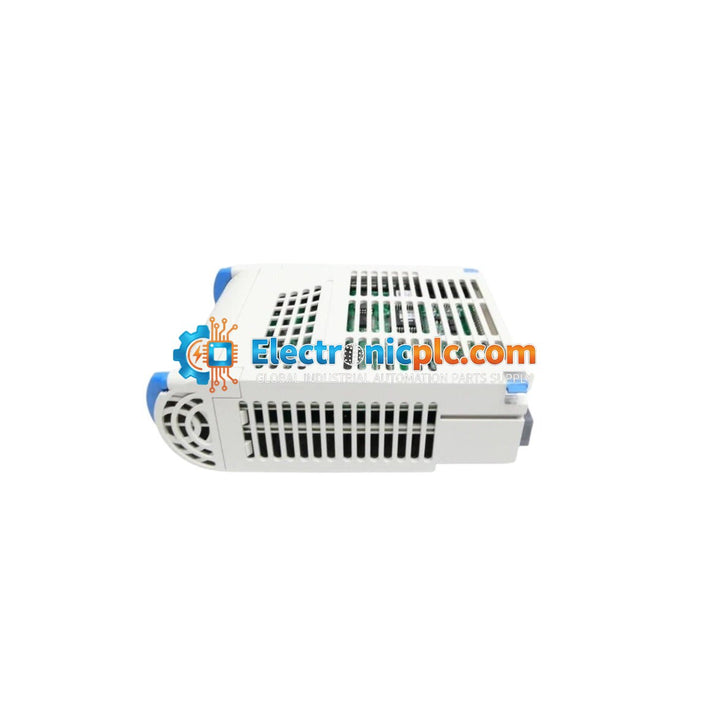

The Emerson 1C31166G02 is an electronic module (EMOD) base unit designed for the Ovation Distributed Control System (DCS). It functions as a Serial Link Controller, providing the necessary infrastructure for serial communication interfaces. The module is designed to accept a pluggable personality module (PMOD), which defines the specific serial protocol requirements, such as RS-232, RS-485, or RS-422.

The module features two primary ports on the front panel: J1, an RS-232 programming port for interface with a personal computer, and J2, an applications port for connecting to third-party serial devices. The J2 port includes a software-controlled tri-state enable input (TX-ENA) for managing RS-485/RS-422 data transmission, controlled via the UART Modem Control Register.

Features

• Serial Link Controller base unit for Ovation DCS
• Supports pluggable personality modules (PMOD) for flexible protocol selection
• Dual-port configuration: J1 (Programming) and J2 (Applications)
• Software-controlled tri-state enable (TX-ENA) for RS-485/RS-422 transmission
• Compatible with R1120 CPU systems
• Dielectric isolation (1,000 V AC/DC) between channels and logic

Applications

• Power generation and distribution control
• Water and wastewater treatment facilities
• Steam and gas turbine governor synchronization
• Generator protection relay data integration (SEL/GE Multilin)
• Excitation system monitoring and adjustment
• Boiler management and burner sequencer interlocks
• Compressor skid data acquisition (vibration, temperature, surge)

Technical Specifications

Installation Guidelines

• Ensure power is disconnected before installing or removing the module from the rack.
• Use the appropriate personality module (PMOD) for the required serial protocol.
• For RS-485 loops, install 120-ohm end-of-line termination resistors to prevent signal reflections.
• Ground cable shields at one end only, typically at the cabinet entry point, to prevent ground loops.
• Verify pinout alignment for TX+, TX-, RX+, and RX- lines when connecting to target machinery.
• For CE-certified systems, ensure application port cables are less than 10 meters in length.

FAQ

What is the 1C31166G02 module?

It is an Emerson Ovation DCS Serial Link Controller base unit used to facilitate communication between the DCS network and external serial devices.

What is the function of this module?

It acts as a communication gateway, enabling the DCS to interface with third-party PLCs, intelligent field devices, and various subsystems in industrial environments.

What is the specific application of the 1C31166G02?

It is an EMOD assembly typically used in conjunction with R1120 CPU systems within power generation and process control applications.
