Description

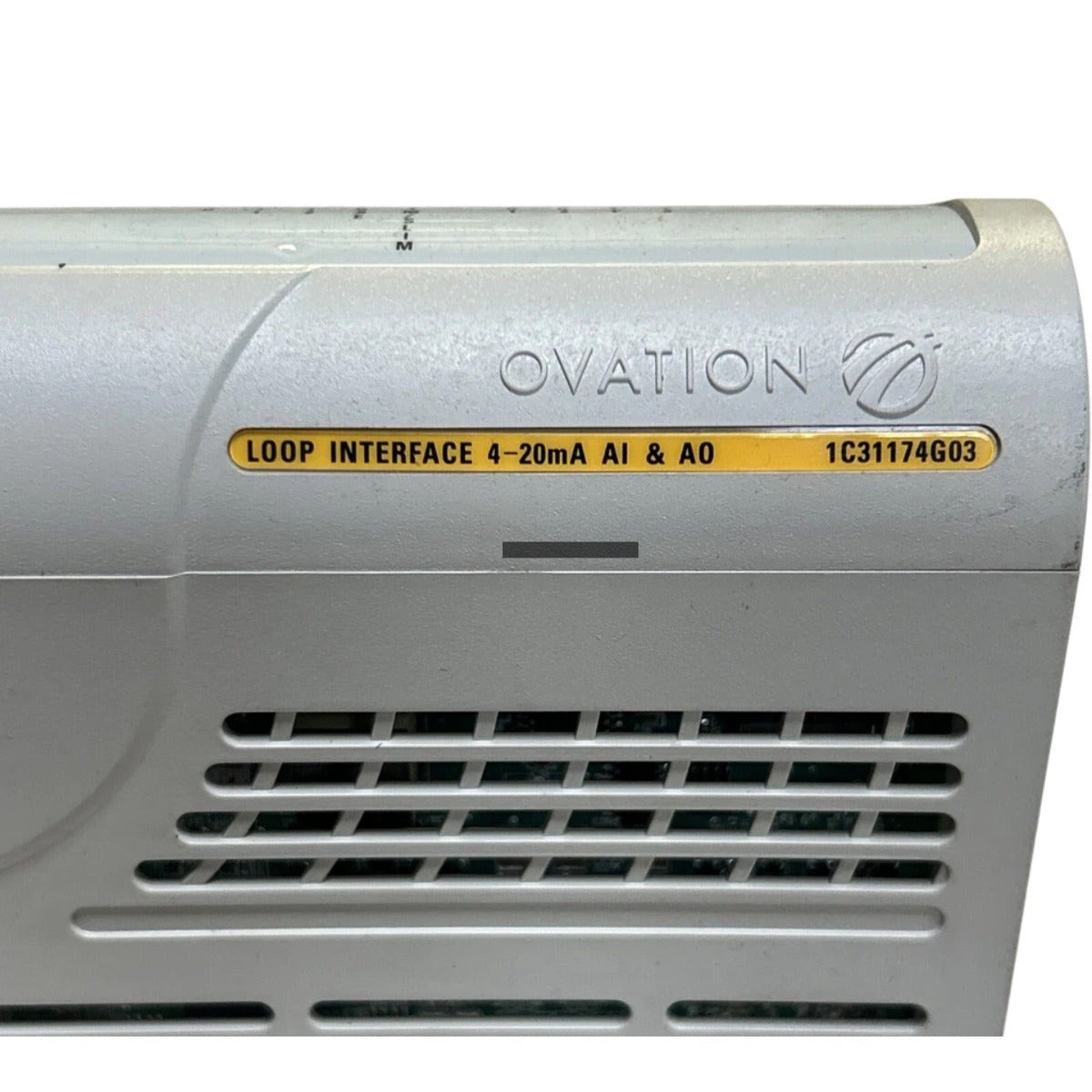

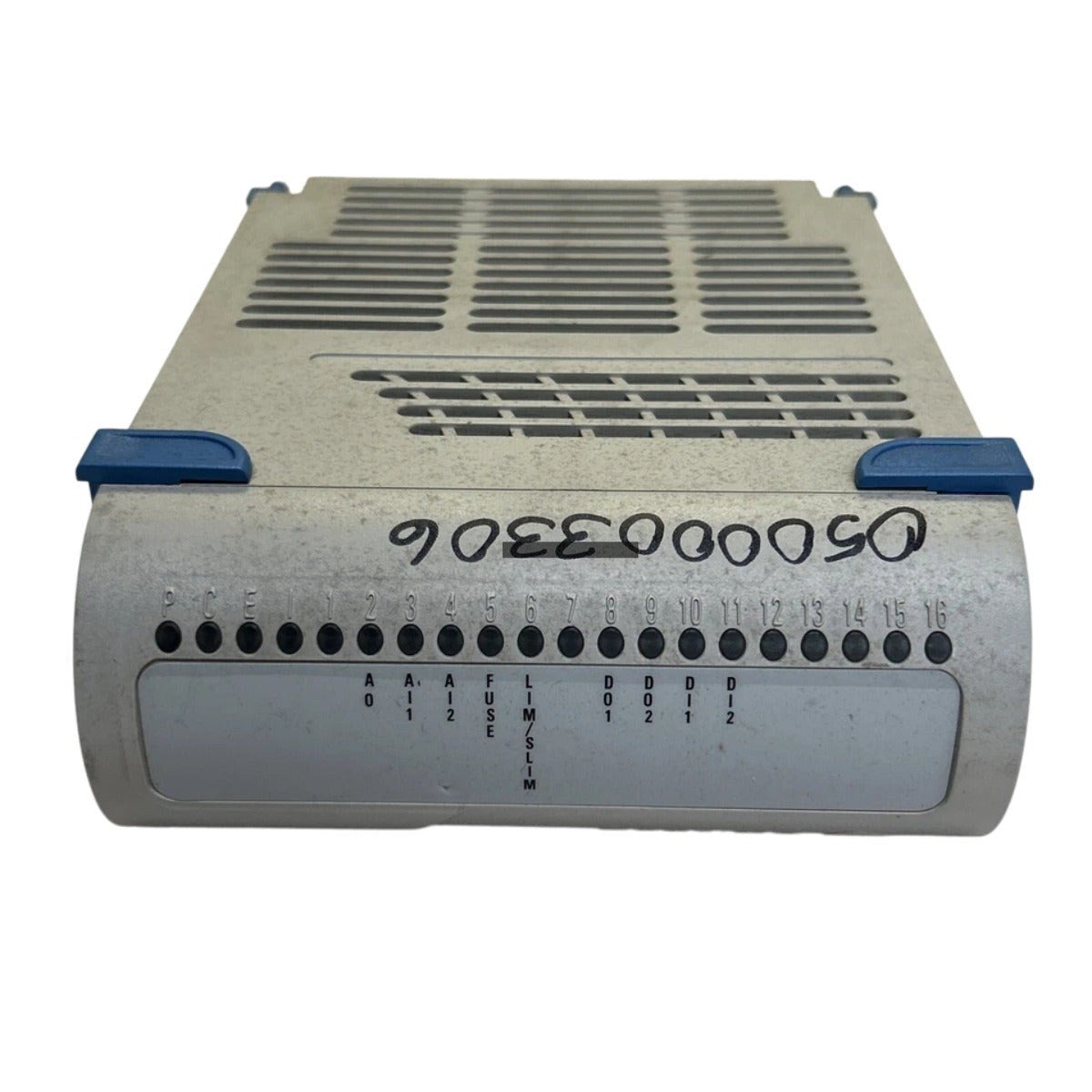

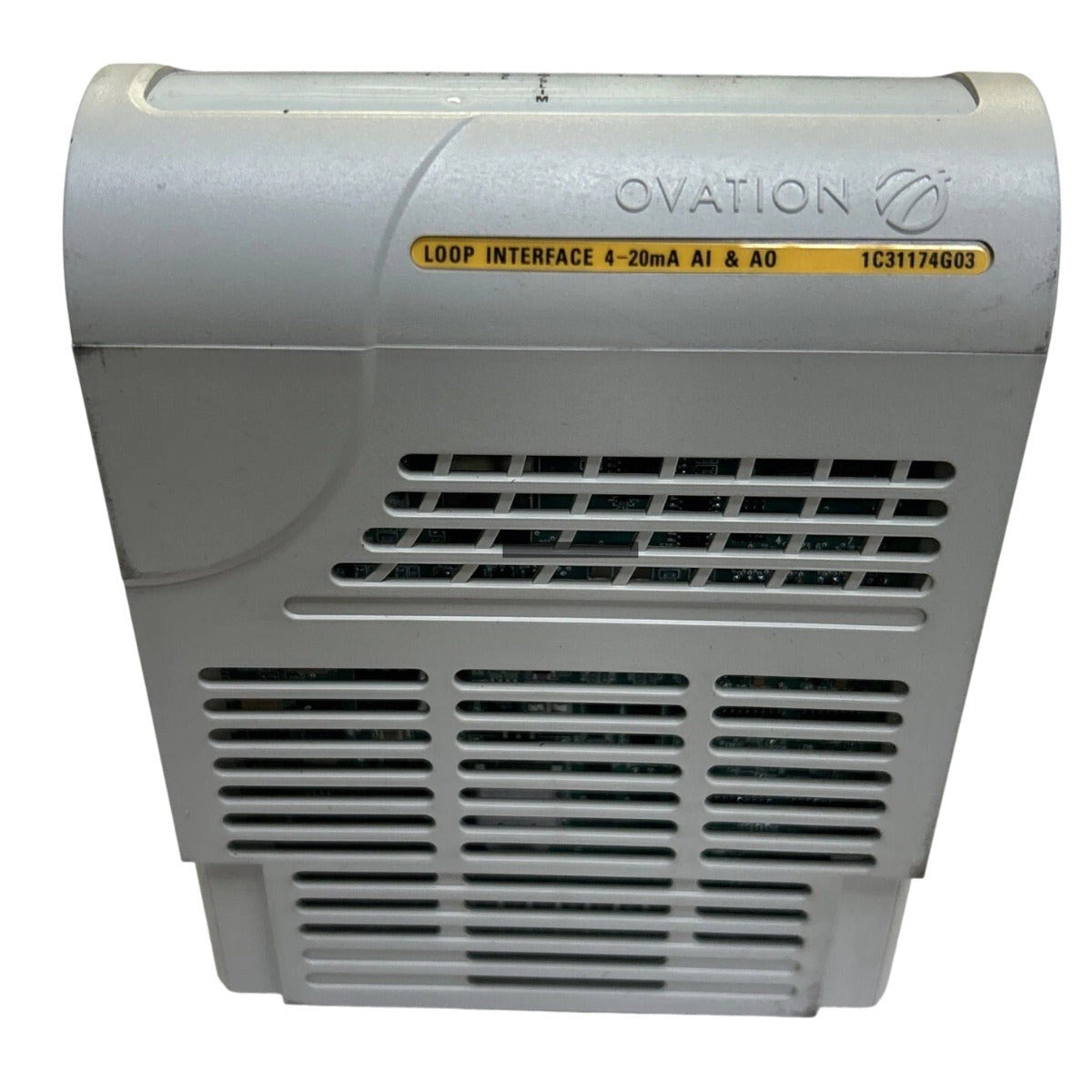

The Emerson Ovation 1C31174G03 is a specialized loop interface module designed for integration within the Ovation distributed control system (DCS). This module serves as a critical bridge between field instrumentation and the primary control network, providing high-fidelity signal conditioning and reliable data acquisition. It is engineered to maintain control loop stability in demanding industrial environments, such as power generation and large-scale manufacturing, by minimizing signal drift and protecting against common electrical disturbances.

Features

• Facilitates precise analog loop signal conditioning for field device connectivity.
• Provides galvanic isolation between field-side instrumentation and the system backplane to enhance signal integrity.
• Robust hardware design optimized for high-density I/O configurations.
• Integrated circuit protection to mitigate the effects of voltage transients and electromagnetic interference (EMI).
• Supports real-time diagnostic data transmission for improved loop regulation and supervisory control.

Applications

This module is primarily deployed in Emerson Ovation control systems to manage analog loop signals. Typical applications include process control in power plants, water treatment facilities, and heavy industrial automation where consistent signal processing and high availability are required.

Technical Specifications

Installation Guidelines

• Ensure the Ovation I/O chassis is powered down before inserting or removing the 1C31174G03 module to prevent electrical damage.
• Verify that the module is fully seated in the designated chassis slot to ensure proper backplane connection.
• Use shielded cabling for field connections to minimize the impact of EMI in high-noise industrial environments.
• Maintain proper grounding practices for the I/O chassis to ensure the effectiveness of the module's galvanic isolation.
• Ensure the installation environment remains within the specified temperature range of 0 deg C to 60 deg C to prevent thermal degradation.

FAQ

What is the primary function of the 1C31174G03?
The 1C31174G03 acts as a loop interface module that conditions analog signals from field devices for use within the Emerson Ovation DCS.

Does this module provide isolation?
Yes, it features galvanic isolation between the field-side hardware and the system backplane to protect sensitive control logic.

Is this module compatible with all Ovation systems?
This module is designed for use in standard Ovation I/O chassis. Please verify your specific system revision and hardware compatibility before installation.
