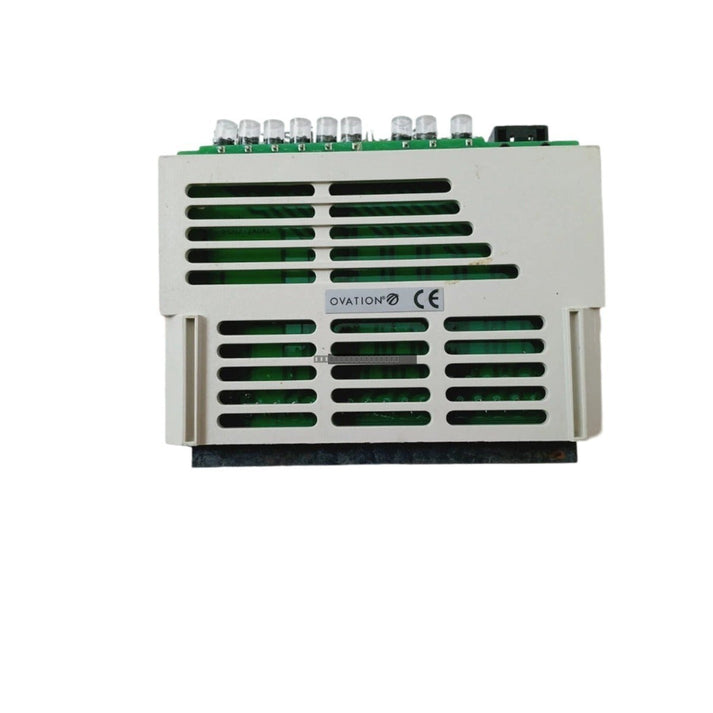

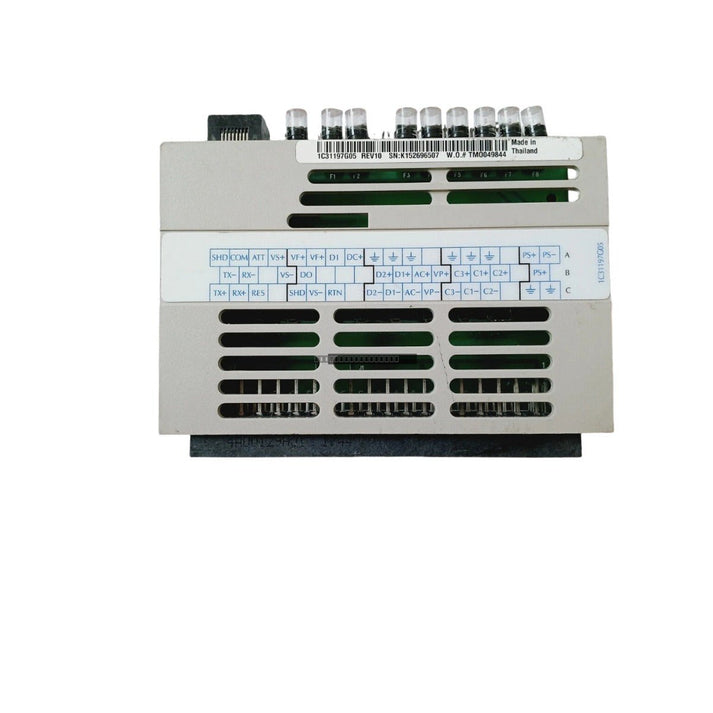

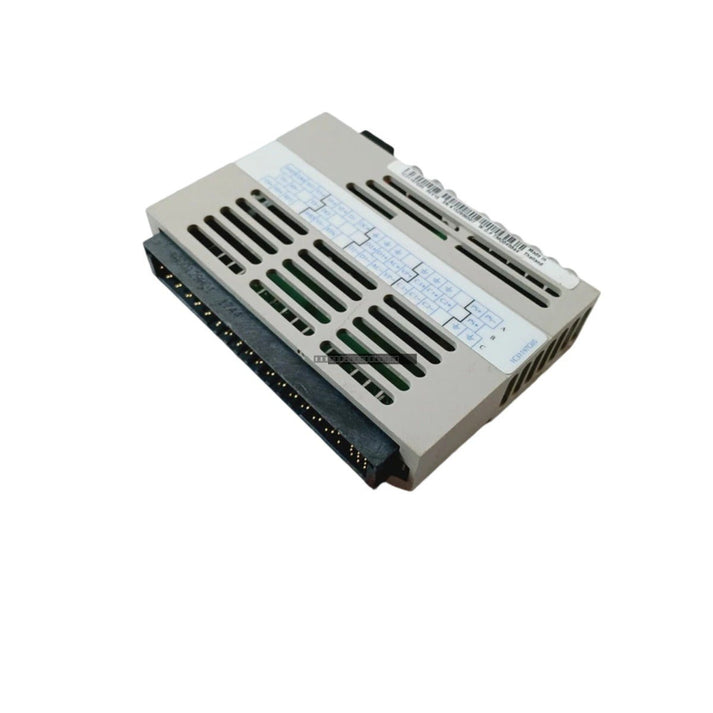

Emerson 1C31197G05 Ovation Valve Positioner PMOD Assembly

Emerson 1C31197G05 Ovation Valve Positioner PMOD Assembly

The Emerson 1C31197G05 is a specialized PMOD (Process Module) assembly designed for valve positioning applications within the Ovation distributed control system. This module provides precise control and feedback for industrial...

18 people are viewing this right now

Availability: Low stock: 6 left

SKU: 1C31197G05
Vendor: Emerson
Category: Valve Positioner Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The Emerson 1C31197G05 is a specialized PMOD (Process Module) assembly designed for valve positioning applications within the Ovation distributed control system. This module provides precise control and feedback for industrial valve actuators, ensuring reliable operation in demanding process environments.

Features

  • Engineered for integration with Emerson Ovation control systems.
  • High-precision 16-bit resolution for accurate valve positioning.
  • Designed for standard 24 VDC industrial control power.
  • Robust construction suitable for typical control room or cabinet-mounted environments.

Technical Specifications

Product Model 1C31197G05
Function Valve Positioner PMOD Assembly
Resolution 16-bit
Operating Voltage 24 VDC
Operating Temperature 0 degC to 60 degC
Storage Temperature -40 degC to 85 degC
Relative Humidity 5% to 95% non-condensing

Installation Guidelines

  • Ensure the Ovation system is powered down before installing or removing the module from the backplane.
  • Handle the module using proper ESD (electrostatic discharge) protection practices to prevent damage to internal circuitry.
  • Verify that the 24 VDC power supply is stable and within the specified operating range before energizing the system.
  • Ensure proper seating in the rack assembly to maintain reliable electrical connectivity with the system bus.
  • Route signal and power cabling away from high-EMI sources to maintain signal integrity for the 16-bit resolution output.

FAQ

What is the primary function of the 1C31197G05?

This module is a valve positioner assembly used within the Emerson Ovation platform to control the precise positioning of industrial valves.

What is the resolution of this module?

The 1C31197G05 features 16-bit resolution, allowing for fine-tuned control of valve actuators.

What are the power requirements for this unit?

The module operates on a standard 24 VDC power supply.
