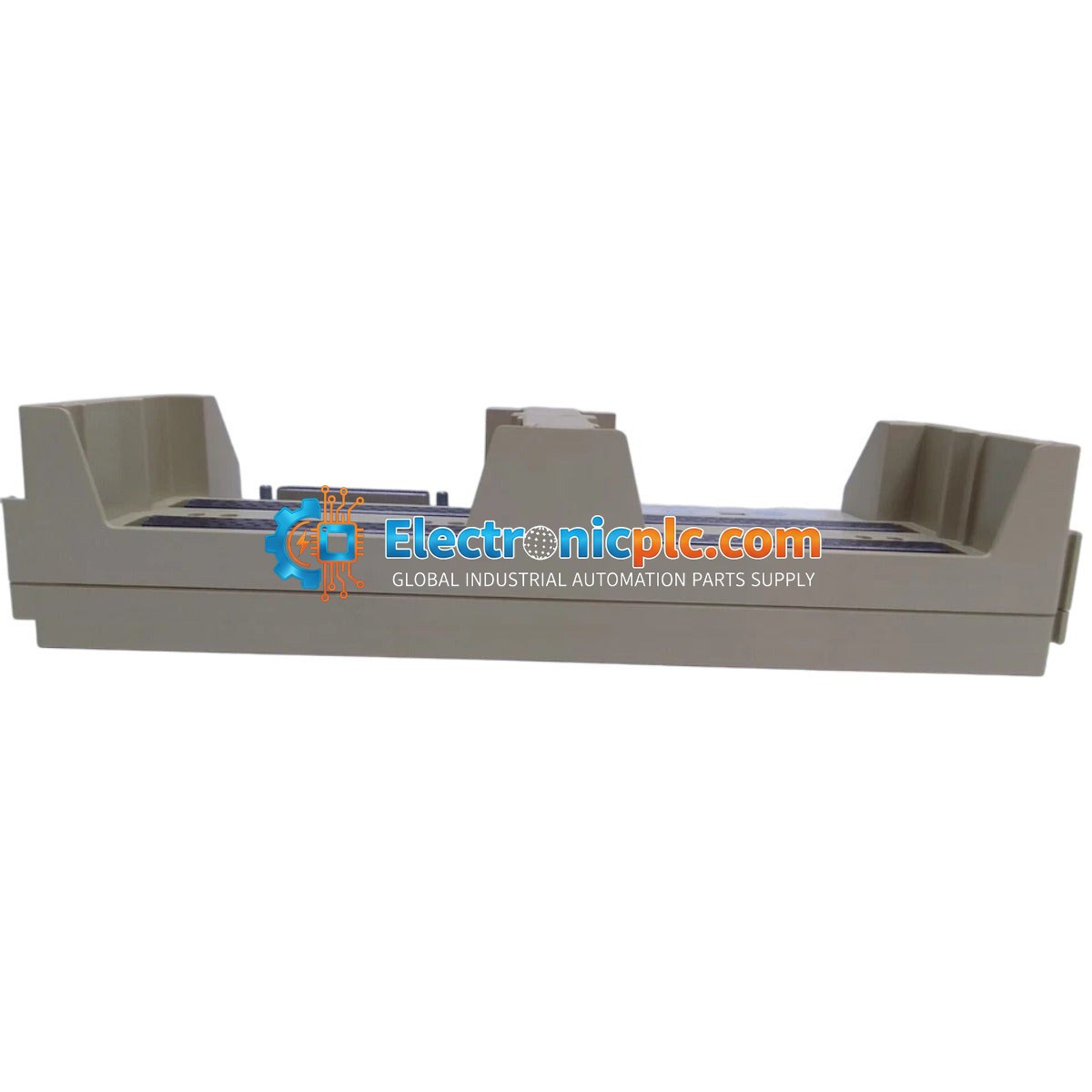

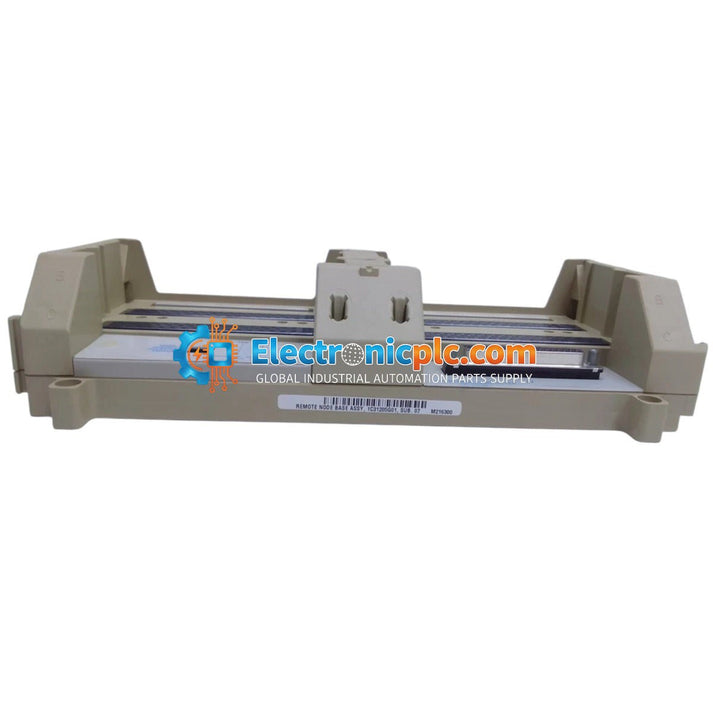

Emerson 1C31205G01 Ovation Remote Node Controller Base Assembly

Emerson 1C31205G01 Ovation Remote Node Controller Base Assembly

Description

The Emerson 1C31205G01 is a base assembly designed for use within the Ovation control system architecture, specifically serving as a mounting and interface platform for Remote Node Controllers. This assembly...

27 people are viewing this right now

Availability: Low stock: 4 left

SKU: 1C31205G01
Vendor: Emerson
Category: Base Assembly
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Emerson 1C31205G01 is a base assembly designed for use within the Ovation control system architecture, specifically serving as a mounting and interface platform for Remote Node Controllers. This assembly provides the necessary physical support and electrical connectivity to integrate node controllers into the broader distributed control network.

Features

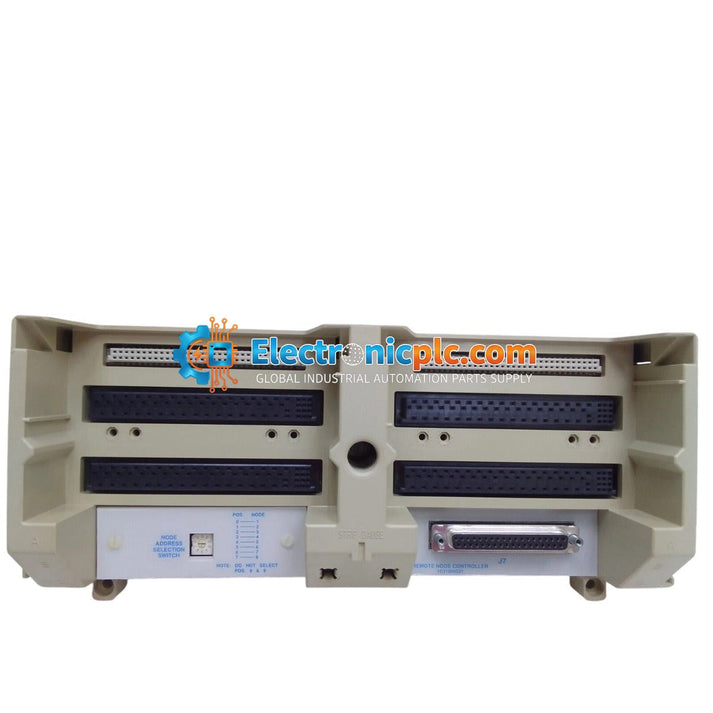

  • Integrated address selection switch for node identification (addresses 0–63).
  • Designed for high-reliability industrial control environments.
  • Supports 75 Ohm RG-6 coaxial trunk interface for robust communication.
  • Provides secure mounting and power distribution for the controller module.

Technical Specifications

Model 1C31205G01
Manufacturer Emerson
Function Base Assembly for Remote Node Controller
Trunk Interface 75 Ohm RG-6 Coaxial
Node Address Range 0 to 63
Power Input +5 VDC
Max Current Capacity 3 A at 5 VDC
Isolation 500 VDC
Tariff Code 8537101190

Installation Guidelines

  • Ensure the system power is disconnected before installing or removing the base assembly or any attached controller modules.
  • Verify that the base assembly is securely mounted to the designated rack or panel surface to prevent vibration-induced connection issues.
  • Maintain proper clearance around the module to allow for adequate ventilation and access to the address selection switch.
  • Ensure all coaxial cable connections are properly seated and tightened to maintain the 75 Ohm impedance requirements.
  • Follow standard ESD (Electrostatic Discharge) precautions when handling the assembly to protect sensitive internal circuitry.

FAQ

What is the primary function of the 1C31205G01?

This unit acts as a base assembly for the Emerson Ovation Remote Node Controller, providing the physical mounting interface, power distribution, and signal routing for the controller.

How is the node address configured?

The base assembly includes an integrated address selection switch that allows for manual configuration of node addresses ranging from 0 to 63.

What type of communication cable is required?

The unit is designed for a 75 Ohm RG-6 coaxial cable interface, which is standard for the Ovation remote node trunk communication.
