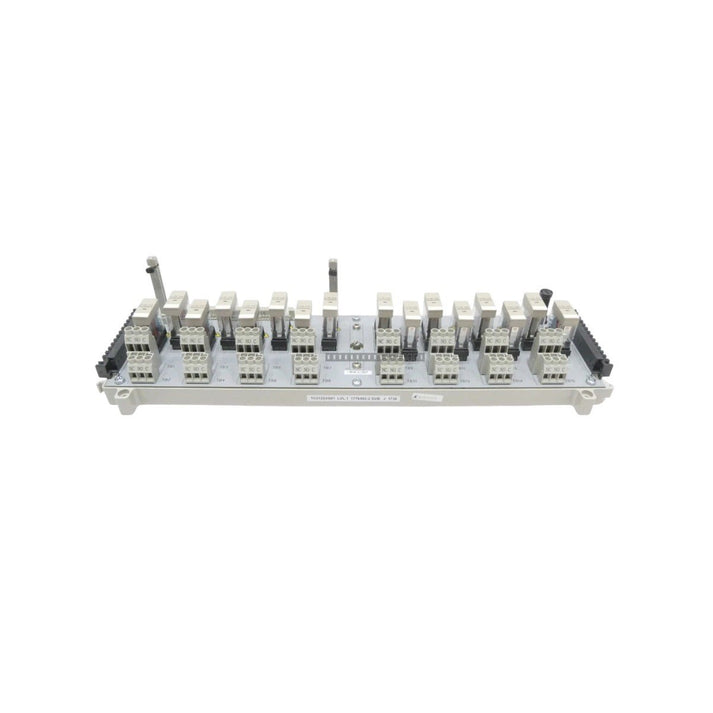

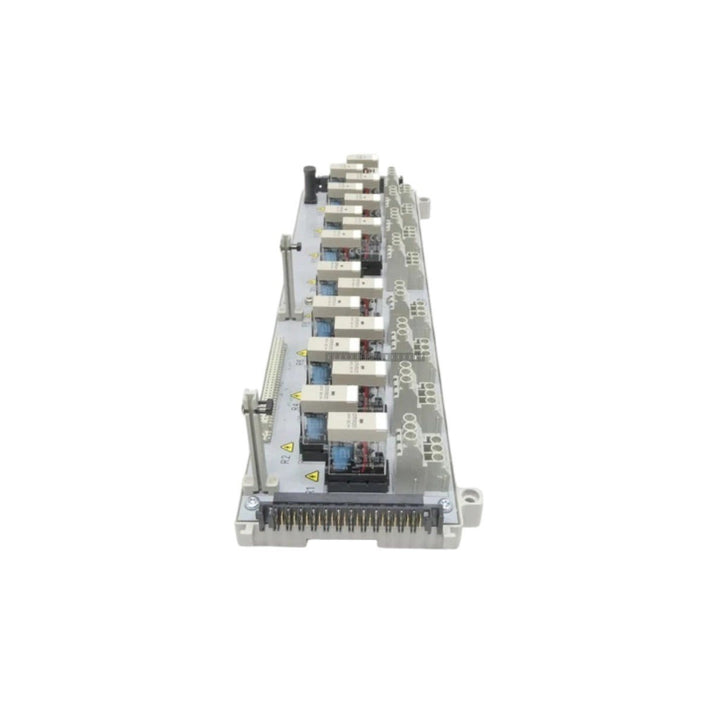

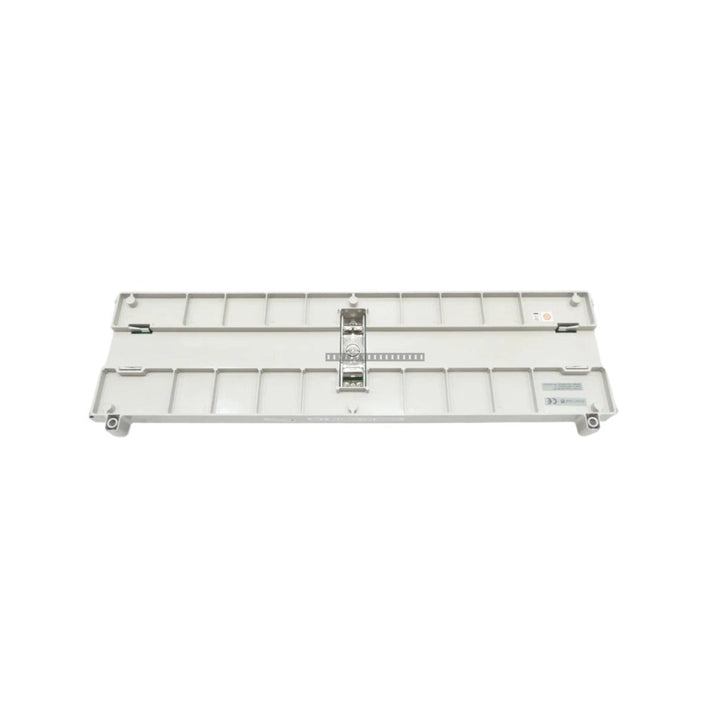

Emerson 1C31223G01 Relay Output Module

Emerson 1C31223G01 Relay Output Module

The Emerson 1C31223G01 is a 16-channel relay output base module designed for use with G2R relay panels. This module provides reliable switching capabilities for low-power control applications in industrial automation...

20 people are viewing this right now

Availability: Low stock: 1 left

SKU: 1C31223G01
Vendor: Emerson
Category: Relay Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The Emerson 1C31223G01 is a 16-channel relay output base module designed for use with G2R relay panels. This module provides reliable switching capabilities for low-power control applications in industrial automation systems, serving as a critical interface between the controller and field devices.

Features

  • 16-channel configuration for high-density output control.
  • Designed for integration with G2R relay panels.
  • Supports both AC and DC load switching.
  • Robust construction suitable for harsh industrial environments.

Technical Specifications

Product Model 1C31223G01
Manufacturer Emerson
Channel Count 16
Resistive Load 5A (AC) / 5A (DC)
Inductive Load 2A (AC) / 2A (DC)
Contact Resistance ≤100mΩ (initial)
Insulation Resistance ≥100MΩ (at 500VDC)
Dielectric Strength 1,500VAC
Operating Temperature -40 degC to +70 degC
Storage Temperature -55 degC to +85 degC
Vibration Resistance 10–55Hz, 1.5mm amplitude

Installation Guidelines

  • Ensure the system power is completely disconnected before installing or removing the module to prevent electrical shock or equipment damage.
  • Mount the module in a clean, dry, and well-ventilated enclosure to maintain optimal operating temperatures.
  • Verify that all wiring connections are secure and follow the appropriate torque specifications for the terminal blocks.
  • Maintain proper grounding practices to minimize electromagnetic interference (EMI) and ensure signal integrity.
  • Handle the module using ESD-safe procedures to prevent damage to sensitive internal components.

FAQ

Q: Is this module compatible with all G2R relays?
A: The 1C31223G01 is specifically designed as a base module for G2R relay panels. Please verify your specific panel revision and relay type to ensure full compatibility.

Q: What is the primary function of this module?
A: This is a relay output base module that facilitates the interface between a control system and field-level devices, allowing for the switching of 16 independent channels.
