Description

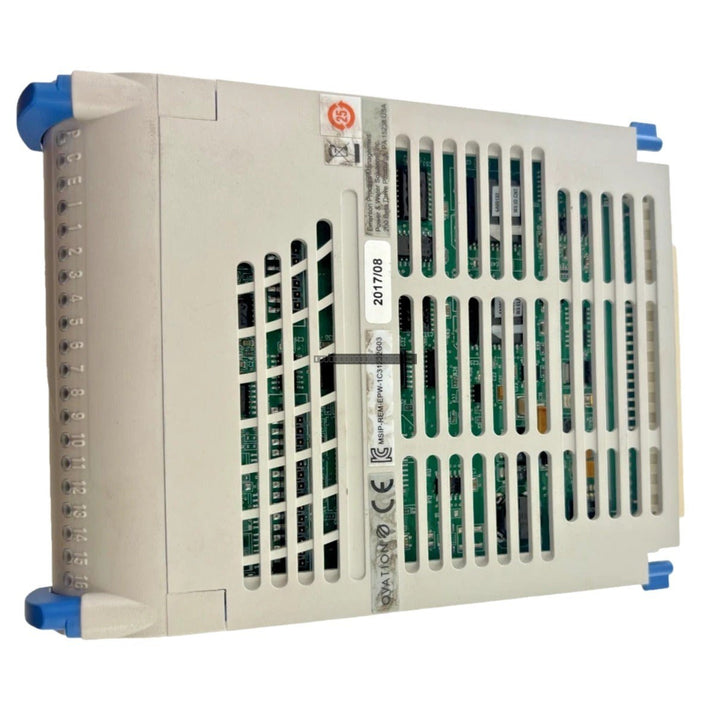

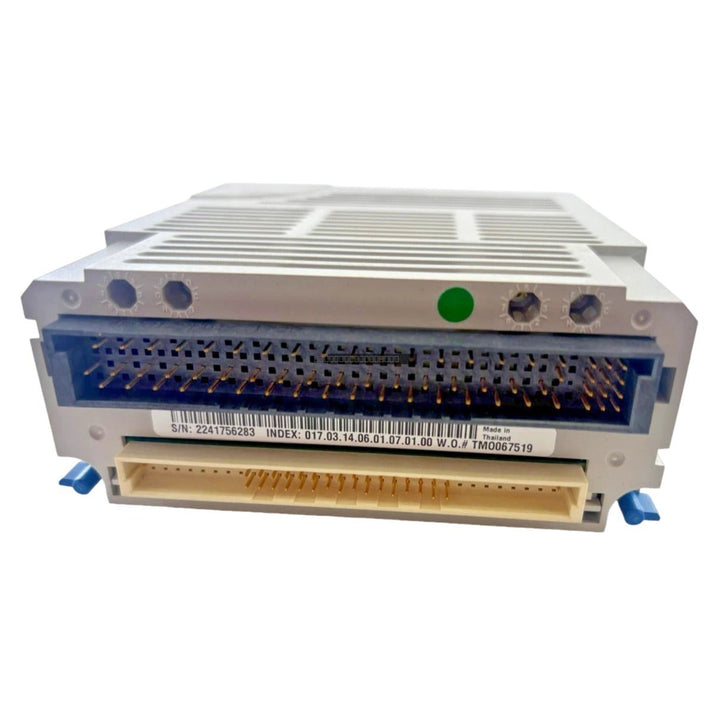

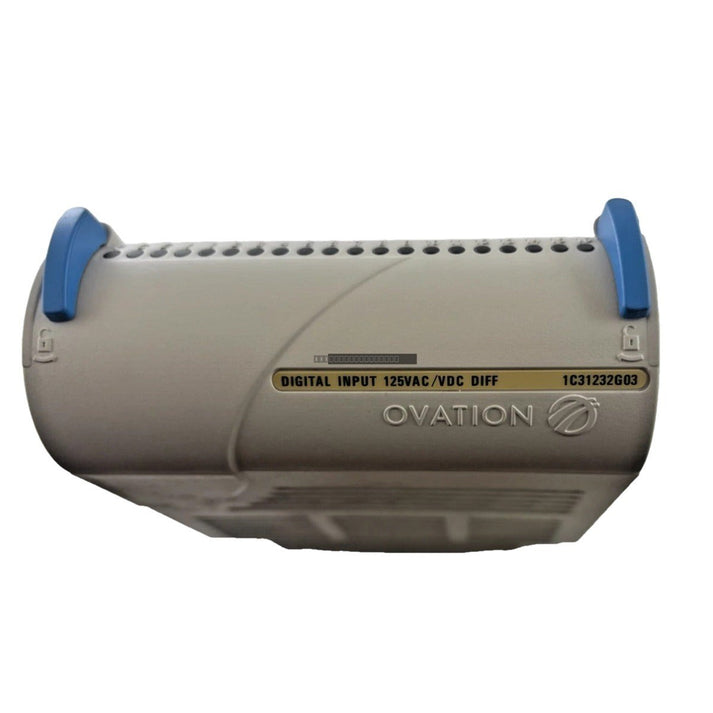

The Emerson Ovation 1C31232G03 is a specialized differential digital input module designed for integration into Ovation distributed control systems. This component is engineered to provide reliable signal acquisition for critical industrial processes, including power generation and large-scale manufacturing operations. By utilizing a differential input architecture, the module effectively mitigates signal interference and common-mode noise, ensuring high data accuracy in environments where electromagnetic interference is present.

Features

• Differential input architecture for improved noise rejection and signal integrity.
• Integrated channel status monitoring with front-panel LED indicators for rapid diagnostic assessment.
• Supports 125 VAC/VDC input voltage levels for versatile field device compatibility.
• Robust modular construction designed for standard Ovation rack mounting and high-density I/O system layouts.
• Secure terminal block connectivity to maintain signal reliability in high-vibration industrial settings.

Applications

This module is typically utilized in distributed control environments requiring high-reliability digital input processing, such as:

• Power plant control systems and turbine monitoring.
• Petrochemical refinery process automation.
• Large-scale industrial manufacturing and assembly lines.
• Critical infrastructure monitoring requiring isolated signal acquisition.

Technical Specifications

Installation Guidelines

• Ensure all power is disconnected from the I/O rack before inserting or removing the module to prevent electrical damage.
• Verify that the terminal block connections are securely fastened to prevent signal loss due to vibration.
• Route signal cabling away from high-voltage power lines to minimize induced noise, even with differential signaling.
• Maintain proper ventilation within the control cabinet to ensure ambient temperatures remain within the specified -20 deg C to 70 deg C range.
• Follow standard ESD (electrostatic discharge) prevention protocols when handling the module to protect internal circuitry.

FAQ

What is the primary function of the 1C31232G03 module?

The 1C31232G03 is a digital input module that processes differential signals, providing isolated and noise-resistant data acquisition for Emerson Ovation control systems.

How can I verify the status of the input channels?

The module features front-panel LED indicators that provide real-time status monitoring for each channel, allowing for immediate visual diagnostics.

Is this module suitable for high-EMI environments?

Yes, the differential signaling architecture is specifically designed to reject common-mode noise, making it highly effective for maintaining signal fidelity in environments with significant electromagnetic interference.
