Description

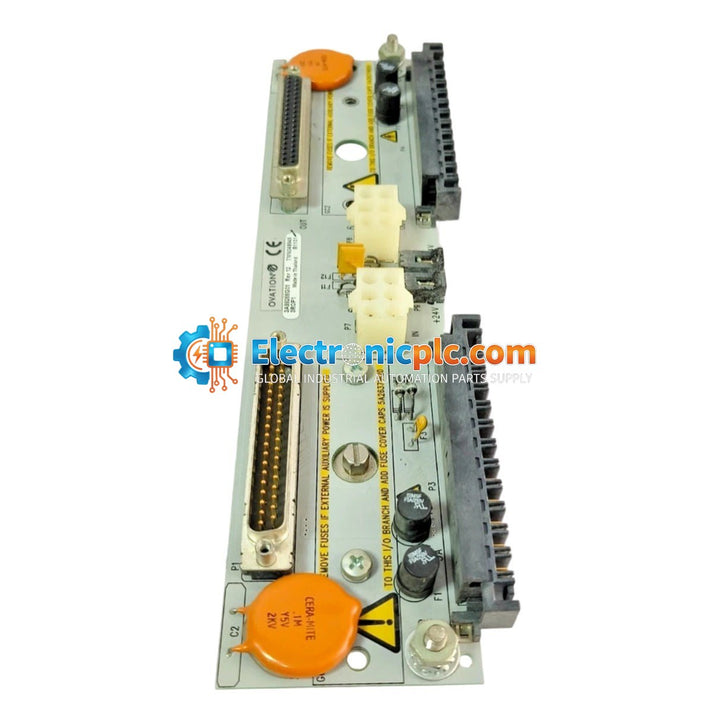

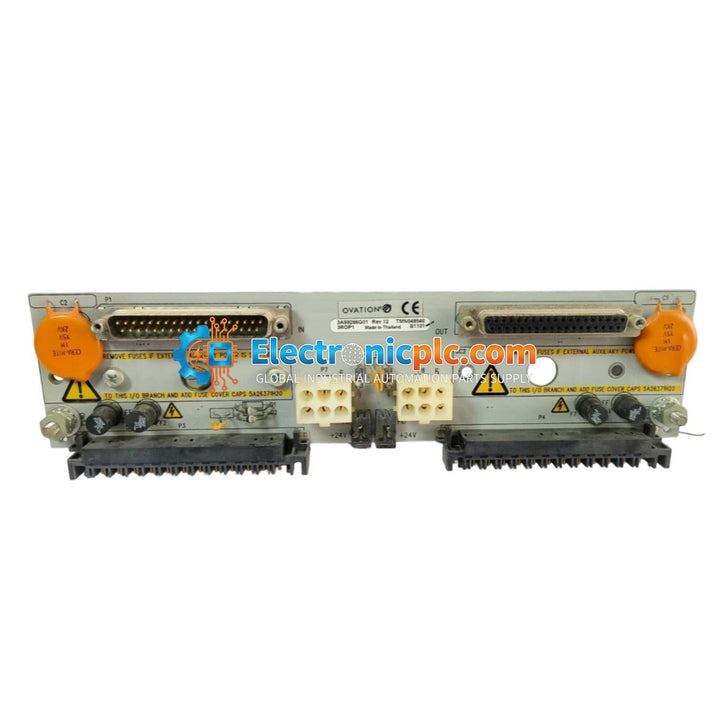

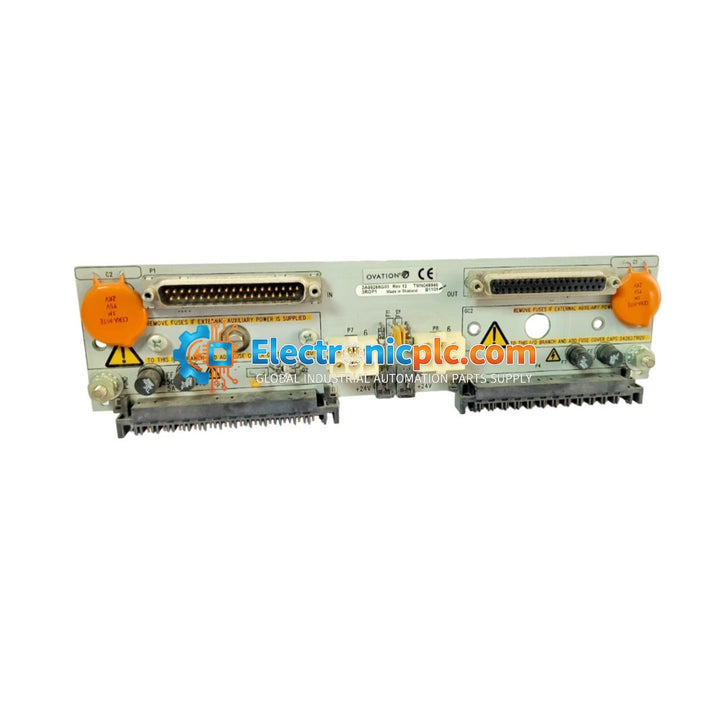

The Ovation 3A99266G01 is a Local I/O Transition Panel designed to serve as a critical interface between field instrumentation wiring and the Ovation distributed control system (DCS) architecture. This component acts as a structured terminal point for high-density input and output signals, facilitating reliable connectivity to the primary controller bus. By providing a centralized termination point, the 3A99266G01 ensures signal integrity and simplifies maintenance, troubleshooting, and field instrument upgrades within power generation and industrial processing environments.

Features

• Optimized for high-density I/O signal routing and termination.
• Provides electrical isolation between field-side wiring and the main system bus to minimize signal degradation.
• Supports modular connectivity, allowing for the isolation of individual process loops for testing without interrupting the entire control system.
• Engineered for rapid integration into standard Ovation I/O rack configurations.
• Robust construction designed for long-term stability in demanding industrial control applications.

Applications

The 3A99266G01 transition panel is primarily utilized in Ovation DCS environments, including:

• Power generation plant control systems.
• Large-scale industrial process automation.
• High-density signal termination for distributed control racks.
• Field instrument signal management and diagnostic access points.

Technical Specifications

Installation Guidelines

• Ensure the Ovation I/O rack is powered down before installing or removing the transition panel to prevent electrical damage.
• Handle the PCB-based component using proper ESD (Electrostatic Discharge) protection practices.
• Verify that all field wiring is correctly labeled and secured to the terminal points to ensure reliable signal propagation.
• Maintain proper cable routing practices to separate signal wiring from high-voltage power lines to reduce EMI interference.
• Ensure the module is firmly seated within the designated rack slot to maintain proper backplane communication.

FAQ

What is the primary function of the 3A99266G01?

The 3A99266G01 acts as a transition panel that connects field-side instrumentation wiring to the Ovation DCS backplane, providing a reliable and organized termination point for I/O signals.

Can I replace this module while the system is running?

It is generally recommended to power down the specific I/O rack segment before performing maintenance or replacement of hardware modules to prevent potential short circuits or data corruption on the system bus.
