Description

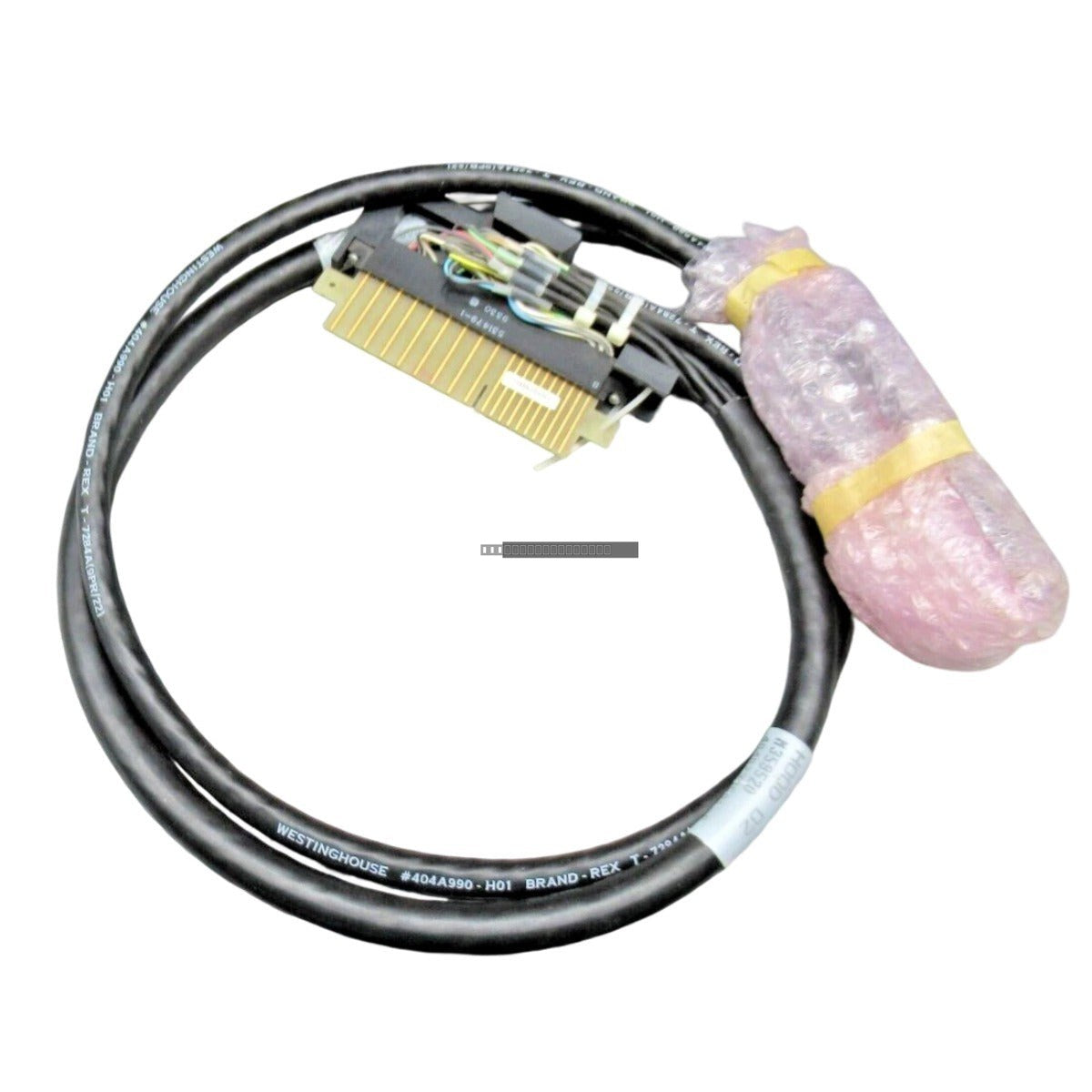

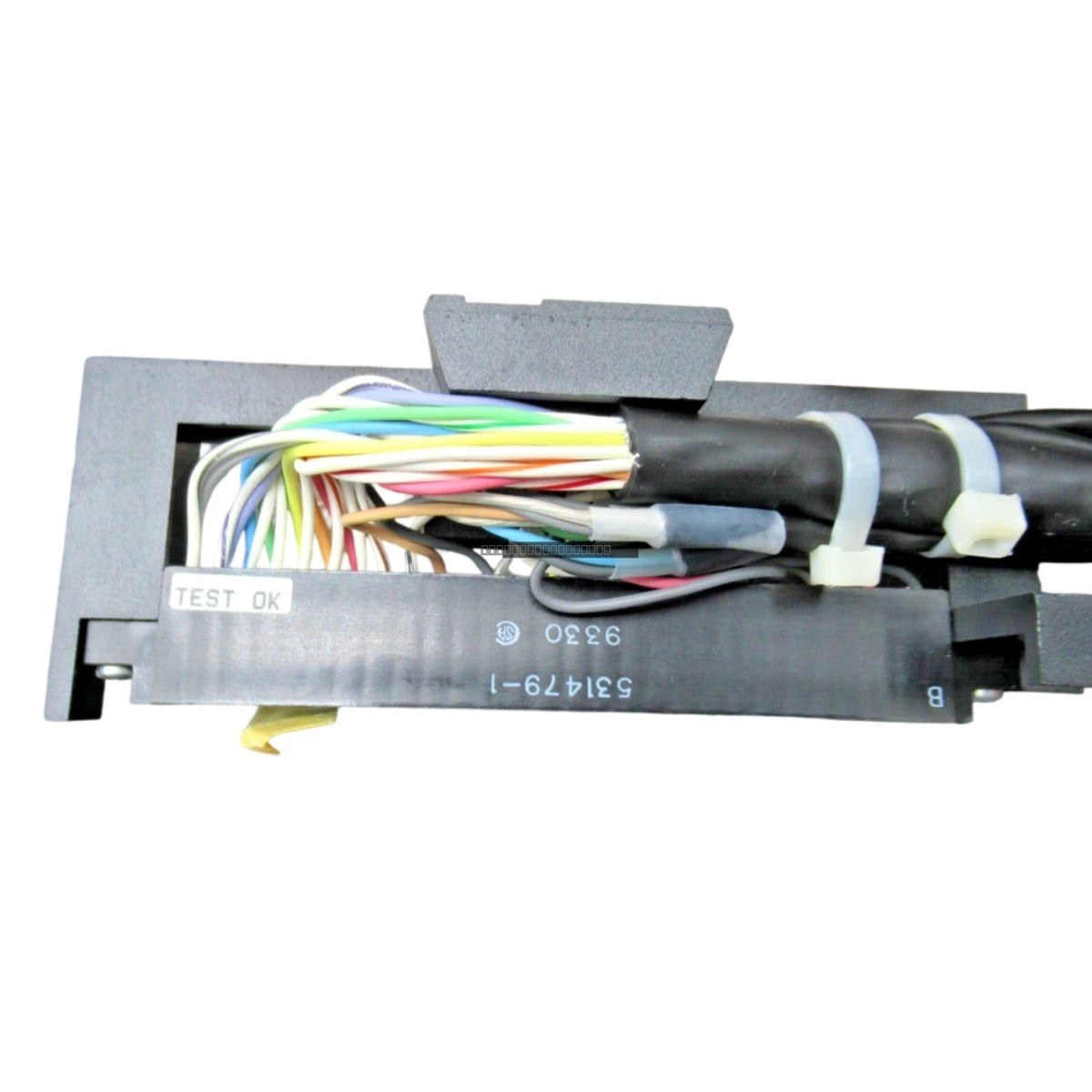

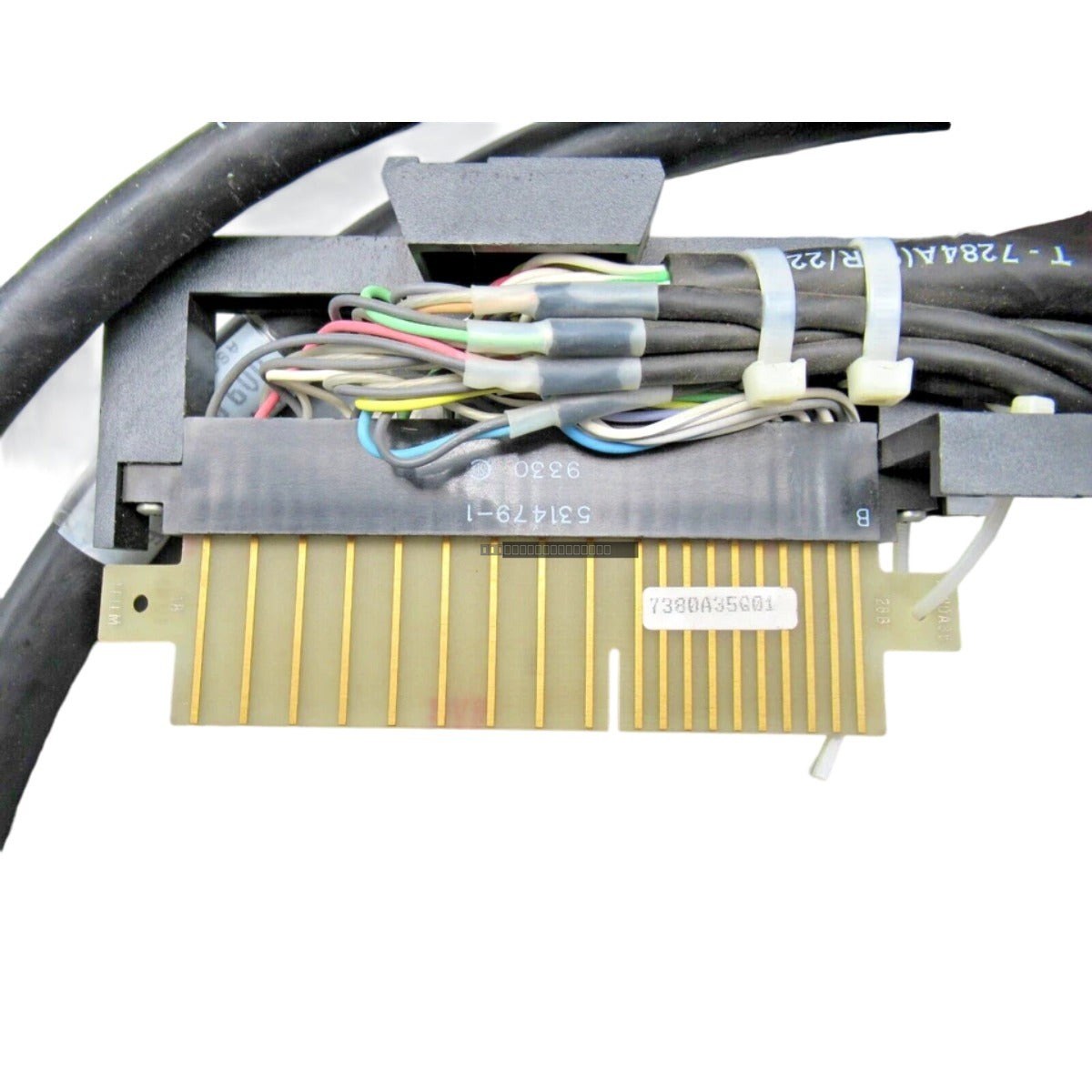

The Ovation 404A723G01 Extender Assembly Cable is a specialized interconnect component engineered for the Ovation distributed control system. This assembly facilitates reliable communication between remote I/O racks and the central controller, ensuring signal integrity across critical industrial control networks. It is designed to maintain deterministic timing and prevent data packet loss in demanding environments such as power generation, petrochemical processing, and large-scale manufacturing facilities.

Features

• Shielded multi-conductor architecture for superior resistance to electromagnetic (EMI) and radio frequency (RFI) interference.
• Precision-engineered locking connectors to ensure secure physical links under conditions of vibration and thermal cycling.
• Low signal attenuation design optimized for extended cable runs between control cabinets.
• Industrial-grade, abrasion-resistant jacketing for long-term durability in harsh environments.
• Maintains high-speed data accuracy and physical layer consistency for critical control loops.

Applications

This cable assembly is intended for use in Ovation DCS architectures requiring robust remote I/O connectivity. It is suitable for deployment in high-EMI industrial zones where signal stability and deterministic communication are required to prevent system faults and unplanned downtime.

Technical Specifications

Installation Guidelines

• Ensure the system is powered down before connecting or disconnecting the cable assembly to prevent electrical arcing or potential damage to I/O ports.
• Route cables away from high-voltage power lines and heavy motor starters to minimize potential EMI exposure.
• Verify that locking mechanisms are fully engaged to maintain contact integrity against mechanical vibration.
• Avoid sharp bends or tight radii during installation to prevent damage to the internal conductors and shielding.
• Ensure proper grounding of the cable shield at designated termination points to maintain effective RFI/EMI protection.

FAQ

Is this cable assembly compatible with all Ovation I/O racks?

The 404A723G01 is designed for specific Ovation system configurations. Please verify your system's hardware manual or the specific I/O rack part number to ensure compatibility with this extender assembly.

Does this cable require external power?

No, this is a passive interconnect component. It does not require an external power supply, though it is subject to standard voltage drops based on the total cable run length.
