Product Description

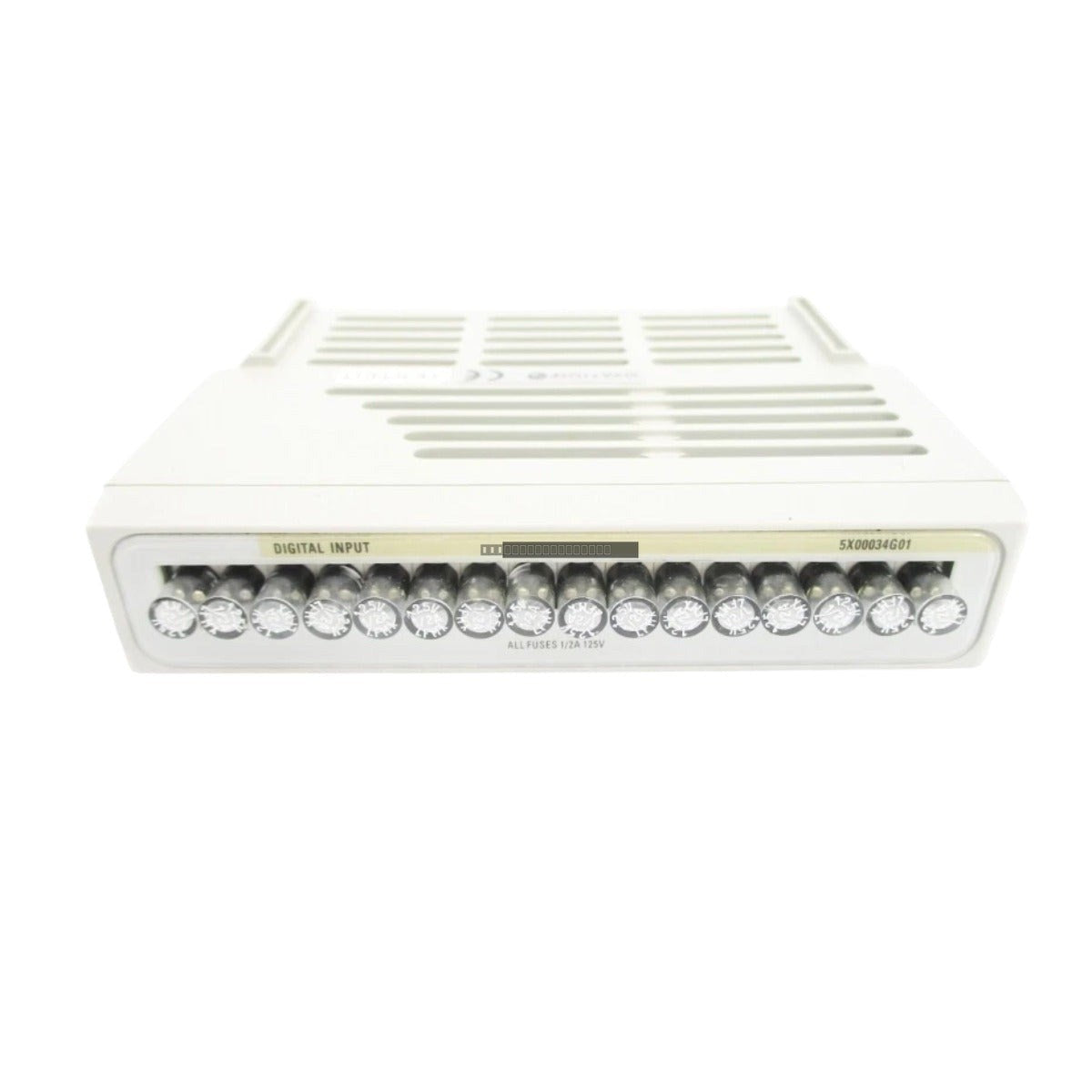

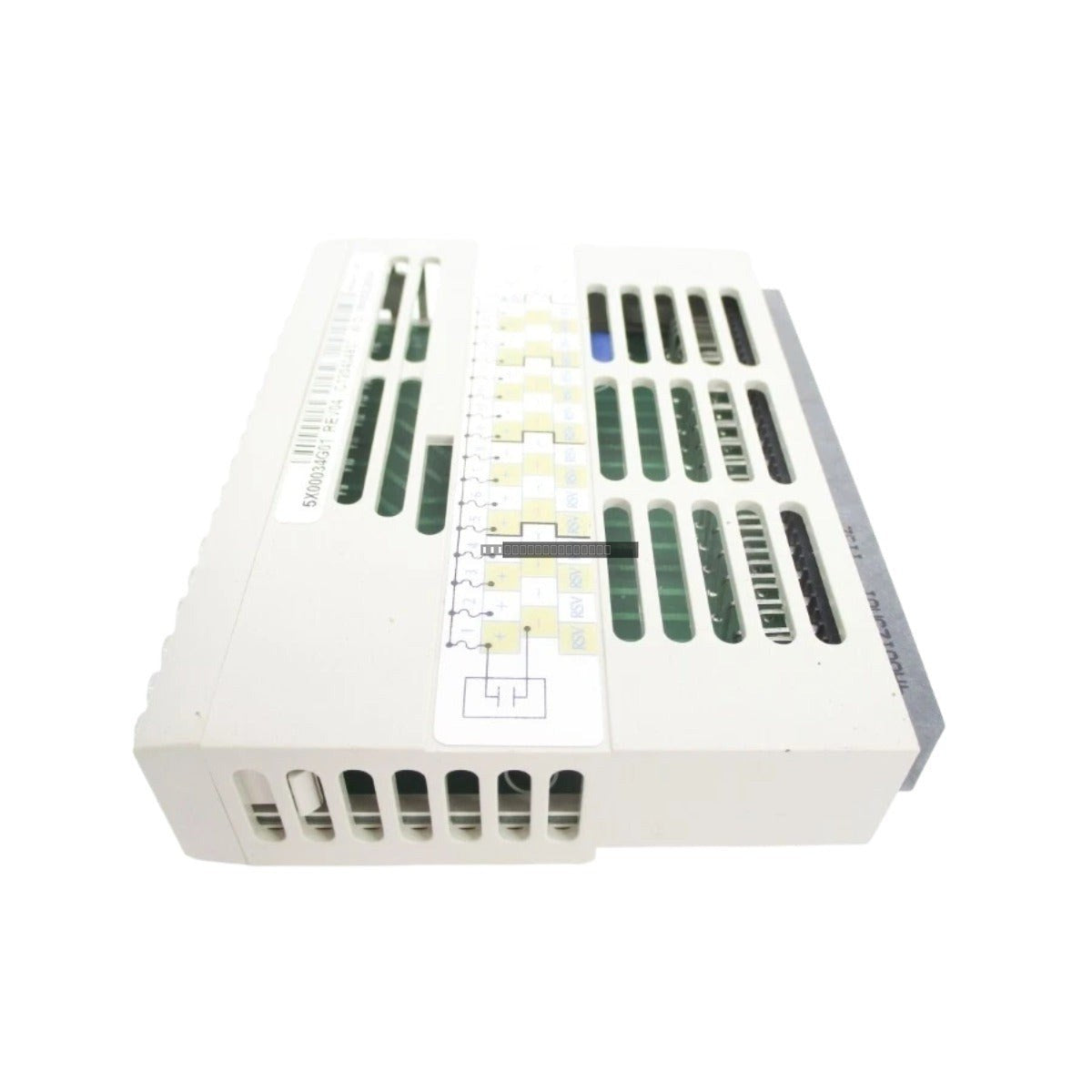

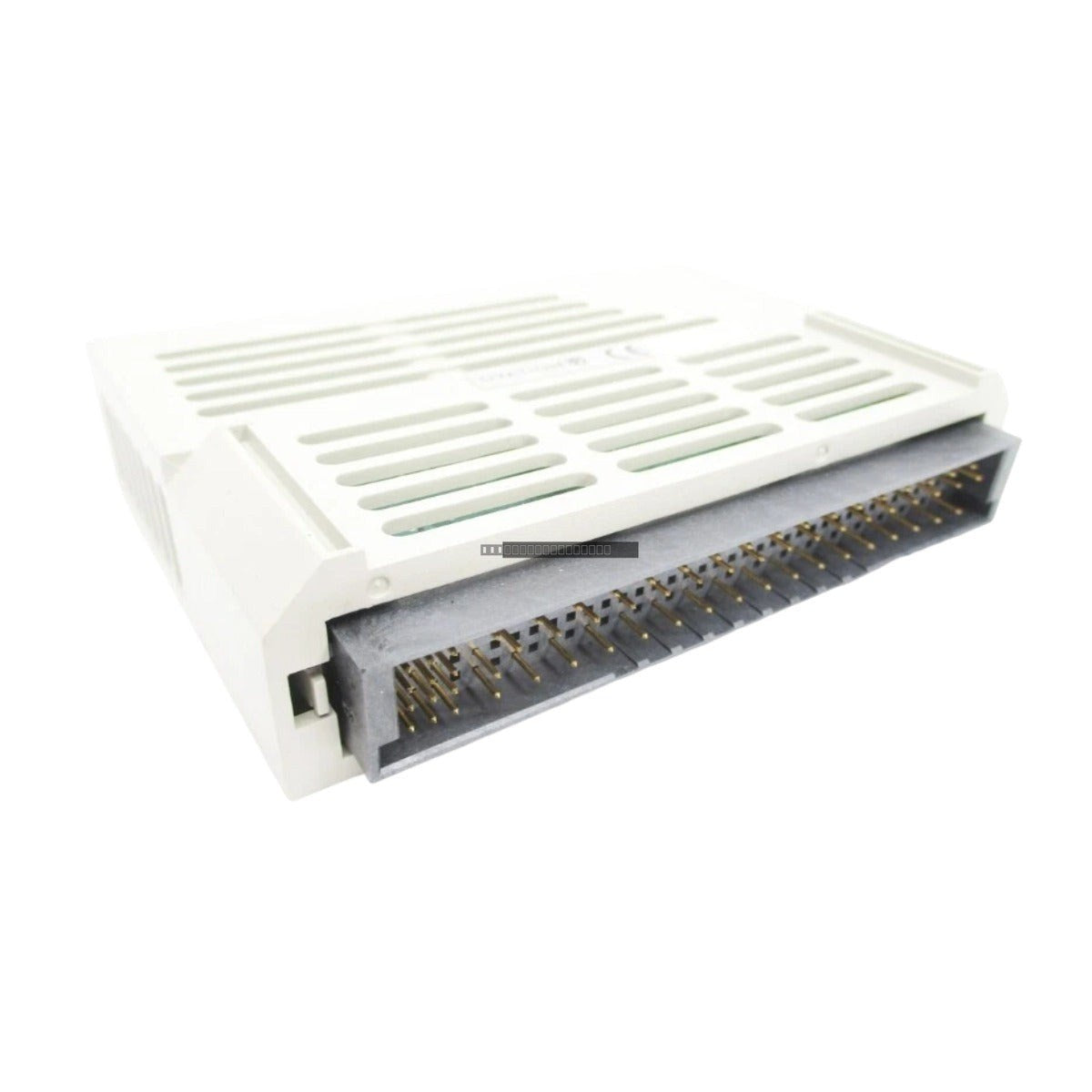

The Emerson Ovation 5X00034G01 is a high-performance 16-channel digital input module designed for seamless integration into the Ovation Distributed Control System (DCS). This module serves as a critical interface for monitoring discrete field signals, including high-voltage switches, industrial alarms, and various sensor states. Built for demanding industrial environments, such as power generation and petrochemical processing, the 5X00034G01 ensures precise signal acquisition for 125 V AC/DC inputs, contributing to the overall reliability and safety of the control network.

Features

• High Channel Density: Provides 16 isolated, differential input channels for comprehensive monitoring of process states.
• Fault Isolation: Each input channel is equipped with individual fusing, preventing localized faults from impacting the integrity of the entire module or adjacent channels.
• Advanced Debounce Logic: Incorporates hardware-based signal filtering optimized for 50 Hz and 60 Hz line frequencies, with response times of 80 ms and 83.3 ms respectively.
• Redundancy Support: Engineered for deployment in redundant I/O rack configurations to ensure high availability and automatic failover.
• Low Power Profile: Optimized for efficient operation with a power consumption rating of less than 5 W.

Applications

This module is typically deployed in large-scale industrial automation environments where reliable monitoring of discrete signals is essential. Common applications include status monitoring of circuit breakers, valve position feedback, emergency shutdown system (ESD) inputs, and general alarm monitoring in power plants and manufacturing grids.

Technical Specifications

Installation Guidelines

• Handling: Always observe standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal circuitry.
• Mounting: Ensure the module is fully seated within the designated Ovation I/O rack slot to ensure proper backplane communication.
• Power Safety: Disconnect power from the I/O rack before inserting or removing the module to prevent electrical arcing or system-wide communication errors.
• Wiring: Use appropriate shielded cabling for field inputs to minimize electromagnetic interference (EMI) in high-voltage environments. Ensure all wiring is secured to the terminal blocks according to the system wiring diagram.
• Environment: Verify that the installation location is within the specified temperature range of -20 to 60 deg C and free from excessive vibration or corrosive contaminants.

FAQ

What is the primary function of the 5X00034G01?

The 5X00034G01 acts as a digital input interface for the Emerson Ovation DCS, allowing the system to monitor 125 V AC/DC discrete signals from field devices.

Does this module support redundant configurations?

Yes, the 5X00034G01 is designed to support redundant I/O deployments, which enhances system reliability by allowing for seamless failover if a module fault is detected.

How are the channels protected?

Each of the 16 channels features individual fusing, which isolates electrical faults to the specific channel, protecting the rest of the module and the backplane.
