Product Overview

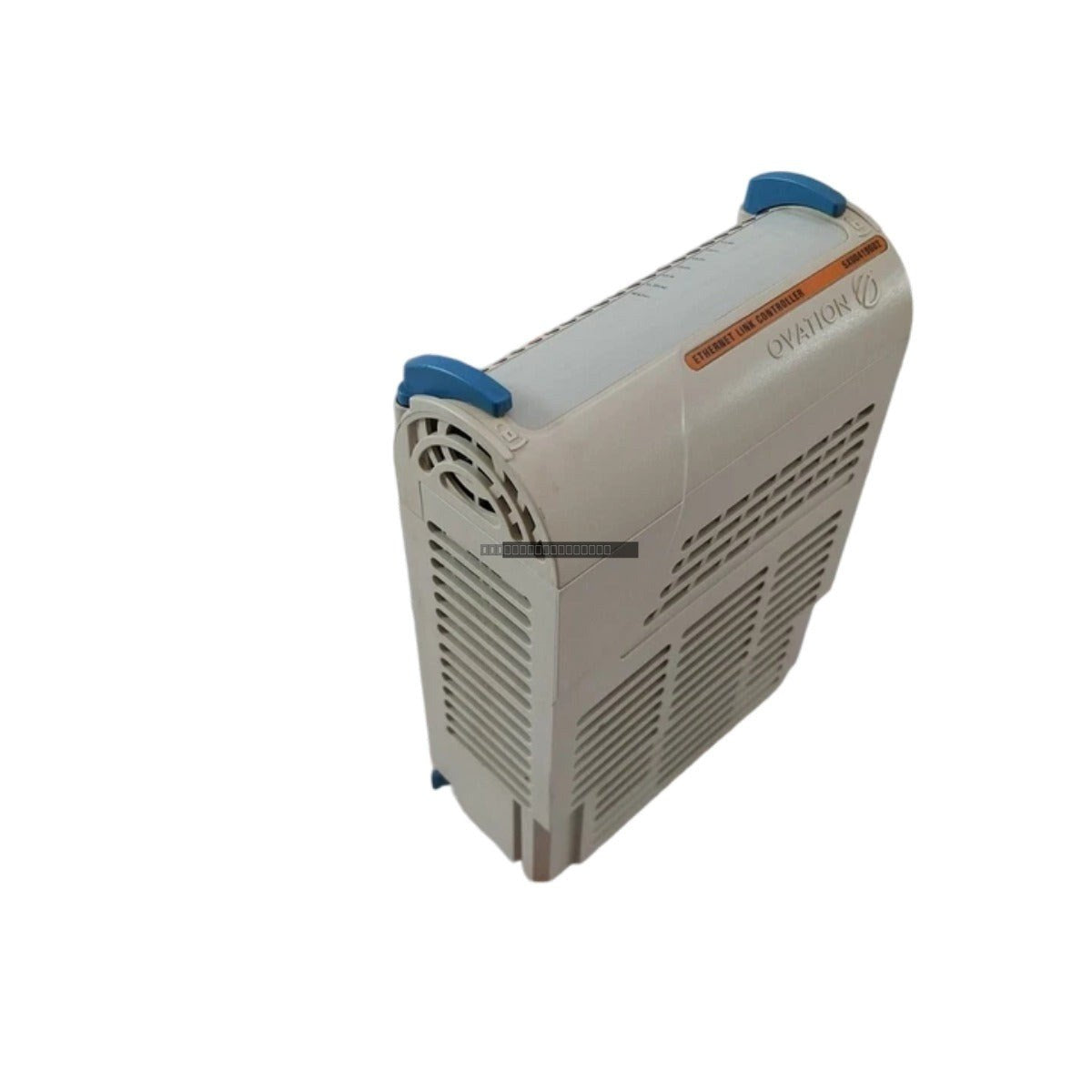

The Emerson Ovation 5X00419G02 is a high-reliability Ethernet communication module designed to function as a critical network interface within distributed control system (DCS) architectures. Built for demanding industrial environments, this unit facilitates robust data exchange between controllers and network infrastructure. It features high-precision timestamping capabilities with a 100-microsecond resolution, ensuring accurate synchronization across complex, large-scale plant control systems. This module is specifically optimized for applications in power generation and petrochemical processing where reliable, fault-tolerant communication is essential for operational continuity.

Features

• Supports 10/100 Mbps Ethernet data rates with automatic speed and duplex negotiation.
• Native support for standard industrial protocols including TCP/IP, Modbus TCP, UDP, and ICMP.
• Integrated fault protection circuitry to mitigate the impact of transient electrical surges.
• Low power consumption profile, operating under 2 Watts.
• Wide operating temperature range, suitable for deployment in high-density, non-ventilated enclosures.
• Enhanced system synchronization via high-precision 100-microsecond timestamping.

Applications

This communication module is primarily deployed in Emerson Ovation control systems to bridge controller-to-network traffic. It is widely utilized in utility-scale power plants and heavy industrial facilities for real-time monitoring, data acquisition, and inter-controller communication within TCP/IP-based network frameworks.

Technical Specifications

Installation Guidelines

• Ensure the system is powered down before inserting or removing the module from the rack or backplane.
• Verify that the 24 VDC power supply is stable and correctly polarized to prevent damage to internal circuitry.
• Use shielded Ethernet cabling for all connections to minimize potential EMI interference in high-noise industrial environments.
• Maintain proper module seating to ensure the backplane connectors are fully engaged.
• Although the module is designed for high-temperature tolerance, ensure adequate air circulation around the cabinet to maintain overall system longevity.

FAQ

Does the 5X00419G02 require external cooling?

No, the module is engineered with a low power profile and high-temperature tolerance, allowing it to operate efficiently in dense equipment enclosures without the need for active cooling.

What is the primary function of this module in an Ovation system?

This module acts as a gateway for controller-to-network communication, providing reliable data transmission and synchronization for distributed control systems using TCP/IP and Modbus TCP protocols.
