Product Description

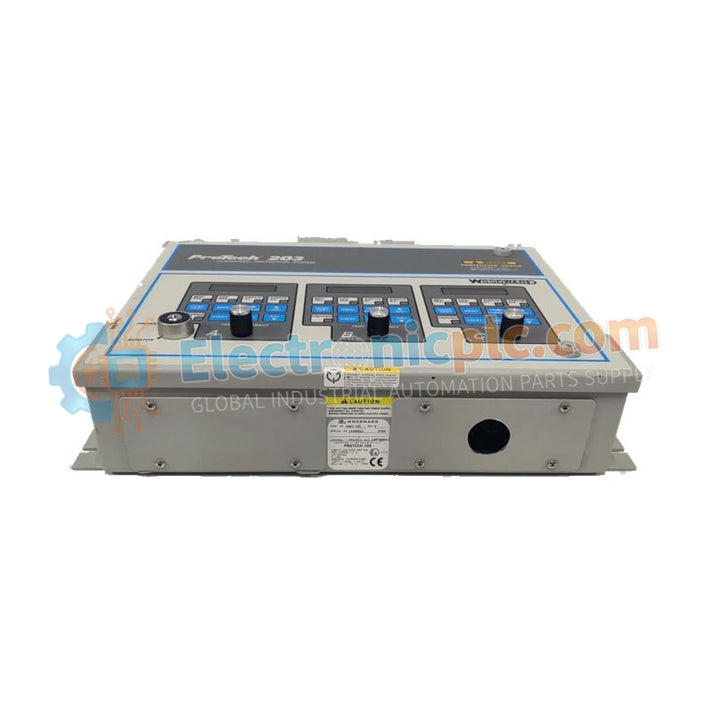

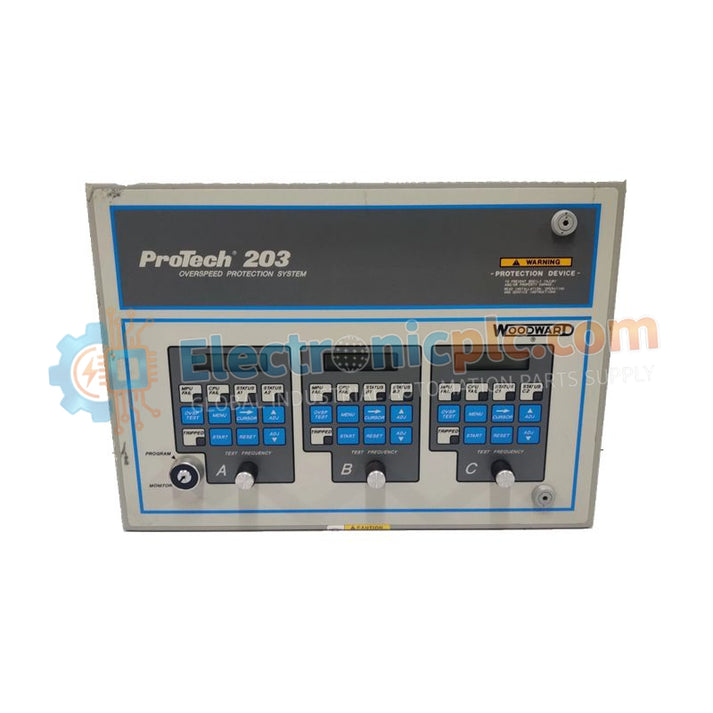

The 9907-147 is a safety protection module from Woodward Inc.’s ProTech 203 safety system. It is designed for overspeed protection of turbines, engines, and other rotating machinery.

The module continuously monitors magnetic pickup (MPU) speed signals and triggers emergency shutdown actions when overspeed or abnormal speed conditions are detected. Operating independently from the main governor control, it provides an additional layer of safety protection for high-inertia rotating equipment.

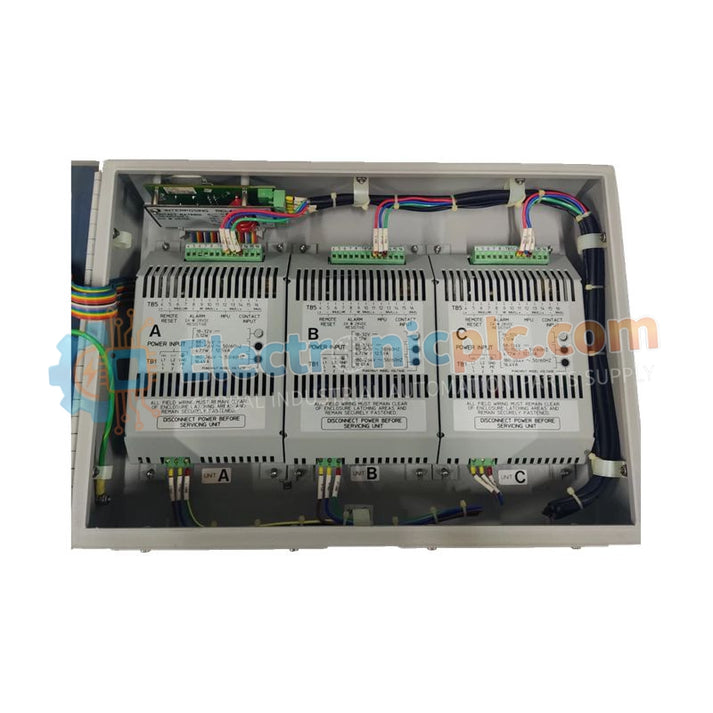

The ProTech 203 architecture supports triple-redundant logic configurations, enabling rapid protection response times typically under 40 ms, which is critical for preventing mechanical failure during sudden load rejection events.

Technical Specifications

Machinery Protection Features

• 2oo3 voting safety architecture support

• MPU signal monitoring with noise filtering

• Loss-of-speed detection with configurable alarm or trip action

• Direct interface to emergency trip valves and fuel shutoff systems

FAQ

Can it work with any magnetic pickup?
Yes, most MPU sensors are supported if they provide at least 1.0 Vrms at minimum monitored speed.

What happens if speed signal is lost?
The module can be configured to alarm or initiate a trip depending on plant safety requirements.
