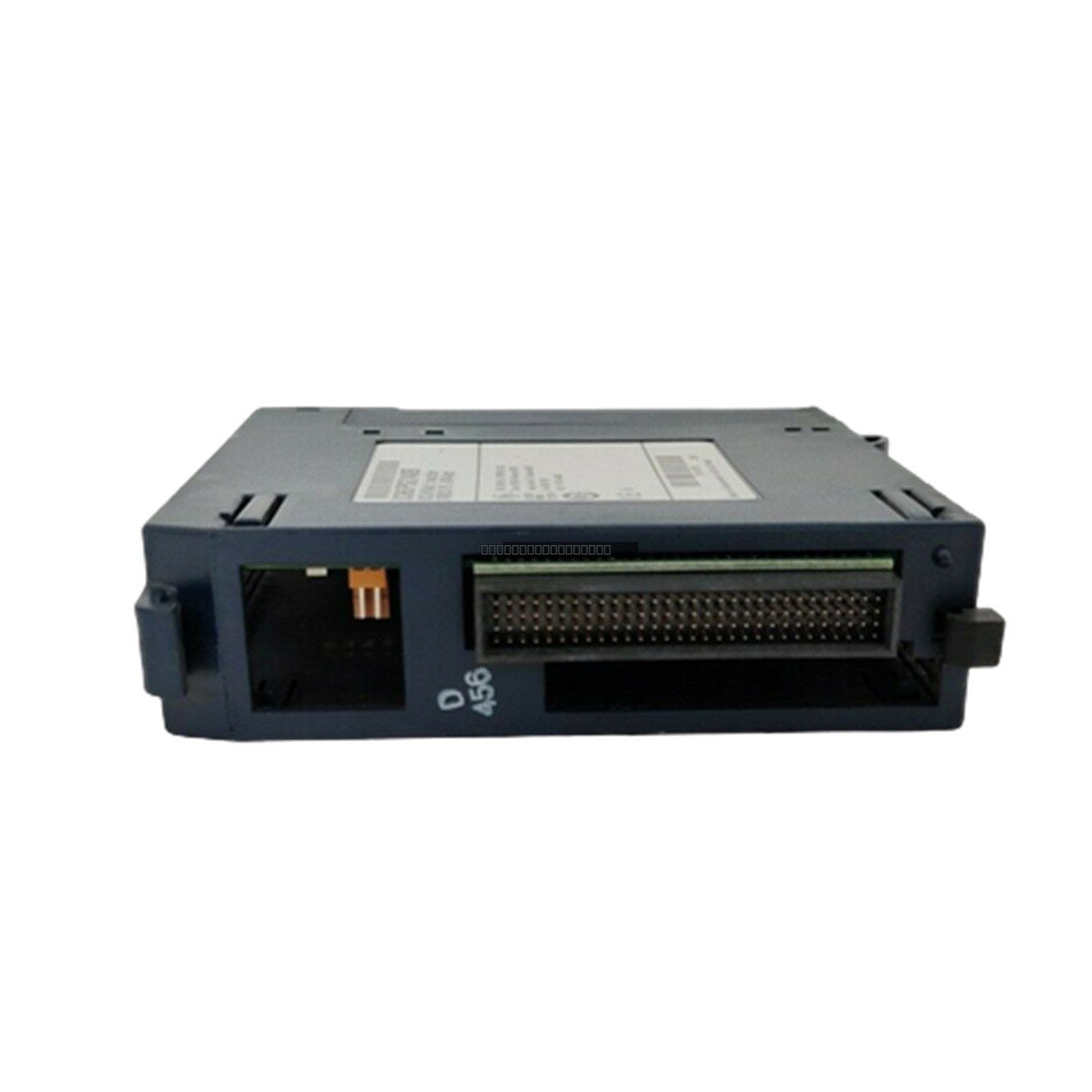

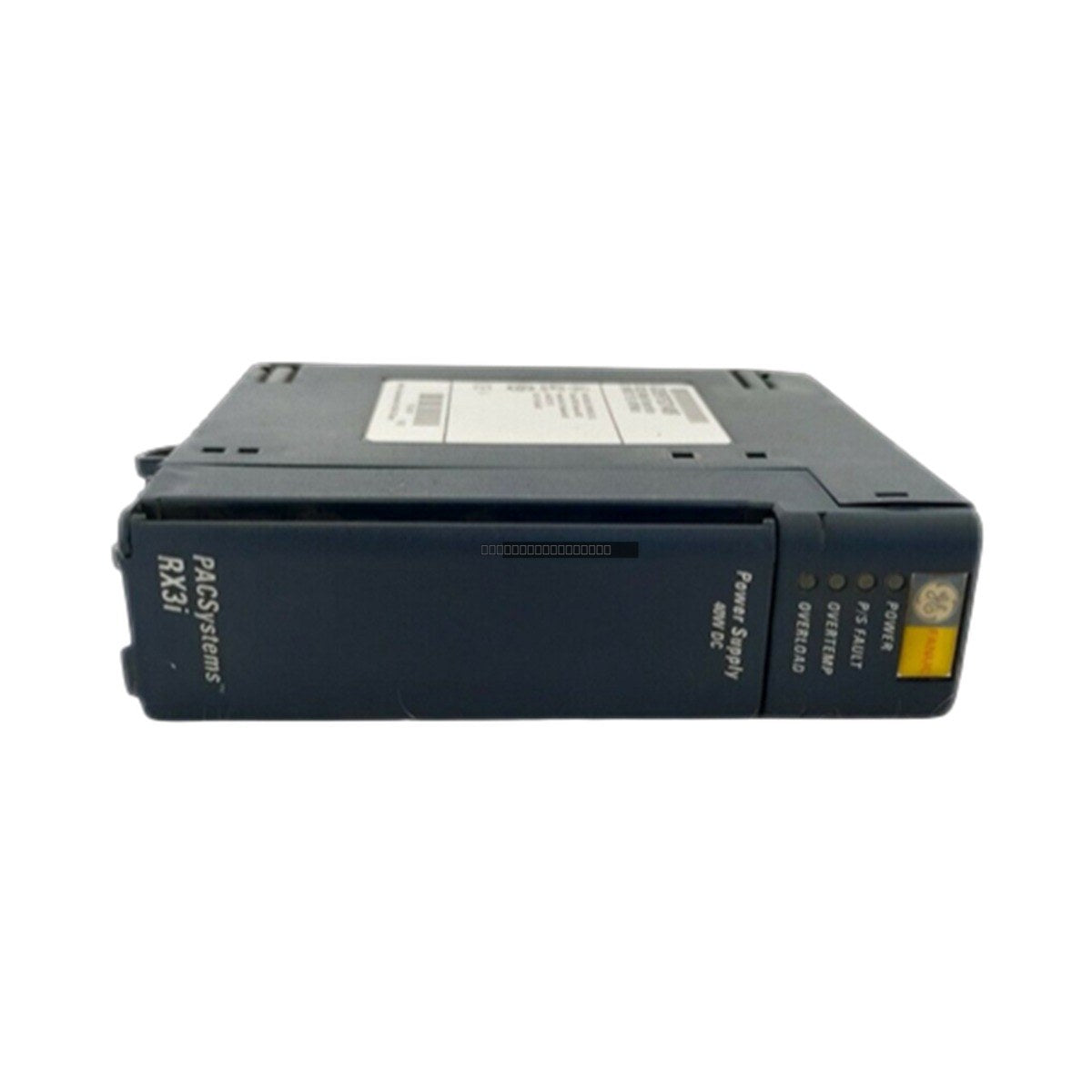

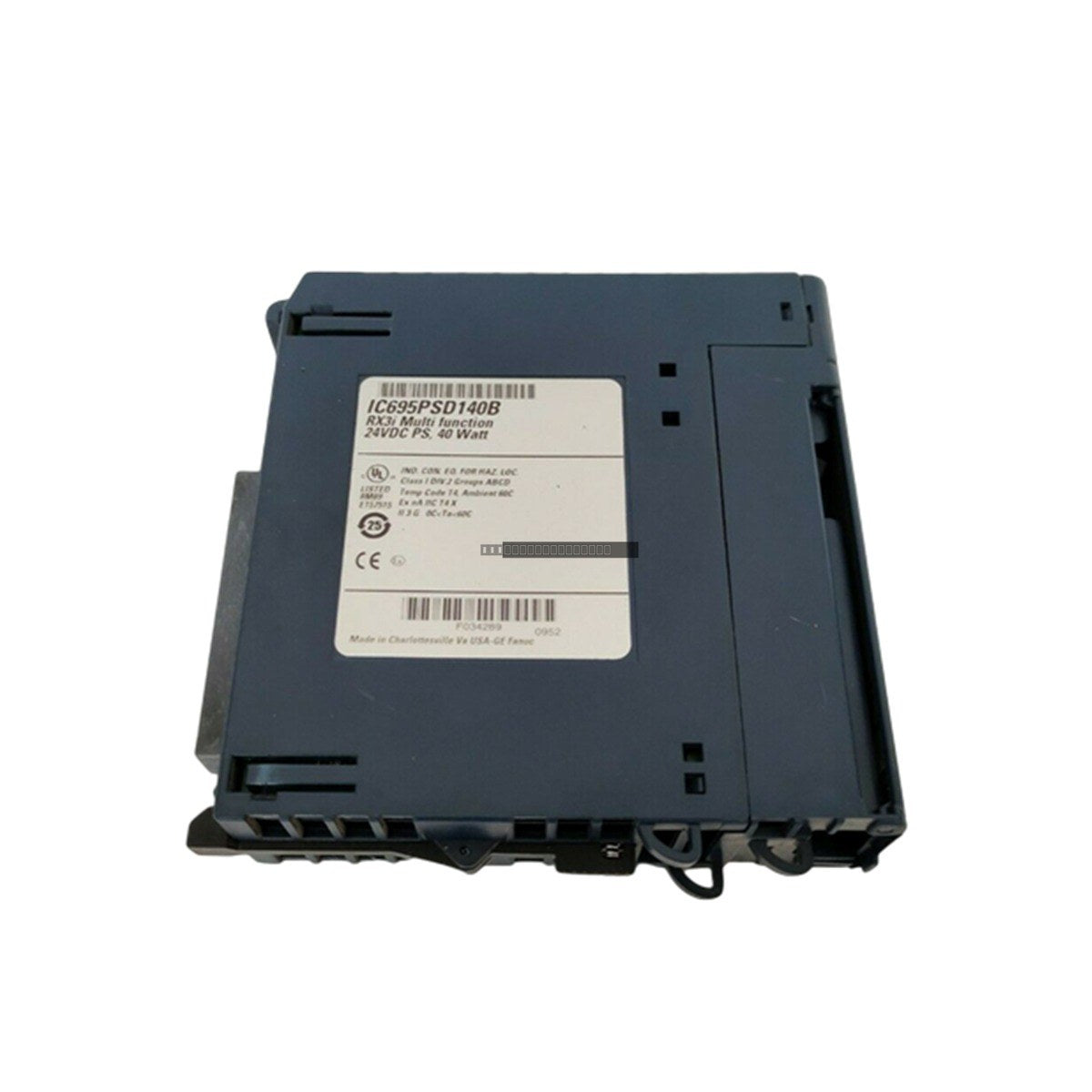

General Electric IC695PSD140 PACSystems RX3i Power Supply Module

General Electric IC695PSD140 PACSystems RX3i Power Supply Module

The General Electric IC695PSD140 is a high-performance, multi-function power supply module designed specifically for the PACSystems RX3i controller platform. This module provides reliable power distribution within the RX3i rack, ensuring...

27 people are viewing this right now

Availability: Low stock: 8 left

SKU: IC695PSD140
Vendor: General Electric
Category: Power Supply Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The General Electric IC695PSD140 is a high-performance, multi-function power supply module designed specifically for the PACSystems RX3i controller platform. This module provides reliable power distribution within the RX3i rack, ensuring stable operation for critical automation and control applications.

Features

  • Designed for seamless integration with the RX3i backplane.
  • Provides 40 Watts of output power to support various system configurations.
  • Engineered for high efficiency and stable voltage regulation.
  • Robust design suitable for demanding industrial environments.
  • Integrated diagnostic and status monitoring capabilities.

Applications

This power supply module is intended for use in industrial control systems utilizing the GE PACSystems RX3i architecture. It is commonly deployed in manufacturing automation, power generation, and process control systems where consistent 24 VDC power is required for rack-mounted modules.

Technical Specifications

Product Model IC695PSD140
Manufacturer General Electric
Power Output 40 Watts
Nominal Input Voltage 120/240 VAC or 125 VDC
Input Voltage Range (DC) 18 to 30 VDC
Input Power 60 Watts max at full load
Output Current 5.1 VDC
Ripple and Noise 150 mV

Installation Guidelines

  • Ensure the power is disconnected before installing or removing the module from the RX3i rack.
  • Verify that the rack slot is clean and free of debris before seating the module.
  • Ensure proper ventilation around the rack to maintain operating temperatures within the manufacturer's specified range.
  • Use appropriate shielded cabling for input connections to minimize electromagnetic interference (EMI).
  • Tighten all terminal connections securely to prevent intermittent power loss or arcing.
  • Adhere to all local electrical codes and safety standards during installation.

FAQ

What is the primary function of the IC695PSD140?
The IC695PSD140 is a dedicated power supply module for the GE PACSystems RX3i system, converting input power into the necessary voltages to drive the backplane and connected modules.

What is the maximum power output of this unit?
This module is rated for a maximum output of 40 Watts.

Can this module be used in any RX3i rack?
Yes, it is designed for the RX3i series; however, always verify system power budget requirements before installation to ensure the 40W capacity is sufficient for your specific module configuration.
